Description

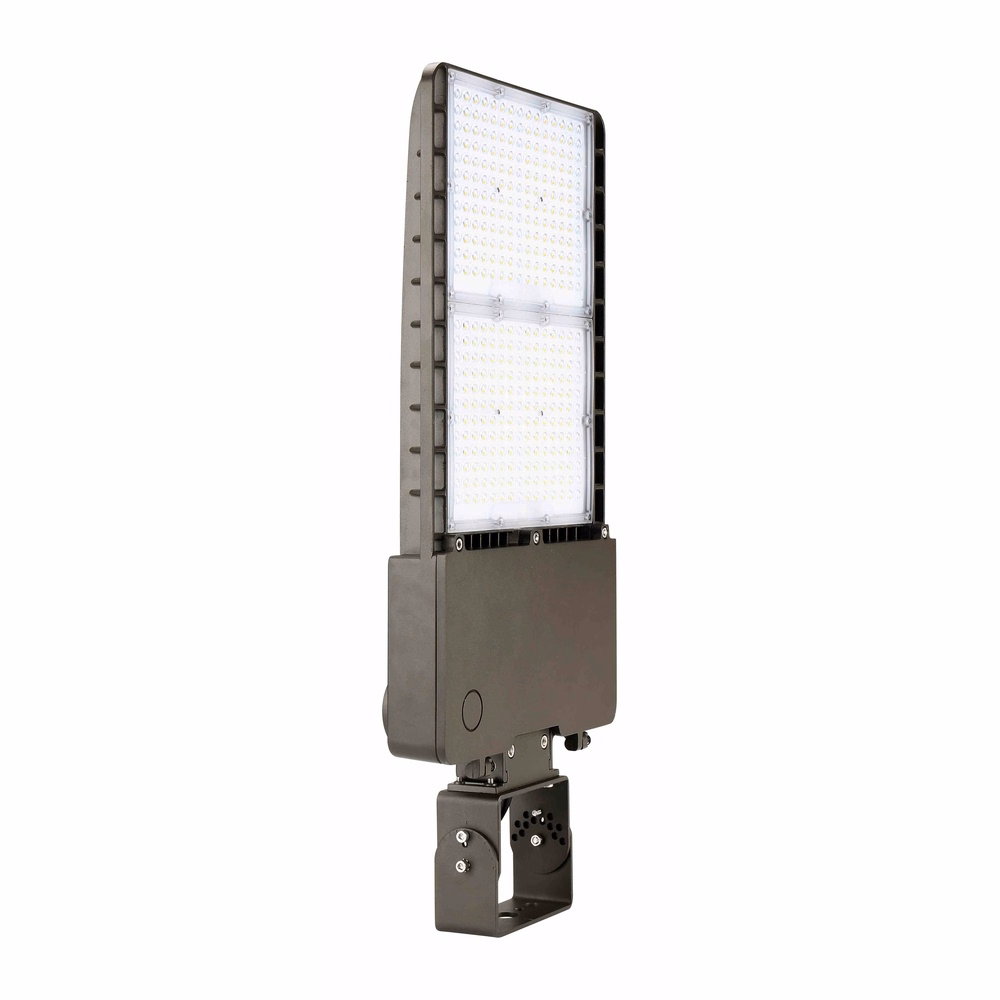

The MAL05 300W LED Area Light is a rugged, die-cast aluminum area/site fixture built to replace up to a 1000W metal halide light while cutting energy use dramatically. Its low-profile, 3G vibration-rated housing is fully sealed against moisture and contaminants, and precisely engineered Type III optics direct light forward and evenly to both sides of the pole — ideal for parking lots, roadways, and large-site perimeter lighting. CCT, mounting style, and light distribution type can all be configured by the manufacturer at order time beyond what’s shown in this stocked batch — see Product Attributes below. With a 100,000-hour estimated LED lifespan and a 5-year warranty, it’s built for long-term, low-maintenance outdoor service.

• Rugged one-piece die-cast aluminum housing; fully sealed against moisture and environmental contaminants
• Low-profile, 3G vibration-rated compact design minimizes wind load
• Type III, IV, and V distributions available
• 4000K and 5000K CCT options (70 CRI)
• Up to 42,000 lumens at 300W (up to 140 lm/W) for Type III, both CCTs
• Universal 120-277V AC or 347-480V AC input voltage
• Standard 0-10V dimming driver, 10% to 100% dimming range
• Wattage selectable (factory option): 100% / 80% / 60% / 40%
• THD ≤20%; Power Factor ≥90%
• Optional occupancy, microwave, or daylight sensor; optional Bluetooth sensor or controller; Silvair or Sharkward Luminaire Level Lighting Control (LLLC) optional; compatible with third-party smart network controls
• Optional NEMA 3-pin or 7-pin photocell
• Ambient operating temperature: -40°C to 40°C (-40°F to 104°F)
• Suitable for mounting heights of 26-50 feet

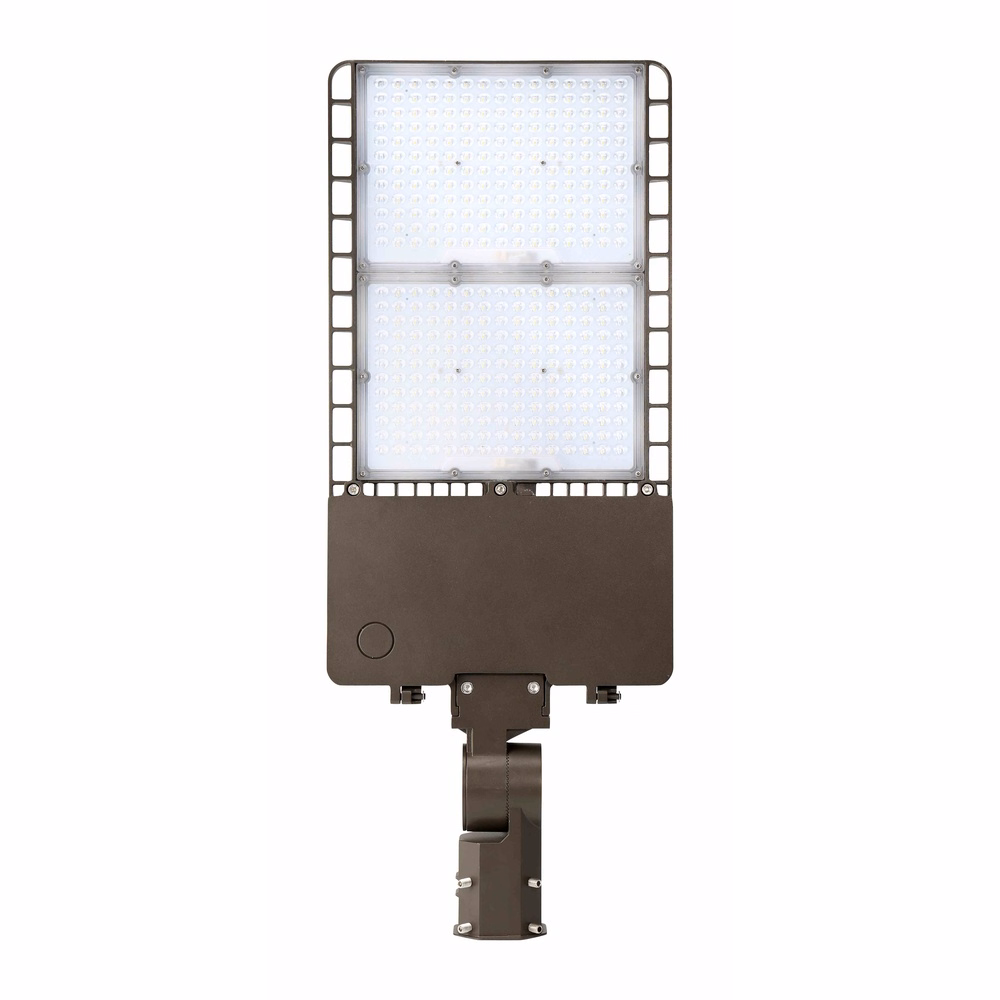

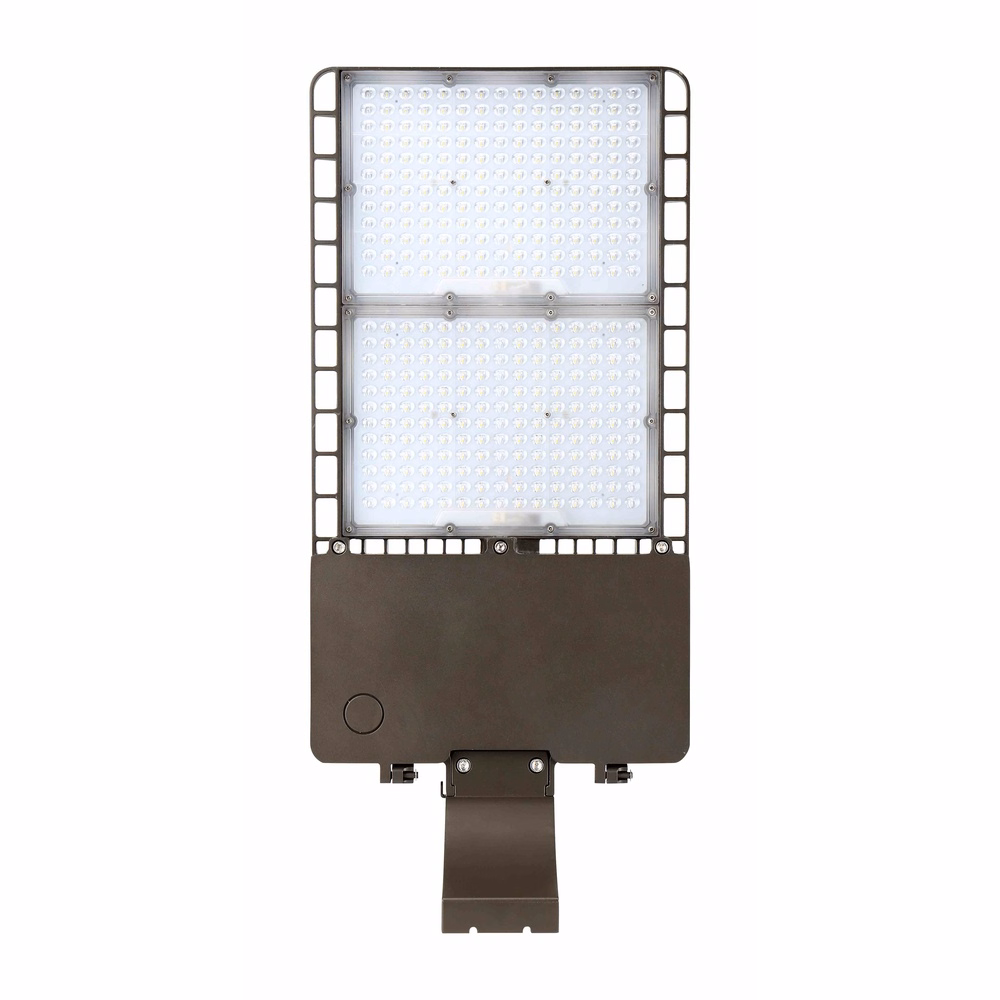

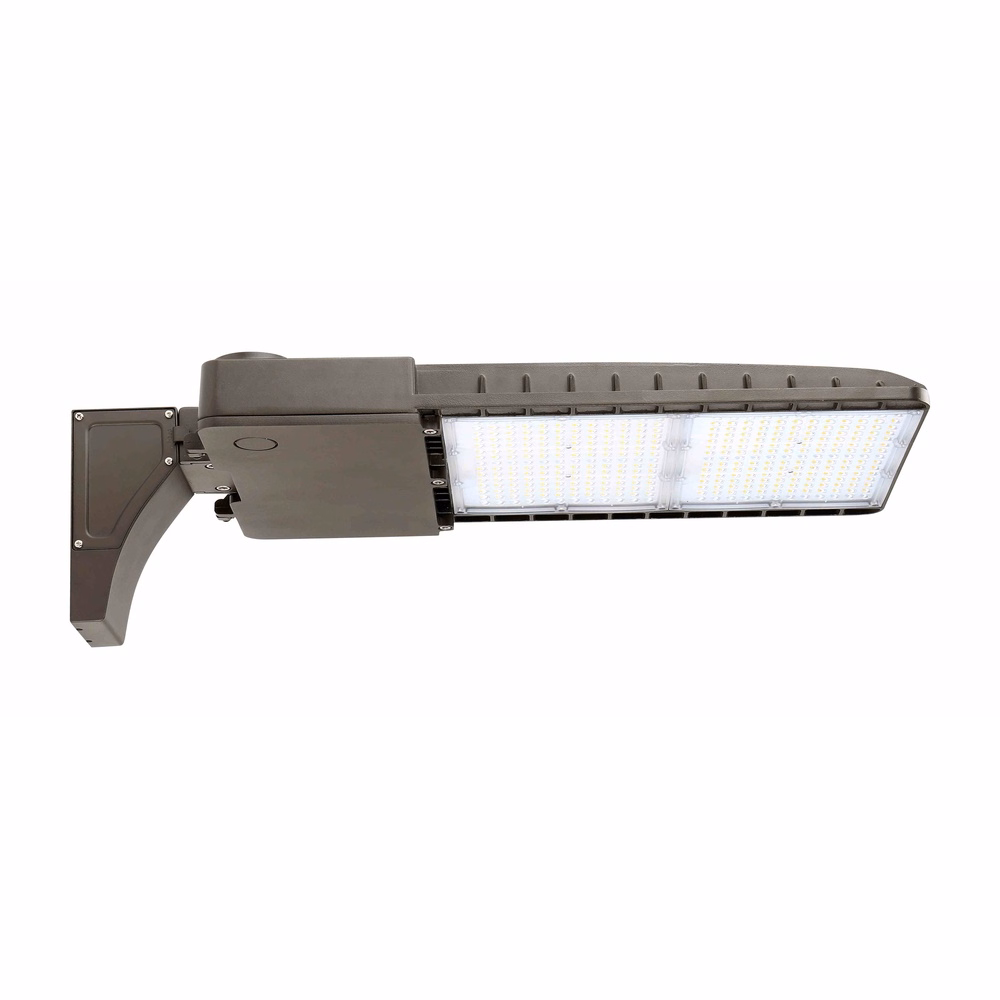

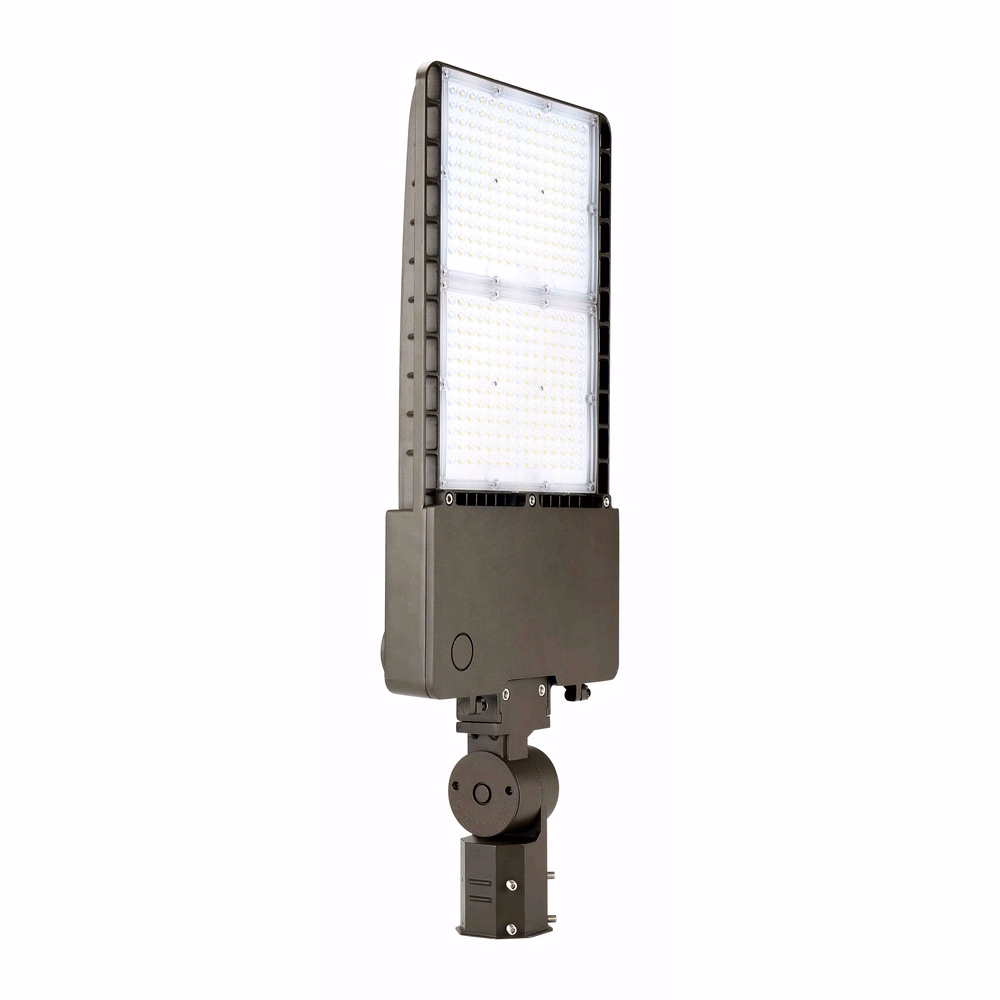

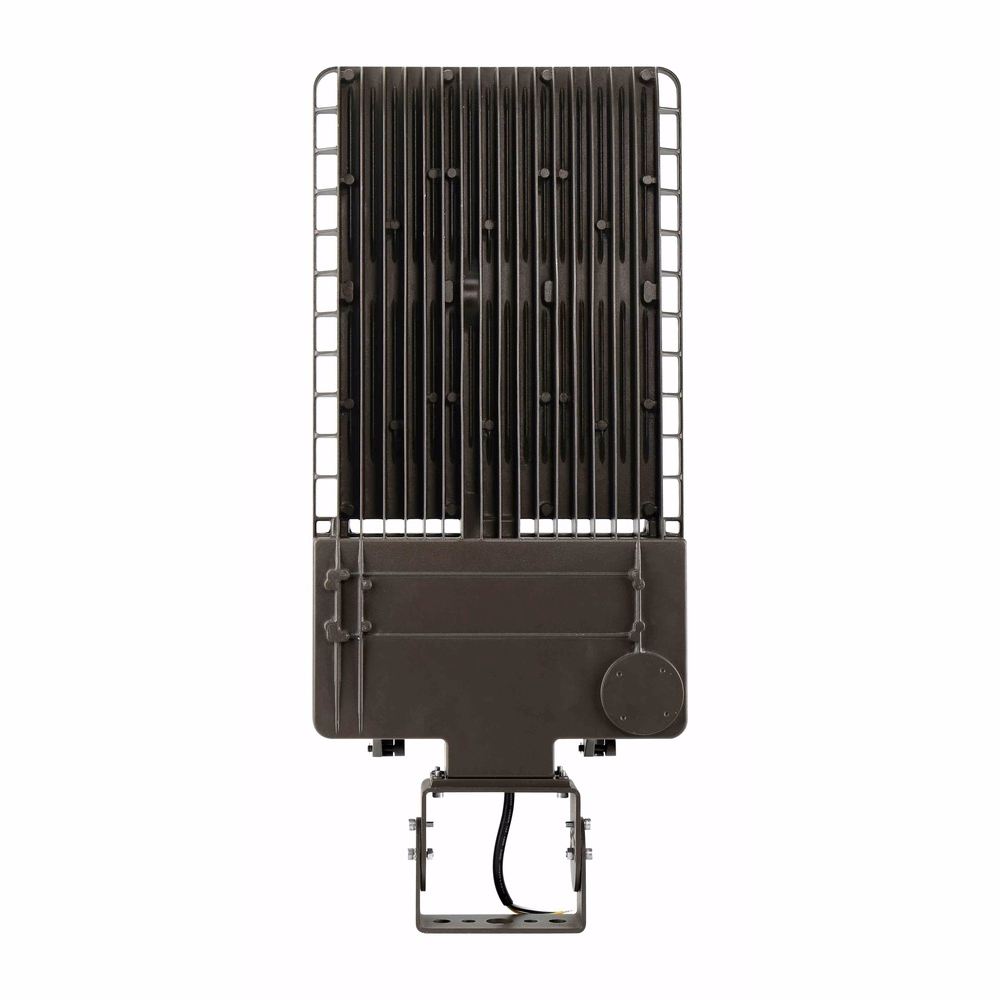

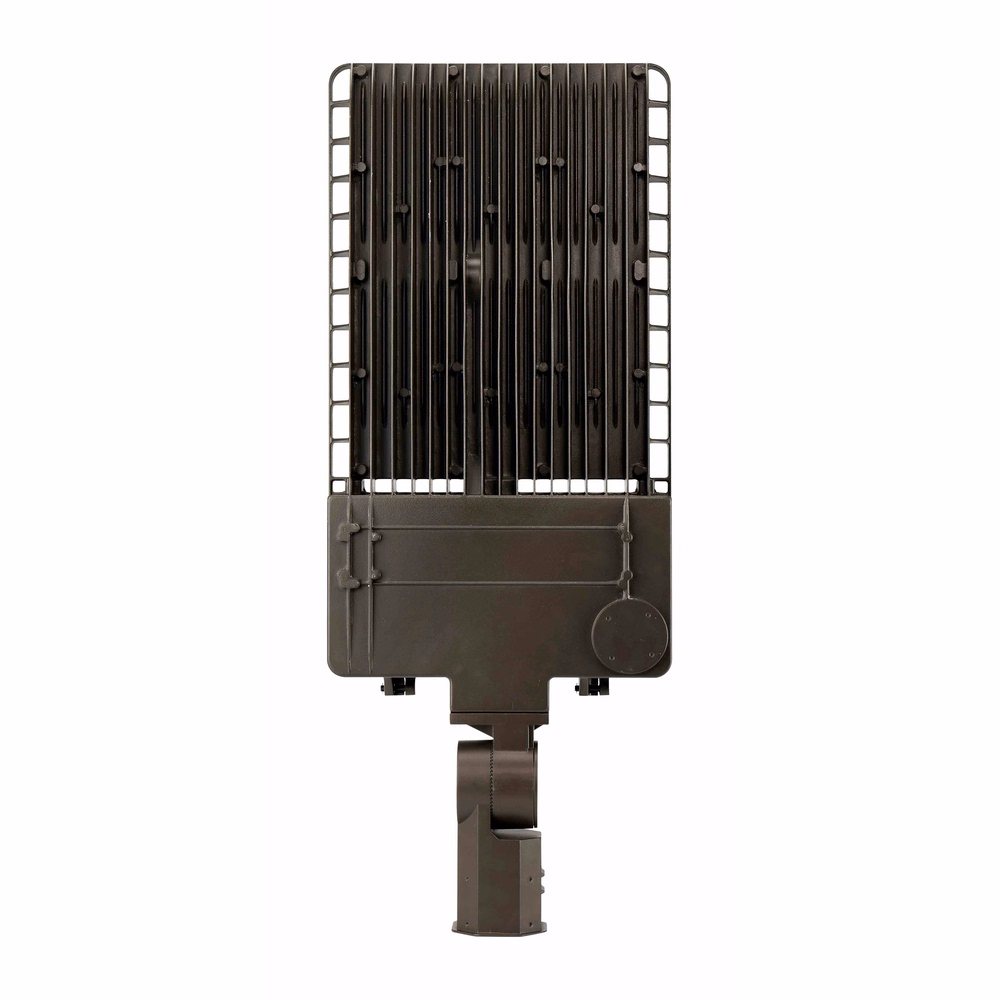

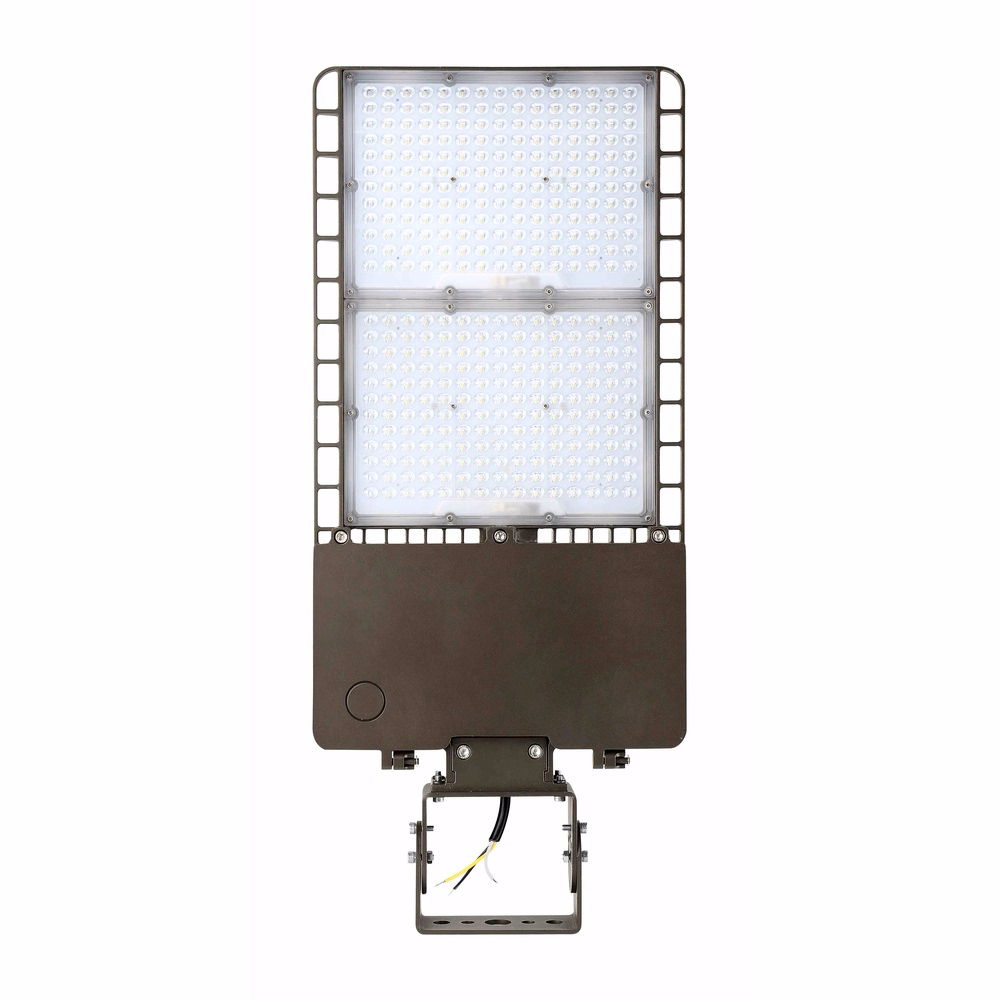

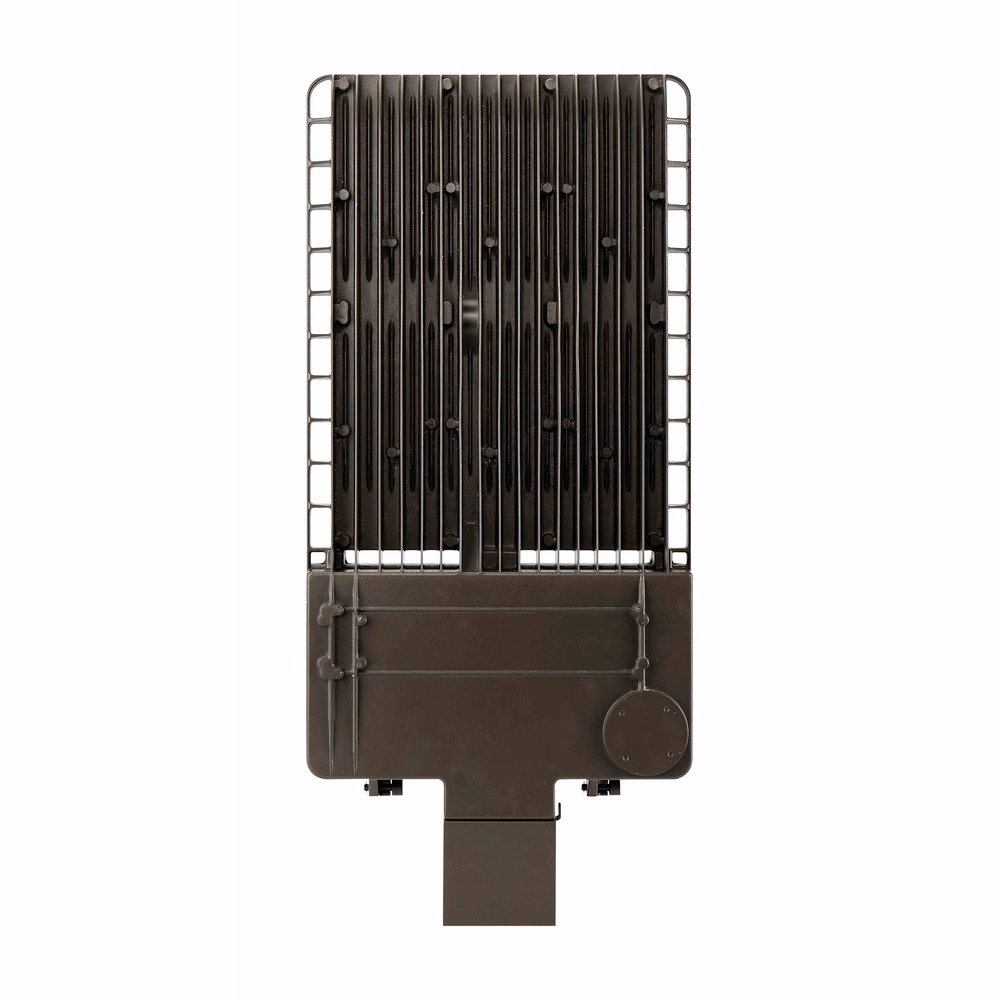

• Round pole, square pole, slipfitter, wall mount, and yoke mounting styles available
• Optional field-installed house-side shield for spill light control; optics can conform to dark sky requirements
• Optional external glare shield accessory, sold separately
• Available in Black, Dark Bronze, Silver Gray, or White
• Estimated 100,000-hour LED lifespan (IES LM-80 / TM-21)
• DesignLights Consortium (DLC) Qualified, classified for DLC Premium (all lumen packages)
• UL, cUL Wet Location Listed
• 5-year limited warranty

Applications

Auto dealerships, parking lots, walkways, roadways, campuses, facade lighting, grocery stores, and other public outdoor areas.
