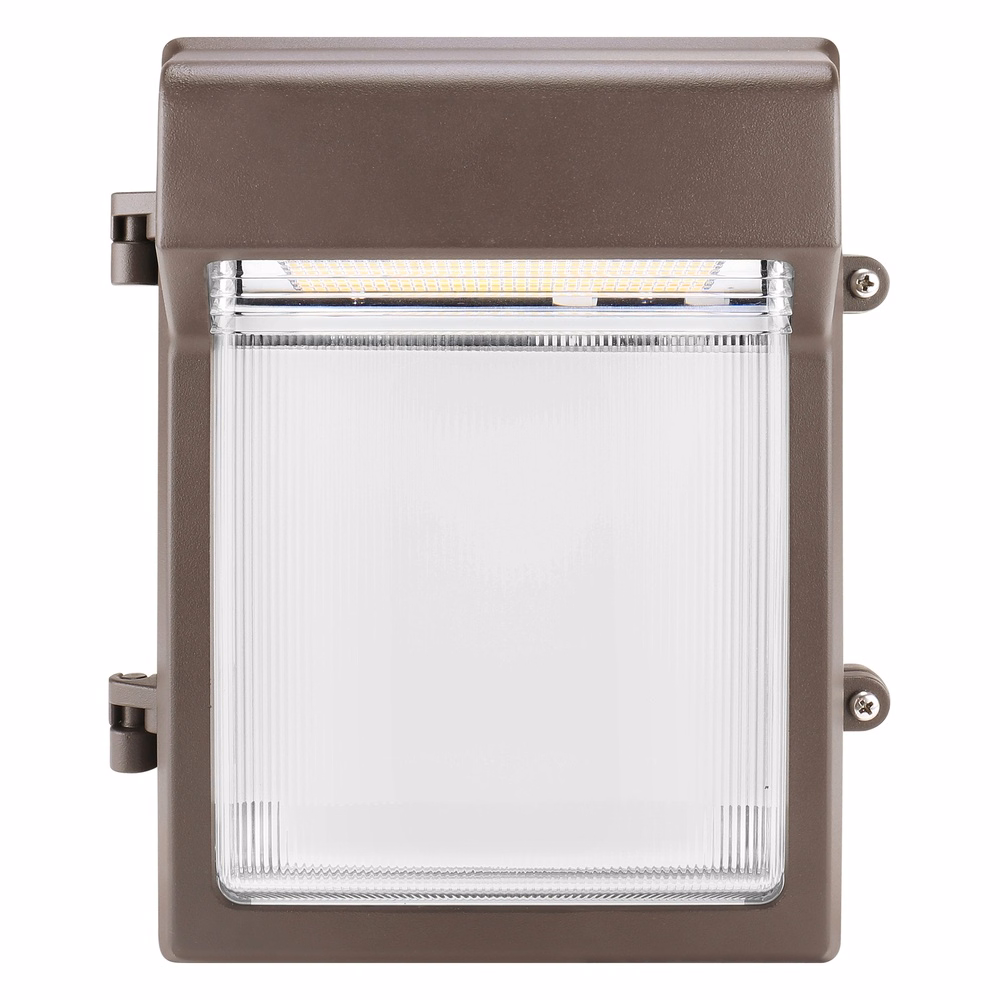

The MWP16 is a 40W LED wall pack with an ultra-thin, low-profile design that meets traditional wall pack dimensions while covering the unsightly stains typical metal halide wall packs leave behind. This 40W unit ships with the clear polycarbonate diffuser lens, whose professional prismatic design controls light distribution and guarantees uniformity. A rugged cast-aluminum housing thermally conducts LED heat for long life, and the fully sealed construction protects against moisture and environmental contaminants outdoors. On-site DIP switches let you adjust both color temperature and output wattage after installation, so one fixture covers a range of jobsite needs without stocking multiple SKUs.
Exterior wall-mounted general and security lighting for building entrances, loading docks, perimeter walls, and other commercial or industrial applications needing a low-profile, weather-sealed wall pack with field-adjustable output and color temperature.
| Attribute | Value |
|---|---|
| Brand | ONE SOURCE LIGHT |
| Product Type | LED Wall Pack, Selectable CCT & Wattage, Clear Diffuser |
| Size | Small (40W housing size) |
| Nominal Wattage | 40W (field-selectable down to 32W/27W/16W) |
| Voltage | Universal 120-277VAC |
| Color Temperature | Field-selectable: 3000K / 4000K / 5000K |
| CRI | 80 CRI |
| Lens / Diffuser | Clear UV-stabilized polycarbonate diffuser (prismatic) |
| Dimming | 0-10V dimming, 10%-100% dimming range |
| Power Quality | PF > 90%; THD < 15% |

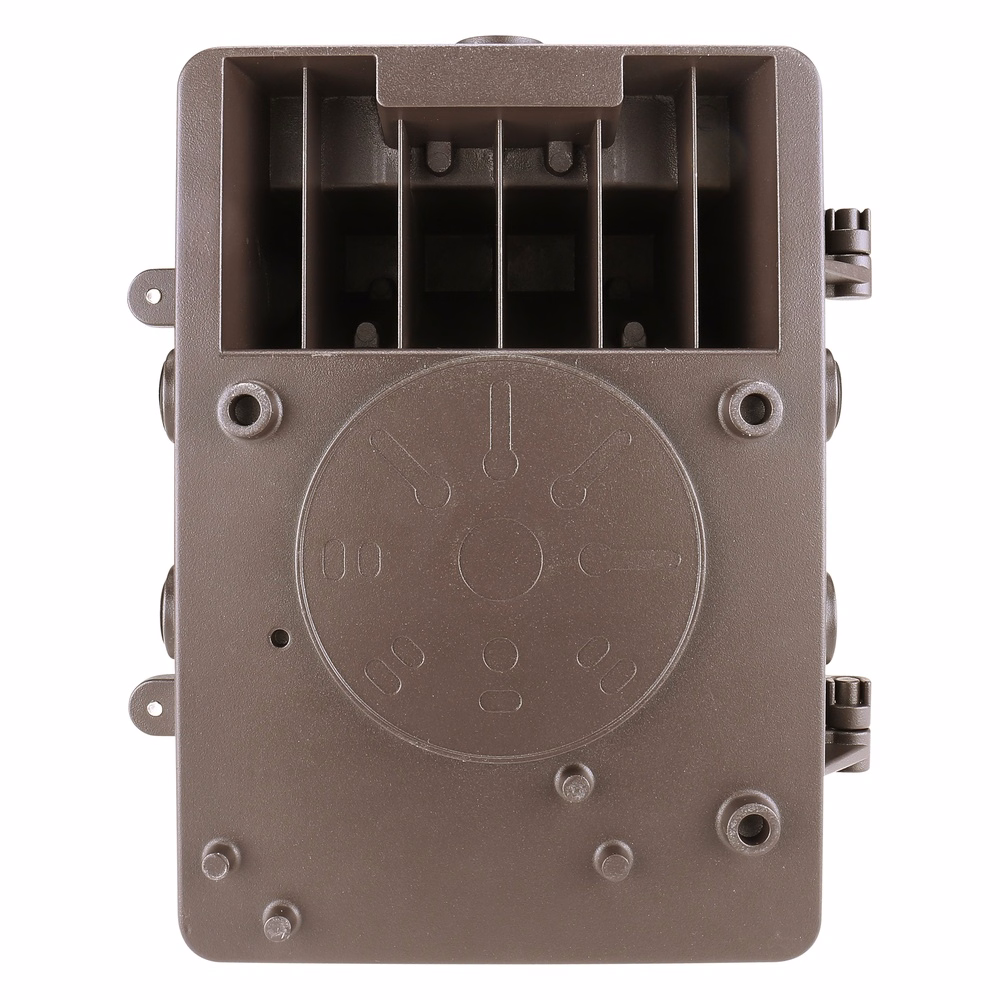

| Material / Construction | Cast-aluminum housing, bronze polyester powder paint; fully sealed |
| Dimensions | 223mm (8.78in) top width × 191mm (7.5in) bottom width × 267mm (10.5in) height × 114mm (4.5in) depth |
| Net Weight | 4.12 lb (with clear/plastic diffuser) |
| Controls | Built-in photocell (enable/disable via internal DIP switch); on-site CCT and wattage adjustment via internal switch block; optional emergency battery backup |
| Lifespan | Estimated 50,000 hours (IES LM-80 / TM-21) |
| Environment Rating | Operating temperature -40°C to 40°C (-40°F to 104°F); with emergency battery installed: 10°C to 40°C (50°F to 104°F); UL/cUL Wet Location Listed |
| Certifications / Listings | UL/cUL Wet Location Listed; DesignLights Consortium (DLC) Premium Qualified, all lumen packages |
| Warranty | 5 year limited |
| Setting | System Watts | 3000K | 4000K | 5000K |
|---|---|---|---|---|
| Level 1 | 40W | 5400lm (135 lm/W) | 5800lm (145 lm/W) | 5500lm (138 lm/W) |
| Level 2 | 32W | 4500lm (141 lm/W) | 4800lm (150 lm/W) | 4600lm (144 lm/W) |
| Level 3 | 27W | 3900lm (144 lm/W) | 4200lm (156 lm/W) | 4000lm (148 lm/W) |
| Level 4 | 16W | 2400lm (150 lm/W) | 2600lm (163 lm/W) | 2500lm (156 lm/W) |
All 12 combinations (4 wattage levels × 3 CCTs) are field-selectable on the same fixture via the internal DIP switches — all values are design/typical, measured at 25°C (±5°C) per the manufacturer’s data; actual performance may vary by installation. Driver: 1 driver, 680mA. Input current at 40W: 0.33A (120V) / 0.19A (208V) / 0.17A (240V) / 0.14A (277V).
| Catalog Number | Nominal Wattage | CCT | Lens |
|---|---|---|---|
| MWP16-40-27V-DDK-D-AD-C | 40W (field-selectable to 32W/27W/16W) | Field-selectable (3000K/4000K/5000K) | Clear Polycarbonate Diffuser |
| Accessory | Description |
|---|---|
| Emergency Battery Backup | 5W output, 600 lumens, 90-minute emergency runtime; sized for this 40W unit |
