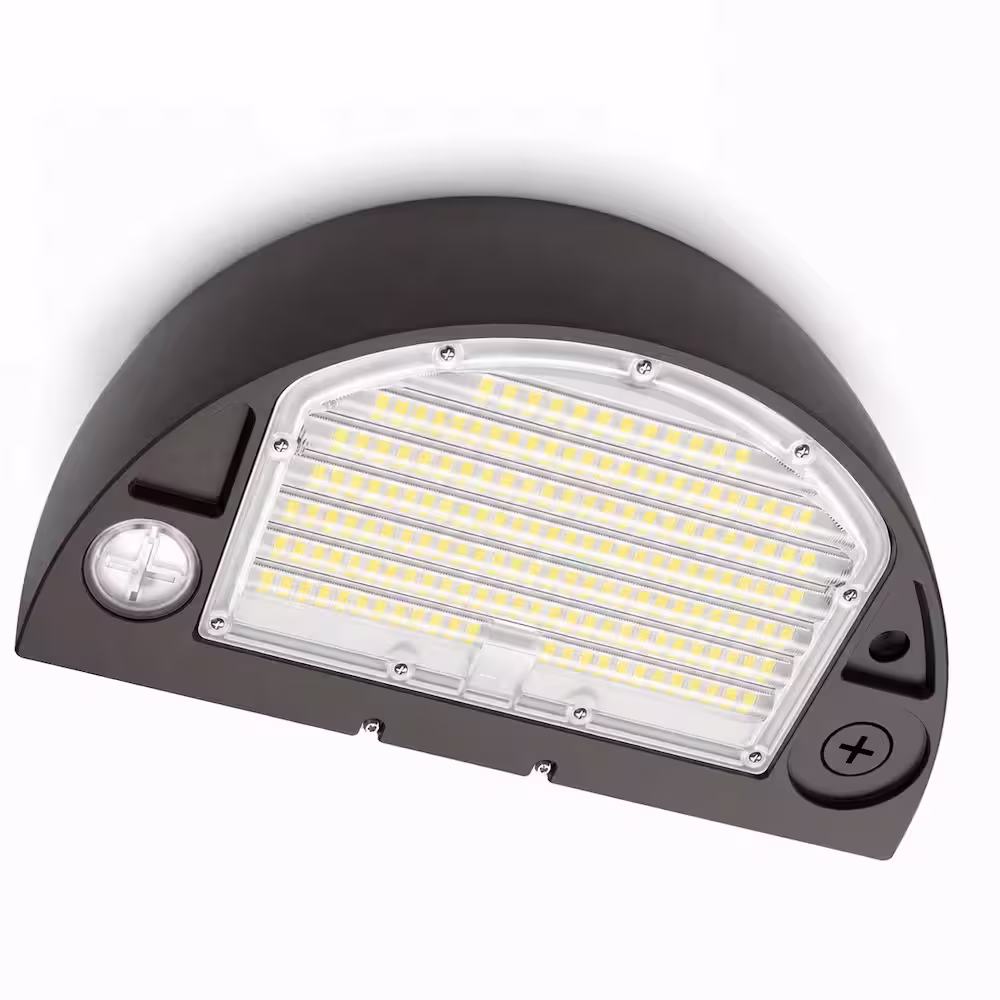

Quartersphere LED Architectural Wall Pack

Products

Quartersphere-shape LED Architectural Wall Pack ideal for pathways, hospitality, walkways, hallways, and outdoor commercial/residential applications
Wattage field-selectable: 120W / 100W / 90W / 60W (4 wattage options via DIP switch)
Color temperature field-selectable: 4000K / 5000K / 5700K (3CCT options via DIP switch)
Maximum lumen output: up to 18,000 LM (at 120W, 150 lm/W efficacy)
High efficacy up to 150 lm/W for energy savings
100% Down Lighting Selectable via DIP switch (CCT, wattage, photocell ON/OFF)
Automated Dusk-to-Dawn (D2D) photocell automatically turns light off at sunrise/daytime and on at sunset/night, with ON/OFF override selectable
CRI > 80 standard for accurate color rendering
Type III beam distribution
0-10V dimming compatible
Input voltage: AC120-277V
ADC12 die-cast aluminum housing for excellent heat dissipation and durability
Polycarbonate lens; Waterproof rated IP65 for reliable outdoor performance
Surge protection: L/N 6KV, L/N-P 6KV; L-N/L&N-PE: 4+6KV (120-277V, 40W)
Power Factor ≥0.90; THD <20%
Optional microwave motion sensor and emergency driver available
Standard bronze finish

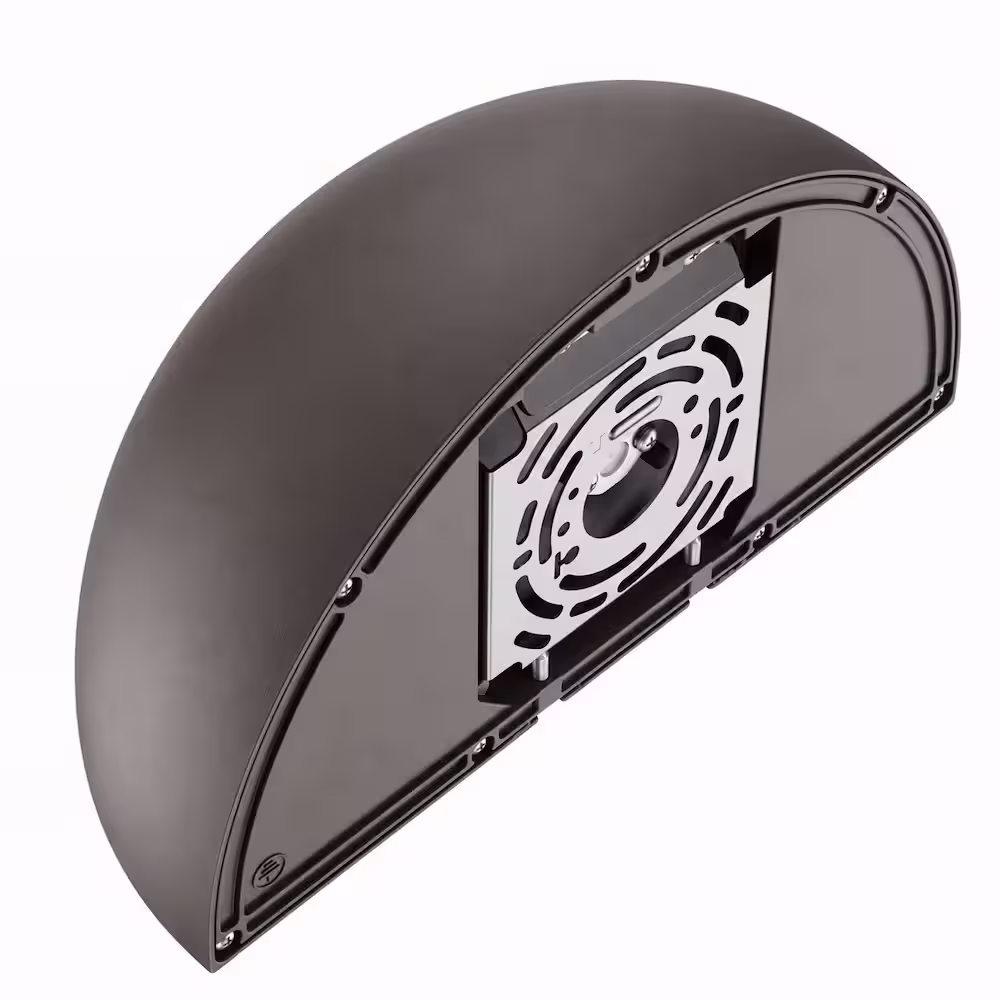

Wall mount installation with included mounting plate
Operating temperature: -40°F to 122°F (-40°C to +50°C)
Rated lifetime: L70 @ 50,000 hours
UL Certified, DLC Premium Listed

Brand	One Source Light
Model	SU-WP-120W-30/40/50K-G4
UPC
Product Type	LED Architectural Wall Pack – Quartersphere
Size	13 inches
Wattage (Field Selectable)	120W / 100W / 90W / 60W Adjustable
Color Temperature (CCT)	4000K / 5000K / 5700K (3 Options – Field Selectable)
Maximum Wattage	120W
Maximum Lumens	Up to 18,000 LM (at 120W)
Efficacy (LM/W)	150 LM/W
CRI (Color Rendering Index)	> 80 (subject to CRI>80 @4000K)
Lighting Direction	Down Lighting Selectable
Beam Angle / Distribution	Type III
Input Voltage	AC120-277V
Dimmable	Yes (0-10V)
Photocell	Dusk-to-Dawn (D2D) automatic ON/OFF, field selectable, factory default ON
Surge Protection	L/N 6KV, L/N-P 6KV \| L-N/L&N-PE: 4+6KV (120-277V, 40W)
Power Factor	≥ 0.90
THD	< 20%
LED Type	SMD2835
Frequency	50/60Hz
Operating Temperature	-40°F to 122°F (-40°C to +50°C)
Lifetime	L70 @ 50,000 Hrs
IP Rating	IP65 (Waterproof)
Housing Material	Die-cast aluminum (ADC12)
Lens	Polycarbonate
Finish	Bronze (Standard)
Product Size	13.0 × 6.5 × 6.7 in (330.0 × 165.0 × 169.4 mm)
Net Weight	2.33 kg / pc
Carton Size	13.6 × 7.9 × 7.8 in (345 × 201 × 198 mm)
Gross Weight (Carton)	2.83 kg
Qty/Carton	1 PC
Mounting	Wall Mount (mounting plate included)
Optional Accessories	Microwave Motion Sensor \| Emergency Driver
Factory Default Settings	Photocell ON \| Lighting Direction: Full \| Max Wattage \| Highest CCT
Certifications	UL Certified \| DLC Premium Listed
Application Areas	Pathways \| Hospitality \| Walkways \| Hallways \| Outdoor Commercial \| Outdoor Residential
