High Efficiency LED Area Light up to 80,000 Lumens

Products

Wattage & Lumen

CCT

Distribution Type

Mounting

AC Voltage

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

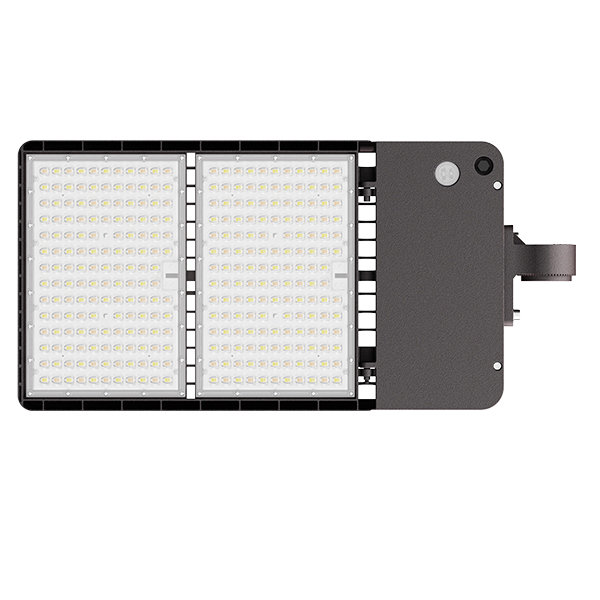

LED Area Light

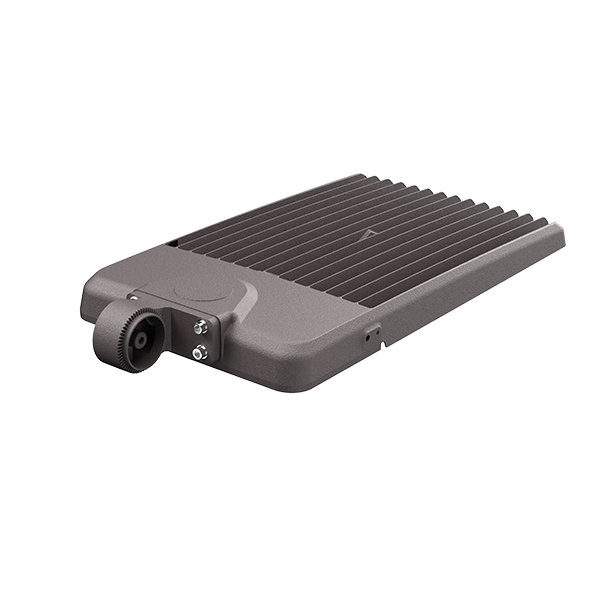

Die-cast aluminum housing
Polycarbonate lens
High efficacy up to 170 lm/W, 500W up to 160 lm/W
AC120-277V and AC277-480V input options
0-10V dimming
Surge Protection: L/N-P 6KV for 150W, 10KV surge protection for 300W & 500W
CCT & wattage selectable
Light distribution: Type III (T3), Type IV (T4) or Type V (T5)
IP65 rated
Applications: parking lots, roadways, outdoor applications

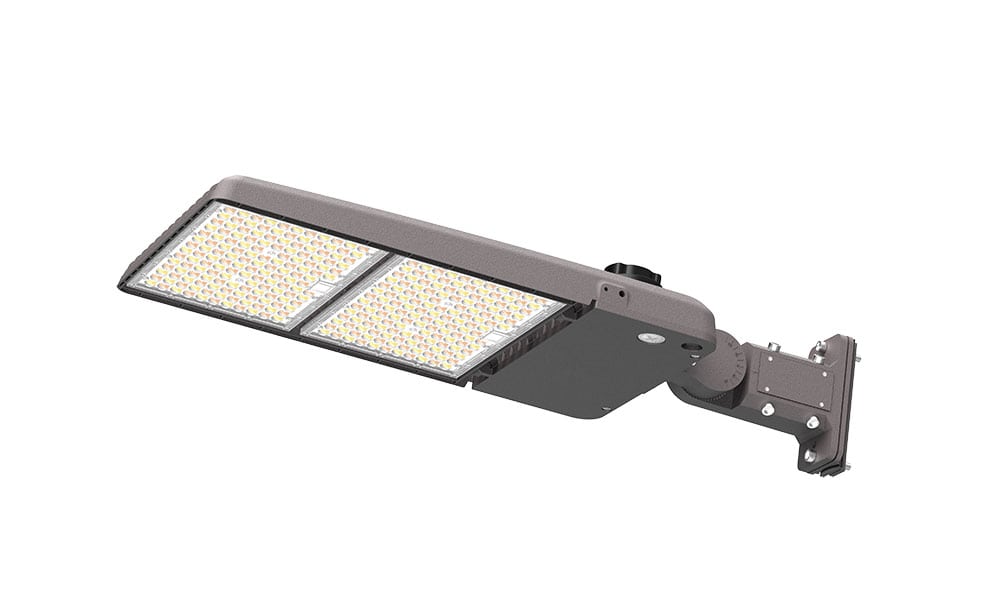

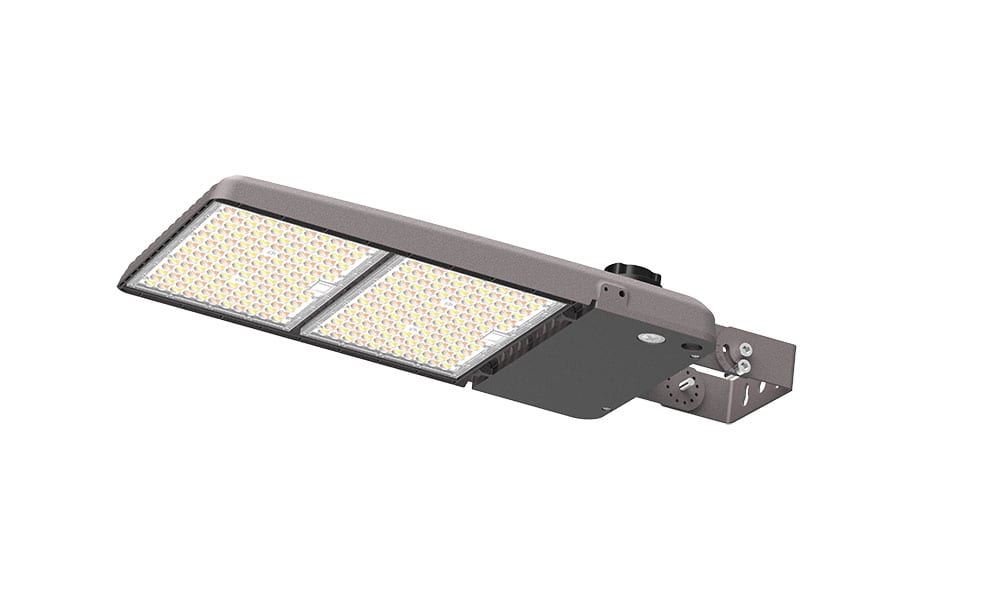

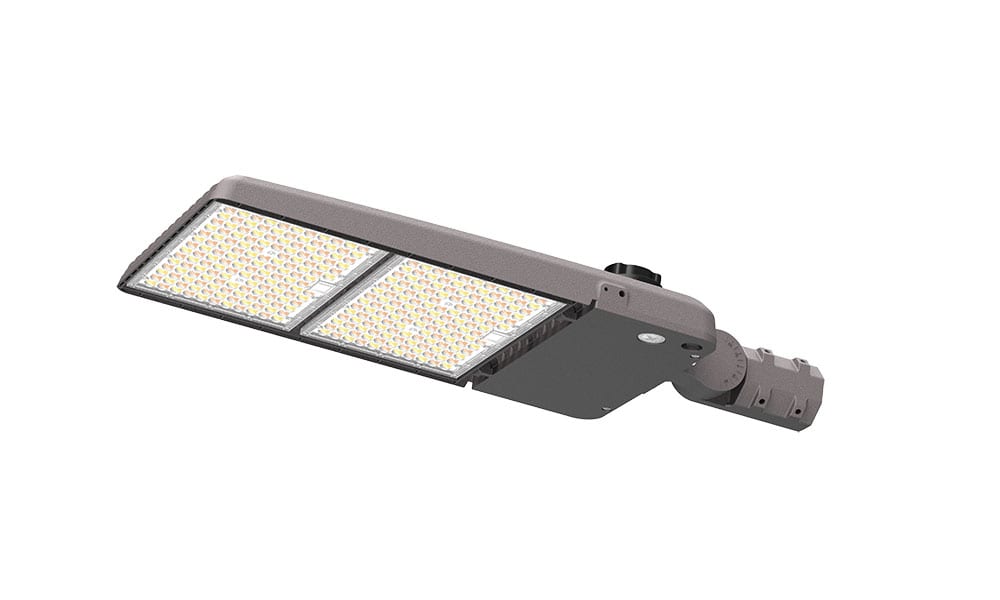

3 kinds of mounting brackets available: Slip Fitter (SF), Direct Pole Mount (DI), Trunnion Mount (TR)

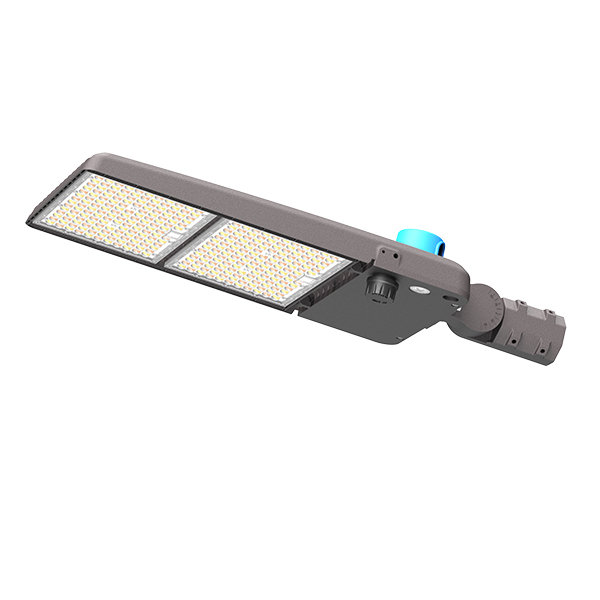

Plug-in and Zhaga socket microwave motion sensor optional
Photocell dusk to dawn function optional
3000K / 4000K / 5000K tunable
CRI: >80
Operating temperature: -40°C to 50°C
Certification: UL, DLC Premium
5 year limited warranty
100W / 120W / 150W wattage adjustable, max. 25,500 lumens
200W / 240W / 300W wattage adjustable, max. 51,000 lumens
300W / 350W / 400W / 450W / 500W wattage adjustable, max. 80,000 lumens
Accessories sold separately: Photocell, Shorting Cap, Slip Fitter, Direct Pole Mount, Trunnion Mount

Brand / Series	AR09 Series – LED Area Light
MPN (Part No.)	J-AR09-500W-L-PCX-3CCT-T3
Lighting Technology	LED
Housing	Die-cast Aluminum
Lens	Polycarbonate (T3 Type III distribution)
Wattage (Selectable)	500W config: 300 / 350 / 400 / 450 / 500W
Max Lumens	80,000 lm (500W)
Efficacy	Up to 160 lm/W (500W)
CCT	3000K / 4000K / 5000K – Field Selectable
CRI	>80
Dimming	0-10V
Input Voltage	AC 120–277V
Surge Protection	10kV
Light Distribution	Type III (T3)
IP Rating	IP65
Operating Temp	-40°C to +50°C
Mounting Types	SF – Slip Fitter \| DI – Direct Mount \| TR – Trunnion Mount
Motion Sensor	Plug-in or Zhaga socket microwave motion sensor (factory option)
Photocell	Dusk-to-dawn photocell (factory option)
Certifications	UL Listed \| DLC Premium
Applications	Parking Lots, Roadways, Outdoor Area Lighting
Warranty	5-Year Limited

500W: 345.0mm (13.6″) x 713.5mm (28.1″), width 619.2mm (24.4″), depth 66.0mm (2.6″)

J-AR09-500W: 27.3 x 17.7 x 5.1 inches, Qty/Carton 1, Net Weight 15.7 lbs, Gross Weight 17.6 lbs
