LED UFO Highbay Field Selectable 24,000 – 38,400 Lumen (OSL-DM-UF)

RESOURCES & DOWNLOADS

(0 Reviews)

$82.50

  • *Wattage & AC Input

    *CCT

    Reset options

    Emergency Battery Backup (Field Install) (optional)

    Motion Sensor (Plug & Play Field Install) (optional)

Bulk deal
QuantityDiscountDiscounted price
6 - 107%$76.73
11 - 2012%$72.60
21 +15%$70.13

Volume pricing for contractors. Discounts apply automatically at checkout.

Details

     20250102160727 3 ETL UL logo 220250102160727 0 DLC Premium logo 1

    Description

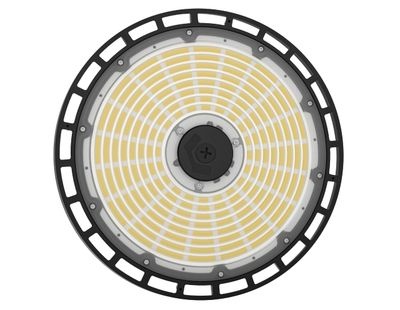

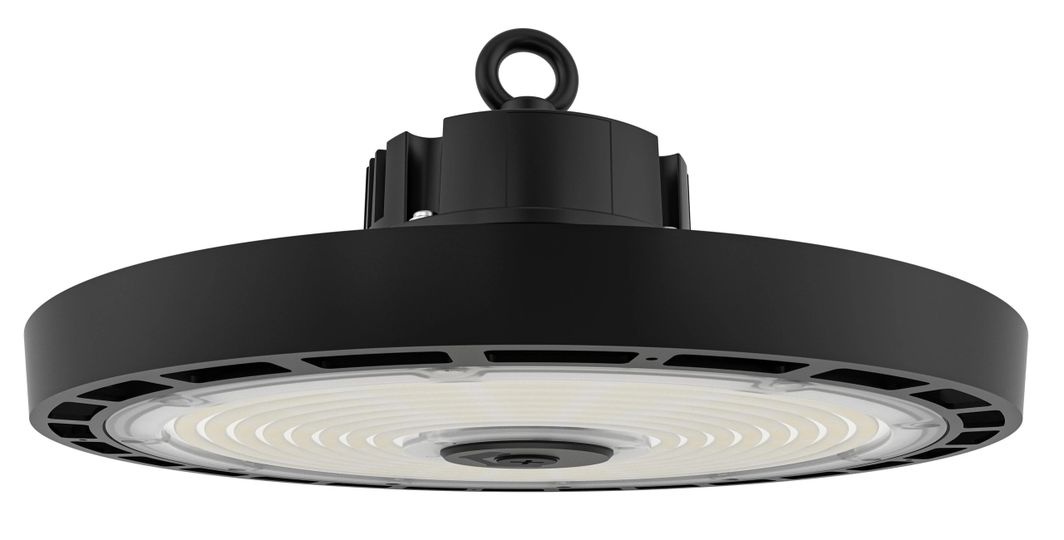

  • LED UFO highbay adjustable wattage & CCT
  • Advanced thermal management die-cast aluminum housing
  • Black finish
  • High efficiency (160 lumen per watt)
  • 150/200/240W (24,000/32,000/38,400 lumen output) adjustable. 120-277V AC Input
  • 4000K or 5000K adjustable

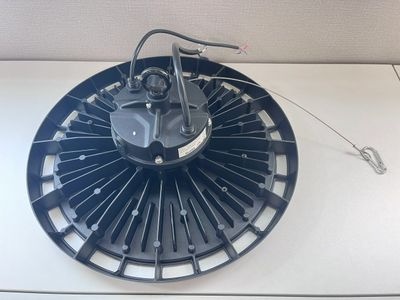

  • Hanging ring and safety cable included
  • 100-277V AC Input
  • 0-10V dim
  • Minimum 80 CRI
  • -40°C ~ 50°C operating temperature
  • ETL Listed for wet location (IP65)
  • DLC premium listed
  • 100,000+ hours lifespan (L70>100,000 hours)
  • 5 years warranty
  • Optional 30W/40W selectable emergency battery backup available (field install)
  • Optional 0-10V Microwave sensor available. 10ft detection range. -25°C ~ 60°C operating temperature (field install)



   Product Attributes

BrandONE SOURCE LIGHT
MPN (Part No.)DM-UF150/200/240W – BNN45
SKUOSL-DM-UF242
DLC Part NumberDM-UF150/200/240W-XXX45
Lighting TechnologyLED
LED Chip Type
DimmableYes
CRI80+
ColorNatural/Cool White Field Selectable
Color Temperature4000/5000 Kelvin Field Selectable
LED L70 Life Hours100000
Wattage150/200/240W Field Selectable
LPW160
Fixture TypeUFO Highbay
Lumens24,000/32,000/38,400 Lumen Field Selectable
Voltage100-277V AC Input
Ratings and CertificationsWet Location ETL / DLC Premium 5.1 / IP65
FinishBlack
MountingPendant Mount : Hanging Ring Included
Surge Protection6kV
Operating Temp-40°C ~ 50°C (-40°F ~ 122°F)
Lens
Length14.2 in
Height6.5 in.
Width14.2 in.
Package Quantity1
Weight6.5 lb. per unit
Warranty5-Year Limited
