Description

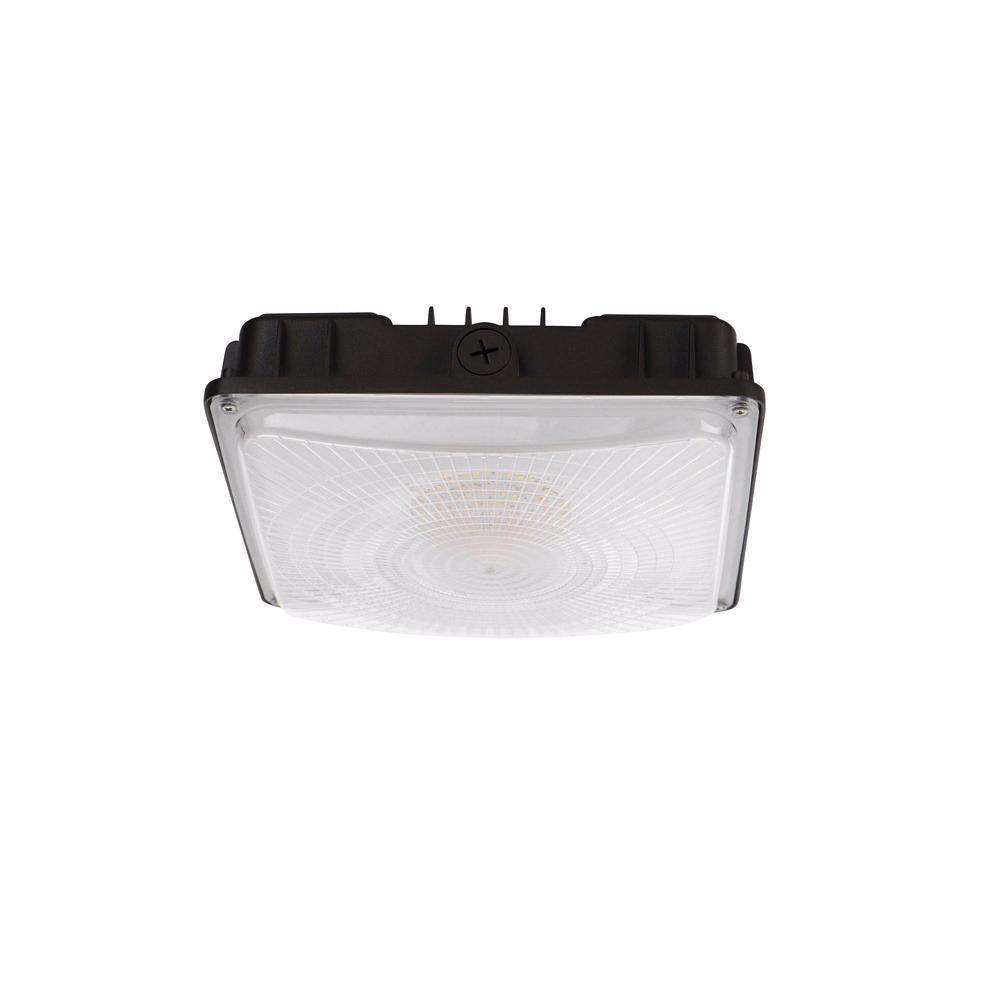

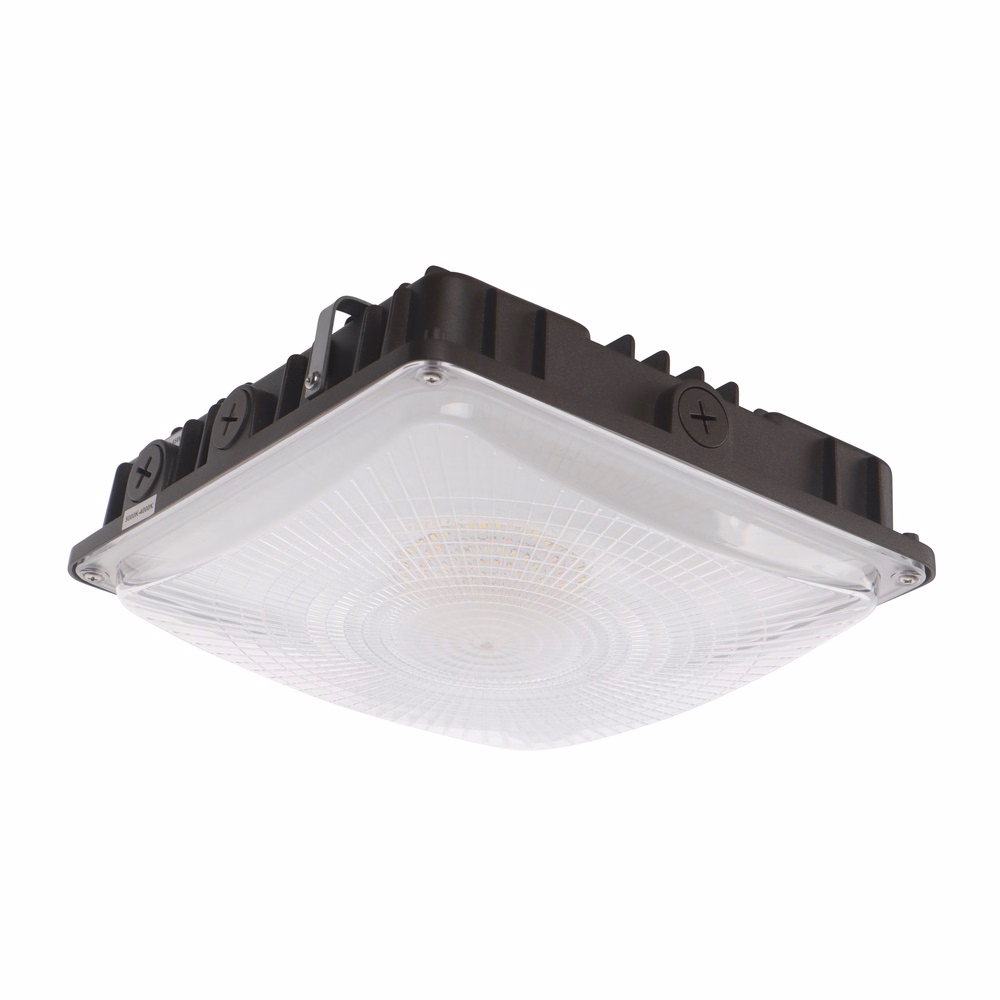

The X-CPA Selectable Canopy Light is a wattage- and CCT-selectable fixture designed to replace 100W-250W HID luminaires in parking garages, canopies, and similar overhead applications. A physical selector inside the fixture lets you dial between three wattage tiers (63W/45W/30W) and two color temperatures (4000K/5000K), so one stocked unit covers multiple project requirements instead of ordering separate SKUs. The die-cast aluminum housing is cULus listed for wet locations, and the fixture ships DLC Premium qualified for reliable outdoor performance.

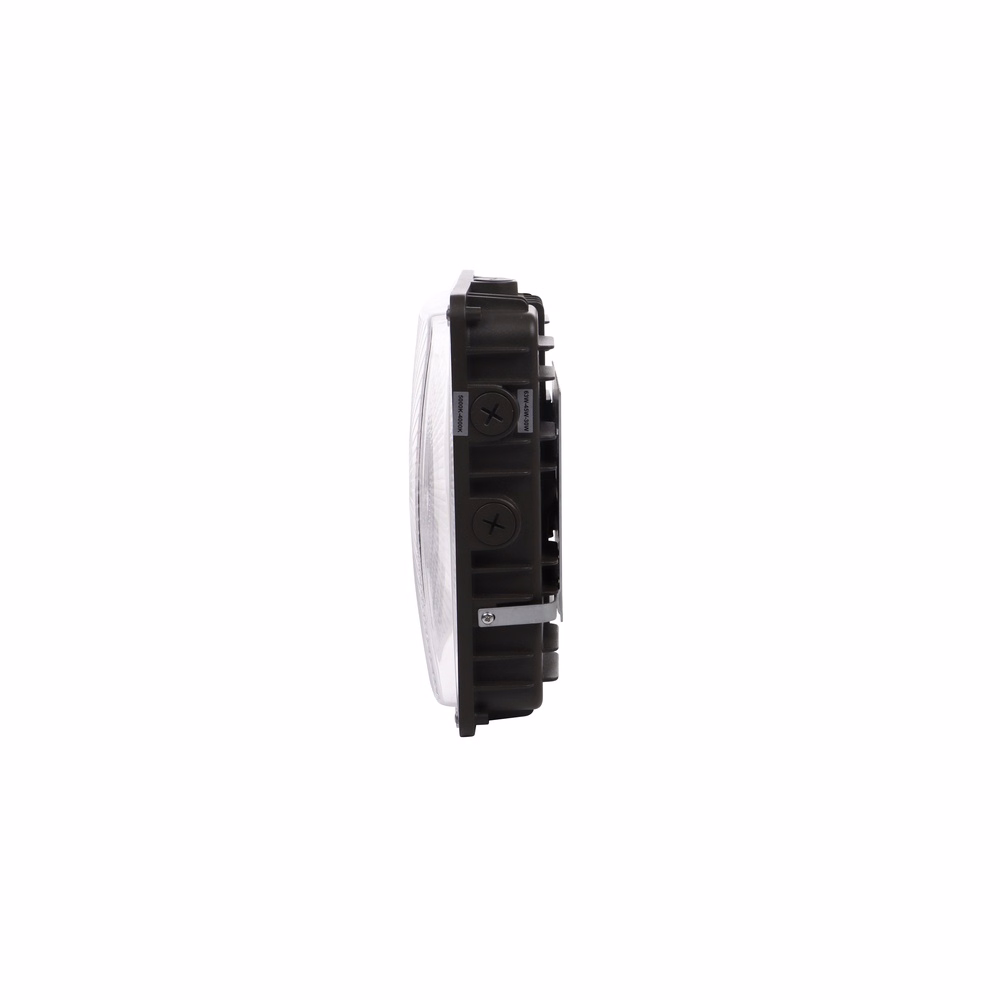

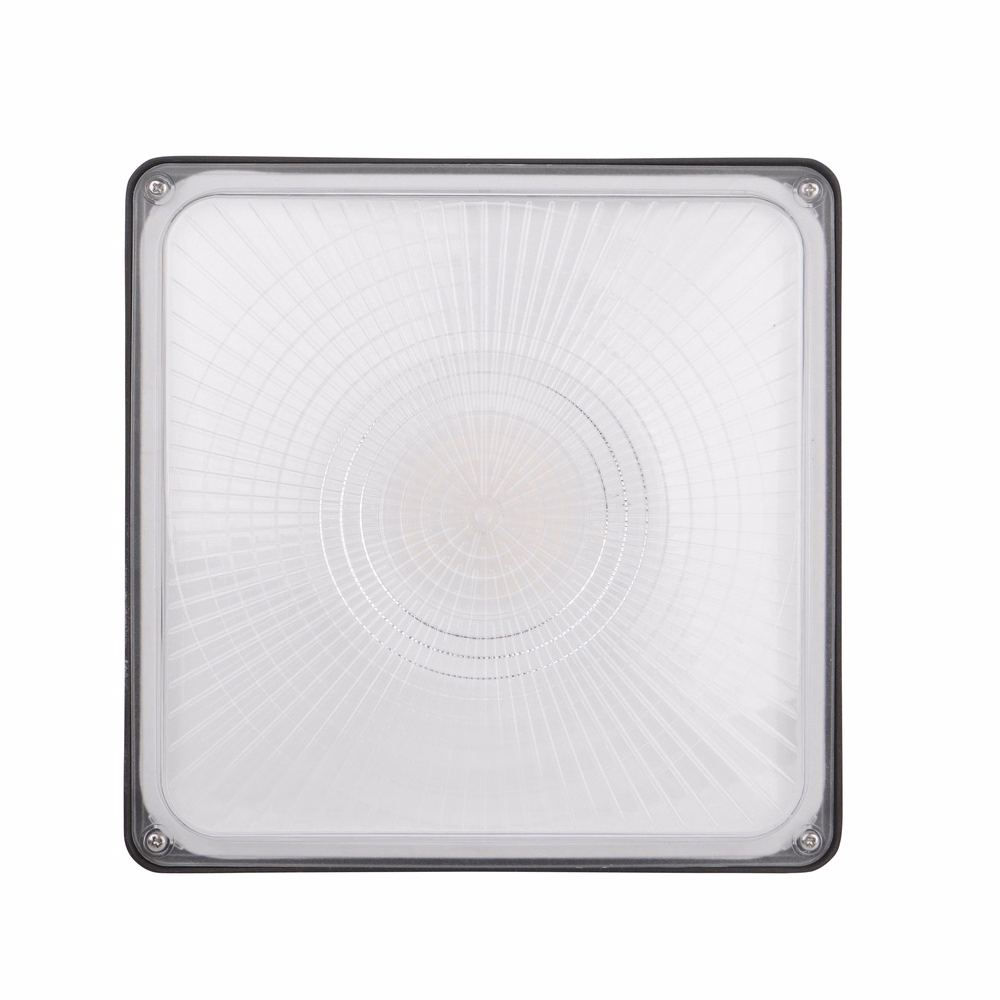

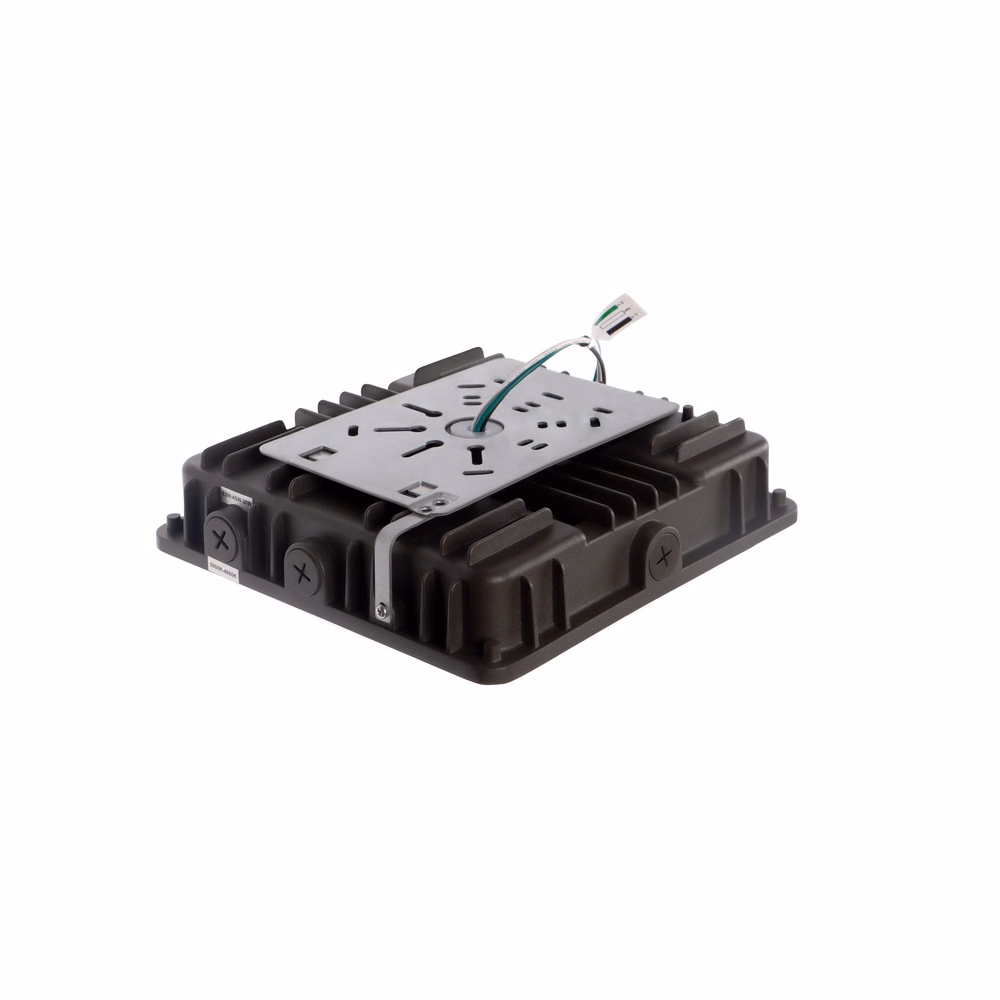

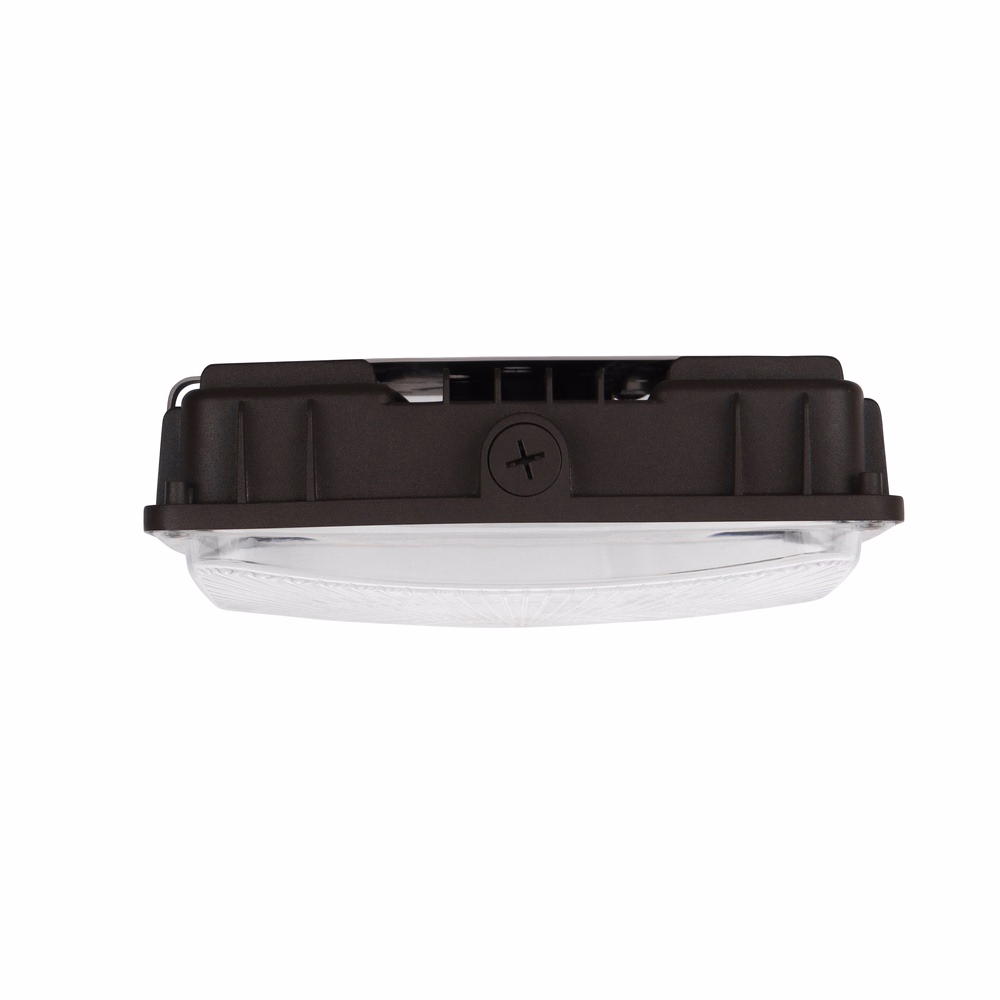

• Die-cast aluminum housing with four 1/2″ NPT side conduit entries; heat-resistant polycarbonate lens
• Wattage selectable via internal switch: 63W / 45W / 30W (63W default setting)
• CCT selectable via internal switch: 4000K / 5000K (5000K default setting)
• Up to 9,400 lumens at 63W/4000K (up to 163 lm/W); output varies by wattage and CCT tier
• CRI > 70
• Average beam angle approximately 150.7°
• 0-10V dimmable driver, dims from 100% down to off; dimming wires are not led out by default — enabling dimming requires an additional cost/modification, confirm with your supplier before advertising as ready-to-dim
• On the Emergency Battery Backup-equipped SKUs, emergency function and dimming cannot operate simultaneously
• 120-277V AC input

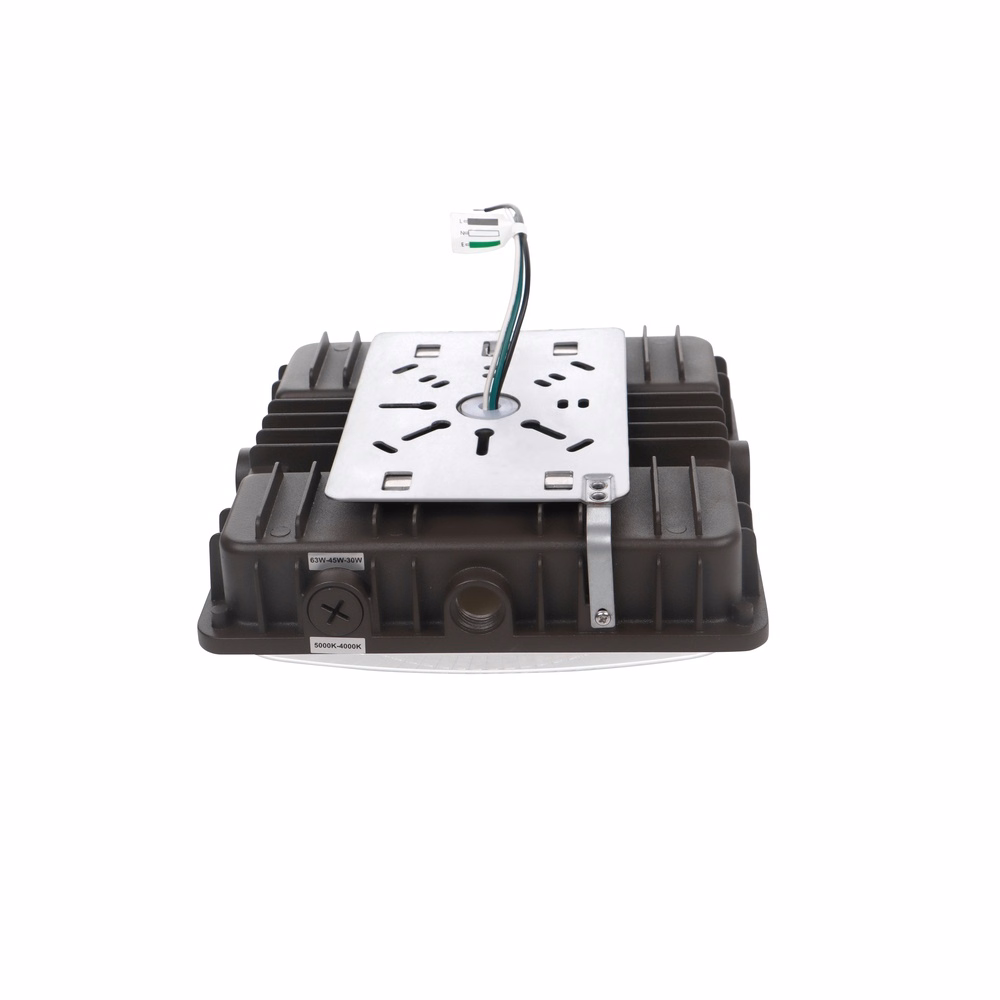

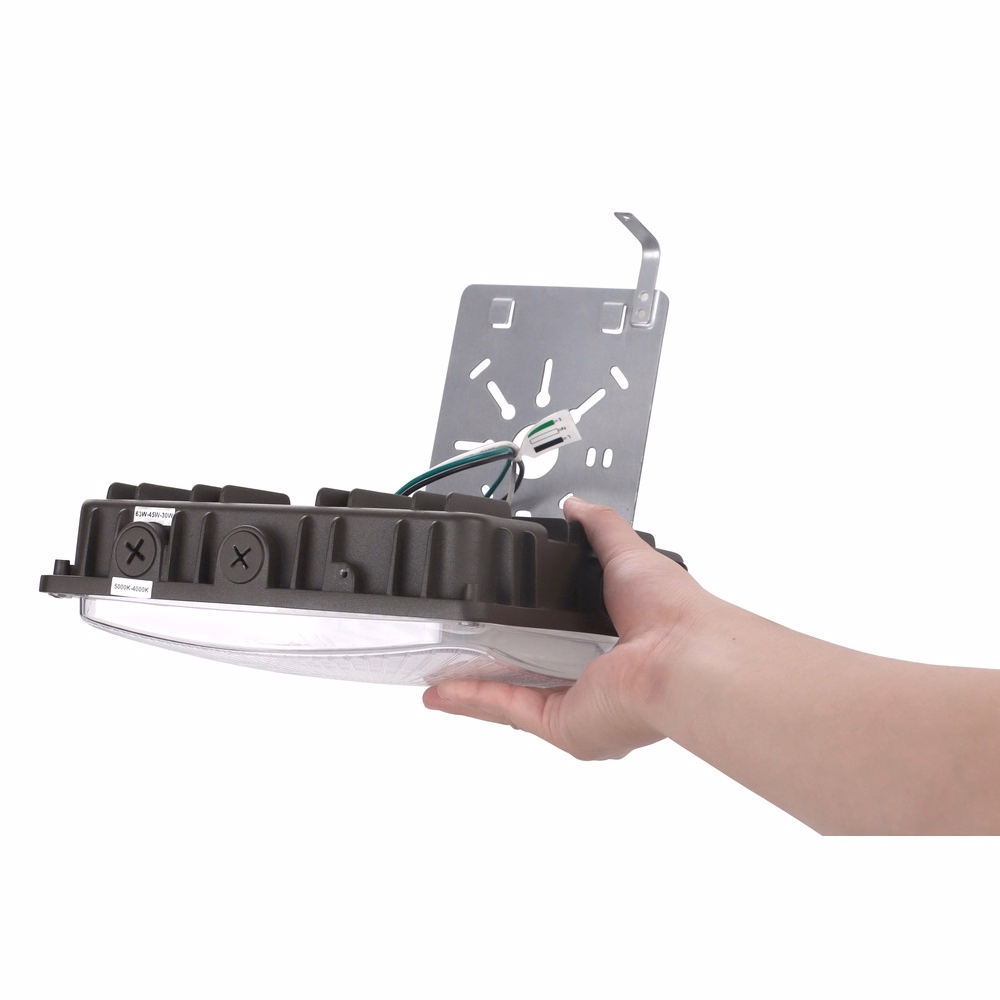

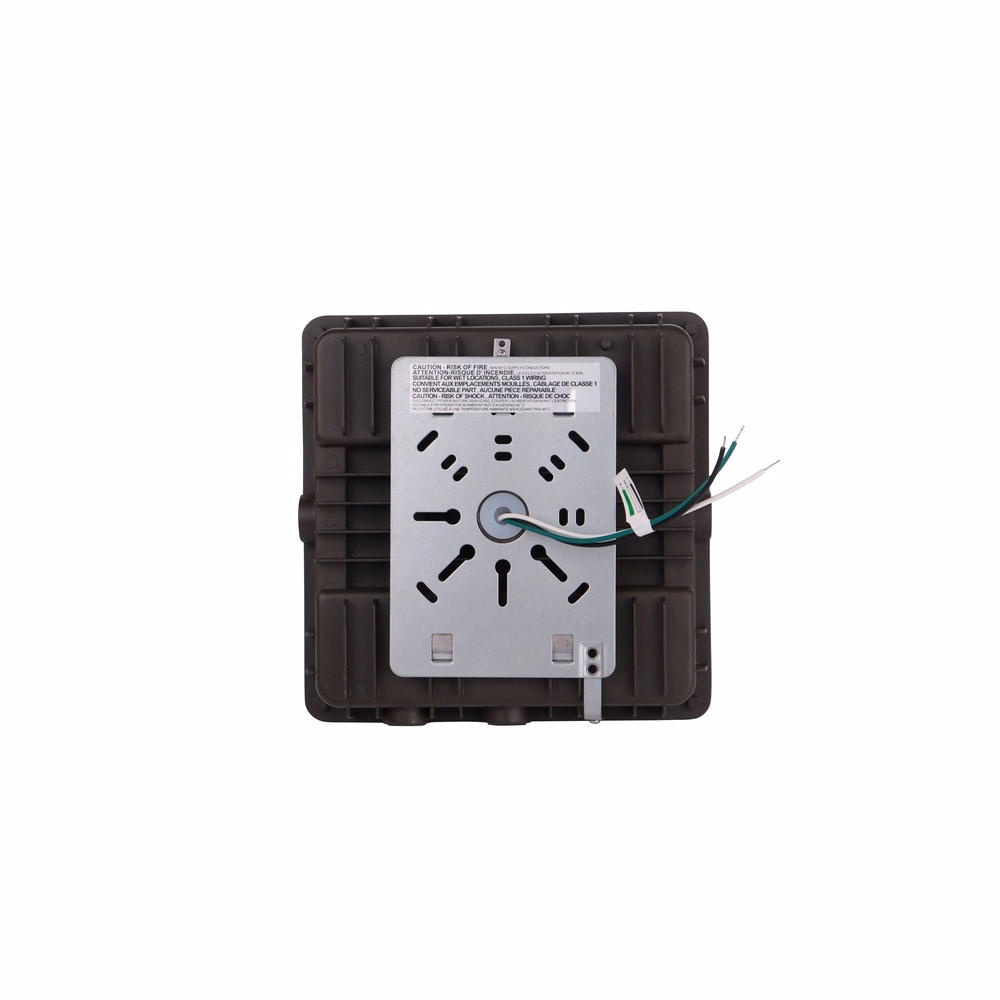

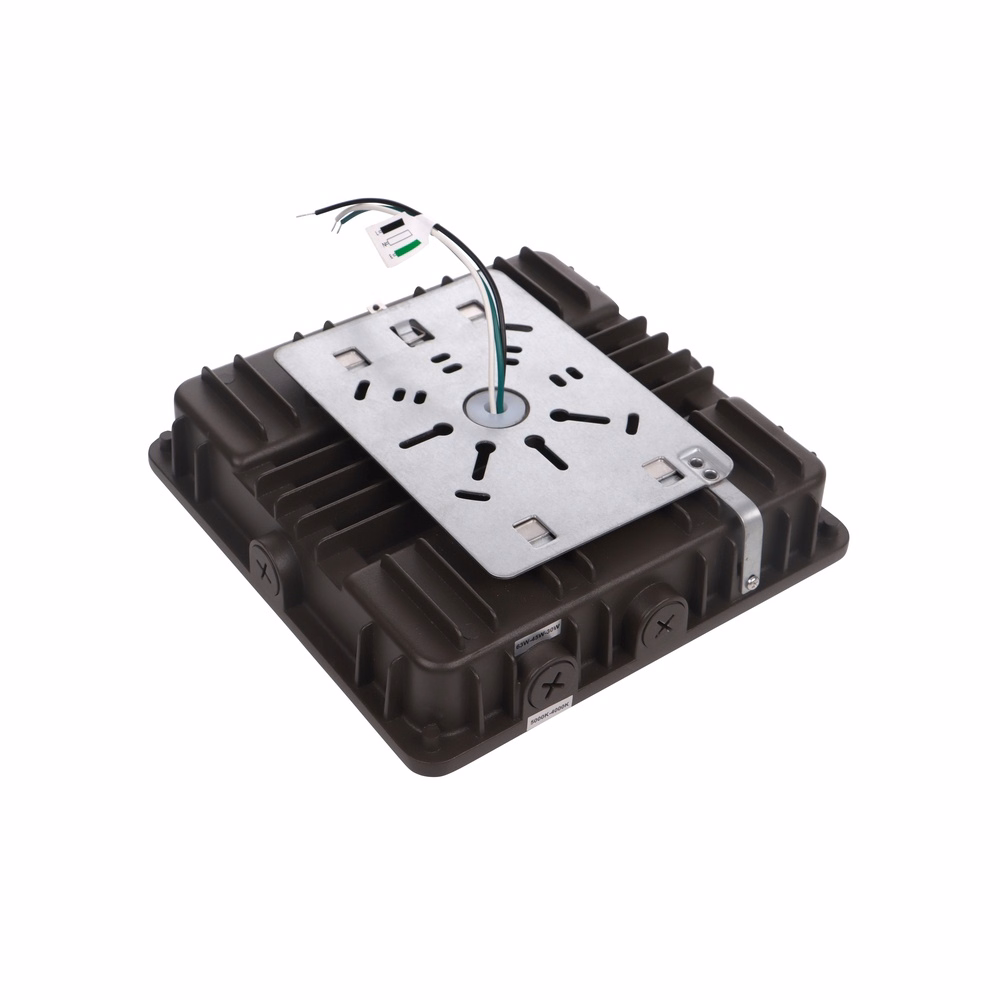

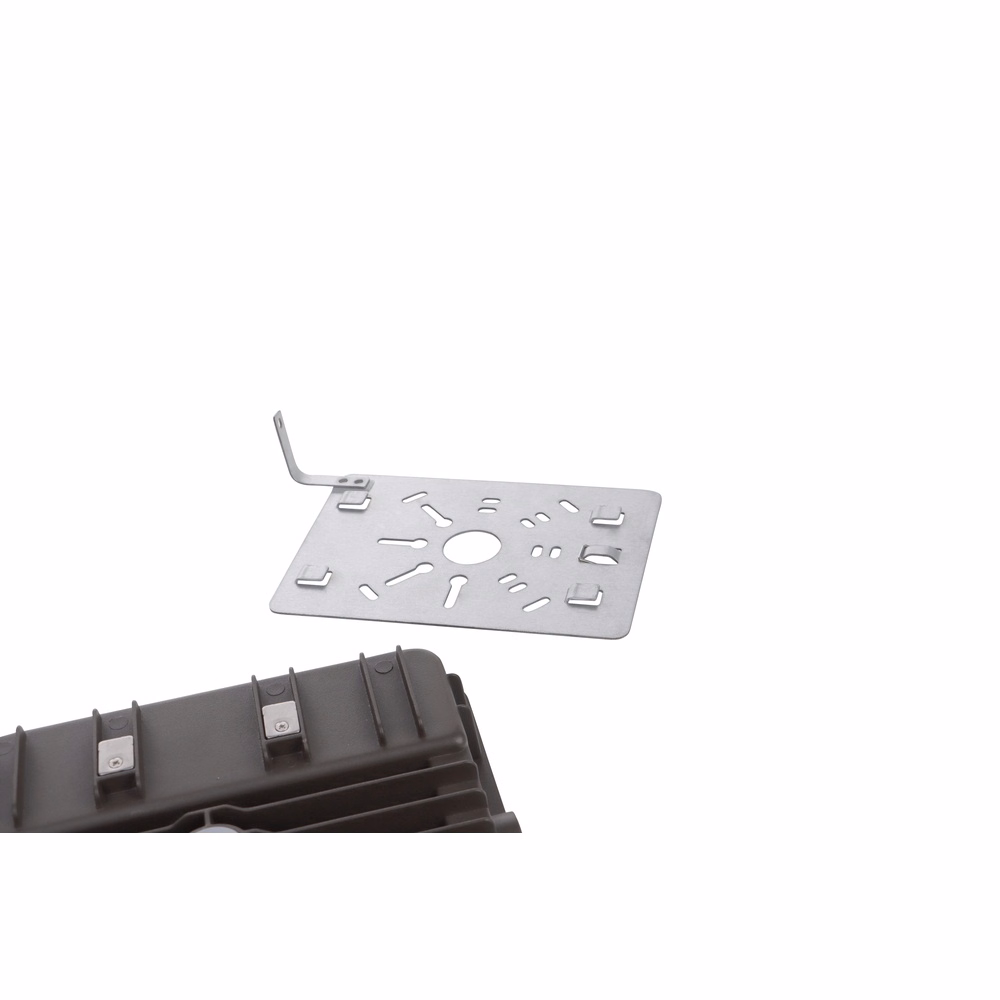

• Quick mount plate for surface or junction box mounting; pendant mounting available via a 3/4″ NPT pipe (by others)
• Available in Dark Bronze (standard) or White; other custom colors available as an option

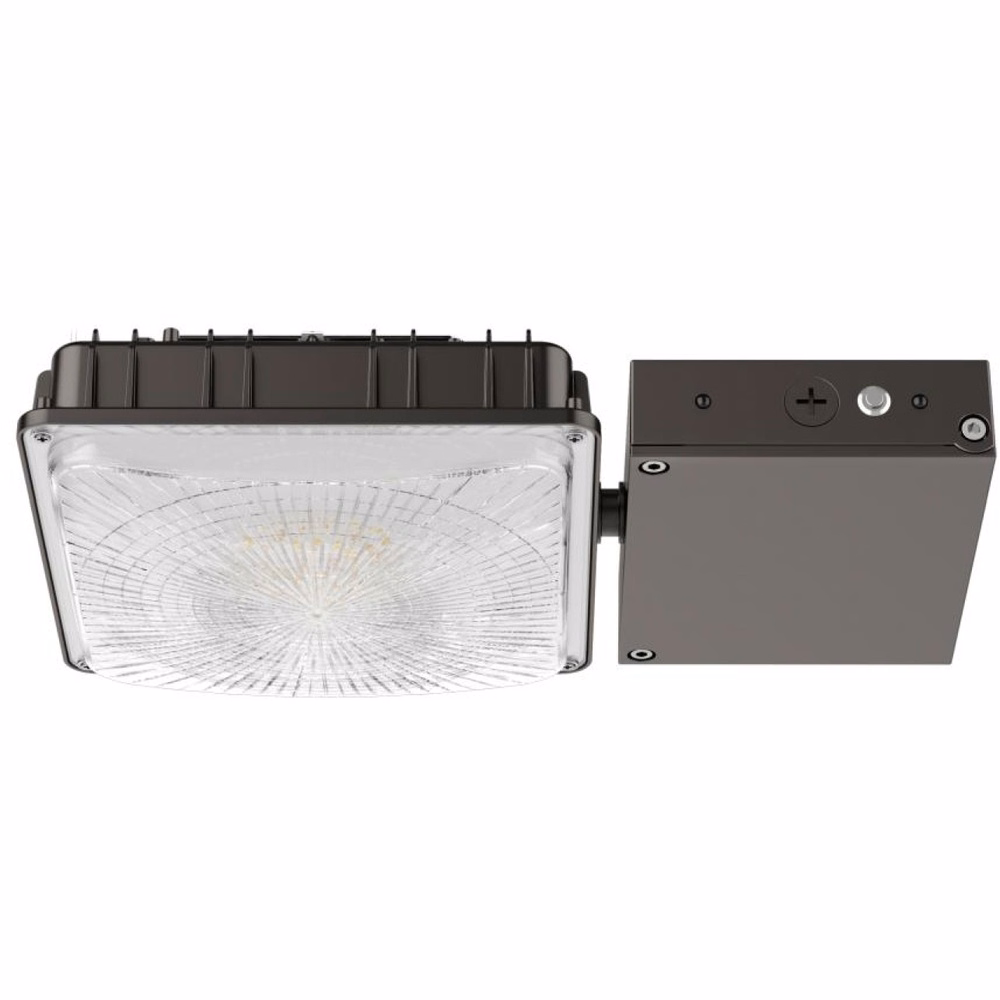

• Optional factory-installed microwave motion sensor or Emergency Battery Backup; optional field-installed photocell or remote control
• Ambient temperature range: -40°F to 113°F (-40°C to 45°C)
• 5-year limited warranty
• cULus Listed for wet locations
• DesignLights Consortium (DLC) Premium qualified (confirmed for the standard SKUs in this batch; see notes below on DLC status for the Emergency Battery and motion sensor variants)

Applications

Parking garages, canopies, storage areas, and other covered outdoor areas currently lit by 100W-250W HID luminaires.
