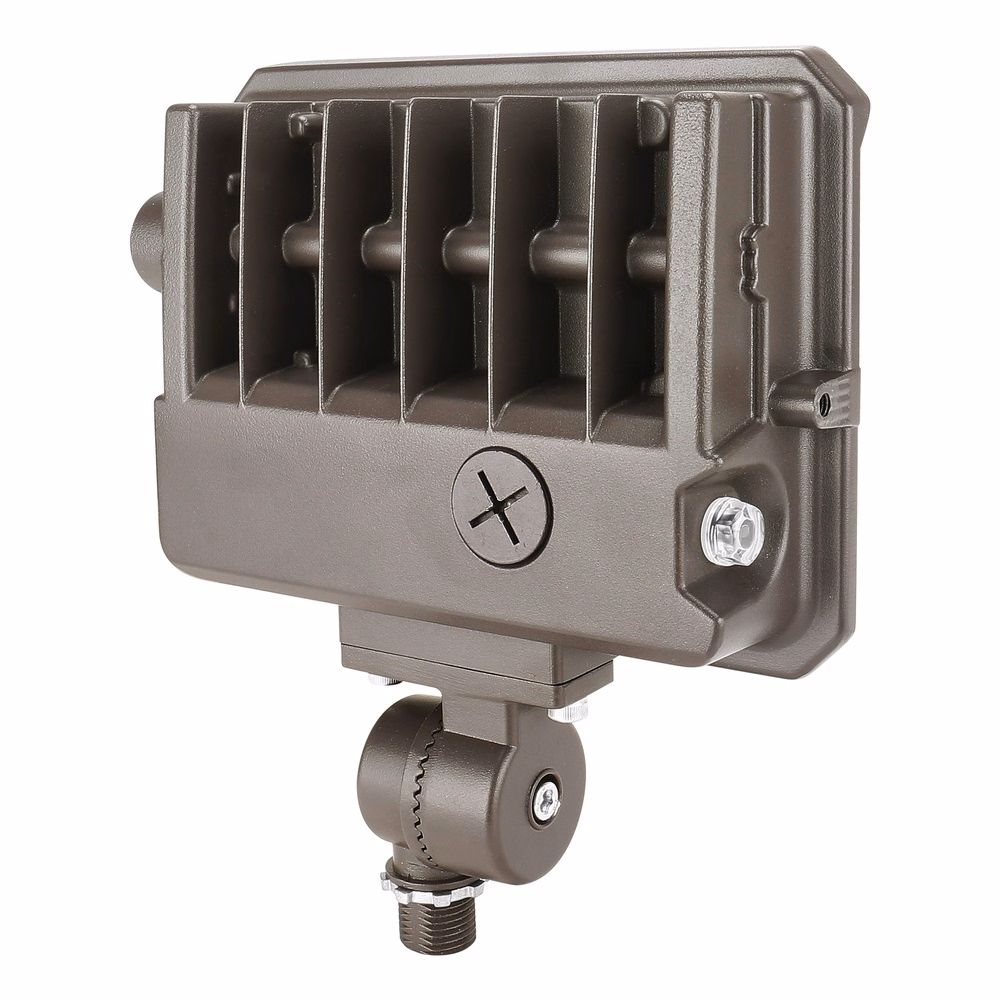

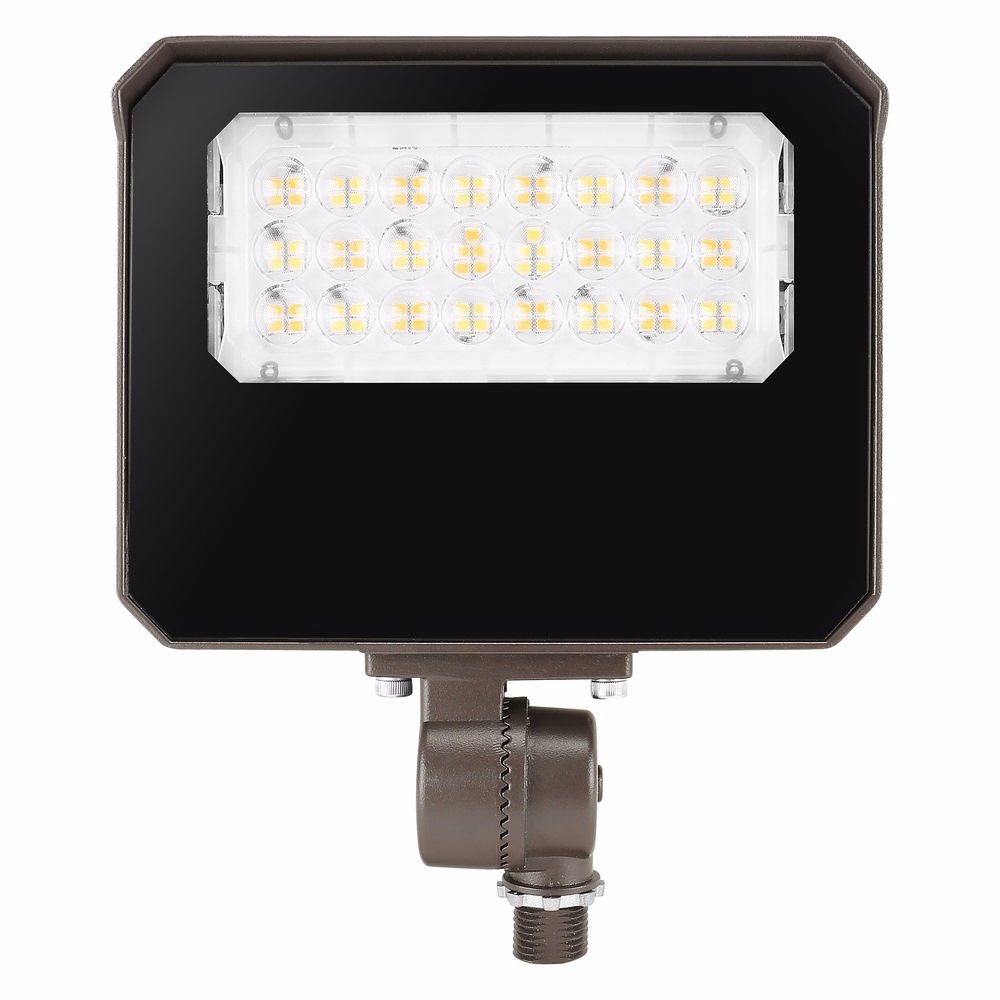

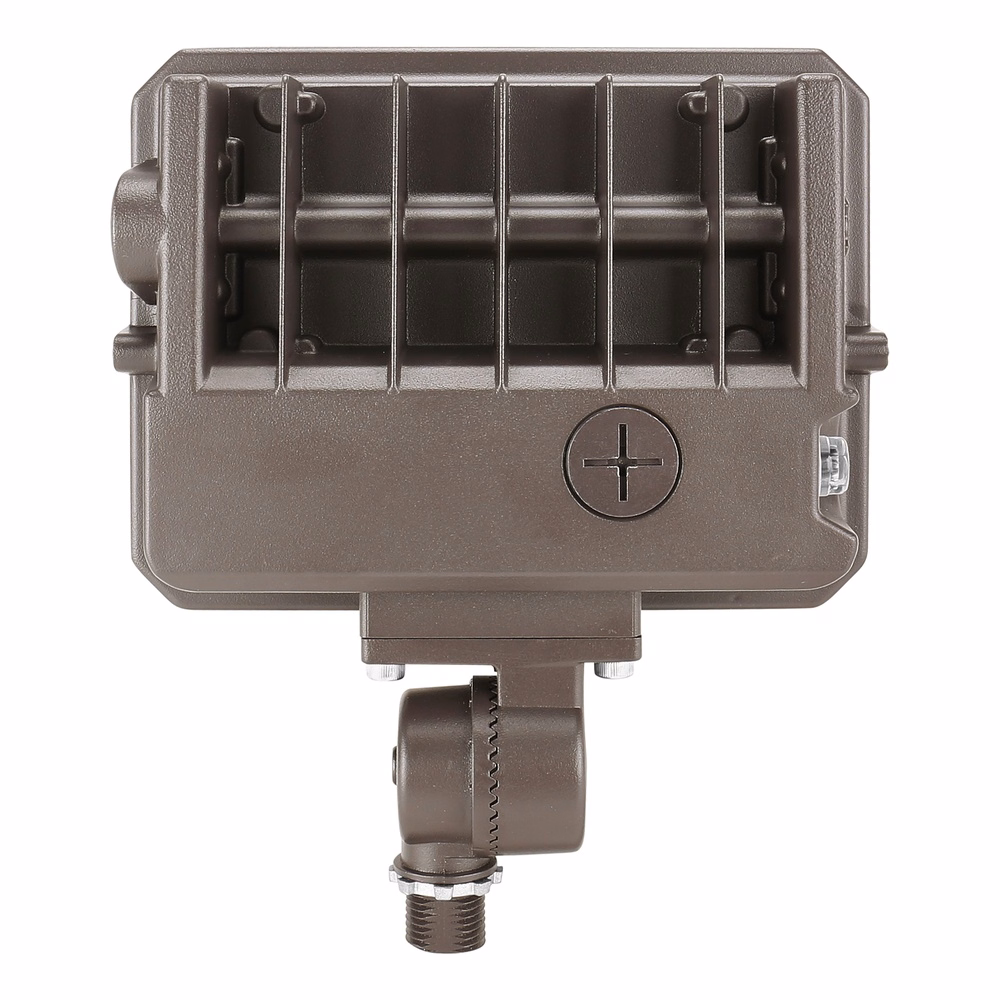

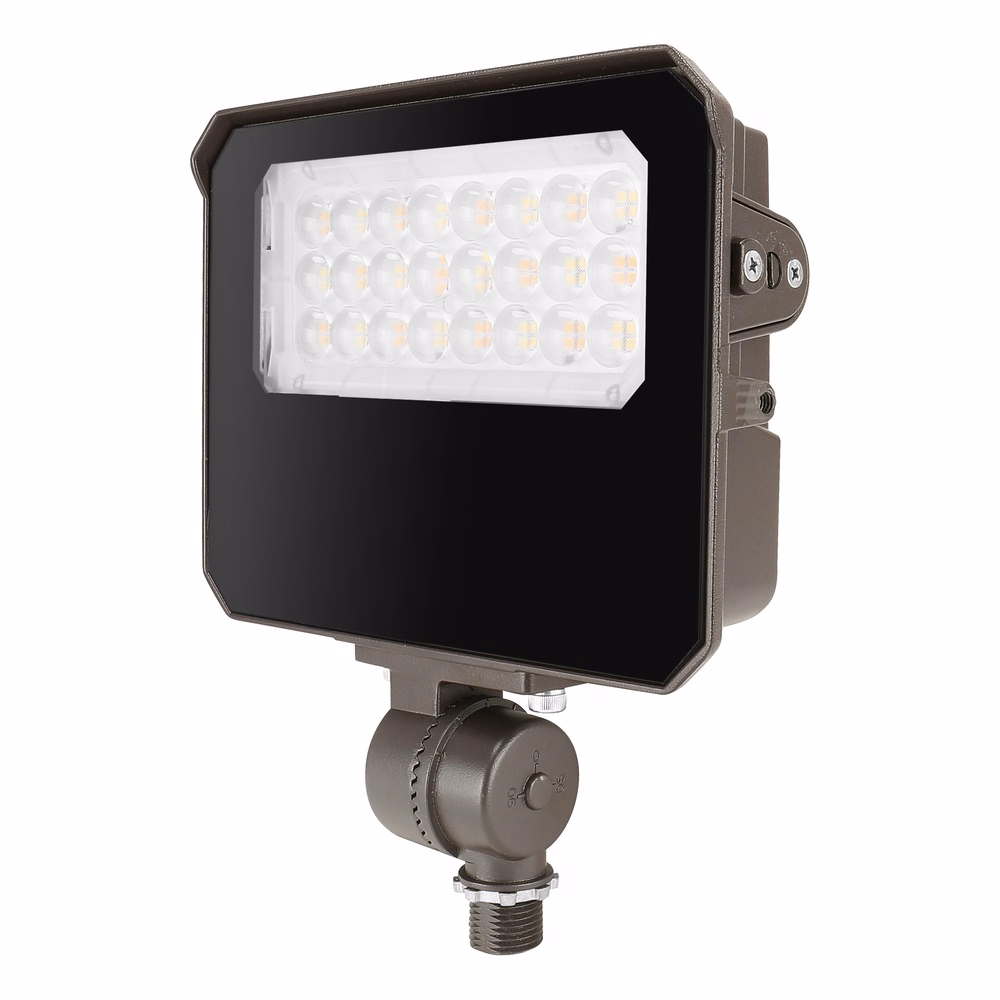

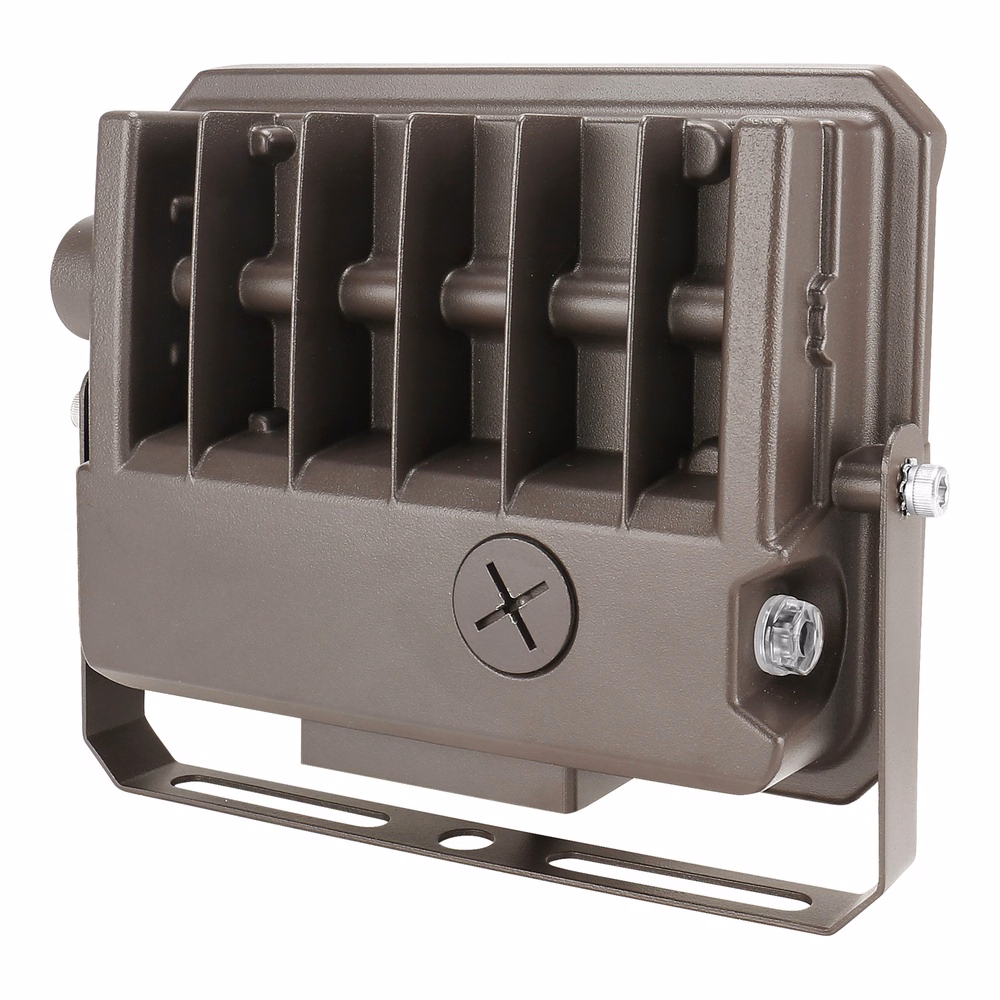

The MFD12 30W is a compact, high-output LED flood light built for general-purpose commercial floodlighting. On-site, it lets you dial in the exact combination your project needs from 3 field-selectable beam angles (90°, 75°, 55°), 3 field-selectable color temperatures (3000K, 4000K, 5000K), and 4 field-selectable wattage/output steps (30W, 24W, 18W, 12W) — 36 total configurations from a single stocked SKU, cutting down on the number of part numbers you need to carry. This unit ships with a built-in dusk-to-dawn photocell (switchable on/off) and a 1/2″ NPS knuckle mount for fast aim-and-lock installation. The die-cast aluminum housing and fully sealed, heat- and impact-resistant tempered glass lens keep the fixture protected and efficient over a long service life.
General-purpose commercial and landscape floodlighting, including building exteriors, billboards and signage, display and merchandise lighting, loading and corridor areas, and landscape lighting for parks, squares, and playgrounds.
| Attribute | Value |
|---|---|
| Brand | ONE SOURCE LIGHT |
| Product Type | LED Flood Light, Field-Selectable Beam Angle, CCT & Wattage |
| Model Series | MFD12 |
| Nominal Wattage | 30W (field-selectable to 24W/18W/12W) |
| Voltage | AC120-277V (the 277-480V option is only offered on the 90W/120W/150W models, not 30W) |
| Color Temperature | Field-selectable: 3000K / 4000K / 5000K |
| Beam Angle | Field-selectable: 90°/6H6V (very wide), 75°/6H6V (wide), 55°/5H5V (medium wide) |
| CRI | ≥80 |
| Output | Approx. 1,640 – 4,500 lumens and up to 166 lm/W across the full 30/24/18/12W × 3000/4000/5000K × 90°/75°/55° selection range (figures per the manufacturer’s performance data table, measured at 25°C ±5°C lab conditions) |
| Dimming | 0-10V, 10%-100% dimming range |
| Power Quality | PF > 0.90; THD < 15% |
| Controls | Field-selectable wattage, CCT, and beam angle; built-in dusk-to-dawn photocell with on/off dip switch (included on this SKU) |
| Material / Construction | Die-cast aluminum housing; fully sealed, heat- and impact-resistant tempered glass lens |
| Finish | Dark Bronze |
| Mounting | 1/2″ NPS Knuckle (this SKU); Trunnion is also factory-available for the 30W model, but is not currently stocked |
| Vibration Rating | 1.5G, low-profile design |
| Environment Rating | Operating temperature -40°F to 113°F (-40°C to 45°C) |
| Lifespan | Estimated 50,000 hours, per IES LM-80 results and TM-21 calculations |
| Certifications / Listings | UL/cUL Wet Location Listed; DesignLights Consortium™ (DLC) Premium Qualified, all lumen packages |
| Warranty | 5 year limited |
| Catalog Number | Mounting | Finish | Overall Dimensions |
|---|---|---|---|
| MFD12-30W-27V-DDK-D-P-AD-KN | 1/2″ NPS Knuckle | Dark Bronze | 7.56″ (192mm) W × 8.99″ (228mm) H × 1.98″ (50mm) D |
