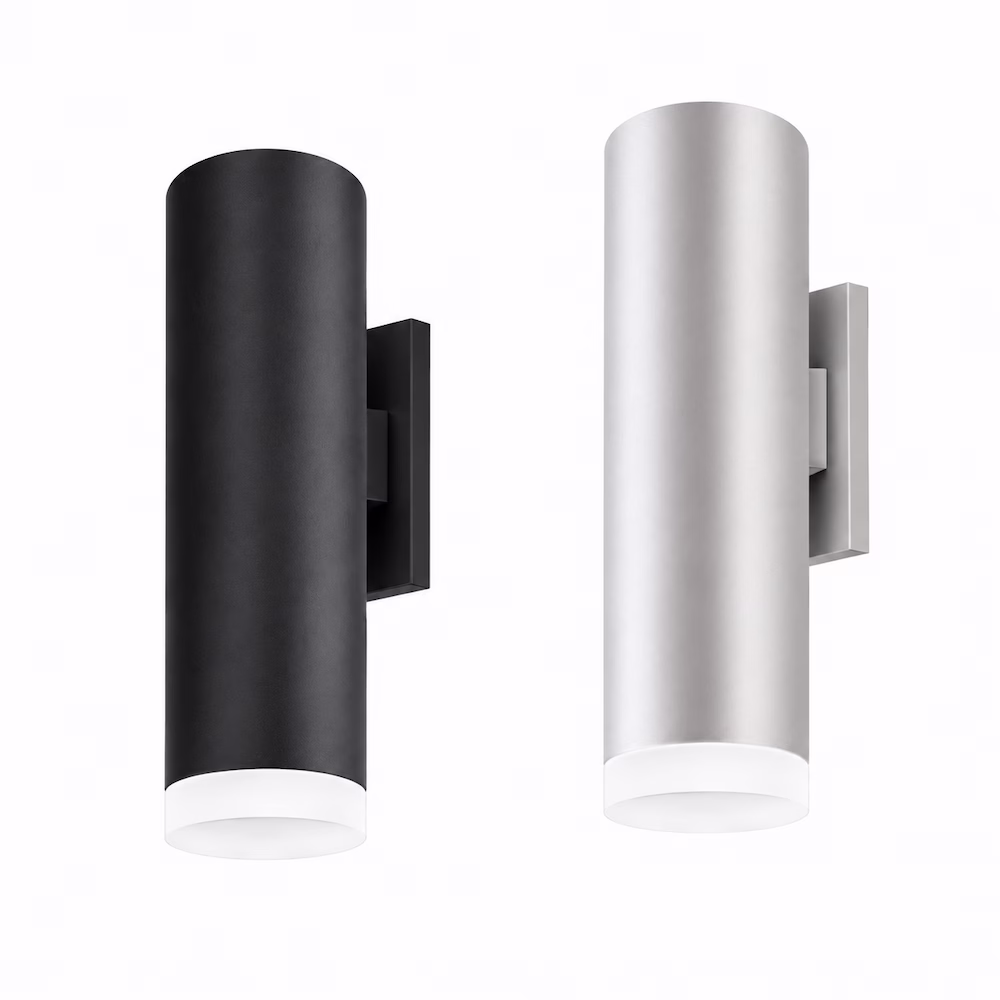

3″ LED Cylinder Wall Mount Downlight — CY3 Series
Max Wattage : 19W with Field-Selectable Wattage (5W / 8W / 10W / 13W / 16W / 19W)
Lumen output : up to 1,900 lm @ 19W (3000K, 15° beam, 90+ CRI, White anti-glare trim)
Efficacy up to 115 lm/W (lower wattage settings); up to 105 lm/W at 19W (24° beam)
Field-Selectable CCT : 2700K / 3000K / 3500K / 4000K (fixed CCT, 90+ CRI) — or Dim to Warm 3000K to 2000K (95+ CRI, 13W Max)
Field-Selectable Beam Angle : 15° Narrow / 24° Medium / 36° Wide / 60° Flood — beam spreads interchangeable in the field without tools
2-in-1 Dimming : 0-10V (Dim to 1%) and TRIAC in one package
Input Voltage : 110-277V AC
THD < 20%, Power Factor > 0.9
LED Source : CREE or Bridgelux high-efficiency COB LED chip
Construction : Extruded aluminum housing with powder-coated polyester paint
Heatsink controlled at 60-70°C operating temperature
Wall Mounting — direct wall installation with 1.67″ wall projection profile
Finish Options : White, Black or Silver
Trim Options : Anti-Glare Trim (White / Black / Gold / Chrome), Wall Wash Trim (White / Black), or 1″ Drop Lens
Thermal overload protection — shuts down luminaire if system temperatures exceed designed conditions
Damp Location rated — operating temperature -20°C to +40°C (-4°F to +104°F)
For interior use only
cULus Listed for damp locations
5-year limited warranty (parts and components, labor not included)

MPN (Part No. Example)	CY3R-WH-1900L-DT1-9030-N-AW-WM
Series	CY3 — LED Cylinder Series
Lighting Technology	LED (COB — CREE or Bridgelux)
Fixture Type	3″ Round LED Cylinder — Wall Mount
Product Size	3 in. Round (2.96″ Diameter)
CRI	90+ (Fixed CCT) / 95+ (Dim to Warm only)
Beam Angle	15° / 24° / 36° / 60° Field-Interchangeable
Color Temperature	2700K / 3000K / 3500K / 4000K Fixed — or 3000K-2000K Dim to Warm
Max Wattage	19W
Wattage Selectable	5W / 8W / 10W / 13W / 16W / 19W Field Selectable
LPW	Up to 115 (lower wattages) / Up to 105 at 19W (24° beam)
Max Lumens @ 19W (3000K)	1,900 lm (15°) / 1,995 lm (24°) / 1,805 lm (36°) / 1,520 lm (60°)
LED Source	CREE or Bridgelux High-Efficiency COB LED
Voltage	110-277V AC
Power Factor	> 0.9
THD	< 20%
Dimming	0-10V Dim to 1% AND TRIAC (2-in-1)
Driver	Class 2 High-Efficiency LED Driver with Thermal Overload Protection
Ratings and Certifications	cULus Listed (Damp Location)
Finish	White, Black or Silver (Powder-Coated Polyester)
Housing	Extruded Aluminum (Heatsink controlled at 60-70°C)
Mounting	Wall Mount (WM) — Direct Wall Installation
Operating Temp	-20°C to +40°C (-4°F to +104°F)
Body Diameter	2.96 in.
Body Length (Anti-Glare / Wall Wash Trim)	10 in.
Body Length (Drop Lens)	10.98 in.
Wall Projection	1.67 in.
Application Environment	Interior use only, damp locations
Warranty	5-Year Limited (Parts & Components)
