Description

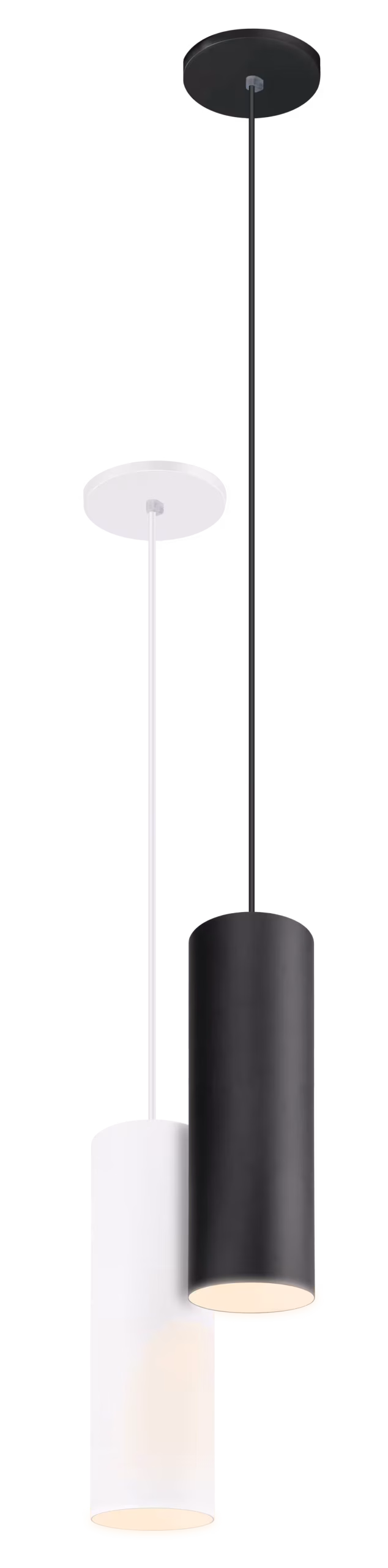

• 3″ LED Cylinder Pendant Downlight — CY3 Series
• Fully modular cylinder with over 10,000 configuration possibilities (CCT, beam angle, trim, mounting, length, finish, etc.)
• Field-Selectable Wattage : 5W / 8W / 10W / 13W / 16W / 19W
• Lumen output up to 1,900 lm (19W, 15° beam, 3000K, 90+ CRI, White anti-glare trim); up to 1,995 lm at 24° beam setting
• Efficacy up to 115 lm/W (lower wattage settings); up to 105 lm/W at 19W (24° beam)
• LED Source : CREE or Bridgelux high-efficiency COB LED chip
• CCT Options : 2700K, 3000K, 3500K, 4000K (fixed CCT, 90+ CRI) — or Dim to Warm 3000K to 2000K (95+ CRI, 13W Max, Bridgelux COB)
• CRI : 90+ (Fixed CCT) or 95+ (Dim to Warm)
• Beam Angle Options : 15° Narrow / 24° Medium / 36° Wide / 60° Flood — interchangeable beam spreads can be swapped in the field without tools
• 2-in-1 Dimming : 0-10V (Dim to 1%) and TRIAC in one package — works with many control types
• Thermal overload protection — shuts down luminaire when system temperatures exceed designed operating conditions
• Input Voltage : 110-277V AC (cULus recognized standard electronic drivers)
• THD < 20%, Power Factor > 0.9
• Construction : Extruded aluminum housing with powder-coated polyester paint; heatsink controlled at 60-70°C
• Finish Options : White, Black or Silver
• Trim Options : Anti-Glare Trim (White / Black / Gold / Chrome), Wall Wash Trim (White / Black), or Drop Lens (1″ depth)
• Optic Media (Optional) : Honeycomb, or Decorative Kit (Yellow, Green, Transparent, Blue, Red)
• Mounting Options : Pendant Cable (PC), Pendant Rigid Stem (PS), Surface Mount (SM), or Wall Mount (WM)
• Pendant Cable / Stem Lengths : 2′ / 4′ / 8′ / 12′ Nominal — cable can be cut to length in the field
• Canopy : Flat Canopy for Recessed J-Box (RJ) or Conduit Cutout Deep Canopy for Surface 4″ Octagonal Junction Box (SJ)
• Optional Emergency Function : EME (high-voltage 8W emergency LED driver EM-H08170-LBF)
• Damp Location rated — ambient operating temperature -20°C to +40°C (-4°F to +104°F)
• For interior use only
• cULus Listed for damp locations
• 5-year warranty for parts and components (labor not included)
