Description

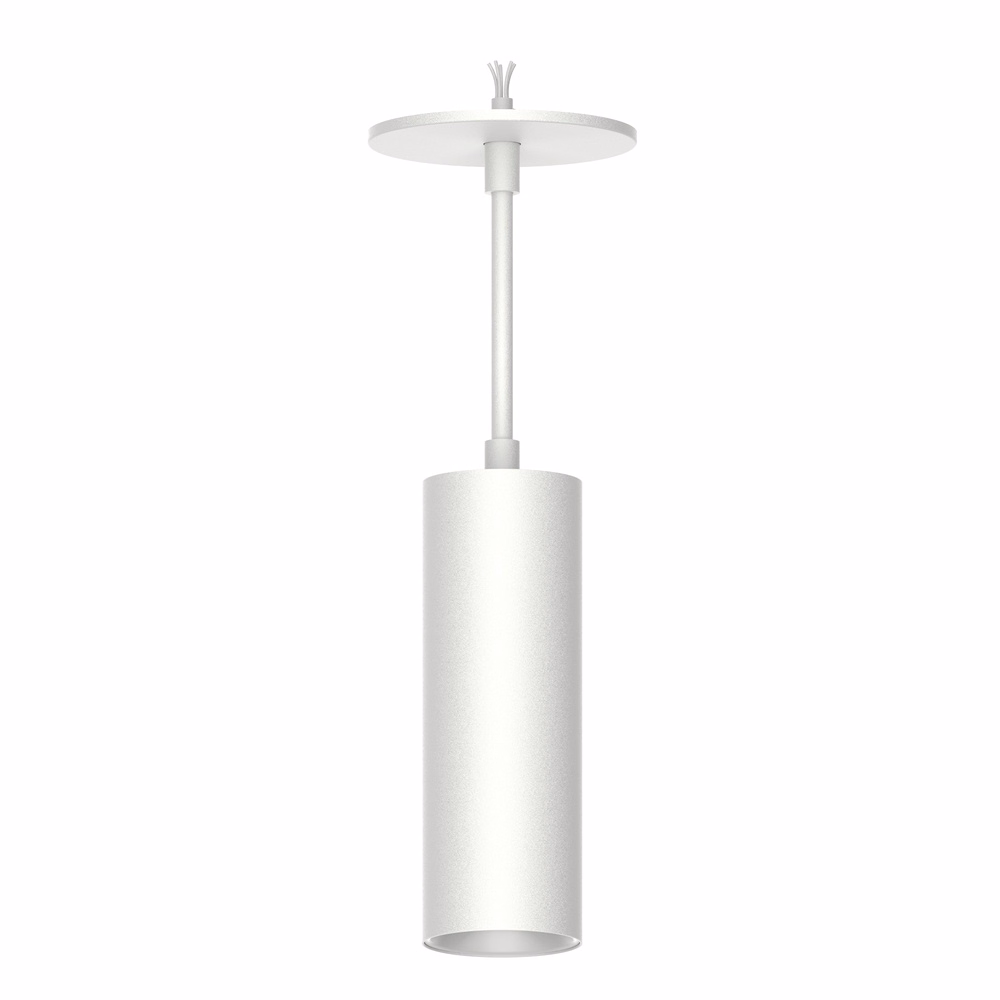

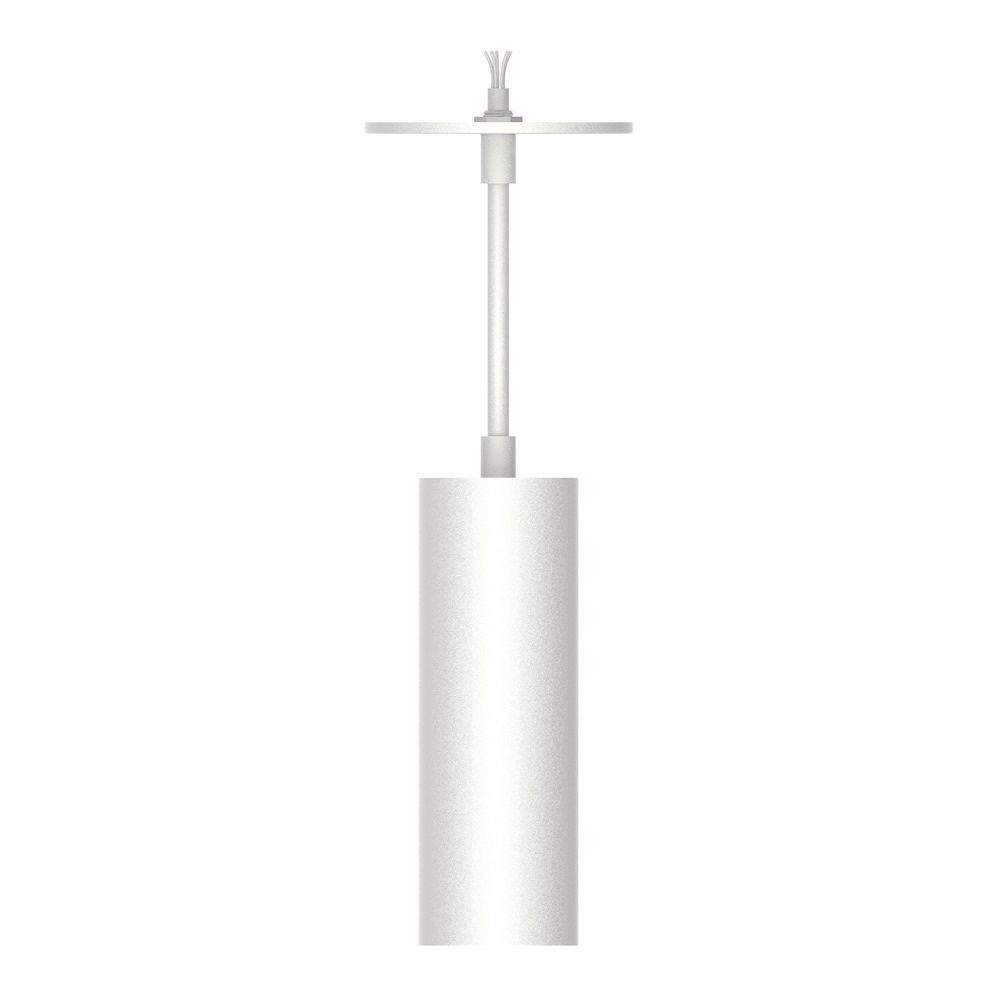

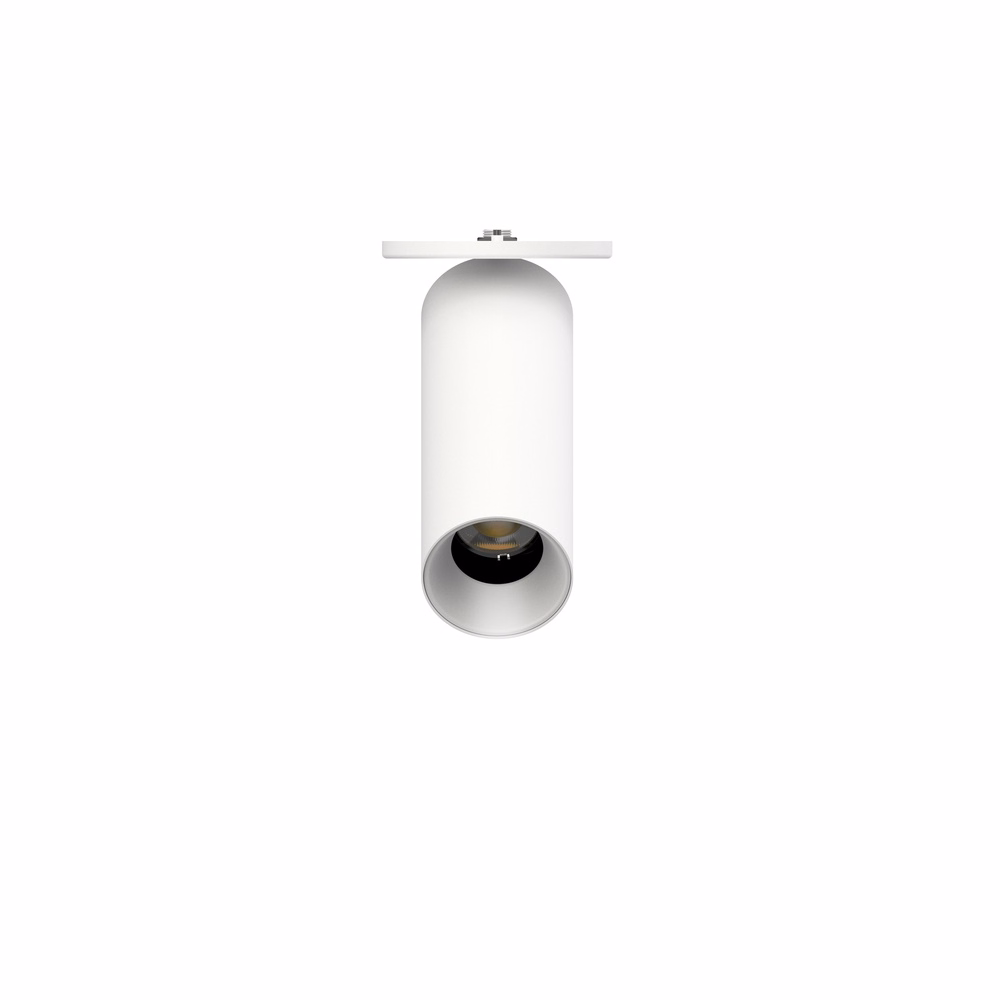

The MACD01 3″ is a modular LED architectural cylinder downlight built for clean, seamless overhead and accent lighting in commercial and residential interiors. On-site, it lets you dial in the exact look your project needs from 5 field-selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) and a stepless 18°–50° adjustable beam angle with 4 quick-set detents. This is a fixed-wattage 15W unit. It ships in White with a 90 CRI LED engine and a Vortex Baffle for smooth, uniform, glare-free light. The modular design uses field-interchangeable optical and baffle components, and the durable aluminum heat sink boosts optical performance and service life. Mounting hardware, lenses, and baffle options are sold separately as accessories, so you can configure surface, cord pendant, or stem pendant installations to match your project.

• 3″ diameter seamless cylinder body, field-interchangeable components
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
• Fixed 15W wattage
• Output ranges from 1,430 to 1,500 lumens and up to 100 lm/W at 15W, depending on the CCT selected (per the manufacturer’s lab-tested performance tables)
• Stepless adjustable beam angle, 18°–50°, with preset detents at 18°, 24°, 36°, and 50°
• 90 CRI LED engine (80 CRI also offered by the manufacturer, but not what’s stocked on this SKU)
• UGR < 13
• Ships with a Vortex Baffle installed for uniform, comfortable, shadow-free light
• Durable aluminum heat sink for excellent heat dissipation and long service life
• Universal AC120-277V input
• 0-10V dimming standard, 1%-100% dimming range
• Power factor >0.9; THD <20%
• Operating temperature -4°F to 104°F (-20°C to 40°C)
• UL/cUL Listed for damp locations
• Energy Star certified
• 5-year limited warranty

Applications

Interior architectural and accent lighting for retail, hospitality, office, and residential spaces, including overhead general illumination, corridor and hallway lighting, and accent lighting where a clean, low-profile cylinder fixture is preferred.

Product Attributes

Variations

Optional Accessories

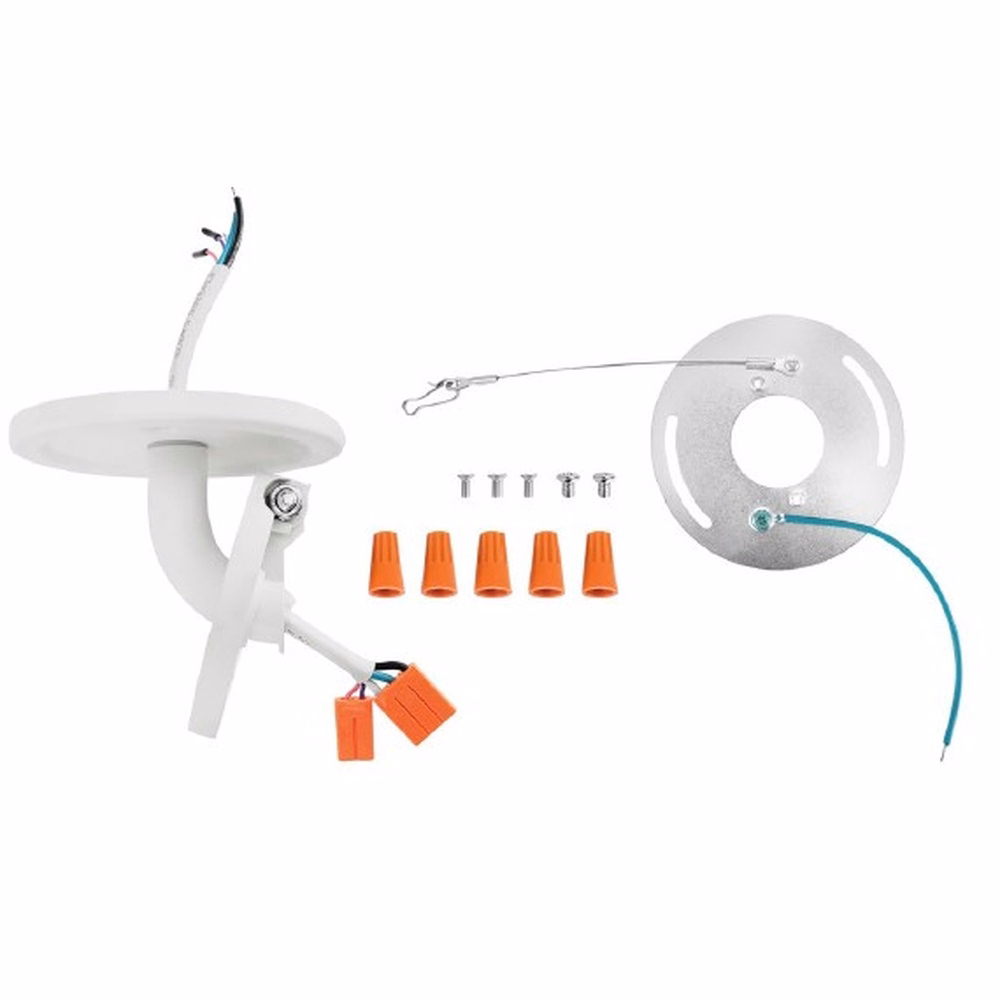

Mounting Kits (3″ / 3″&4″ shared hardware)

Lenses (3″)

Baffles (3″)
