Description

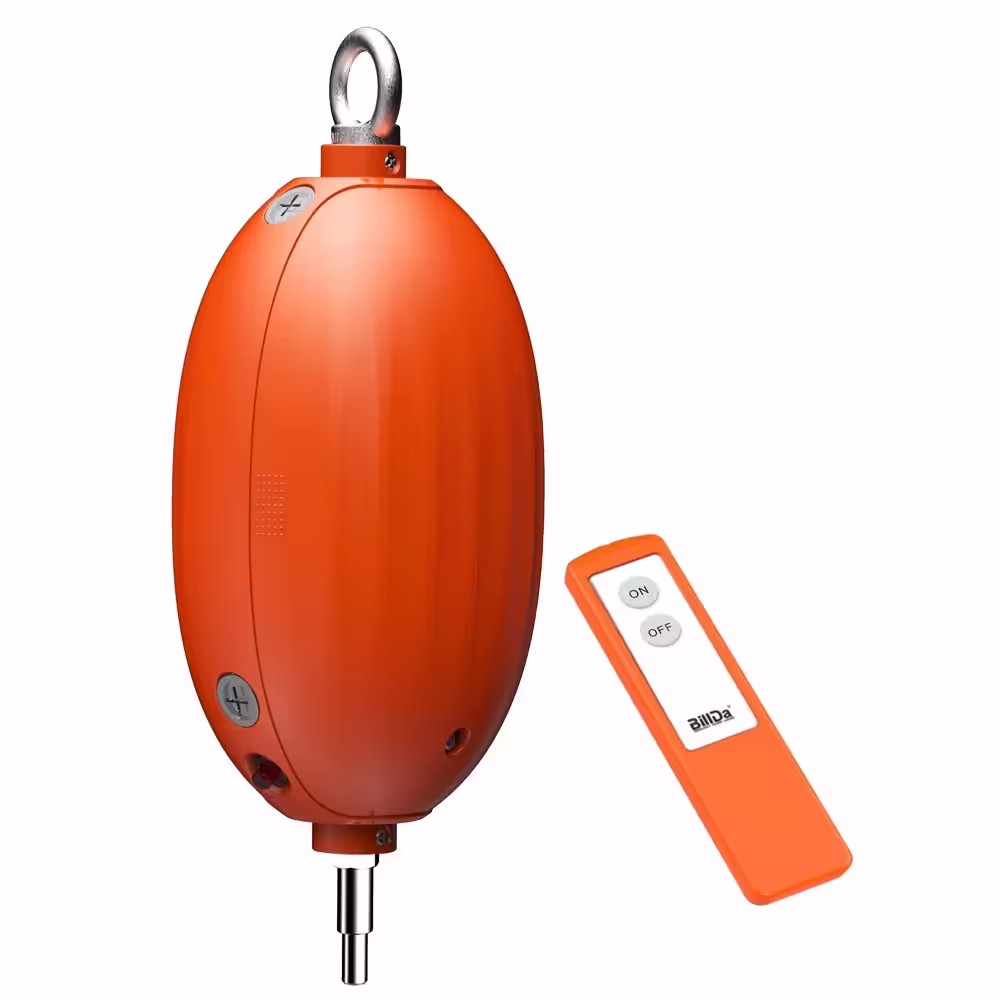

The WSD-EMUFO40W347-R Emergency LED Driver is a 40W battery backup driver purpose-built for 0-10V dimmable UFO high bay and linear high bay fixtures. Its distinctive egg-shaped, single-piece housing is a private mold patent design optimized specifically for mounting inside a UFO high bay body. It wires directly into the AC input of the LED driver for simple installation, delivers constant power for a full 90-minute runtime, and includes a wireless remote control option for testing the emergency function without climbing to the fixture. It is UL Listed to UL924 and CSA C22.2 No.141 for both factory and field installation.

• Distinctive egg/capsule-shaped, single-piece housing — private mold patent design, optimized for mounting inside UFO high bay fixtures
• Simple wiring: connects directly to the AC input of the LED driver
• Universal input voltage: 100-347V AC, 50/60Hz; input current ≤200mA; input power 15W
• Output voltage: 170V DC; constant power output, part of a 30W/40W/60W family (this listing covers the 40W model)
• Emergency runtime: 90 minutes; charging time ≥24 hours
• Built-in Li-ion battery; 5-year warranty
• Mandatory 0-10V dimming interconnect: the emergency driver’s dimming wires must be connected to the UFO LED driver’s dimming wires for emergency mode to function — the unit will NOT operate if not connected
• Manufacturer recommendation: emergency output power should be ≥20% of the UFO high bay’s LED driver output power
• For this 40W model specifically: suggested for use with LED fixtures under 300W, and when dimmed to minimum, fixture power must be under 35W
• Five documented wiring configurations: with dimmer, with wall switch (no dimmer), without wall switch/dimmer (24-hour lighting), with sensor (100-277/347VAC), and with 12VDC sensor
• Wireless remote control test option: ON button tests the emergency function (switches to emergency mode, indicator light turns off); OFF button reverts to normal mode; red indicator ON = charging, red indicator OFF = discharging; remote must be within 45° of the indicator light; requires 2 AAA batteries (not included); a non-remote-control version is also offered
• Built-in protections: over-voltage, short-circuit, over-load, and open-circuit protection
• Built-in integrated junction box
• Maximum mounting height: 48.65 ft
• Ambient temperature: 5°C to 50°C (41°F to 122°F)
• Weight: 3.3kg; dimensions 273.26mm x Φ142.3mm
• Requires an unswitched AC power source
• Standards: UL924, CSA C22.2 No.141; California Energy Commission (CEC) Title 20 Compliant, with BC certification
• UL Listed for field or factory installation (file E530386)

Applications

Emergency backup power for 0-10V dimmable LED UFO high bay and linear high bay fixtures in warehouses, distribution centers, gymnasiums, and other high-ceiling industrial or commercial interiors.
