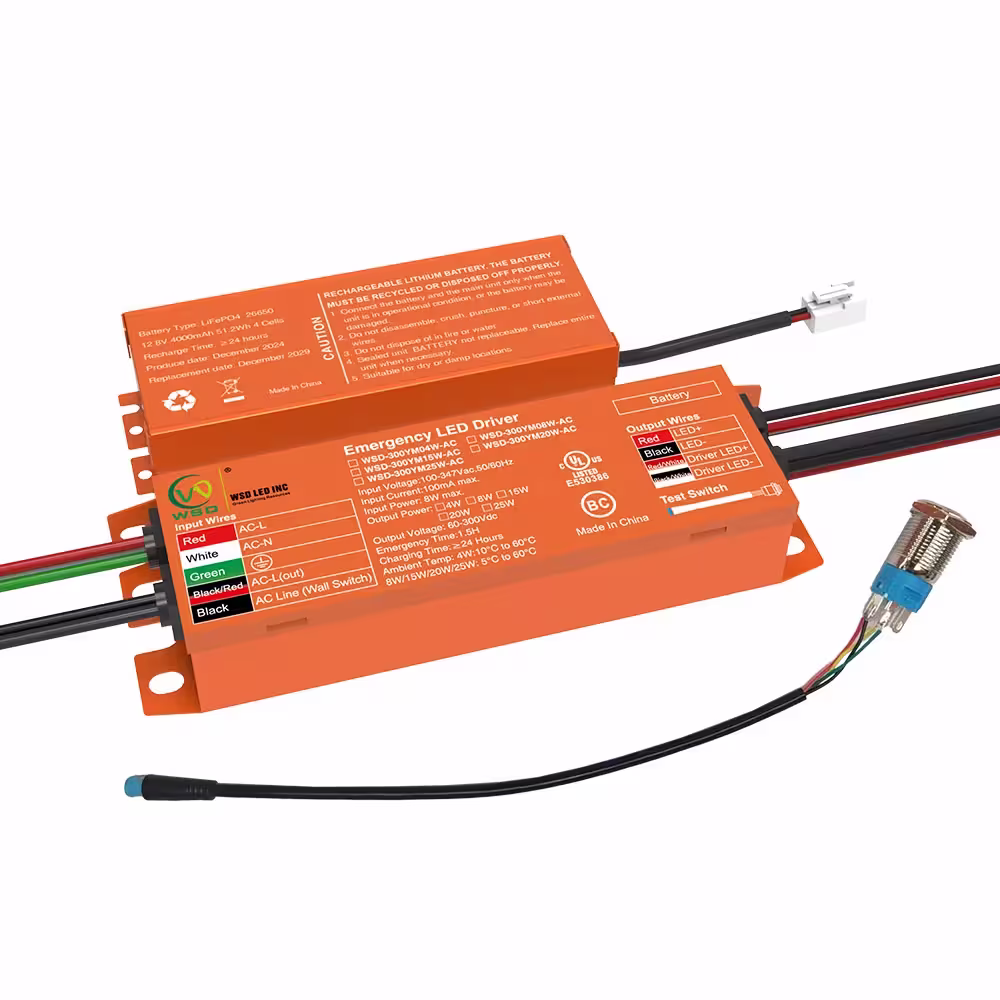

The WSD-300YM Emergency LED Driver is a self-testing battery backup driver with a split design — an external LiFePO4 battery pack connects to the driver for flexible installation in narrow spaces. Available in 8W and 25W output tiers, it automatically switches to emergency power during an outage and runs a monthly 30-second and annual 90-minute self-test if enabled. The long-life LiFePO4 chemistry is rated for 2000 charge/discharge cycles and a wider operating temperature range than standard Li-ion emergency drivers. It is UL Listed to UL924 for both factory and field installation and built for indoor dry and damp locations.
Emergency backup lighting for LED fixtures in commercial and industrial interiors, especially installations needing a longer-cycle-life battery or a wider operating temperature range than a standard emergency driver.
| Attribute | Value |
|---|---|
| Brand | ONE SOURCE LIGHT |
| Product Type | Emergency LED Driver with External LiFePO4 Battery (WSD-300YM Series) |
| Output Power | 8W or 25W — see Variations table |
| Output Voltage | 60-300V DC |
| Input Voltage | 100-347VAC, 50/60Hz; unswitched AC power source required on the same branch circuit as the AC LED driver |
| Electrical | Input current 100mA max; input power 8W max |
| Battery | External LiFePO4, 2000-cycle rated; charging current ≤350mA; charging time 24 hours; sealed and not field replaceable |
| Emergency Runtime | 90 minutes |
| Controls | 2-in-1 test switch with charge indicator light; automatic monthly/annual self-test if enabled; Metal, Skinny Film (with Red/Green LED), and 2-in-1 Plastic test switch accessories all shown by the manufacturer — not confirmed which ships with this batch since no inventory data was provided |
| Construction | Driver case 5.87″ x 1.75″ x 1.01″ (149mm x 44.5mm x 25.6mm, mounting center 5.44″) for all output tiers; battery case size varies by output — see Variations table and notes below on a conflicting 8W battery dimension in the spec sheet |
| Environment Rating | Dry and damp locations only — not for outdoor use; use only within an enclosure; ambient temperature 5°C to 60°C (41°F to 140°F) for 8W/25W; not for use in an air-handling fixture; must be used with grounded, UL Listed luminaires |
| Battery Maintenance | Charge continuously >24 hours on first use; recharge 24 hours every 6 months during storage; maximum 1-year shelf life before recharge is required to avoid battery damage (not covered under warranty) |
| Certifications / Listings | UL Listed (cULus, file E530386), UL924; CSA C22.2 No.141; CEC Title 20 Compliant with BC certification; CE, RoHS |
| Warranty | 5 years, limited |
| Catalog Number | Output Power | Battery Case Size | Notes |
|---|---|---|---|
| WSD-300YM08W-AC | 8W | Two different battery case sizes are both labeled “8W Battery case” in the manufacturer’s spec sheet: 6.1″ x 1.2″ x 1.18″ (mounting center 5.83″) and 3.39″ x 1.61″ x 0.91″ (mounting center 3.12″) | See notes below — confirm with your supplier which battery case actually ships before publishing dimensions |
| WSD-300YM25W-AC | 25W | 6.46″ x 2.2″ x 1.22″ (164mm x 56mm x 31mm, mounting center 6.19″) — shared with the 15W/20W tiers |
