Description

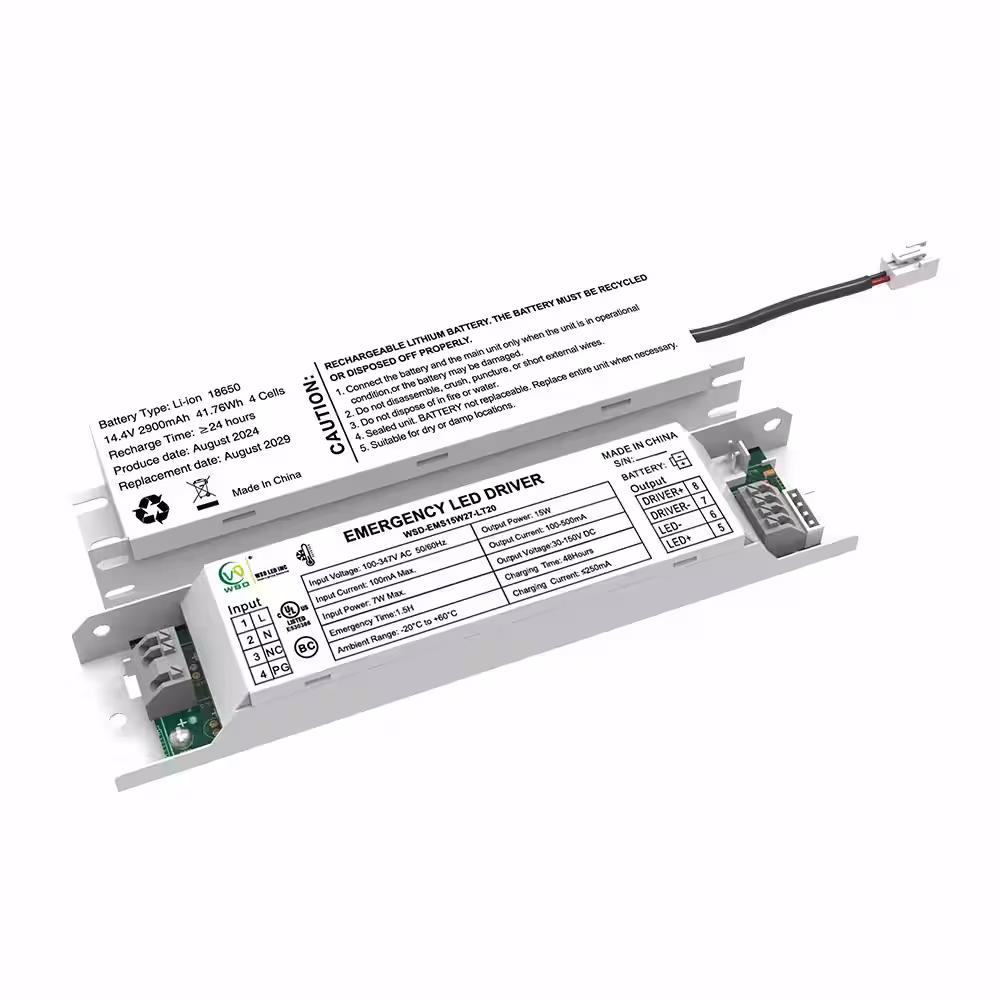

The WSD-EMS15W27-LT20 Cold Pack Emergency LED Driver is a 15W emergency battery backup with a physically separate battery case, giving installers flexibility to mount the driver and battery independently. Its cold-rated Li-ion battery is built to operate across an extreme -20°C to +60°C (-4°F to 140°F) range, making it a fit for unheated or cold storage environments where standard emergency drivers aren’t rated. It automatically switches LED fixtures to emergency power during an outage and is UL Listed to UL924 for both factory and field installation.

• Separate driver and battery case design for flexible mounting during installation
• Cold Rated Li-ion battery; rated for extreme temperatures from -20°C to +60°C (-4°F to 140°F)
• Emergency output power: 15W; output voltage DC30-150V
• Constant power emergency output
• 90-minute discharge time; 48-hour recharge time; battery charging current ≤250mA
• Universal input voltage: 100-347VAC, 50/60Hz; input current 100mA max; input power 7W max
• Compatible with a wide variety of LED arrays and AC drivers; the connected AC LED driver’s output current cannot exceed 4A
• Requires an unswitched AC power source on the same branch circuit as the AC LED driver
• Battery protections: overcharge, over-discharge, and short-circuit protection
• M12 metal test switch with indicator light included (UL 2464, 24AWG, 300V, 80°C cable, 550mm/21.65″ length); press twice to cut off emergency mode for shipment and storage
• IP65-rated test switch for protection against dust and water ingress at the switch itself — the driver and battery case are for dry and damp locations only; do not use outdoors or mount near gas or electric heaters
• Sealed, non-maintenance battery that is not field replaceable — replace the entire unit if the battery fails
• Not for use in an air-handling fixture
• Standards: UL924, CSA C22.2 No.141; CEC Title 20 Compliant
• 5-year limited warranty
• UL Listed (cULus, file E530386)

Applications

Emergency backup lighting for LED fixtures in commercial and industrial interiors, including unheated spaces, cold storage, and other extreme-temperature environments where standard emergency drivers aren’t rated.
