Description

The T-Grid Recessed Linear Light is a new-generation grid lighting solution built to replace selected cross tees in a suspended T-grid ceiling, integrating seamlessly into 9/16″ flat, 9/16″ slot, or 15/16″ flat grid systems. Because the LED module and T-grid bracket are separable, one bracket can host modules of different CCTs with tool-free, seconds-fast swaps — and the modules link together into continuous runs or custom patterns (L, T, +, square, and more) instead of being limited to a straight line. Each fixture ships as a light module only; a remote LED driver (sized to length) and, for longer runs, a 12′ extension cable are ordered separately to complete the system.

• US Patent 10125934 — separable LED module / T-grid bracket design
• Replaces 9/16″ flat, 9/16″ slot, or 15/16″ flat T-grid cross tees (compatible with Suprafine XL, Silhouette 1/4″ & 1/8″ XL, Prelude XL, Clean Room, and similar grid systems)
• Available in 2′ and 4′ lengths
• Milky diffuser lens with triple-sided optics for combined direct/indirect light, 120° beam angle
• CCT options: 3000K, 3500K, 4000K, and 5000K (fixed per catalog number; swap the module to change CCT)
• Minimum 80 CRI
• 0-10V dimming; dims to 10% standard (dims to 1% available)
• Requires a separate remote LED driver: one 30W driver per up to 3 fixtures for 2′ lights, or one 60W driver per up to 3 fixtures for 4′ lights — sold separately, see Required Accessories table
• Max distance from fixture to remote driver is 8 feet (24 AWG wire, RJ45 terminal); a 12′ extension cable is available separately for longer runs
• 110-277V AC input
• Slim profile, approximately 0.48″-0.95″ thick depending on grid type, for a near-flush fit to the ceiling
• IC rated; cULus Listed for damp locations
• DesignLights Consortium (DLC) Qualified (standard/premium classification not specified on this batch — verify tier on designlights.org before advertising a specific DLC tier)
• Plenum-rated cable (FT6) and CCEA-listed options available as Make-to-Order (additional cost/lead time may apply)
• Optional external, field-installed emergency driver (16W or 25W) available, ordered separately
• 5-year limited warranty

Applications

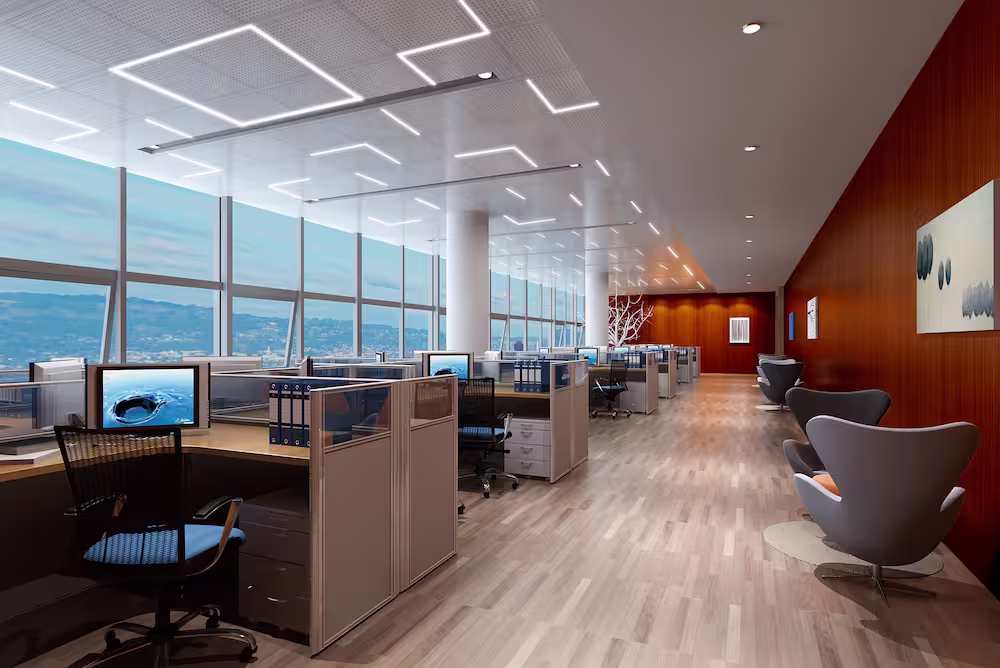

Offices, retail, hospitality, and any suspended-grid ceiling space where a continuous line or custom pattern of light is desired instead of a standard troffer or panel.

Product Attributes

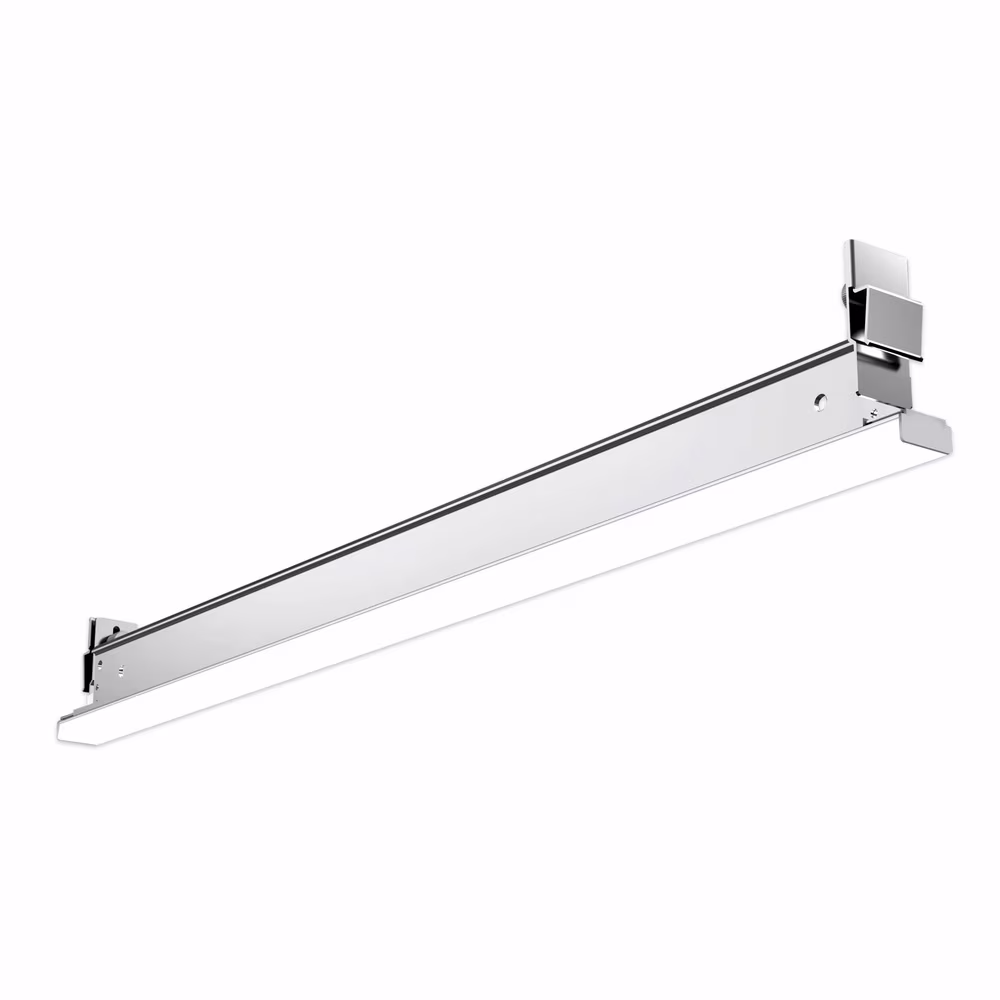

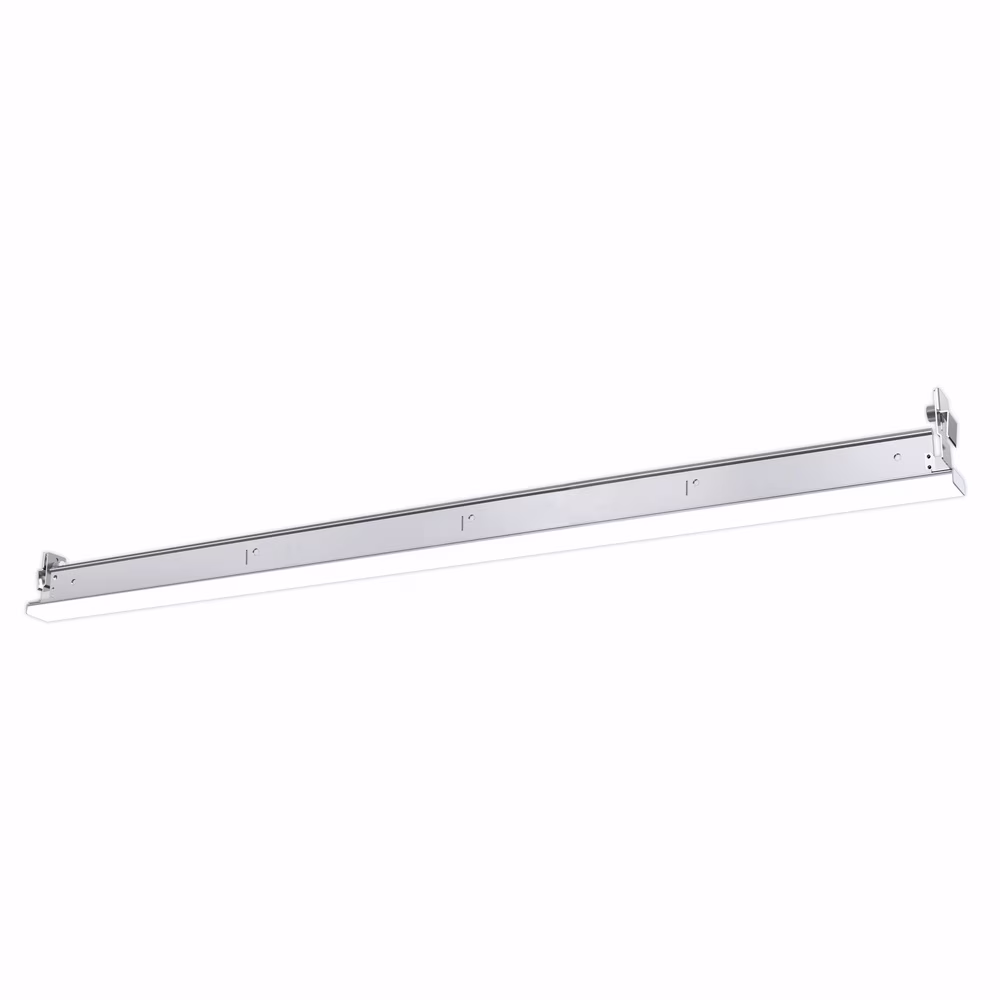

Variations — 15/16″ Flat T-Grid

Variations — 9/16″ Flat T-Grid

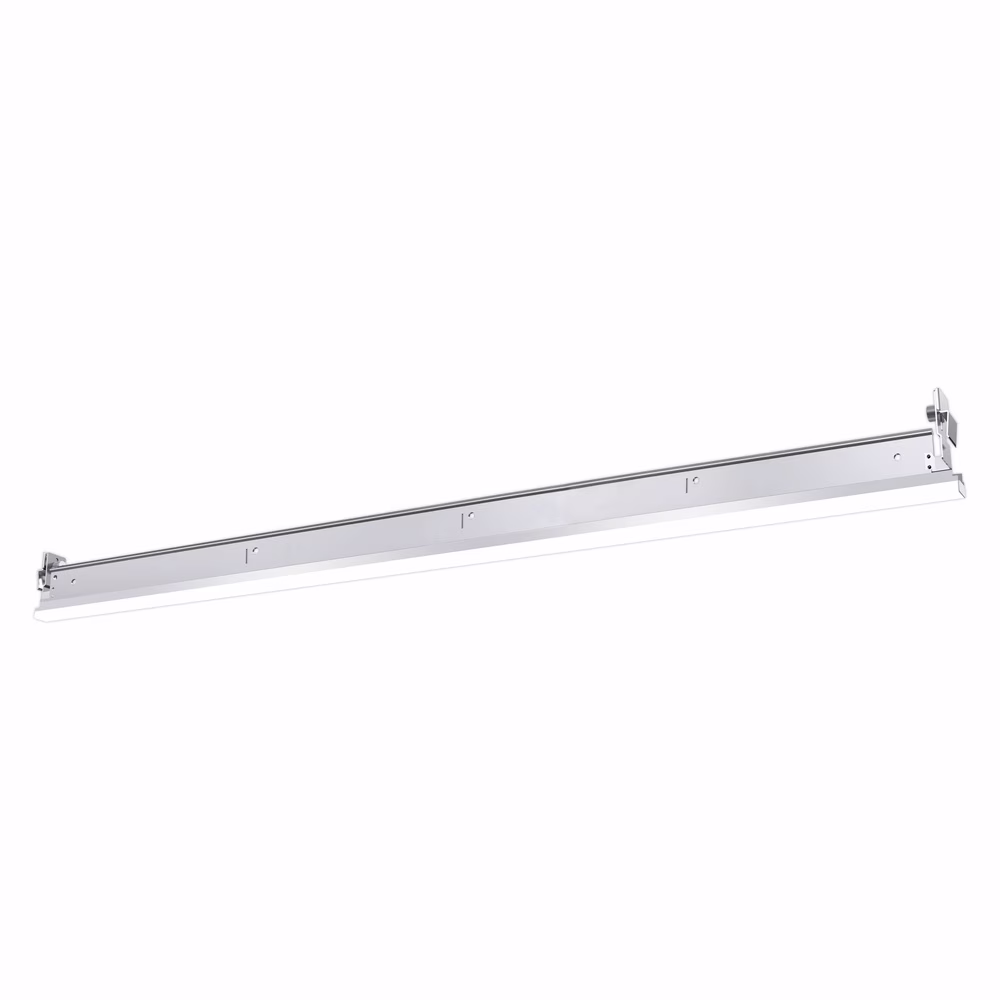

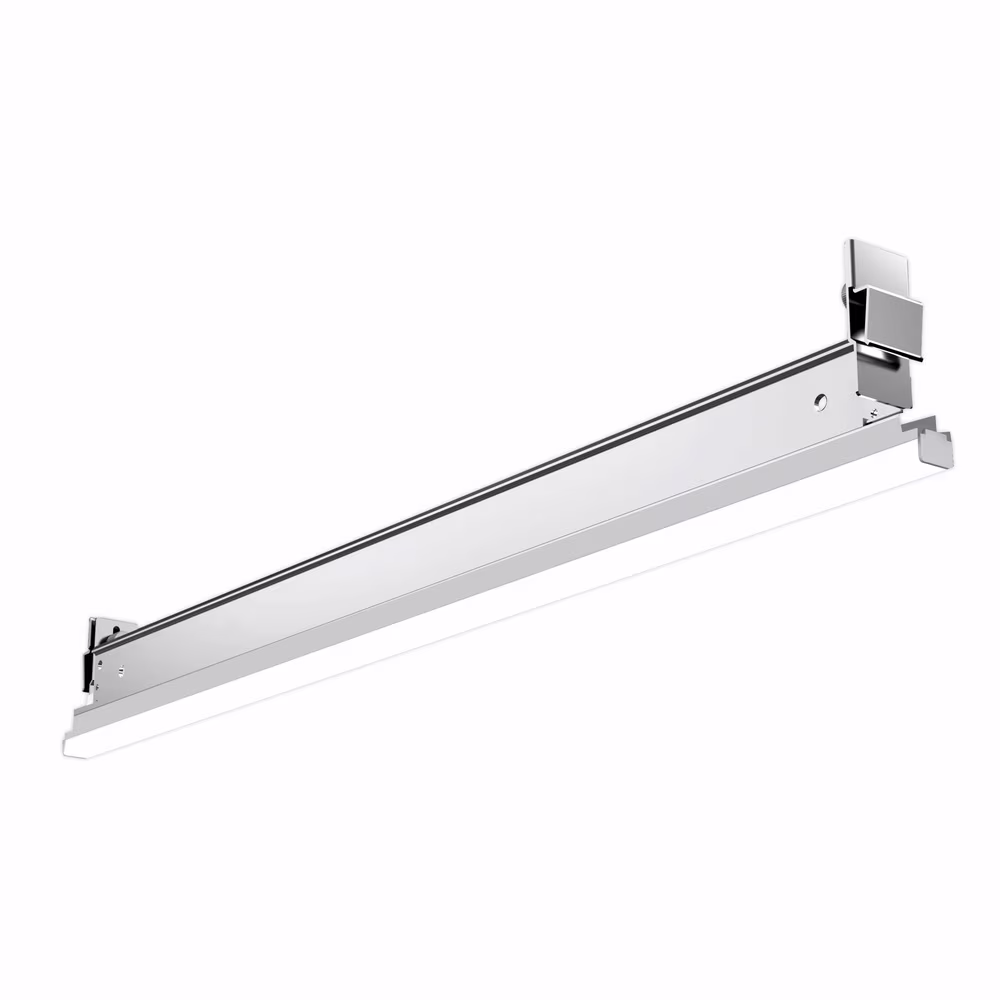

Variations — 9/16″ Slot T-Grid

Required Accessories — Remote LED Drivers & Extension Cable (sold separately)

This fixture ships as a light module only. A remote driver is required to power it, sized to the fixture length; one driver can power up to 3 fixtures of the matching length.
