Description

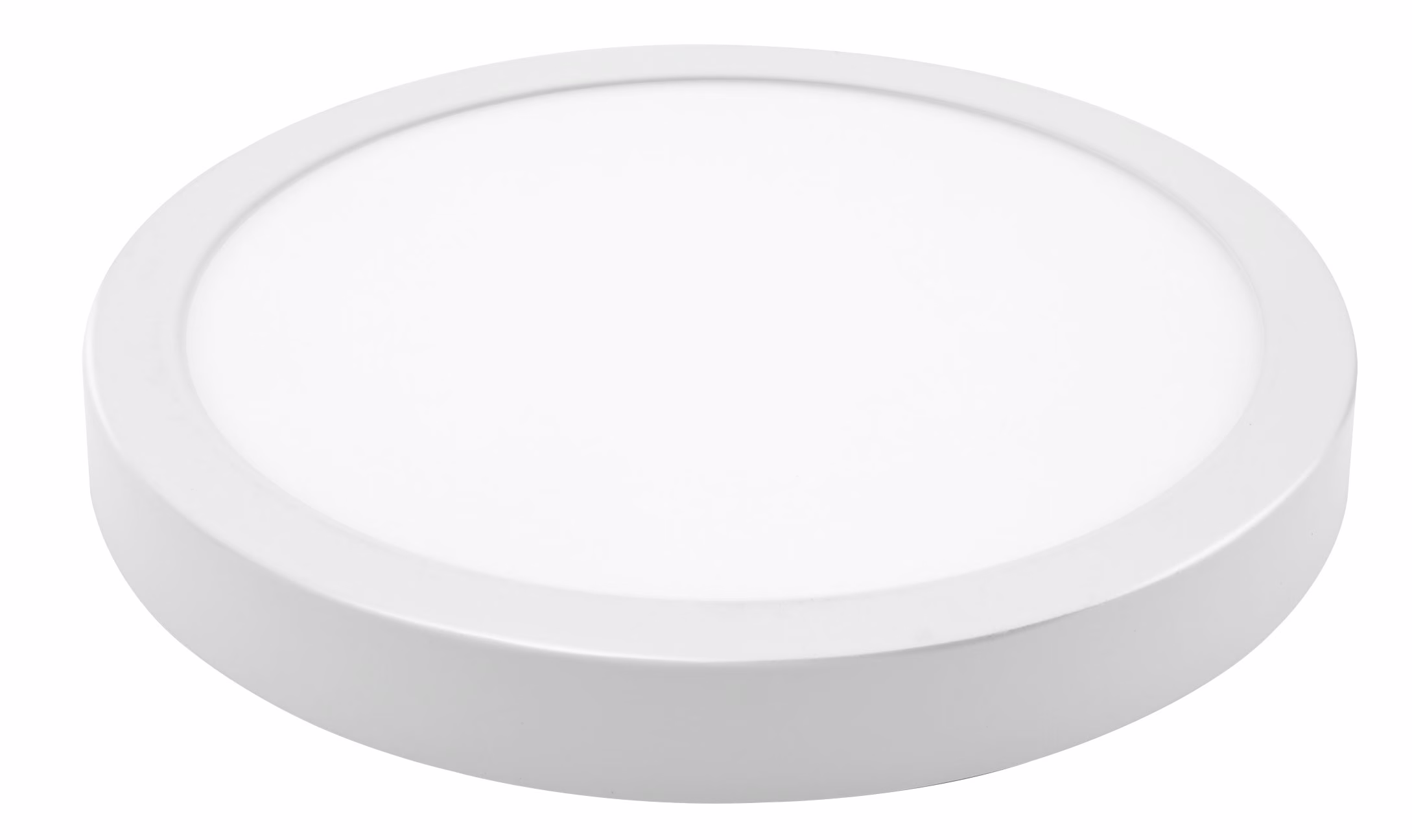

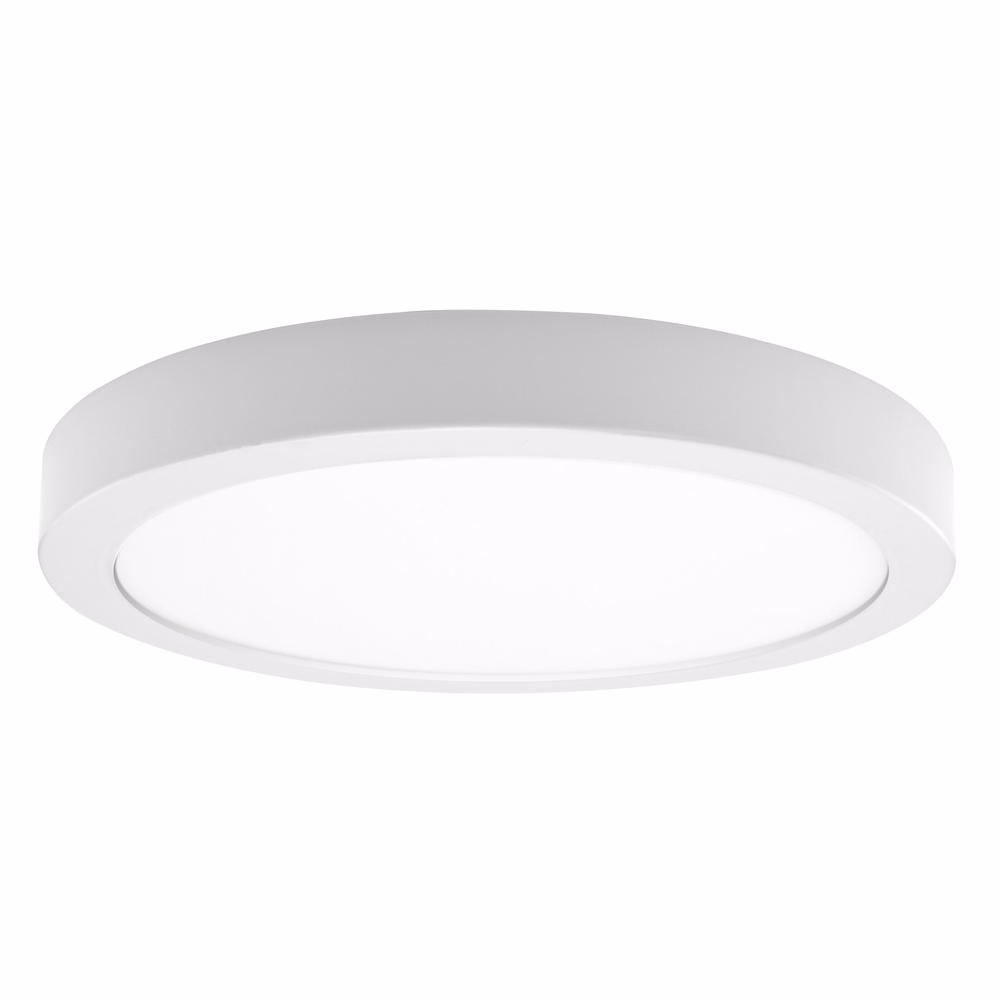

The SU-FM7IN-15W5C-G1 is a 7″ die-cast flush mount LED downlight built for an ultra-thin, low-profile ceiling installation — the fixture is just 0.79″ thick from a precision die-cast aluminum trim ring that also improves heat dissipation and corrosion resistance. It emits evenly across a 120° beam without halo or shadow, and its color temperature is field-selectable across all 5 CCTs (2700K-5000K) with an onboard switch, so one SKU covers a full range of color-temperature needs on site. A multi-aperture mounting bracket lets it install directly into a standard 2.75″ or 3.5″ junction box for a quick surface-mount retrofit.

• Ultra-thin die-cast design — only 0.79″ (20mm) lamp thickness

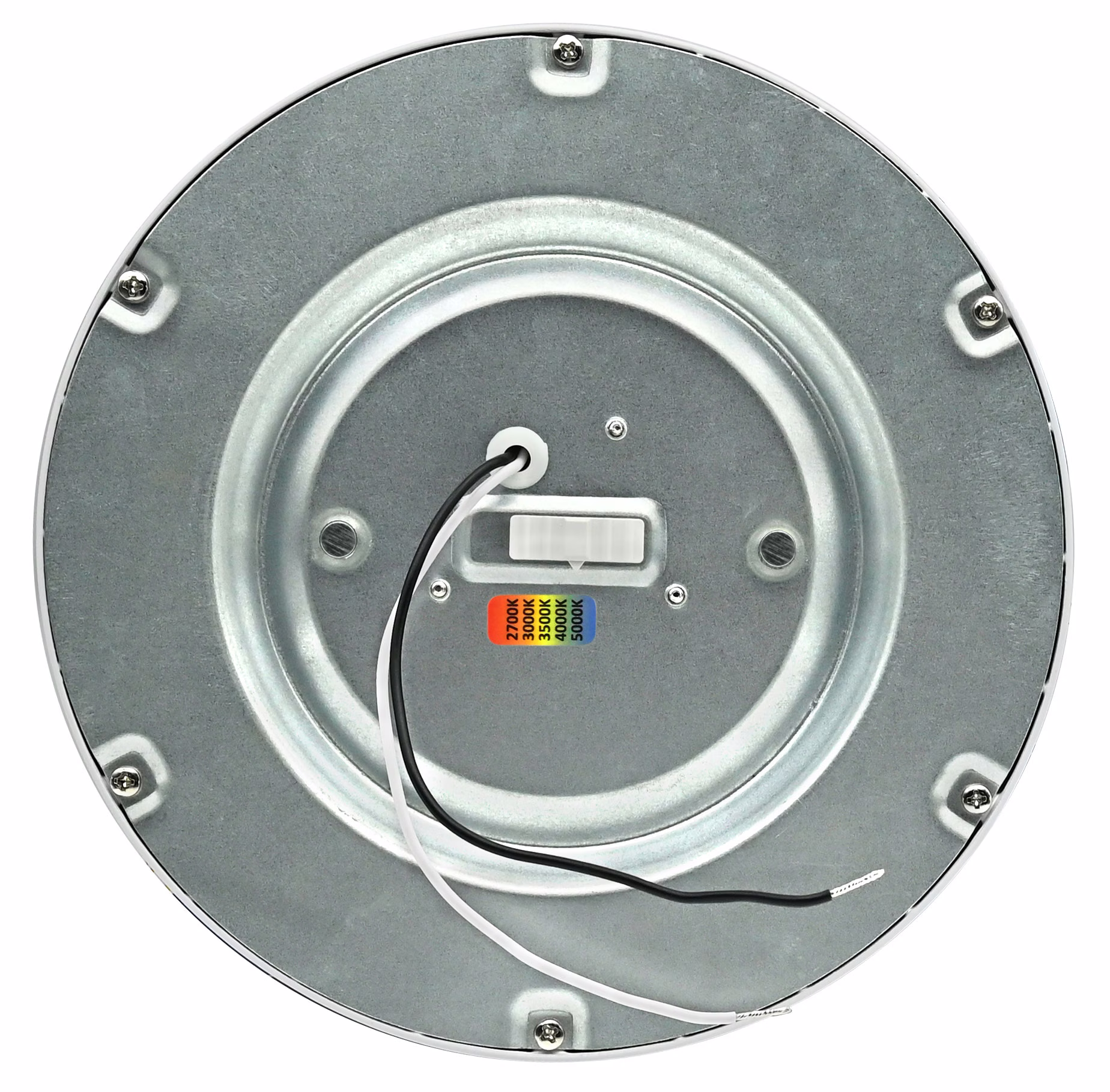

• 5CCT field-selectable color temperature: 2700K, 3000K, 3500K, 4000K, or 5000K via onboard switch
• 120° beam angle; emits evenly without halo or shadow
• CRI 90
• Triac dimmable, smooth 100%-10% dimming with most triac dimmers
• Suitable for Wet Locations

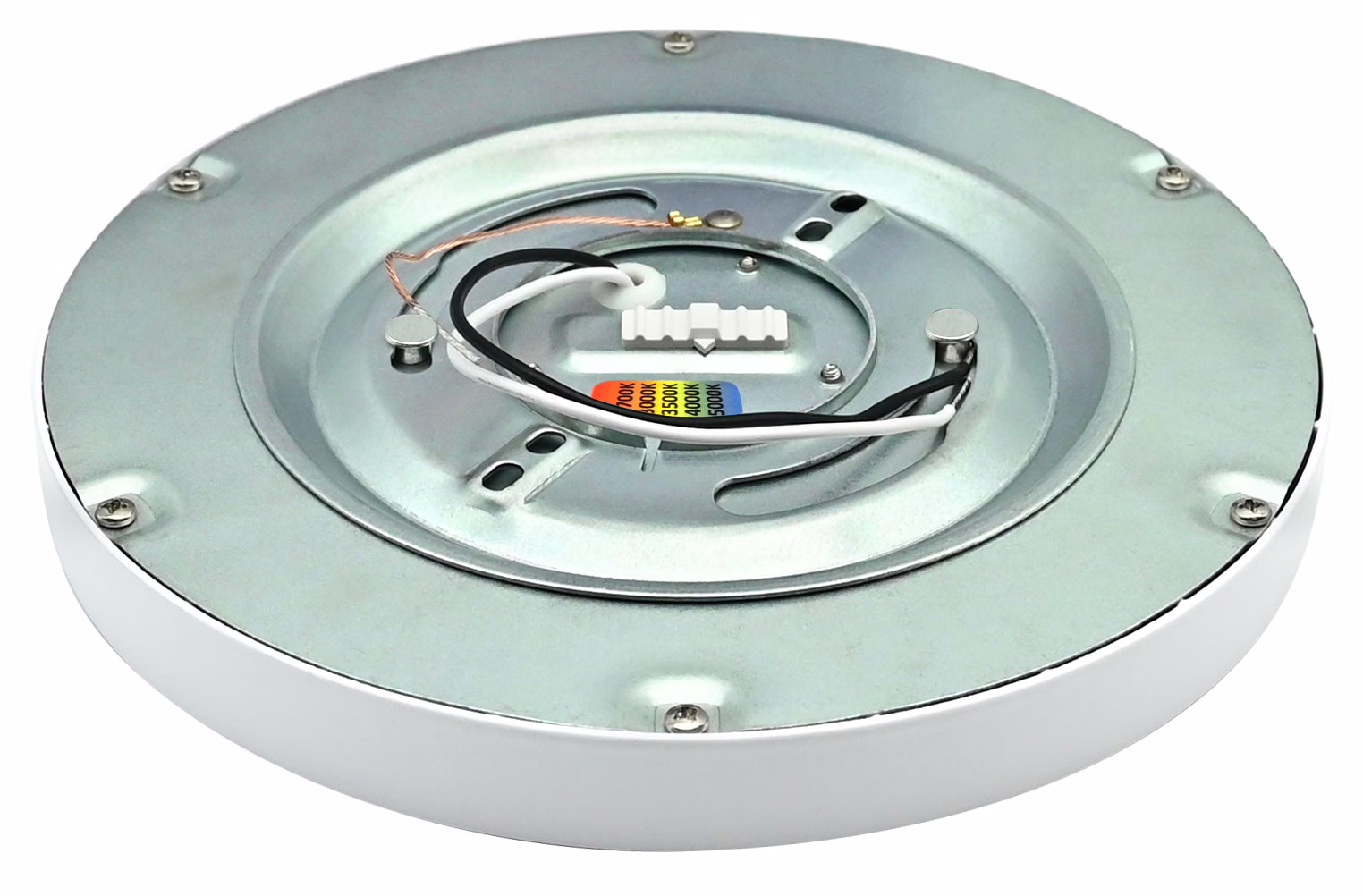

• Fits a standard 2.75″ or 3.5″ junction box via a multi-aperture mounting bracket; supports surface mount
• Fixture design includes an infrared sensor interface
• Die-cast aluminum + PS construction, white finish
• ≥50,000 hour lifespan; 5-year limited warranty
• Operating temperature: -4°F to 113°F (-20°C to 45°C)
• ETL Listed; Energy Star certified; Title 24 (JA8-2022-E) compliant
• 80% more energy savings than comparable halogen lamps

Applications

Low-profile surface or J-box mounted general lighting in offices, residential spaces, hotels, corridors, shopping centers, schools, libraries, and similar commercial or residential interiors where a slim, dimmable, color-tunable downlight is needed.
