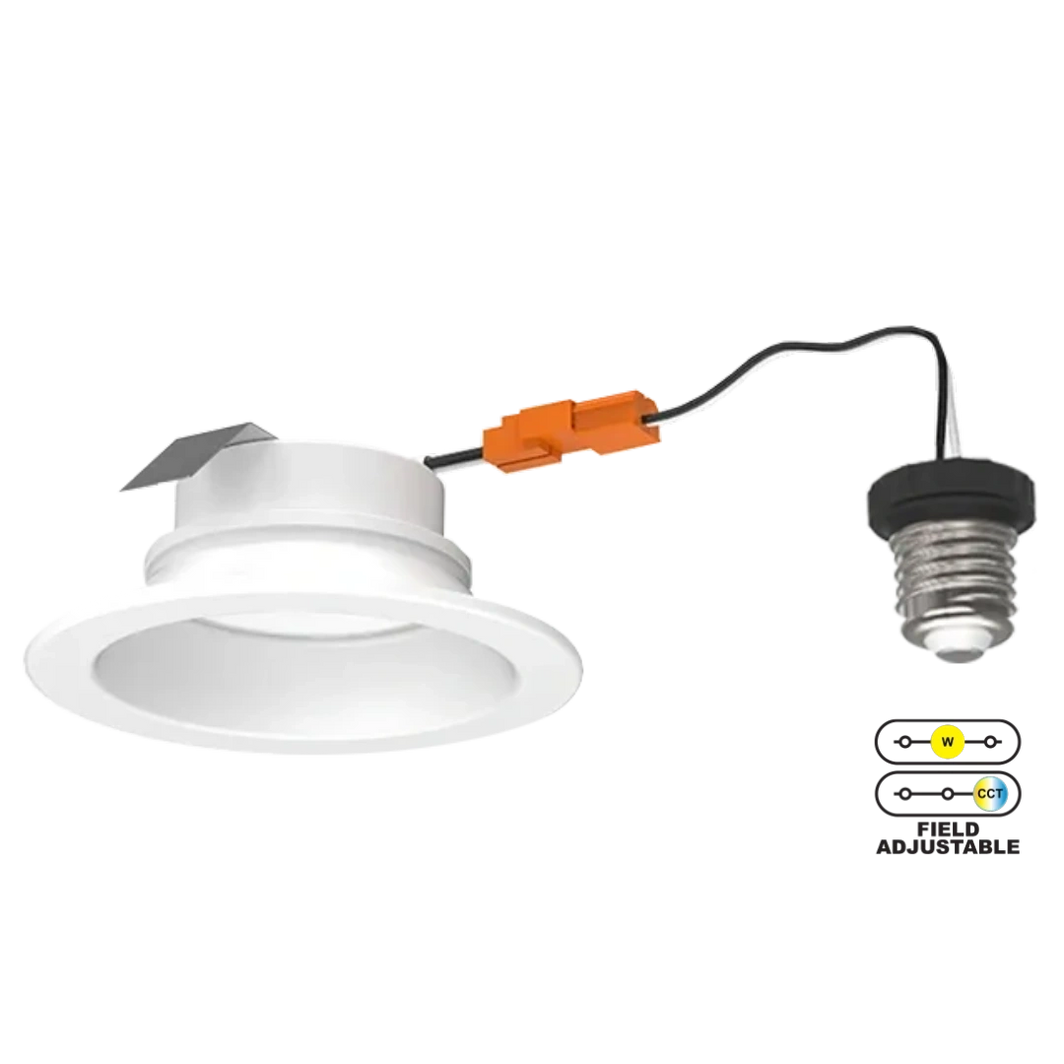

4″ LED Baffle Retrofit Recessed Downlight with CCT and Wattage Selector
5-in-1 CCT Selectable : 2700K / 3000K / 3500K / 4000K / 5000K — flip the switch for the desired color temperature
3-in-1 Wattage Selectable : 8W / 10W / 12W
Delivered Lumens : 550 lm (8W) / 700 lm (10W) / 850 lm (12W) — based on 4000K setting
Efficacy up to 70 lm/W
CRI : 90
Beam Angle : 100°
Voltage : 120V, 60Hz
Triac Dimmable down to 5% — compatible with most major dimmer brands
Power Factor : > 0.9
Construction : PC driver housing and aluminum reflector with architectural white finish
Easy clip-in installation to existing can housing — standard sealing gasket included
E26 / GU24 base — E26 adapter included for easy retrofitting
Fits most 4″ recessed housings
IC Rated
80% more energy savings than halogen lamps — low heat production reduces air-conditioning load
IP40 — Suitable for damp locations
Applications : Residential housings, high-rise condominiums, healthcare, universities/campuses, shopping centers, hospitality
ETL Listed, Energy Star Listed, FCC, RoHS, CE, California Title 24 Compliant
5-year limited warranty

MPN (Part No.)	PT-DLR-B-4I-5C3P
Lighting Technology	LED
Fixture Type	Recessed Retrofit Downlight (Baffle)
Aperture Size	4″
Style	Baffle Trim
CRI	90
Beam Angle	100°
Color	Color Tunable (5-in-1)
Color Temperature	2700K / 3000K / 3500K / 4000K / 5000K Field Selectable
Wattage	8W / 10W / 12W Field Selectable (3-in-1)
LPW	Up to 70
Delivered Lumens	550 lm (8W) / 700 lm (10W) / 850 lm (12W)
Voltage	120V
Power Frequency	60Hz
Power Factor	> 0.9
Dimming	Triac Dimmable (down to 5%)
Ratings and Certifications	ETL Listed (Damp Location), Energy Star Listed, FCC, RoHS, CE, California Title 24 Compliant, IC Rated
IP Rating	IP40 — Damp Location
Base	E26 / GU24 (E26 Adapter included)
Finish	Architectural White
Housing	PC Driver Housing + Aluminum Reflector
Mounting	Easy Clip-in Retrofit (fits most 4″ recessed housings)
Diameter	5 in.
Height	2.65 in.
Weight	0.28 lb (per unit)
Warranty	5-Year Limited
