Description

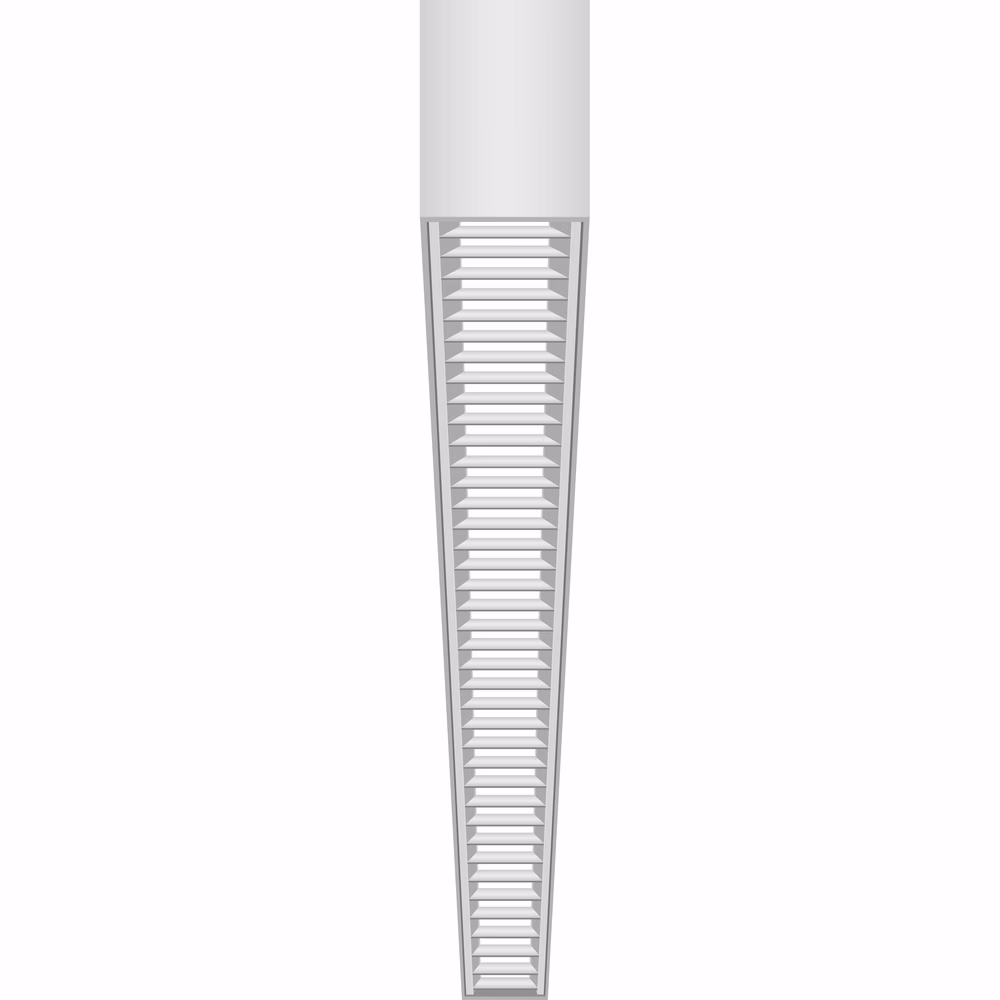

The Zeta 2.3″ Louver Recessed Linear Light is a slim, 2.3″-wide architectural fixture that sits into the ceiling plane for a clean, glare-controlled line of light. Its louvered lens narrows the beam and sharpens the cutoff compared to a diffuser or regressed lens, making it a strong choice where direct-view glare control matters, with wattage and CCT both adjustable in the field so a single stocked unit can be dialed in on site instead of ordering multiple SKUs. Available in 2′, 3′, and 4′ lengths, it mounts into T-grid or dry ceilings and supports seamless continuous runs with optional joiners.

• 2.3″ wide recessed linear fixture with a louvered lens for a narrower, glare-controlled beam
• Wattage selectable: 100% / 75% / 50% of max wattage, field-adjustable at the fixture
• CCT adjustable: 3000K / 3500K / 4000K, field-adjustable at the fixture
• Up to 650 lm/ft (100% down, 4000K, white finish); output up to 2600 lumens on the 4′ length
• 90+ CRI
• 0-10V dimming; dims to 10% standard (dims to 1% available)
• 110-277V AC input (110-347V AC option available)
• Compatible with 9/16″ and 15/16″ T-grid ceilings as well as dry (drywall) ceilings; trim, trimless, and T-grid hook mounting styles available across the product family
• Supports seamless continuous runs and custom shapes (L, T, +, V, Y, square, rectangle, hexagon, ceiling-to-wall) via optional joiners
• Damp rated, -20°C to 40°C (-4°F to 104°F) ambient operating range
• White finish
• cULus Listed for damp locations
• Optional external, field-installed emergency driver available, ordered separately
• 5-year limited warranty

Applications

Offices, institutions, retail stores, education, government, healthcare, and hospitality spaces — anywhere a narrower, glare-controlled line of architectural light is called for, such as direct-view workstations and conference areas.
