Description

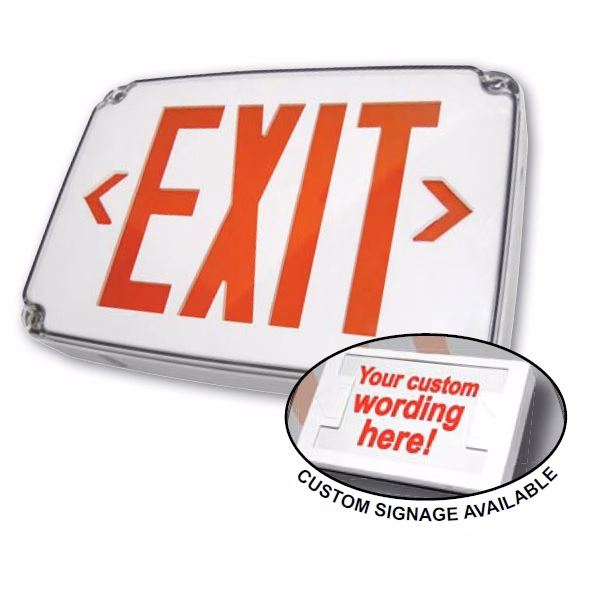

The WLEZXTEU is a compact, UL Listed wet location LED exit sign built from 5VA flame-retardant, UV-stabilized polycarbonate for reliable performance in harsh outdoor and washdown-prone environments. It features ultra-bright, energy-efficient, long-life Red or Green LED lettering, single- or double-face configuration, and dual 120/277V input voltage. A corrosion-resistant enclosure with an engineering-grade silicone gasket and a high-impact, UV-stabilized polycarbonate clear lens keep the unit sealed against moisture, while EZ snap-out Chevron directional indicators and knockouts for conduit-feed applications simplify installation. A polycarbonate mounting canopy is included for top or end mount, with a universal knockout pattern on the back plate for wall mount. Choose the AC-only version for continuously powered signage, or the Battery Backup (EM-CW) version, which adds a 4.8V long-life, maintenance-free rechargeable NiCd battery rated to the manufacturer’s Cold Weather Standard, with an internal solid-state transfer switch for a minimum of 90 minutes of emergency illumination on power loss, a fully automatic two-rate charger that recharges a discharged battery within 24 hours, and a unique bi-color LED indicator that alerts occupants to battery condition (green = normal, red = check battery). The housing ships in White (with white faceplate), Black (with black faceplate), or Gray (with white faceplate) finish.

• Compact, UL Listed wet location design — rated for harsh outdoor and washdown-prone environments (-20°C to 50°C)
• Ultra-bright, energy-efficient, long-life Red or Green LED illumination
• Available in Single Face or Double Face
• Dual 120/277V input voltage
• 5VA flame-retardant, UV-stabilized polycarbonate housing in White, Black, or Gray finish
• High-impact resistant, UV-stabilized polycarbonate clear lens
• Corrosion-resistant enclosure with engineering-grade silicone gasket
• Knockouts provided for conduit feed applications
• EZ snap-out Chevron directional indicators
• Available with AC-only power or optional Battery Backup (EM-CW, Cold Weather Standard): 4.8V long-life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch provides a minimum 90-minute emergency illumination on power loss (EM-CW/Battery Backup version)
• Fully automatic solid-state two-rate charger recharges a discharged battery in 24 hours (EM-CW/Battery Backup version)
• Unique bi-color LED battery-condition indicator (green = normal, red = check battery) (EM-CW/Battery Backup version)
• Polycarbonate mounting canopy included for top or end mount; universal knockout pattern on back plate for wall mount
• UL Listed for wet locations (-20°C – 50°C)
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes; California Energy Commission compliance
• Five-year warranty on all electronics and housing; battery prorated for five years

Applications

Mandated emergency egress and exit-route identification for outdoor, covered outdoor, and wash-down or weather-exposed areas of commercial, institutional, industrial, and multi-family buildings — parking garages, loading docks, covered walkways, and any location requiring a genuinely wet-location-rated, code-compliant illuminated exit sign.
