Description

The CR-7012 is a compact, lightweight LED twin-head emergency light built for straightforward J-box wall or ceiling mounting wherever code requires backup egress illumination. Two round LED lamp heads deliver up to 183.83 lumens on AC power, and a 3.6V Ni-Cad battery with automatic transfer switch keeps that light on for a minimum of 90 minutes if power is lost.

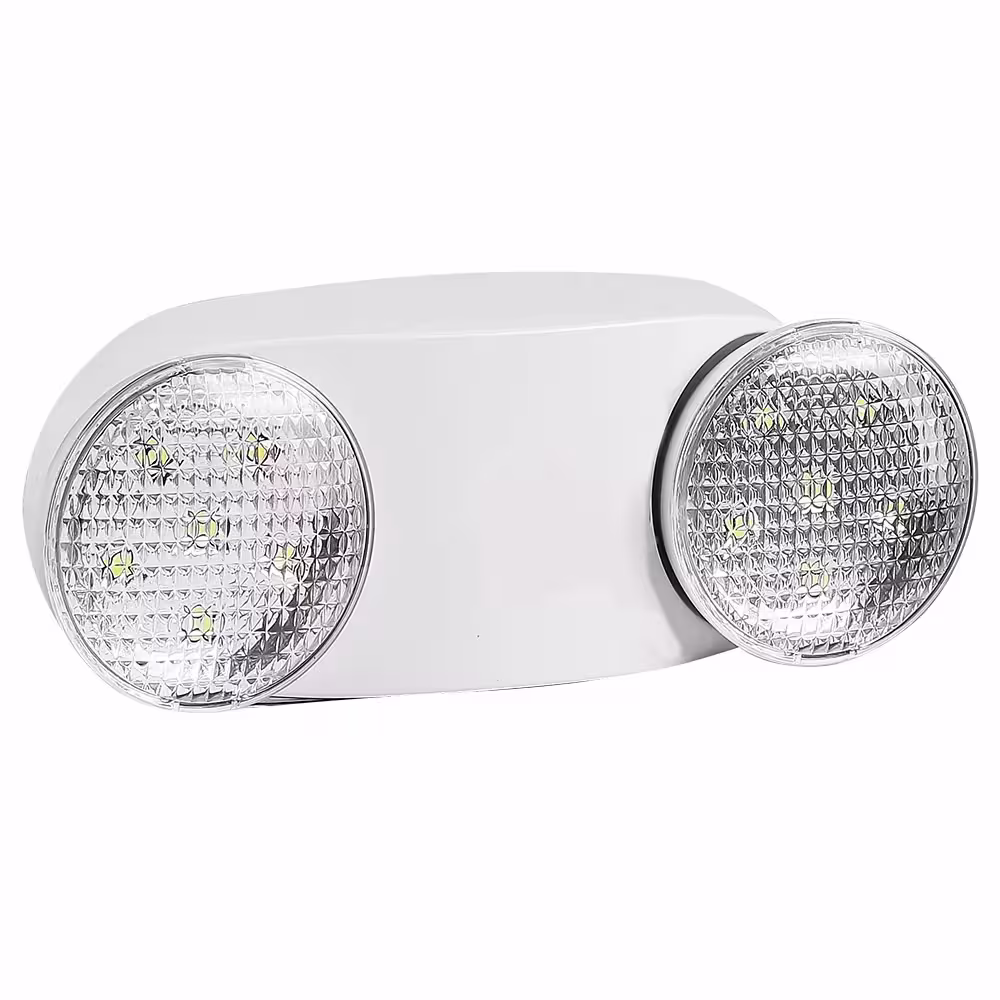

• Two round LED emergency lamp heads, up to 183.83 lumens
• 2W max AC power consumption
• Dual 120/277V, 50Hz/60Hz input voltage
• 3.6V Ni-Cad rechargeable battery, 1000mAh
• 2.5W max output wattage on battery power
• Minimum 90-minute emergency illumination on battery backup
• Fully automatic charger recharges a discharged battery in 24 hours

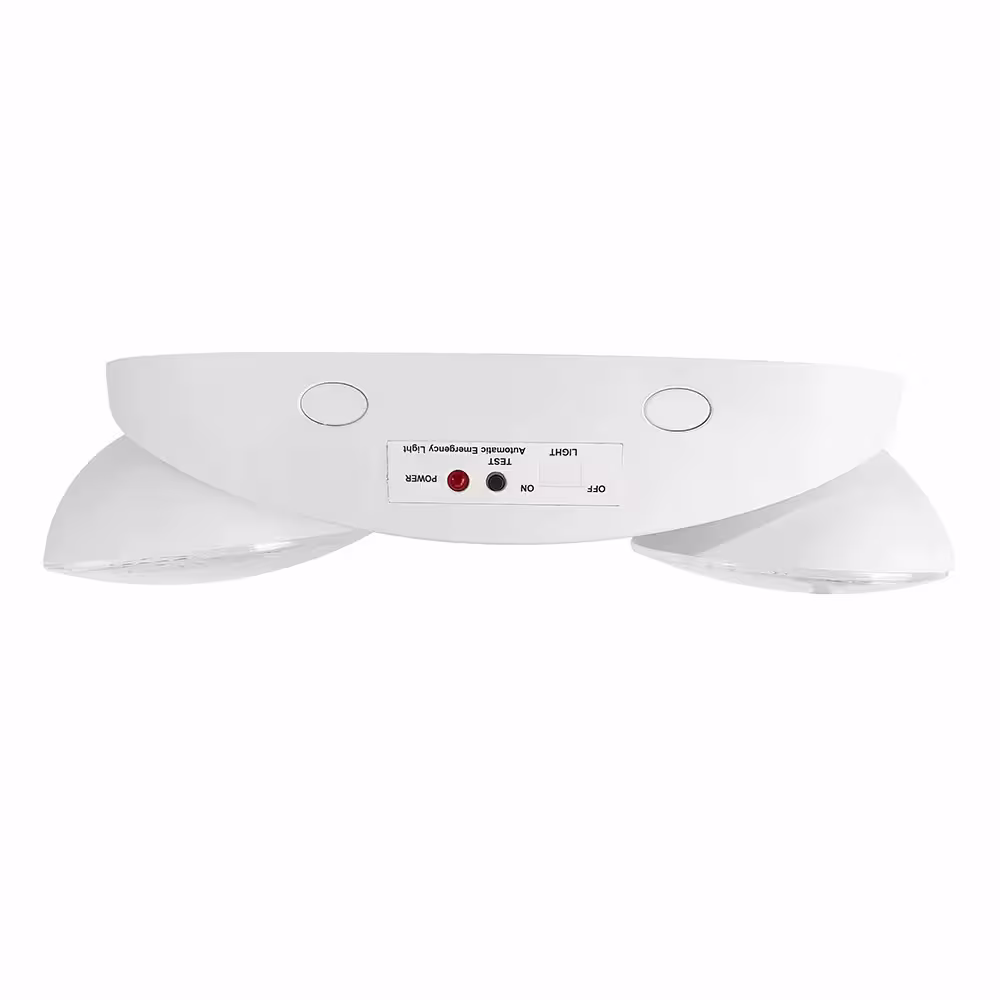

• Push-to-test switch with AC power indicator LED
• Rated for damp locations; 0°C to 40°C operating range
• Injection-molded, flame-retardant, high-impact thermoplastic housing

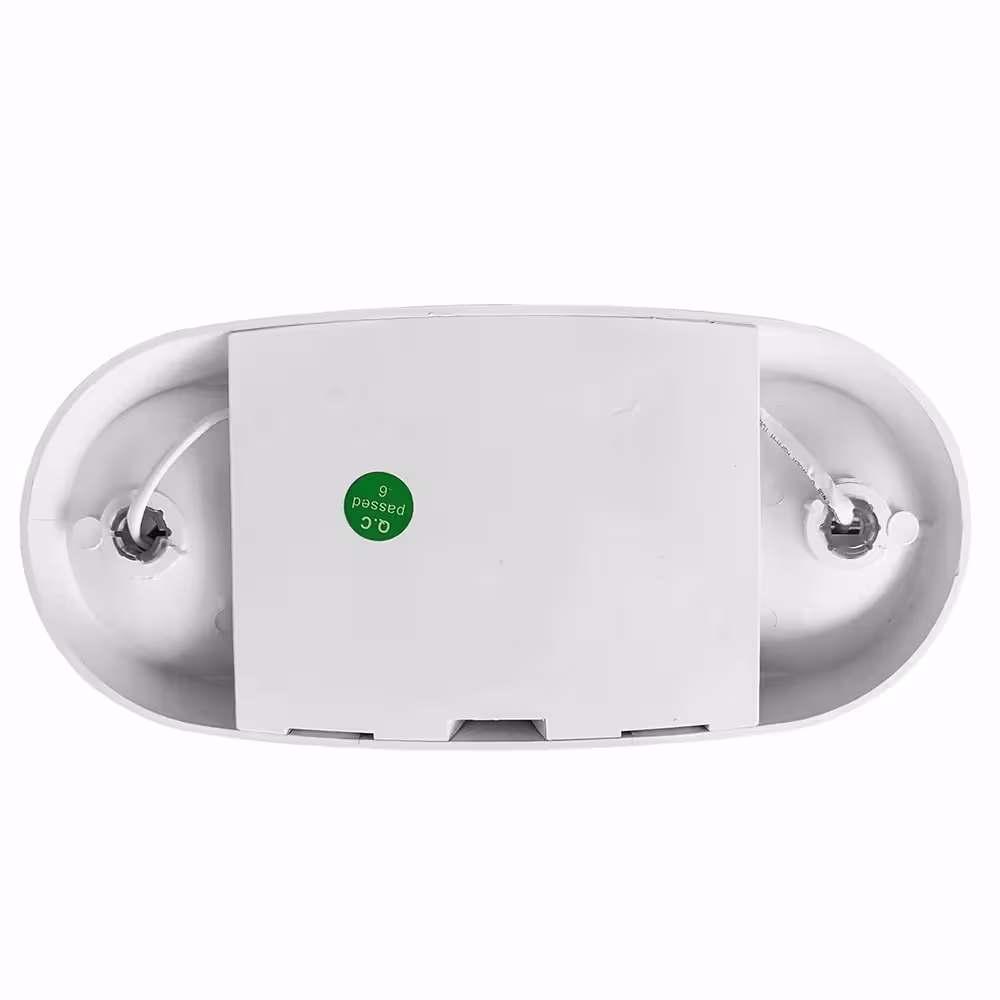

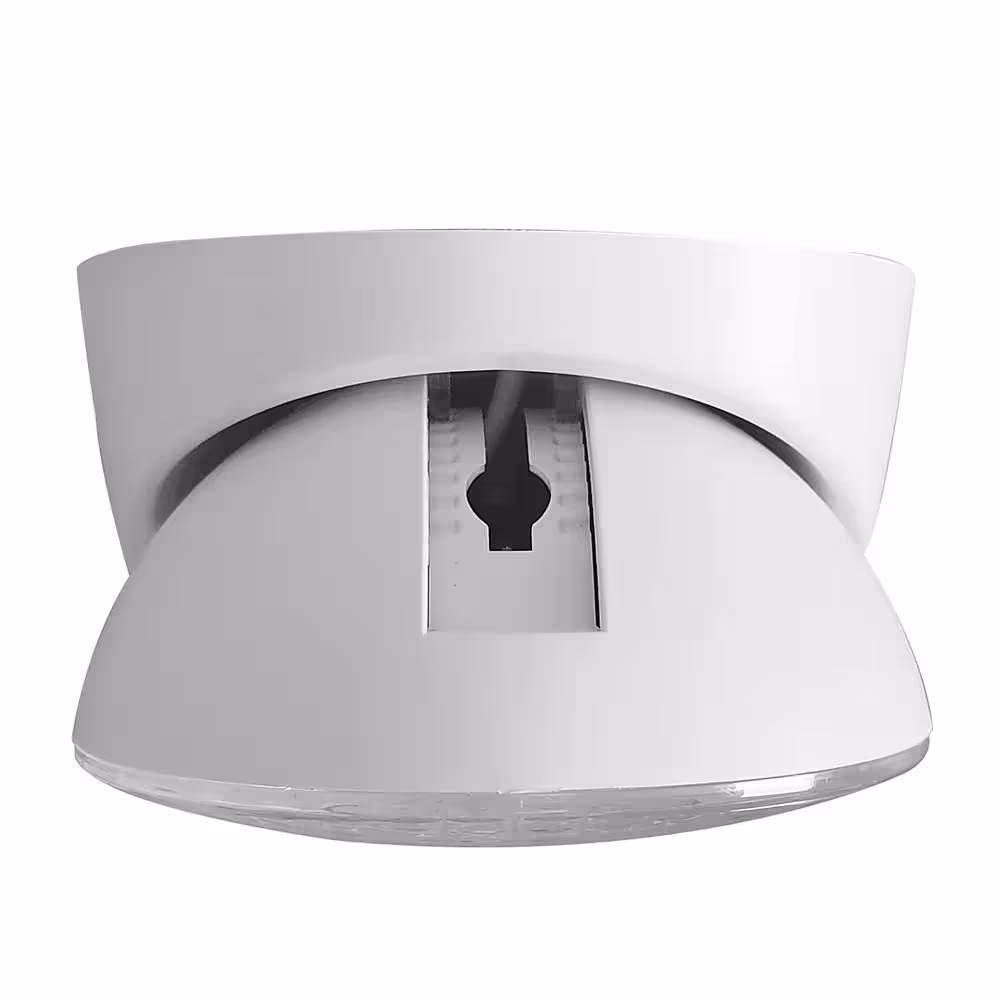

• J-box wall mount or ceiling mount; max mounting height 7.98 ft
• Direct-connect input wiring (no pigtail cable)
• UL924 Listed; 2-year limited warranty

Applications

Doorways, aisles, restaurants, office buildings, and warehouses — anywhere code requires backup egress illumination.
