Description

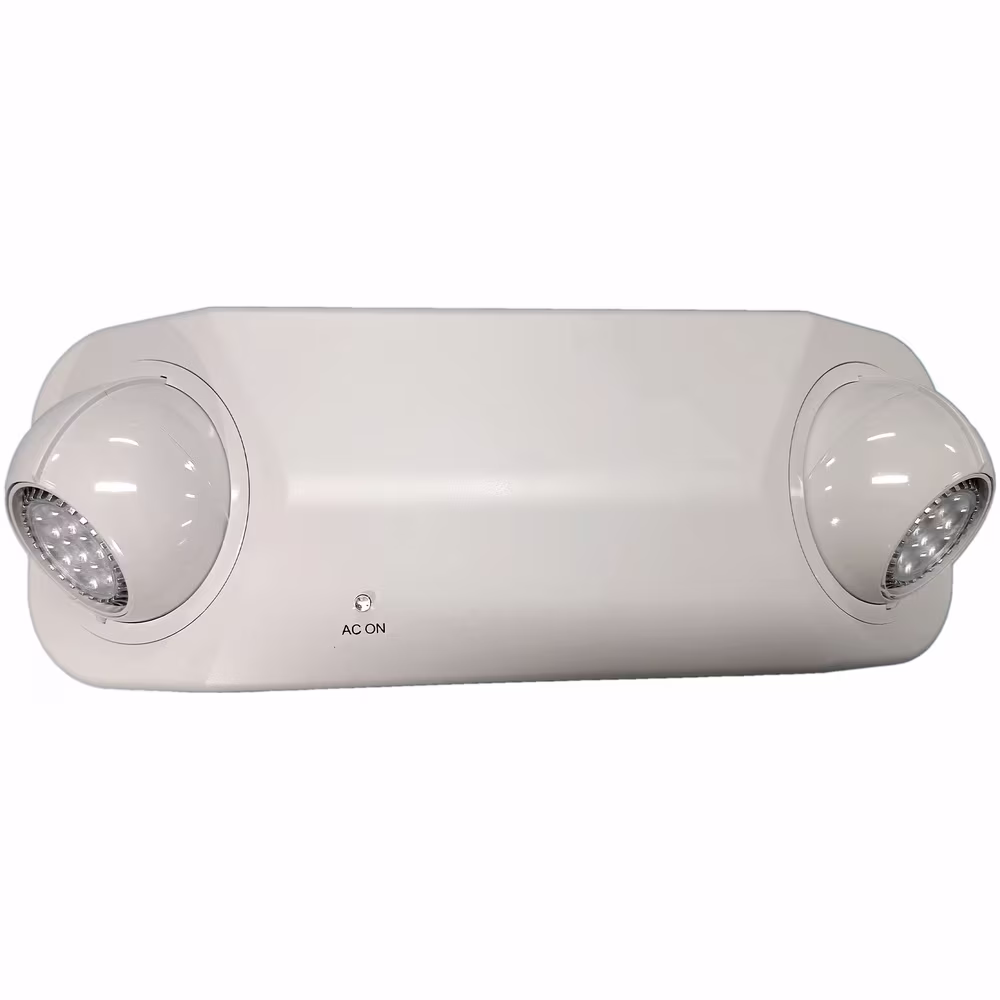

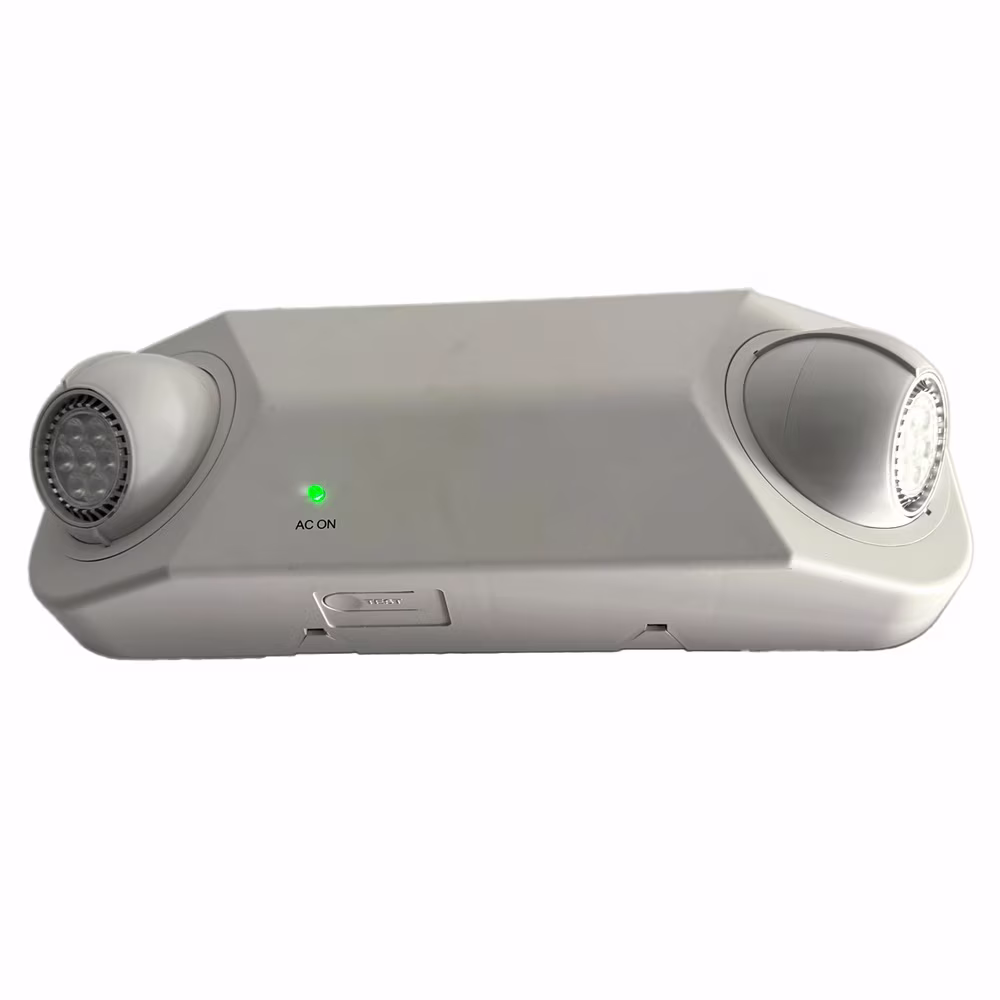

The RMR-16-PLED Semi-Recessed LED Emergency Light delivers dependable, code-compliant egress illumination in a low-profile housing that mounts flush to the wall for a cleaner look than a typical surface-mount unit. Two independently adjustable, semi-recessed round MR16 LED lamp heads aim exactly where light is needed, backed by a maintenance-free sealed lead-acid battery and solid-state transfer switch that deliver a minimum of 90 minutes of emergency illumination during a power outage.

• Two fully adjustable, semi-recessed round 7.0W LED MR16 lamp heads for optimal light distribution
• Ultra-bright, energy-efficient, long-life white LED lamps
• Up to 76-ft center-to-center spacing with 3-ft path of egress at 7.5-ft mounting height
• Dual 120/277V input voltage
• AC ON charge/power indicator LED and push-to-test switch for mandated code-compliance testing
• LVD (low voltage disconnect) protects the battery from deep discharge
• 6V maintenance-free, rechargeable sealed lead-acid battery
• Internal solid-state transfer switch provides a minimum of 90 minutes of emergency illumination
• Fully automatic, two-rate solid-state charger recharges a discharged battery in 24 hours
• Universal knockout backplate for wall mount, snaps into place; knockout for conduit applications

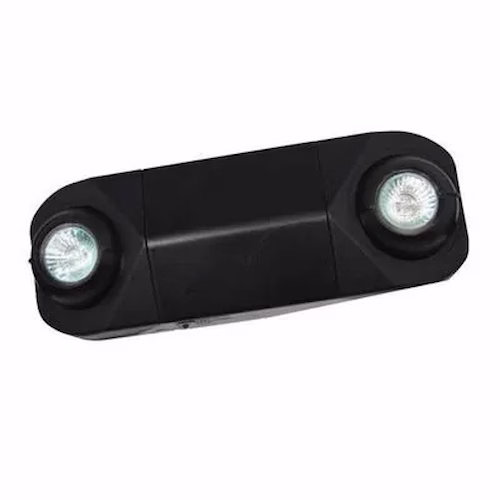

• Injection-molded, 5VA flame-retardant, high-impact thermoplastic housing in white or black
• UL Listed for damp locations (20°C–40°C); meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes
• Five-year warranty on electronics and housing; battery prorated for two years
• Optional SDT self-diagnostics: automatic monthly, biannual, and annual test cycles
• Optional USA-assembled configuration, compliant with the Buy American Act

Applications

Suggested use cases (not stated on the spec sheet): stairwells and corridors, exit routes and paths of egress, parking garages and stairwells, mechanical and electrical rooms, back-of-house retail and office areas, schools and institutional buildings — anywhere code requires backup egress illumination.

Product Attributes

Electrical Information
