Description

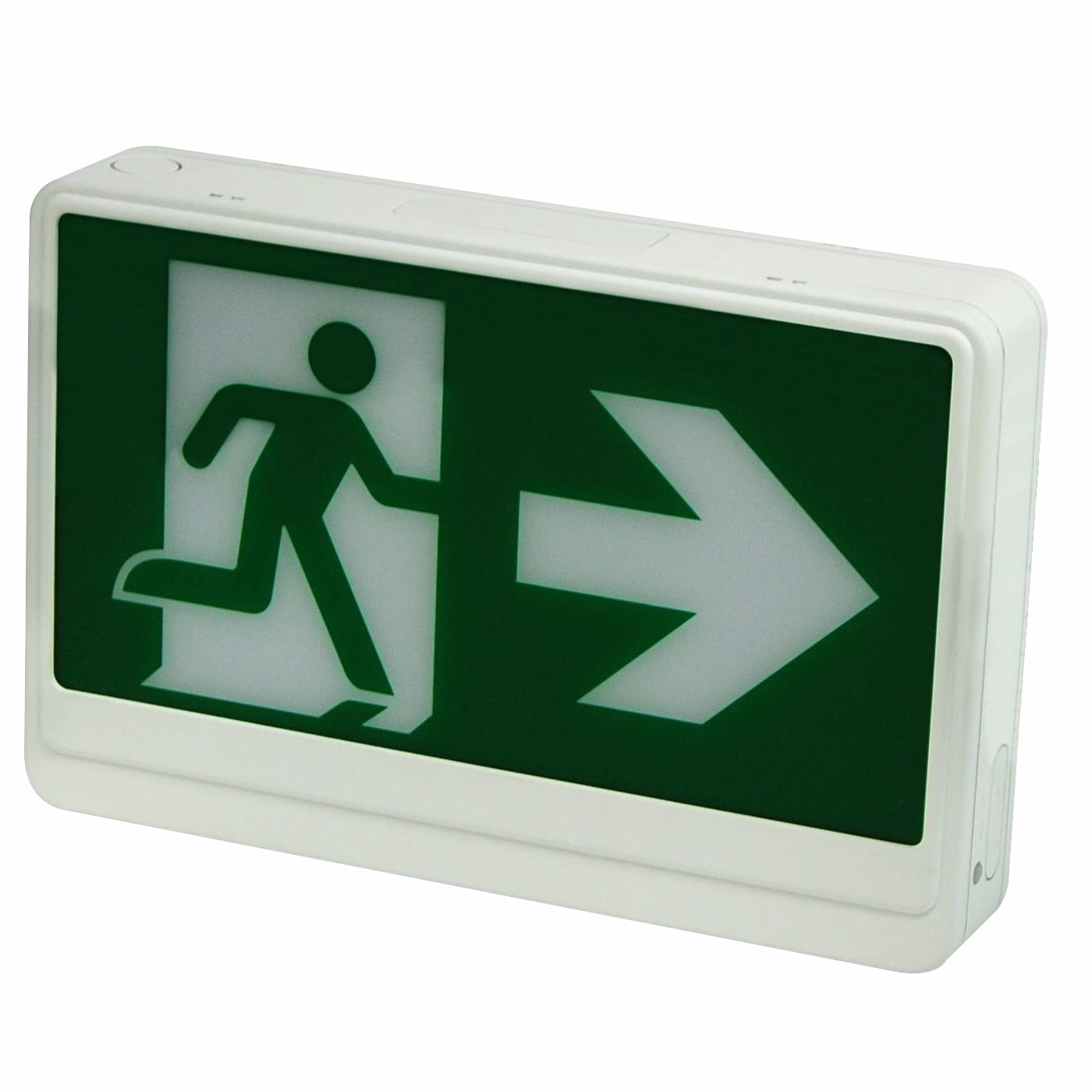

The RMEZXTEU is a Running Man–style LED exit sign built for reliable, code-compliant emergency egress identification using the universal running-figure-and-arrow pictogram instead of lettered “EXIT” text. It features an ultra-bright, energy-efficient, long-lasting white LED panel for even, fully illuminated coverage, universal single/double-face configuration, and dual 120/347V input voltage. Field-selectable directional indication ships with three interchangeable pictogram legends (Left, Right, and No Arrow) so the same fixture adapts to the egress path at install time. The injection-molded, engineering-grade, 5VA flame-retardant thermoplastic housing is high-impact resistant and available in White or Black, with an EZ-snap mounting canopy included for top or end mount and a universal knockout pattern on the back plate for wall mount. Choose the AC-only version for continuously powered signage, or the Battery Backup (EM) version, which adds a 9.6V long-life, maintenance-free rechargeable NiCd battery with an internal solid-state transfer switch for a minimum of 90 minutes of emergency illumination on power loss, plus a fully automatic two-rate charger that recharges a discharged battery within 24 hours and a charge/power “ON” LED indicator with push-to-test switch for mandated code compliance testing.

• Running Man pictogram design (running figure + directional arrow) in place of lettered “EXIT” text
• Ultra-bright, energy-efficient, long-lasting white LED provides even, fully illuminated panel
• Universal Single/Double Face configuration
• Dual 120/347V input voltage
• Field-selectable universal directional indication with three interchangeable pictogram legends (Left, Right, No Arrow)
• Available with AC-only power or optional Battery Backup (EM): 9.6V long-life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch provides a minimum 90-minute emergency illumination on power loss (EM/Battery Backup version)
• Fully automatic solid-state two-rate charger recharges a discharged battery in 24 hours (EM/Battery Backup version)
• Charge/power “ON” LED indicator and push-to-test switch for mandated code compliance testing
• Injection-molded, engineering-grade, 5VA flame-retardant, high-impact resistant thermoplastic housing in White or Black
• EZ-snap mounting canopy included for top or end mount; universal knockout pattern on back plate for wall mount
• CSA Listed for damp locations (0°C – 50°C)
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes; meets or exceeds CSA C22.2 No. 141.10 for emergency lighting equipment
• Five-year warranty on all electronics and housing; battery prorated for five years

Applications

Mandated emergency egress and exit-route identification using universal pictogram signage for commercial, institutional, industrial, and multi-family buildings, including offices, schools, retail spaces, warehouses, and any occupancy requiring code-compliant illuminated exit signage.
