Description

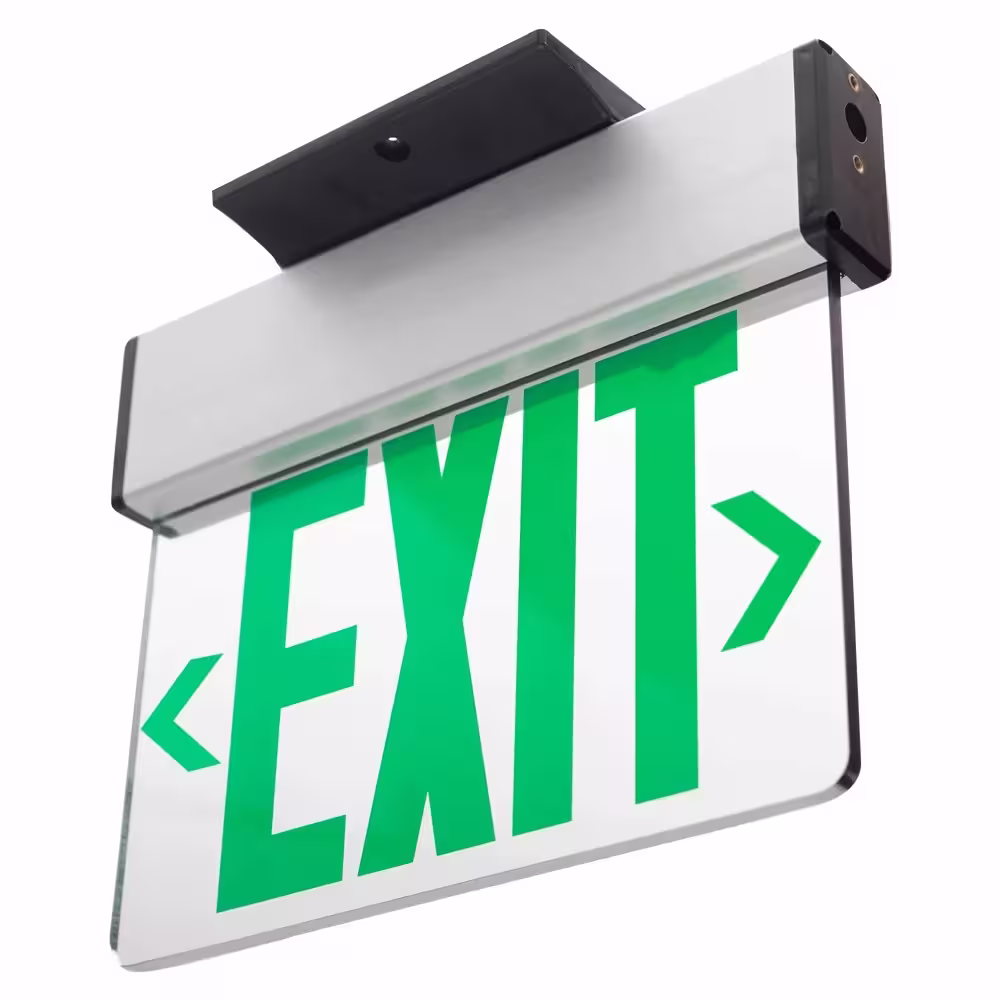

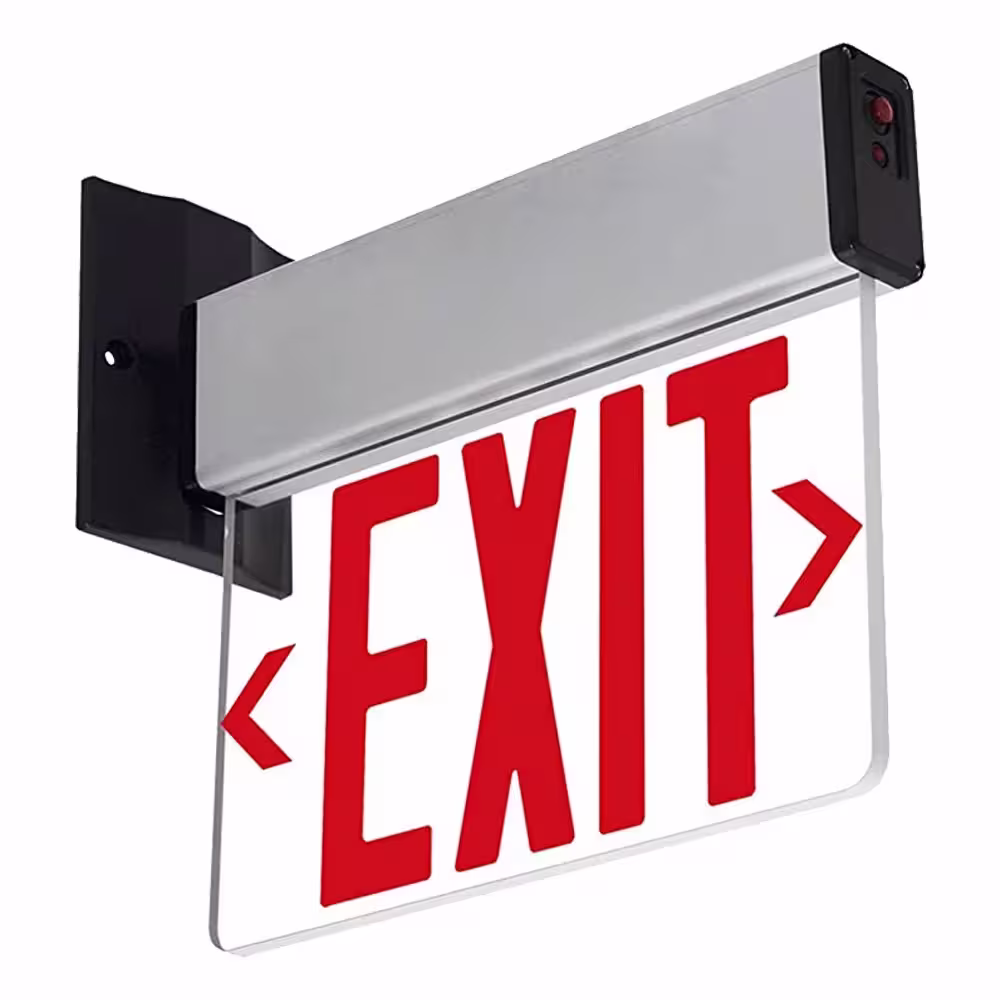

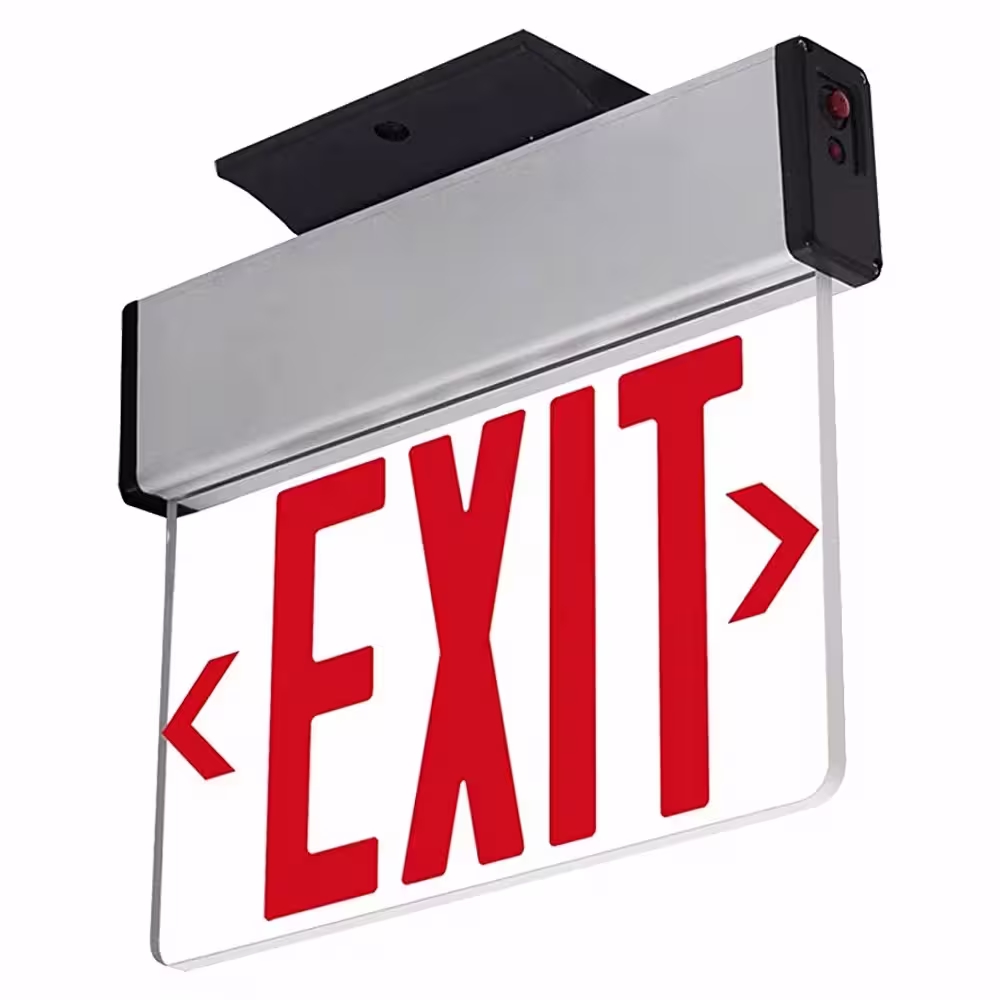

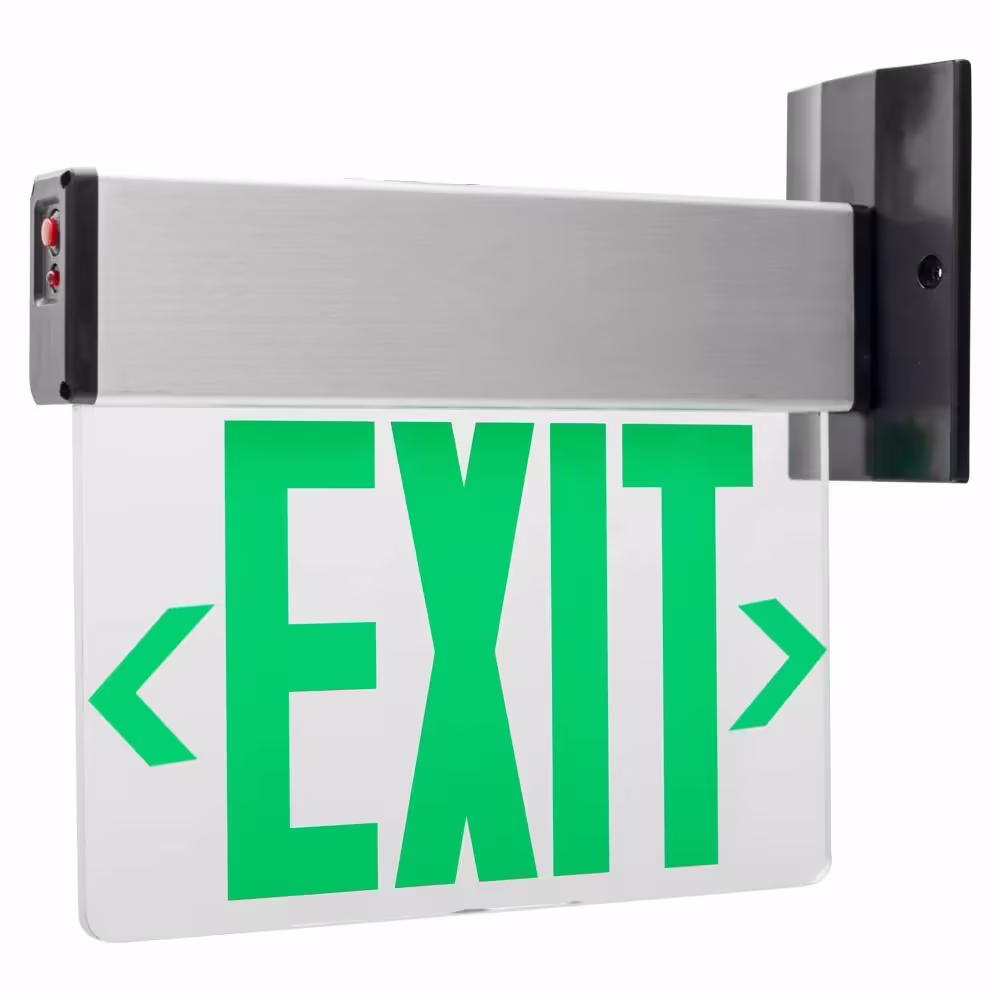

The CR-7109 Edge-Lit LED Exit Sign is a slim, double-sided acrylic exit sign with an aluminum canopy bracket, available with red or green letters to match your building’s exit signage standard. A wide 120-347V input and a 4.8V rechargeable battery deliver a minimum of 90 minutes of emergency illumination if AC power is lost, and the flexible end-, top-, or back-mount canopy makes it easy to fit into ceiling or wall installations.

• Edge-lit acrylic display panel, double-sided (front and back visible), standard configuration
• Available in Red or Green letters — see Variations table below for catalog numbers
• Wide 120-347V, 50Hz/60Hz input voltage
• 4W max AC power consumption
• 4.8V rechargeable battery; 2W max output wattage on battery power
• Minimum 90-minute emergency illumination on battery backup
• Fully automatic recharge; recharges a discharged battery in 24 hours
• Rated for damp locations; 0°C to 40°C operating range
• Flexible end-, top-, or back-mount canopy bracket
• Chevron directional indicators included; apply as required for your installation
• Direct-connect input wiring (no pigtail cable)
• UL Listed; 2-year limited warranty

Applications

Doorways, aisles, restaurants, office buildings, and warehouses — anywhere code requires a visible, code-compliant exit sign with battery backup.

Product Attributes

Variations

SKU and price for each variation still need to be entered directly in WooCommerce.
