Description

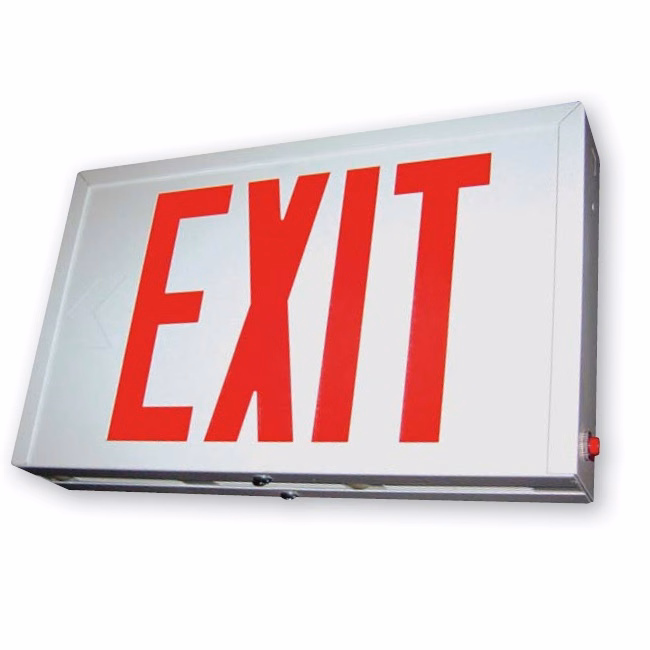

The SXTEU is a durable, powder-coated 20-gauge steel LED exit sign built for reliable, code-compliant emergency egress identification. It features ultra-bright, energy-efficient, long-life Red or Green LED lettering, dual 120/277V input voltage, and a unique design that allows double-face conversion right in the field, so a single-face unit can be converted to double-face without replacing the fixture. Field-selectable steel knockout Chevron directional indicators let you set the egress path at install time, with a mounting canopy included for top or end mount and a universal knockout pattern on the back plate for wall mount. Choose the AC-only version for continuously powered signage, or the Battery Backup (EM) version, which adds a 4.8V long-life, maintenance-free rechargeable NiCd battery with an internal solid-state transfer switch for a minimum of 90 minutes of emergency illumination on power loss, plus a fully automatic two-rate charger that recharges a discharged battery within 24 hours and a charge/power “ON” LED indicator with push-to-test switch for mandated code compliance testing. The durable steel housing ships in White or Black powder-coat finish.

• Durable, powder-coated 20-gauge steel construction in White or Black finish
• Ultra-bright, energy-efficient, long-life Red or Green LED illumination
• Unique design allows double-face conversion in the field
• Dual 120/277V input voltage
• Field-selectable steel knockout Chevron directional indicators
• Available with AC-only power or optional Battery Backup (EM): 4.8V long-life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch provides a minimum 90-minute emergency illumination on power loss (EM/Battery Backup version)
• Fully automatic solid-state two-rate charger recharges a discharged battery in 24 hours (EM/Battery Backup version)
• Charge/power “ON” LED indicator and push-to-test switch for mandated code compliance testing
• Mounting canopy included for top or end mount; universal knockout pattern on back plate for wall mount
• UL Listed for damp locations (0°C – 50°C)
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes; California Energy Commission compliance icon shown on spec sheet (see certification flag below)
• Five-year warranty on all electronics and housing; battery prorated for five years

Applications

Mandated emergency egress and exit-route identification for commercial, institutional, industrial, and multi-family buildings, including offices, schools, retail spaces, warehouses, and any occupancy requiring code-compliant illuminated exit signage with a durable steel construction and field-convertible single/double-face design.
