Description

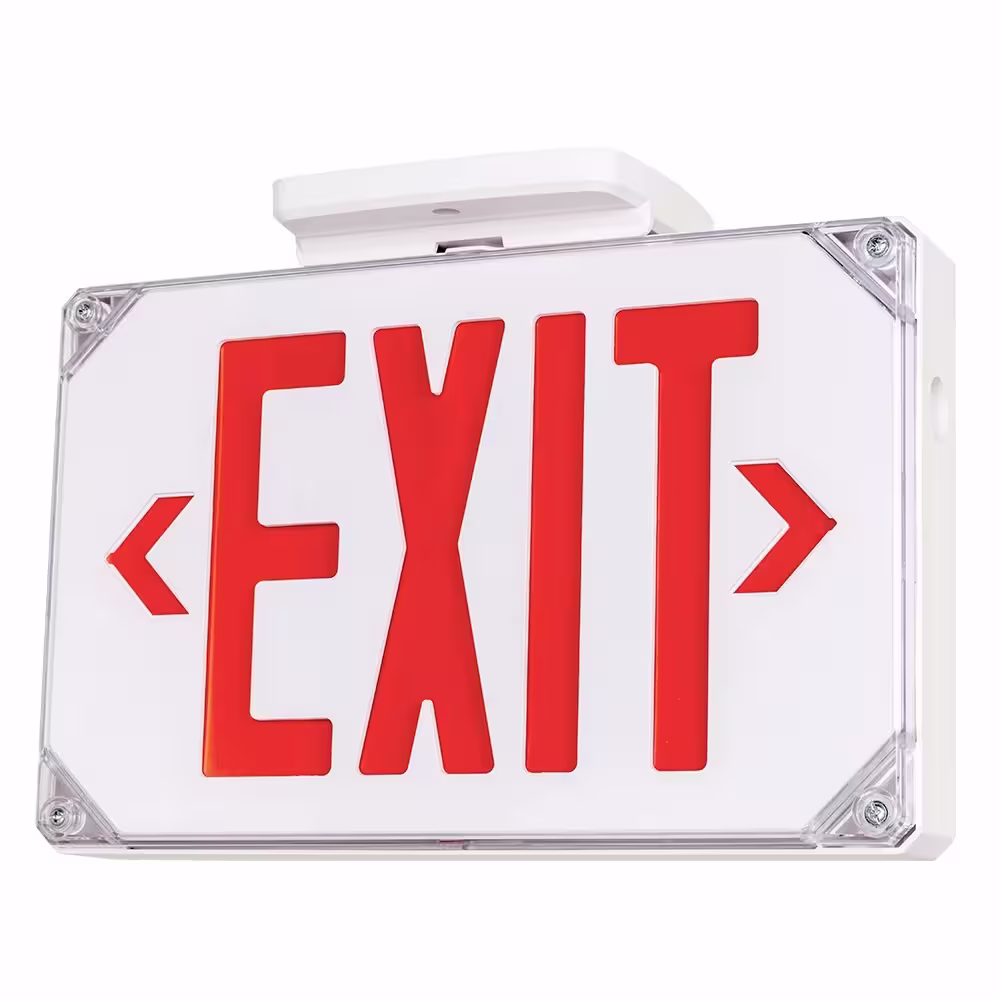

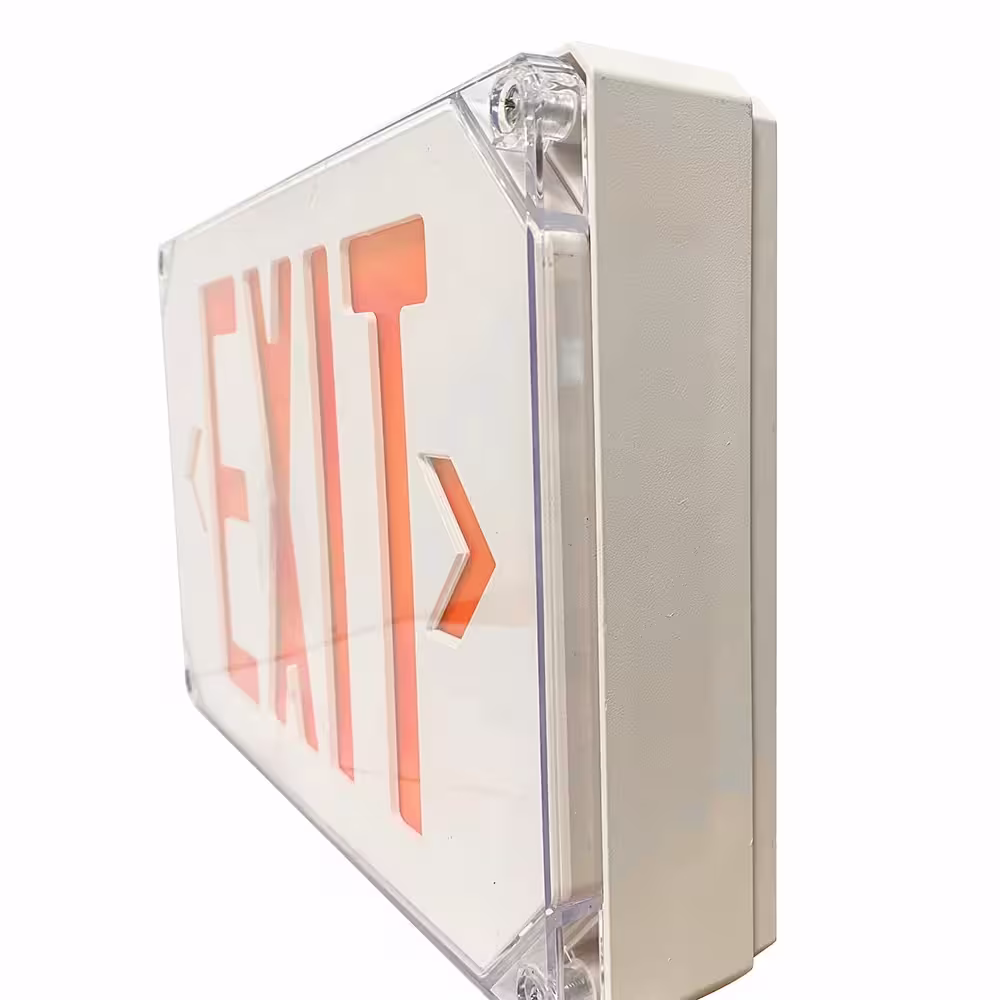

The CR-7110 Wet Location LED Exit Sign is a rugged, IP65-rated exit sign built to hold up outdoors or in wash-down areas, with a field-selectable red or green color and a single- or double-face configuration you can set up on site. A 3.6V NiCad battery and internal charger deliver a minimum of 90 minutes of emergency illumination if AC power is lost, and the injection-molded, flame-retardant thermoplastic housing supports wall, side, or ceiling mounting.

• Wet Locations / IP65-rated for outdoor and wash-down installations
• Field-selectable Red or Green color — insert the included pluggable jumper cap into the R or G position on the PCB to switch colors
• Ships single-face standard; includes an extra faceplate to convert to double-face on site

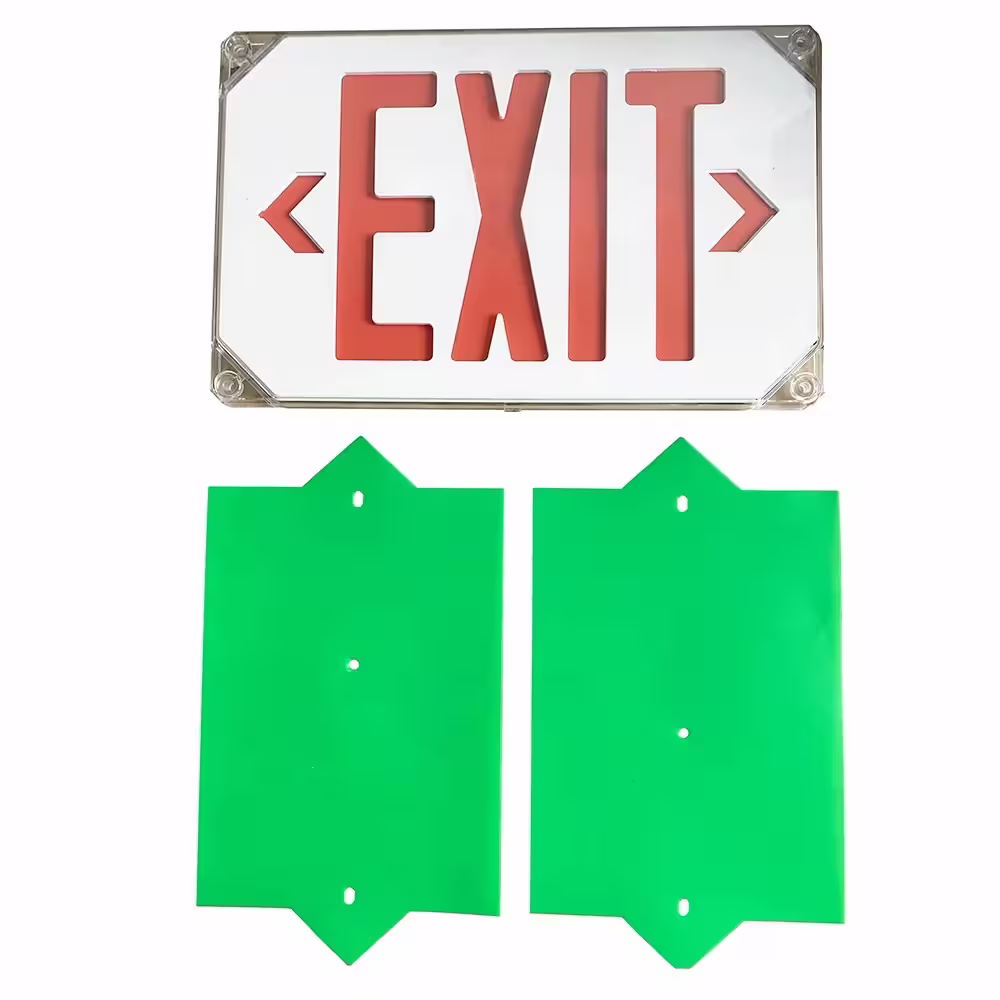

• Includes two green color films to convert the sign face to green
• 120/277V, 60Hz input, 2.0W / 150mA

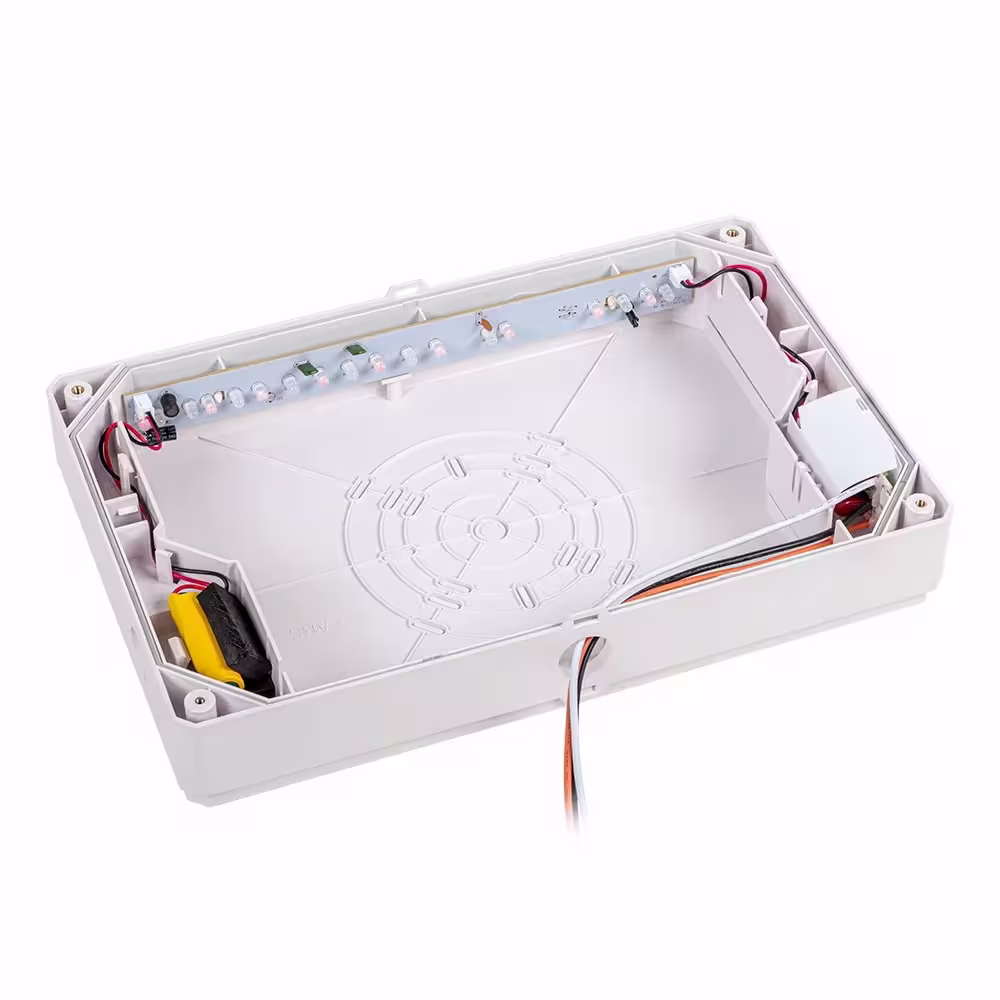

• 3.6V NiCad rechargeable battery
• Minimum 90-minute emergency illumination on battery backup
• Fully automatic charger recharges a discharged battery in 24 hours
• Rated 0°C to 40°C operating temperature

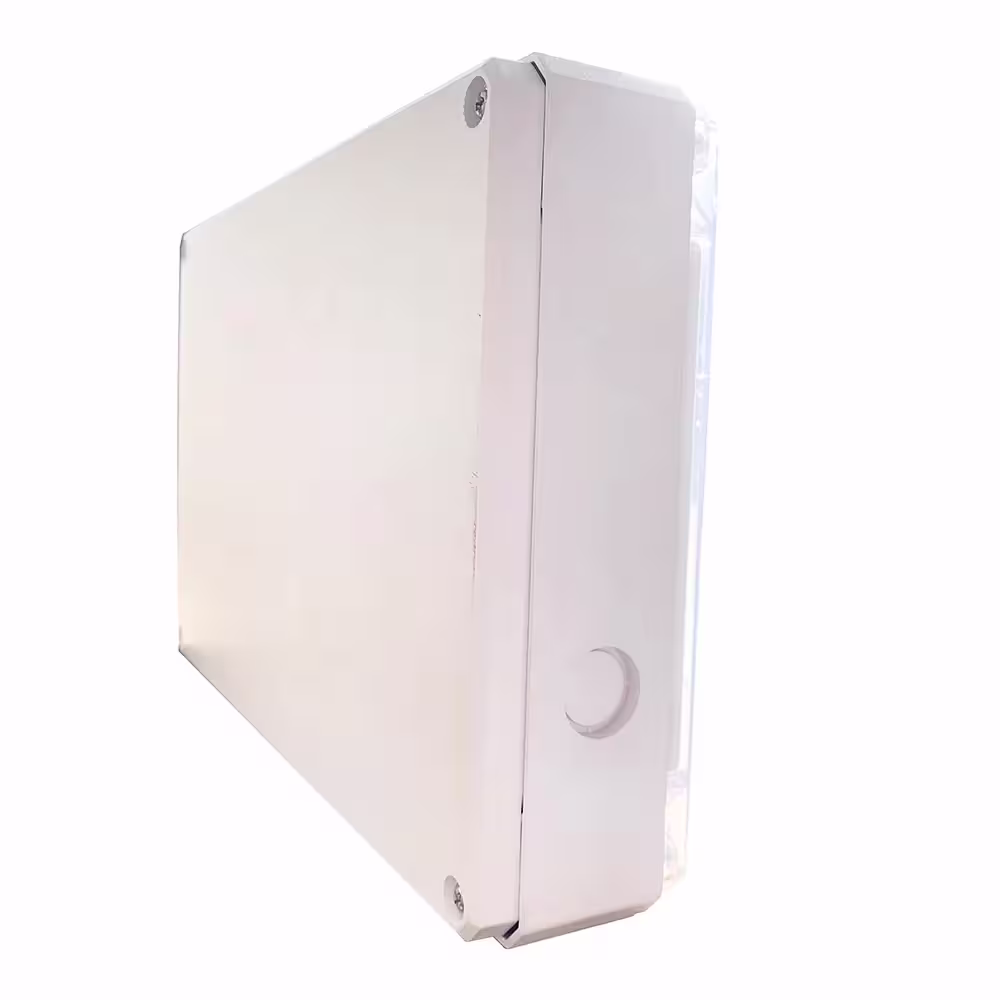

• Injection-molded, flame-retardant, high-impact thermoplastic housing, White finish

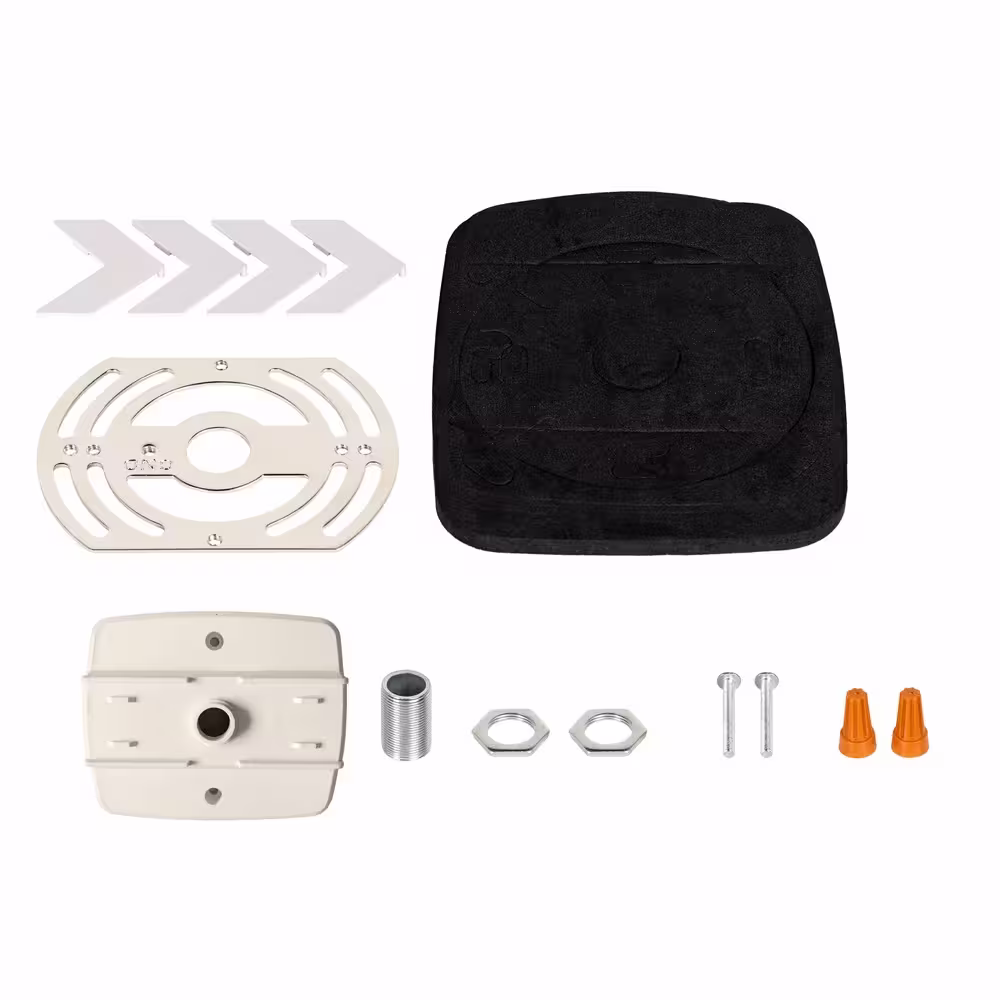

• Wall, side, or ceiling mount, with canopy mounting kit and directional chevrons included
• Direct-connect input wiring (no pigtail cable)
• UL Listed; 2-year limited warranty

Applications

Doorways, aisles, restaurants, office buildings, and warehouses, including outdoor and wet or wash-down areas where a standard indoor exit sign isn’t rated to go.
