LED Mini Wall Pack | Field Selectable up to 3900 Lumens

Products

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

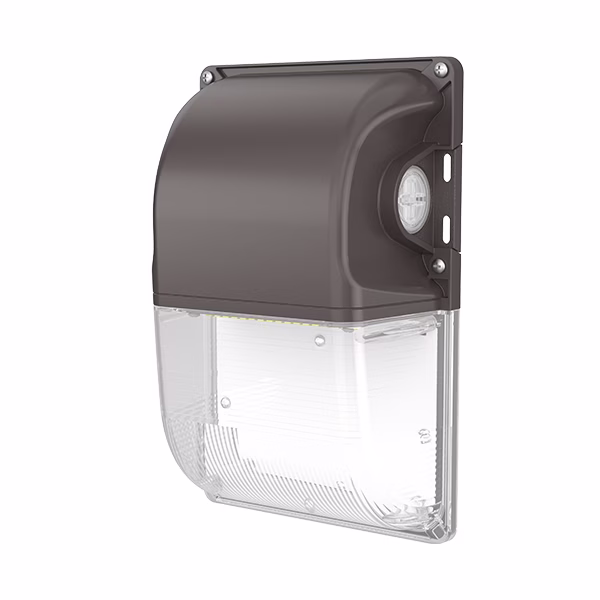

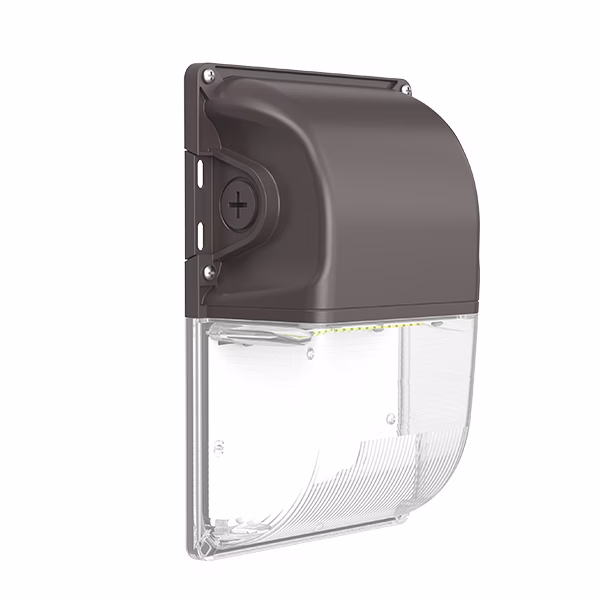

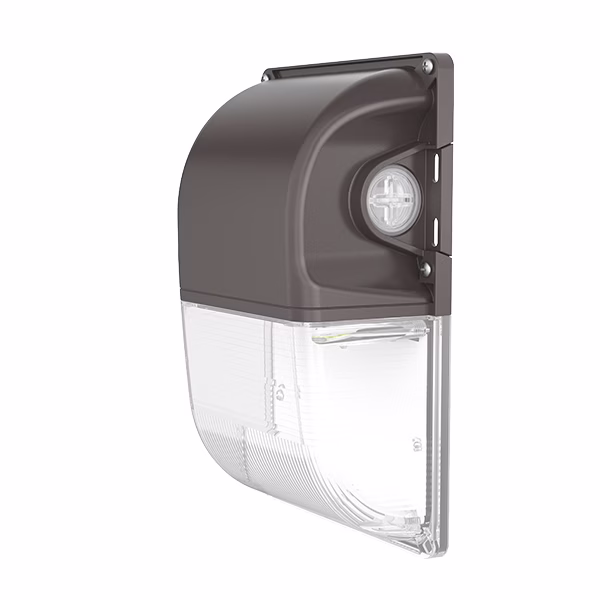

LED Mini Wall Pack — ideal for security lighting, entryways, stairwells, hallways, outdoor commercial and outdoor residential applications
Power Switchable : 15W / 20W / 30W via DIP switch
Color Switchable : 3000K / 4000K / 5000K Tunable
Lumen output : up to 3,900 lm (max)
High efficacy up to 130 lm/W
Built-in Photocell with ON/OFF switch — Dusk-to-Dawn function available
Housing : Die-cast Aluminum back plate with Polycarbonate front cover
Lens : Polycarbonate
Input Voltage : AC120-277V
0-10V Dimming
Surge Protection : L/N 2KV
CRI > 80
Average Beam Angle : 103.9°
IP65 rated — waterproof
Operating Temperature : -20°C to 45°C
Easy to install and operate
ETL Listed (Intertek) and DesignLights Consortium (DLC) Premium 5.1 listed
5-year limited warranty

MPN (Part No.)	J-WP10-30W-PCP-3CCT
Lighting Technology	LED
Fixture Type	LED Mini Wall Pack
CRI	> 80
Beam Angle	103.9° (Average)
Color	Color Tunable (3-in-1)
Color Temperature	3000K / 4000K / 5000K Field Selectable
Wattage	15W / 20W / 30W Field Adjustable (DIP Switch)
LPW	Up to 130
Lumens	Up to 3,900 lm (max)
Voltage	AC120-277V
Dimming	0-10V Dimmable
Photocell	Built-in, ON/OFF Switch (Dusk-to-Dawn)
Surge Protection	L/N 2KV
Ratings and Certifications	ETL Listed (Intertek), DLC 5.1 Premium
IP Rating	IP65 (Waterproof)
Mounting	Wall Mount
Operating Temp	-20°C to 45°C
Lens	Polycarbonate
Housing	Die-cast Aluminum + Polycarbonate
Length (Height)	9.1 in. (230.0 mm)
Width	5.9 in. (150.0 mm)
Depth	2.9 in. (72.8 mm)
Outer Carton Size	20.1 in. × 13.8 in. × 11.8 in.
Package Quantity	12 (per carton)
Net Weight	17.9 lbs (per carton)
CTN QTY / Pallet	144 pcs
Warranty	5-Year Limited
