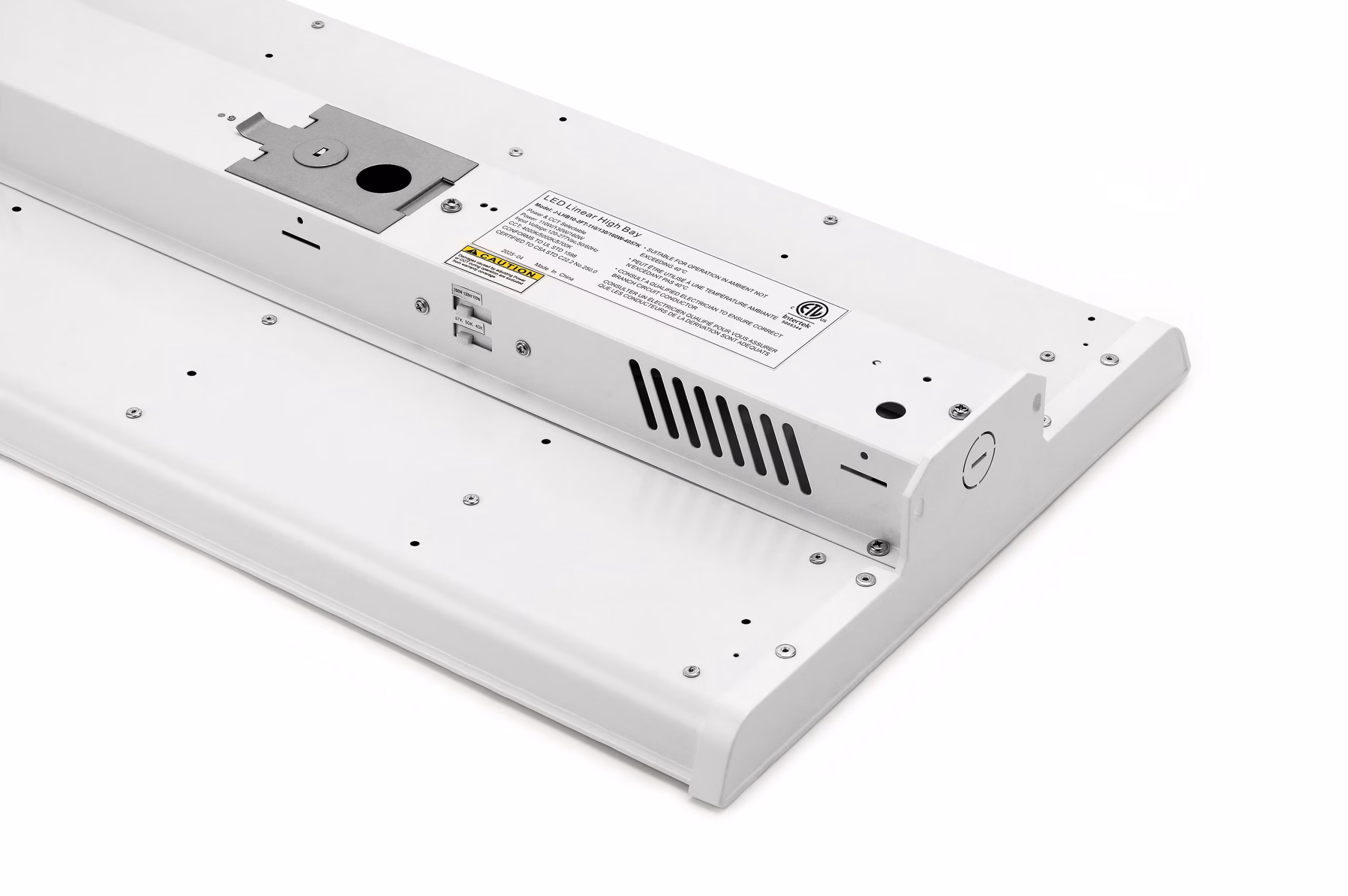

High Efficiency LED Linear Highbay Field Selectable up to 25600 Lumen

RESOURCES & DOWNLOADS

(0 Reviews)

$77.50

  • *Wattage & CCT

    *Voltage

    Reset options

    Emergency Battery Backup

    Smart Sensor

Bulk deal
QuantityDiscountDiscounted price
6 - 107%$72.08
11 - 2012%$68.20
21 +15%$65.88

Volume pricing for contractors. Discounts apply automatically at checkout.

Details

  20250102160727 3 ETL UL logo 2 UL Listed 20250102160727 0 DLC Premium logo 1 Wattage and CCT Field Selectable

Description

  • 2FT High Efficiency LED Linear Highbay Light with field-selectable wattage and color temperature
  • Wattage selectable: 110W / 130W / 160W (field switchable via dip-switches)
  • Color temperature selectable: 4000K / 5000K / 5700K (3 CCT selectable)
  • Maximum lumen output: 25,600 LM (at 160W)
  • High efficiency: 160 lm/w for optimal energy performance
  • CRI > 80 for excellent color rendering and visual clarity
  • Power factor: > 0.9 for superior electrical performance
  • Input voltage: AC 120-277V for universal facility compatibility
  • Compatible with standard 0-10V dimmer for smooth dimming control
  • Durable robust housing construction for long-lasting reliability
  • High-quality LED drivers for stability and performance
  • High-quality LEDs provide bright and uniform lighting
  • CCT and wattage selectable through dipswitches
  • Optional plug-and-play microwave or PIR motion sensor
  • Chain installation as standard mounting method for easy setup
  • Optional emergency battery (field installation)
  • Compact 2FT design ideal for smaller spaces and focused lighting applications
  • Working temperature range: -4°F to 113°F (-20°C to 45°C)
  • DLC Premium and ETL certified for code compliance and energy incentives
  • 5-year limited warranty

Product Attributes

BrandOne Source Light
ModelJ-LHB10-2FT-110/130/160W-4057K
Product TypeLED Linear Highbay Light Fixture
Size2-Foot (591.82mm / 23.3 inches)
Wattage (Field Selectable)110W / 130W / 160W Adjustable
Color Temperature (CCT)4000K / 5000K / 5700K (Field Selectable)
Maximum Wattage160W
Maximum Lumens25,600 LM (at 160W)
Lumen Output Range17,600 LM – 25,600 LM (depending on wattage selection)
Efficacy (LM/W)160 LM/W
CRI (Color Rendering Index)> 80
Power Factor> 0.9
Input VoltageAC 120-277V
DimmableYes (0-10V Standard Compatible)
Control MethodDIP-Switches (Wattage & CCT Selection)
Operating Temperature-4°F to 113°F (-20°C to 45°C)
Length23.3 inches (591.82mm)
Width12.5 inches (317.5mm)
Height2.9 inches (73.66mm)
Housing MaterialDurable Robust Construction
LEDsHigh-Quality LEDs for Bright & Uniform Lighting
LED DriverHigh-Quality Drivers for Stability & Reliability
Sensor BaseBuilt in sensor base for plug-and-play sensor installation

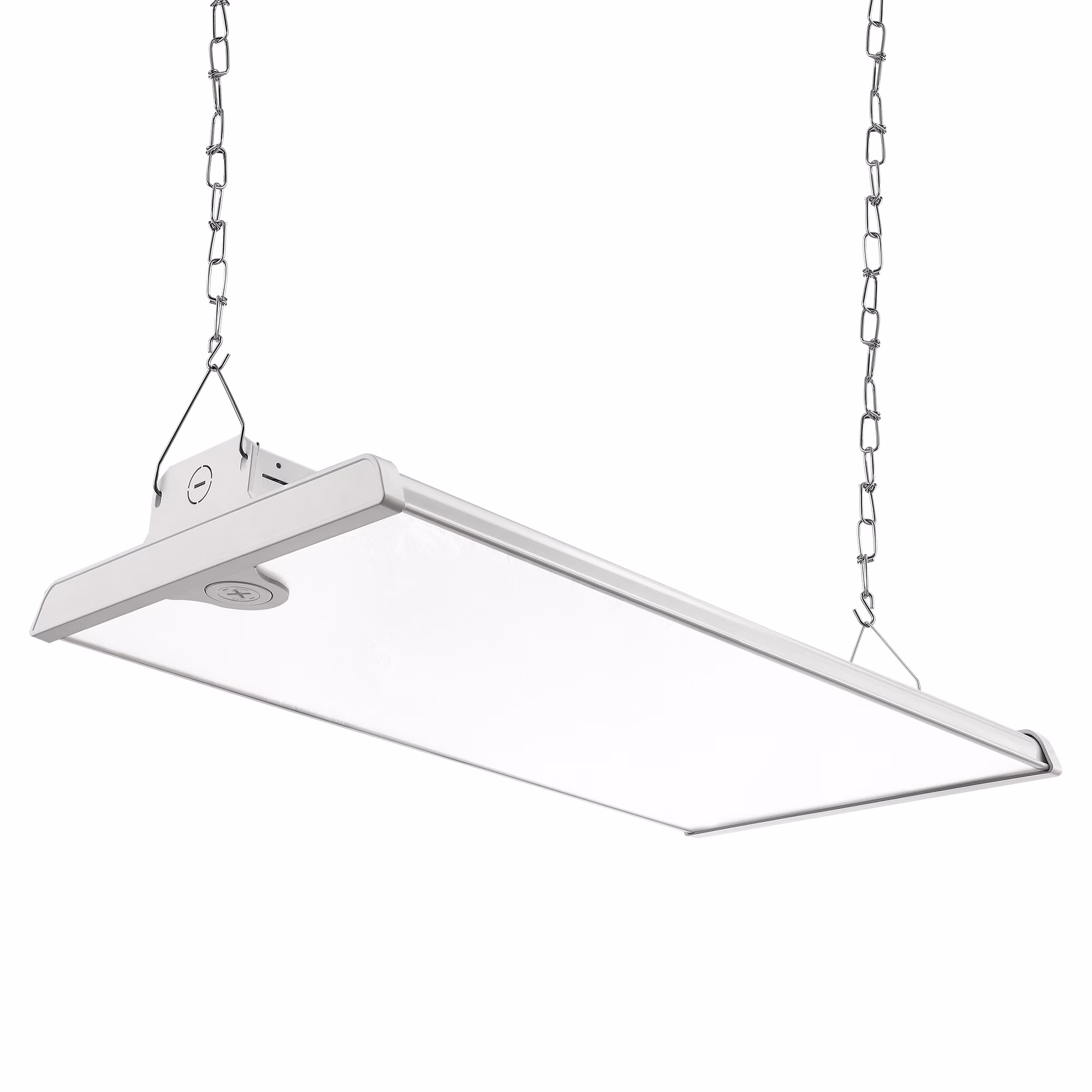

Installation MethodChain Installation (Standard)
Optional AccessoriesEmergency Battery (UL listed, 20W, 90-min runtime) | Smart Sensor (0-10V dimming, 49ft/39ft height) | Remote Controller (LCD display, memory function) | Suspension Mounted Kit (Stainless steel)
Packing Configuration2 units per carton | Carton Size: 24.8″ × 6.8″ × 14.2″ | Gross Weight: 16.2 lbs
Installation InstructionsSelect desired power & color on dip switches | Hook chain on ceiling anchor | Connect wires per code | Insert terminal cap and wires into driver box | Wiring completed
Lighting TechnologyLED
CertificationsDLC Premium | ETL Listed (CAN/CSA-C22.2 No.250.0)
Warranty5-Year Limited
Application AreasWarehouses | Distribution Centers | Gymnasiums | Airports | Manufacturing Plants | Covered Courts | Utility Areas | Indoor Open Spaces | Supermarkets | Smaller High-Bay Areas
