Description

The ALH 310W LED Area Light is a wattage- and CCT-selectable area/site fixture built on a rugged die-cast aluminum body with heatsink and flow-through venting for optimal thermal management. A built-in selector at the fixture lets you dial between four wattage tiers (240/260/280/310W) and three color temperatures (3000K/4000K/5000K), so one stocked unit covers multiple site requirements instead of ordering separate SKUs. Type III optics direct light forward and evenly to both sides of the pole, and the fixture ships DLC Premium qualified and UL wet-location listed for reliable outdoor performance.

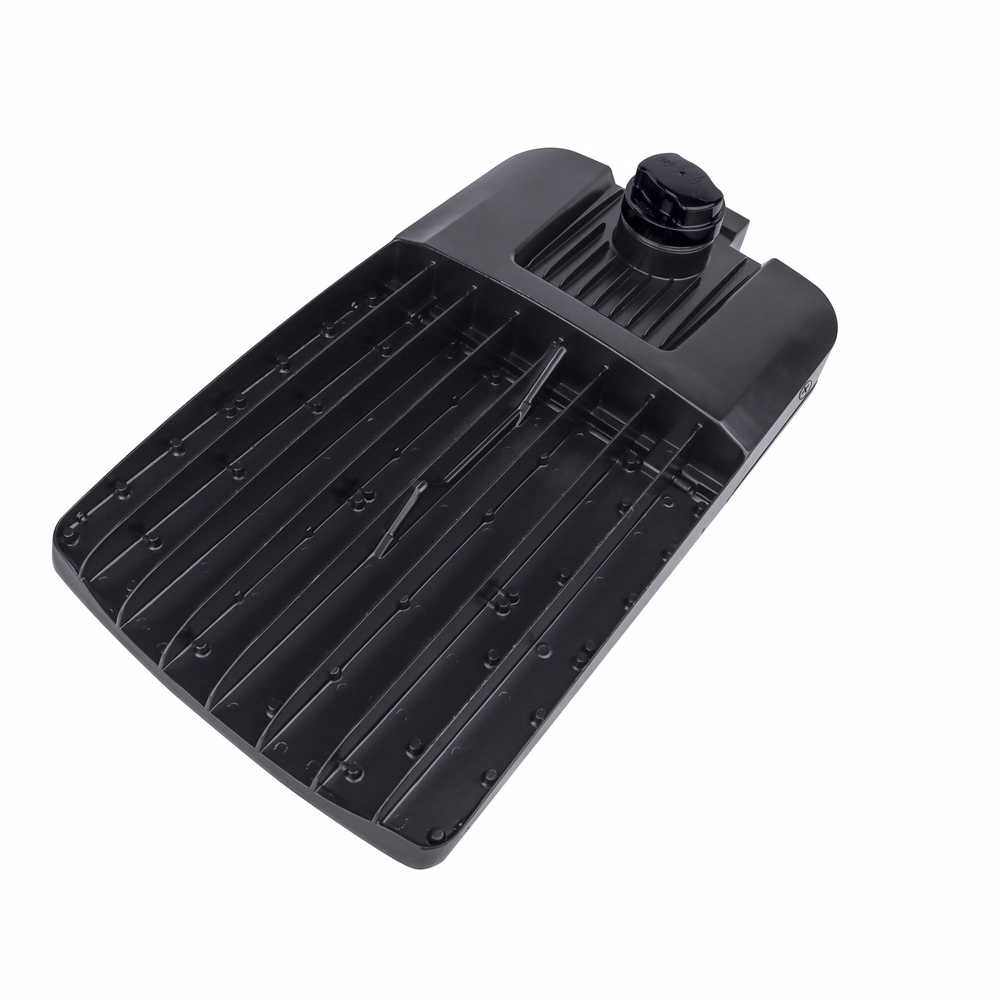

• Rugged die-cast aluminum housing with heatsink and flow-through venting; sealed against moisture and environmental contaminants
• 3G vibration-rated compact design with low EPA for pole optimization
• Wattage selectable at the fixture: 310W / 280W / 260W / 240W (310W default setting)
• CCT selectable at the fixture: 5000K / 4000K / 3000K (5000K default setting), 70 CRI
• Type III distribution (standard); Type IV and Type V also available
• Up to 52,100 lumens at 310W/4000K (up to 168 lm/W); output varies by wattage and CCT tier
• 0-10V continuous dimming driver, dims to 0%; dimming wires are not led out by default — enabling dimming requires an additional cost/modification, confirm with your supplier before advertising as ready-to-dim
• Universal 120-277V AC input (standard 10kV surge protector) or high-voltage 277-480V AC input (standard 20kV surge protector)
• Power Factor ≥0.95; THD ≤20%
• 2ft (24″) power cord included for easier installation

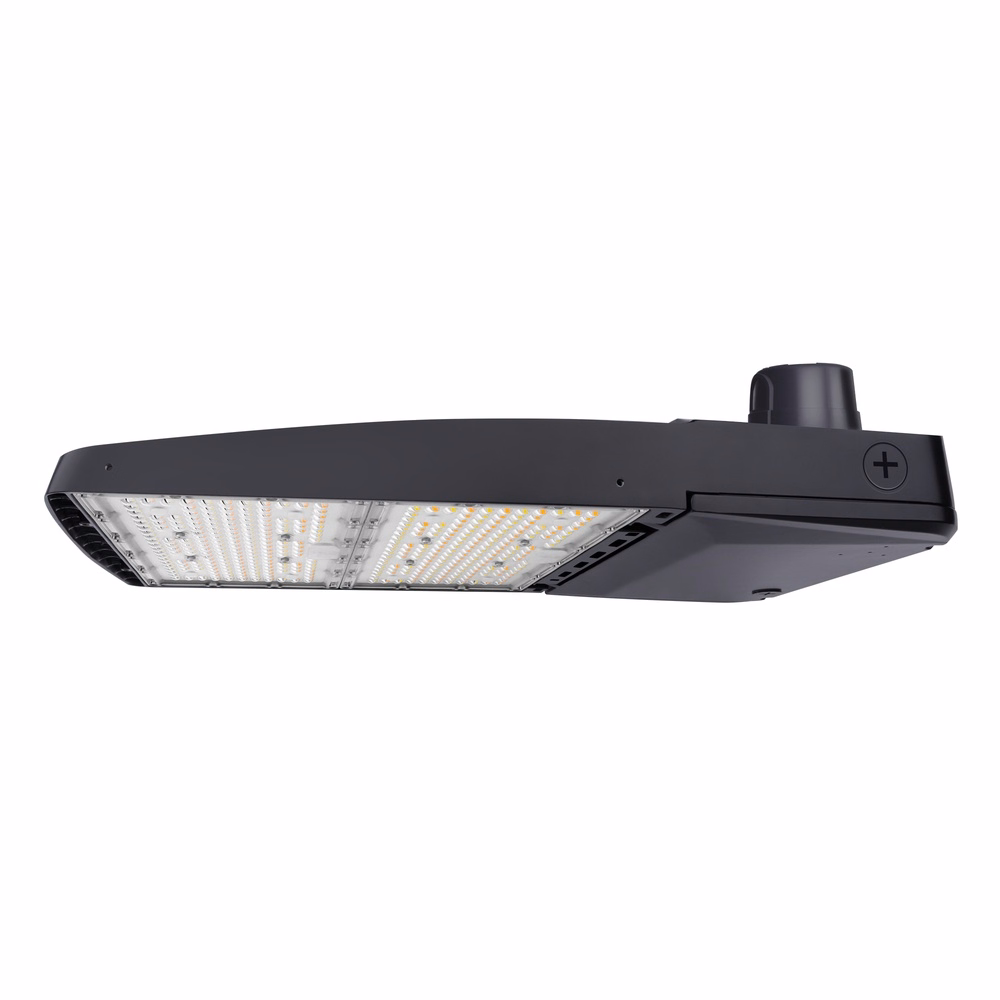

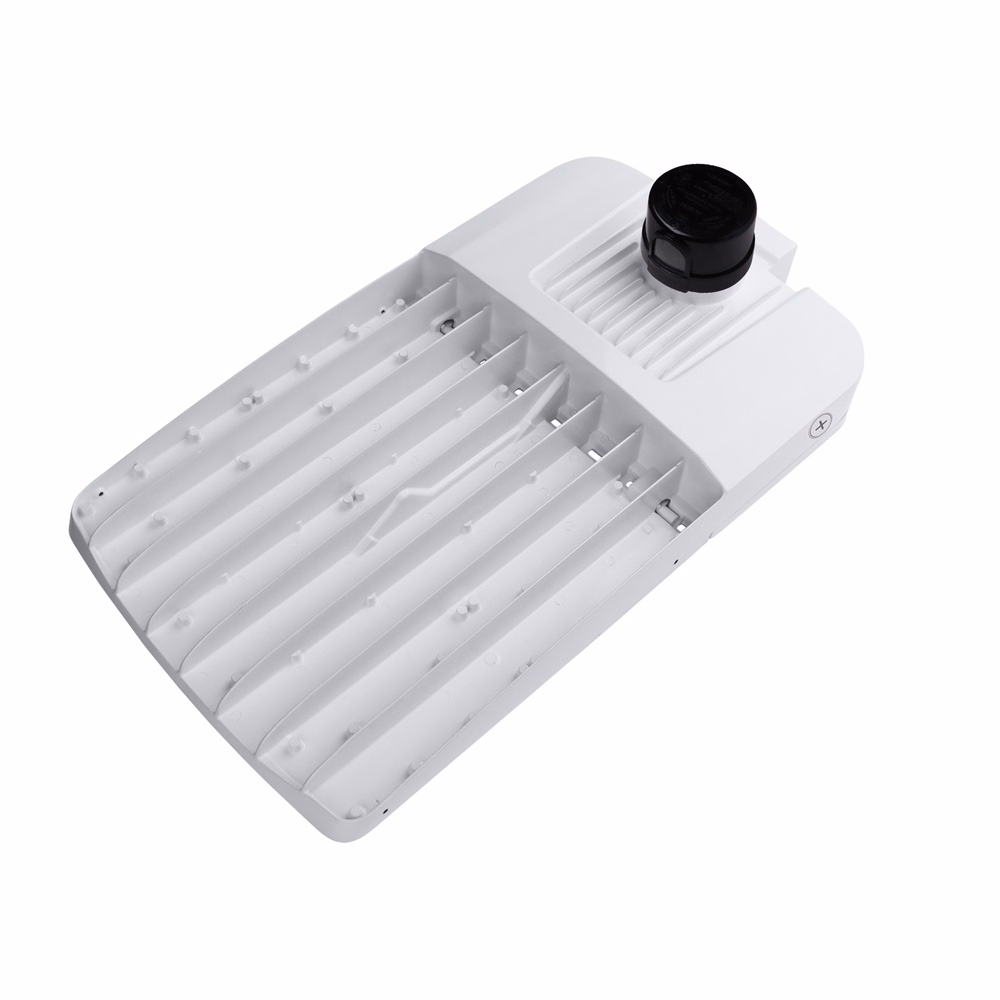

• Compatible with Bluetooth Luminaire Level Lighting Control (LLLC) — HSE Smart Inc and Litetrace; optional photocell and motion sensor

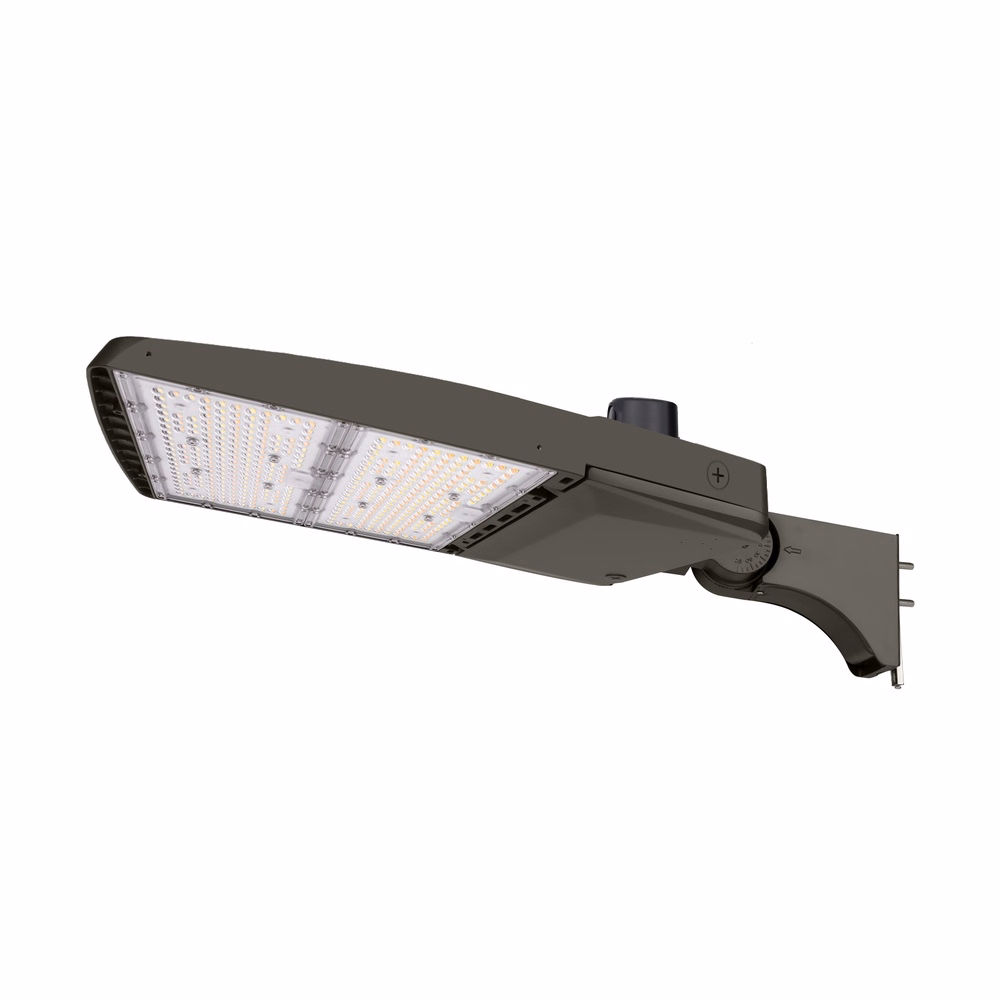

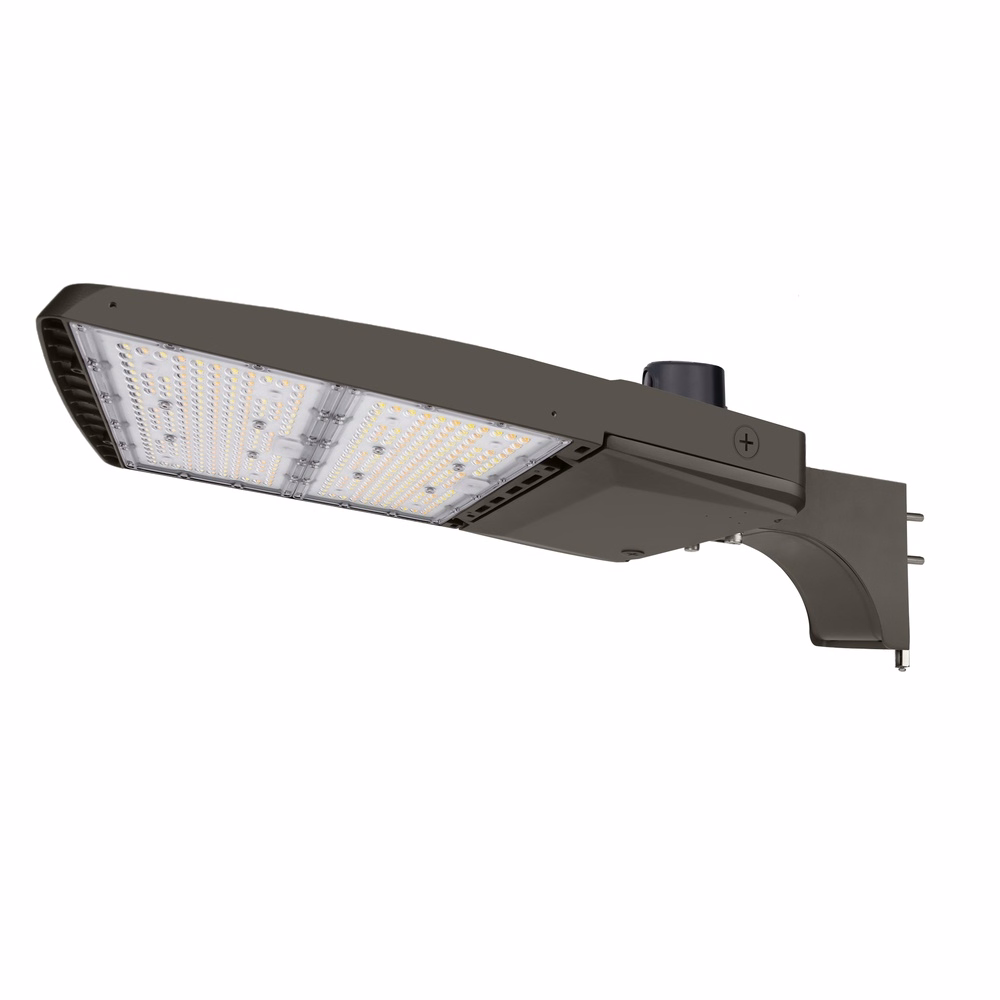

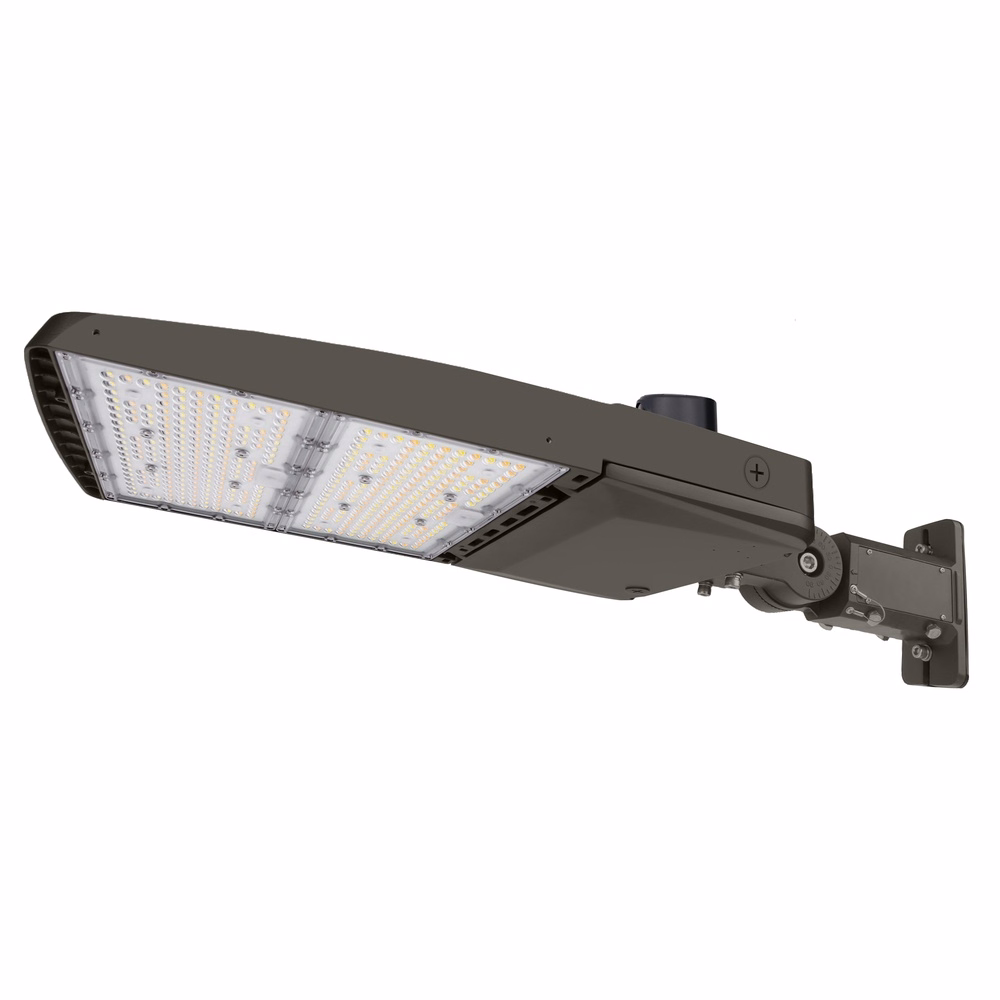

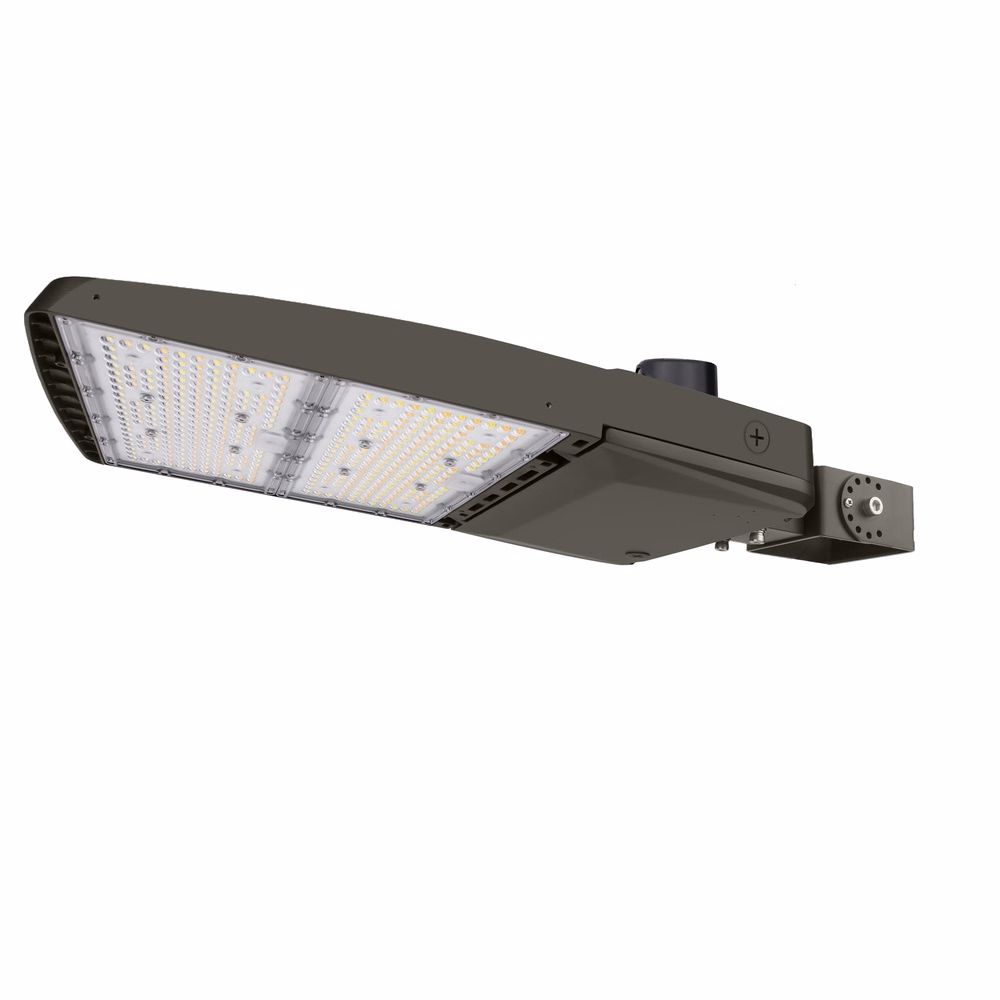

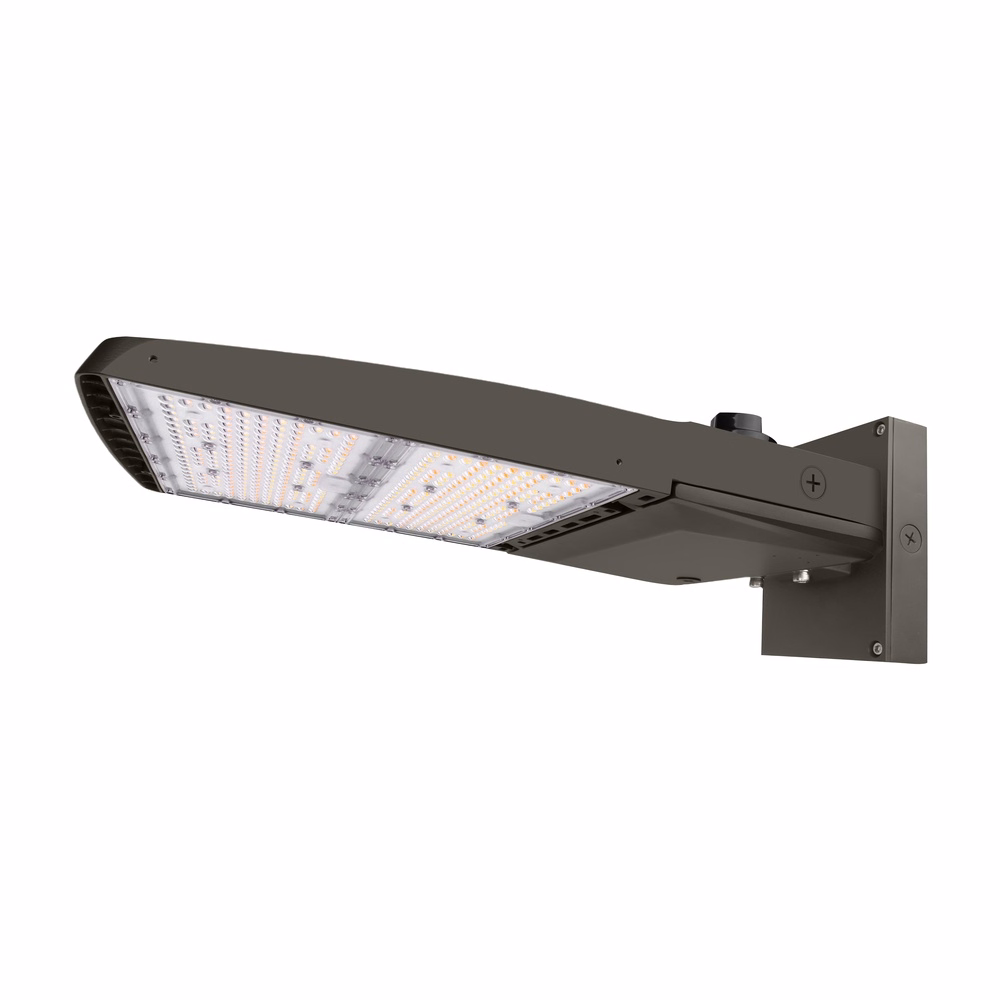

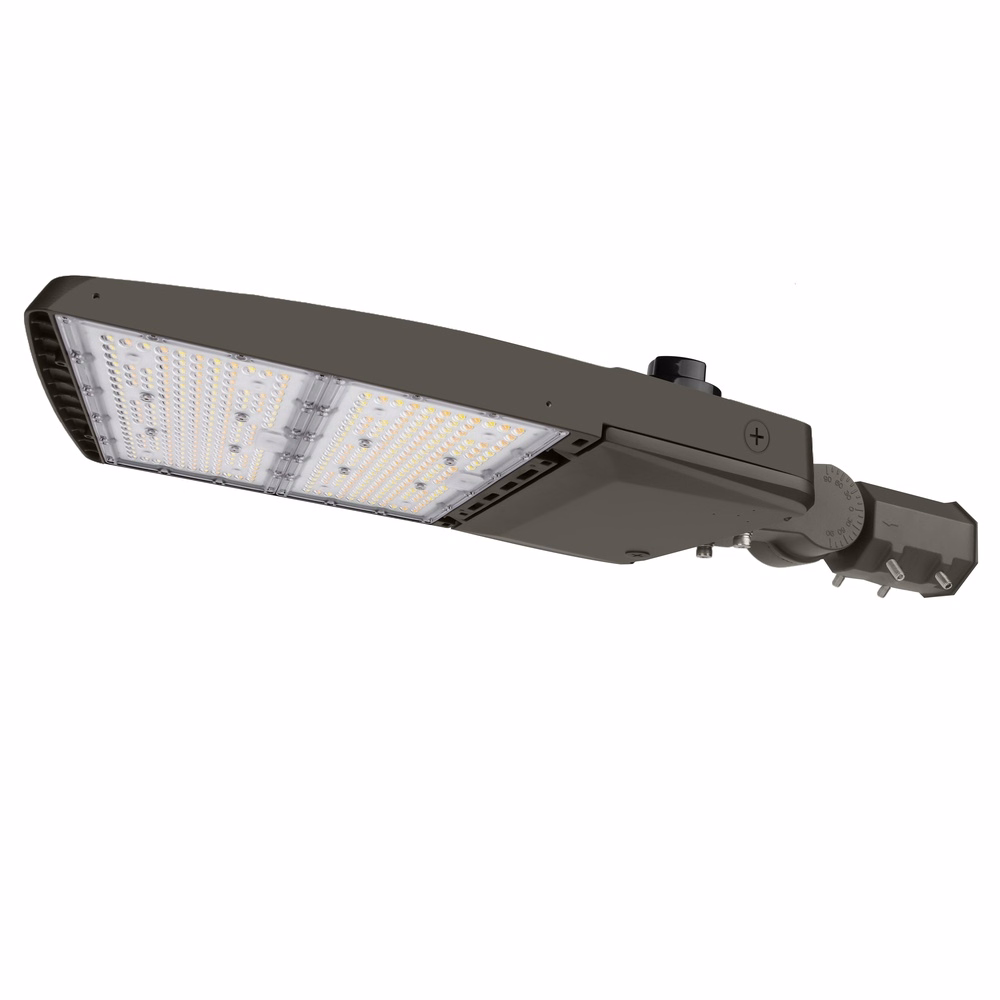

• Slipfitter, square/round pole mount arm, trunnion, adjustable square/round pole, wall mount, and universal bracket mounting options available

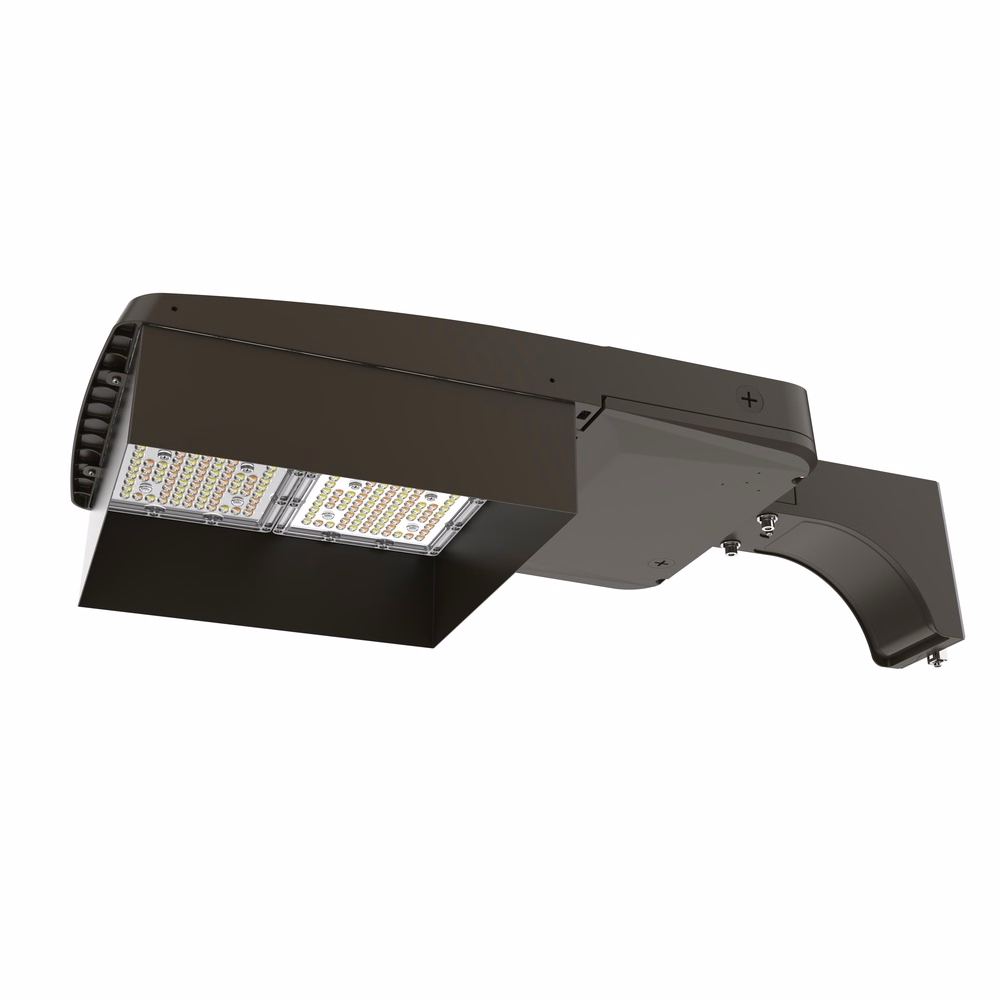

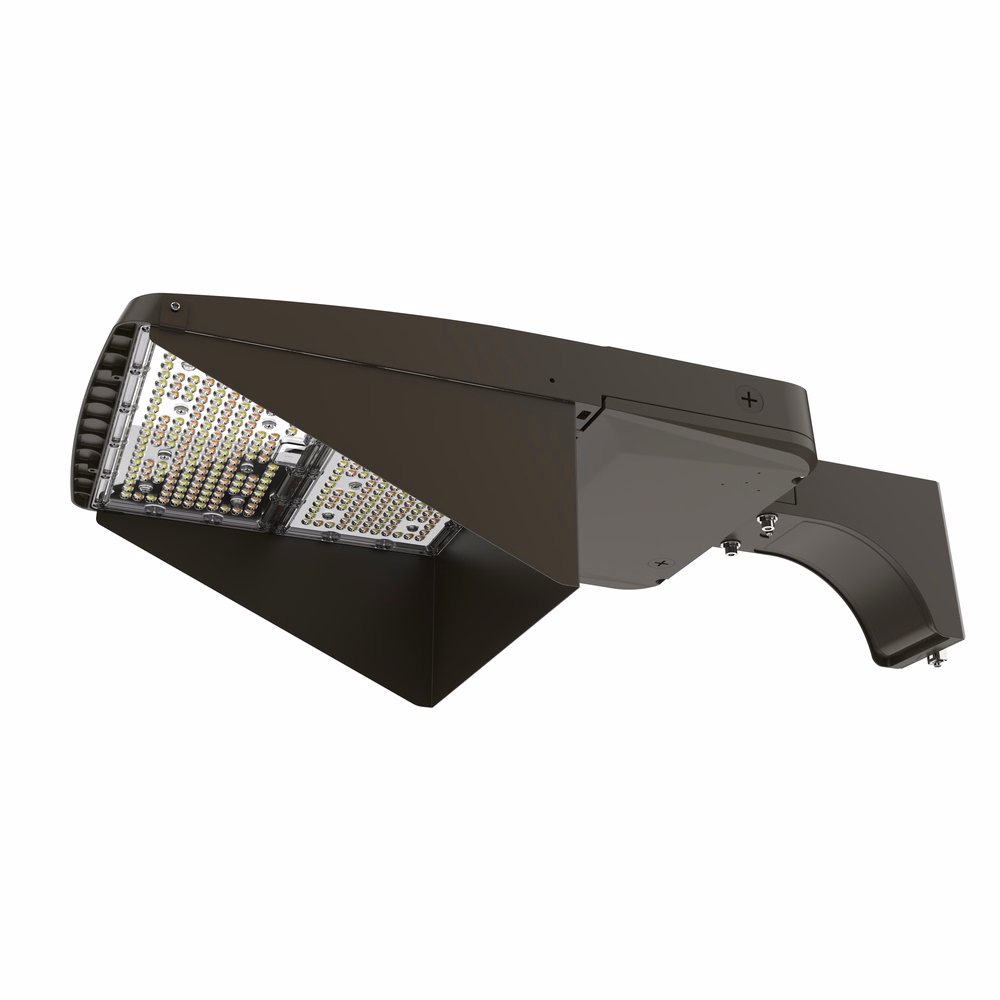

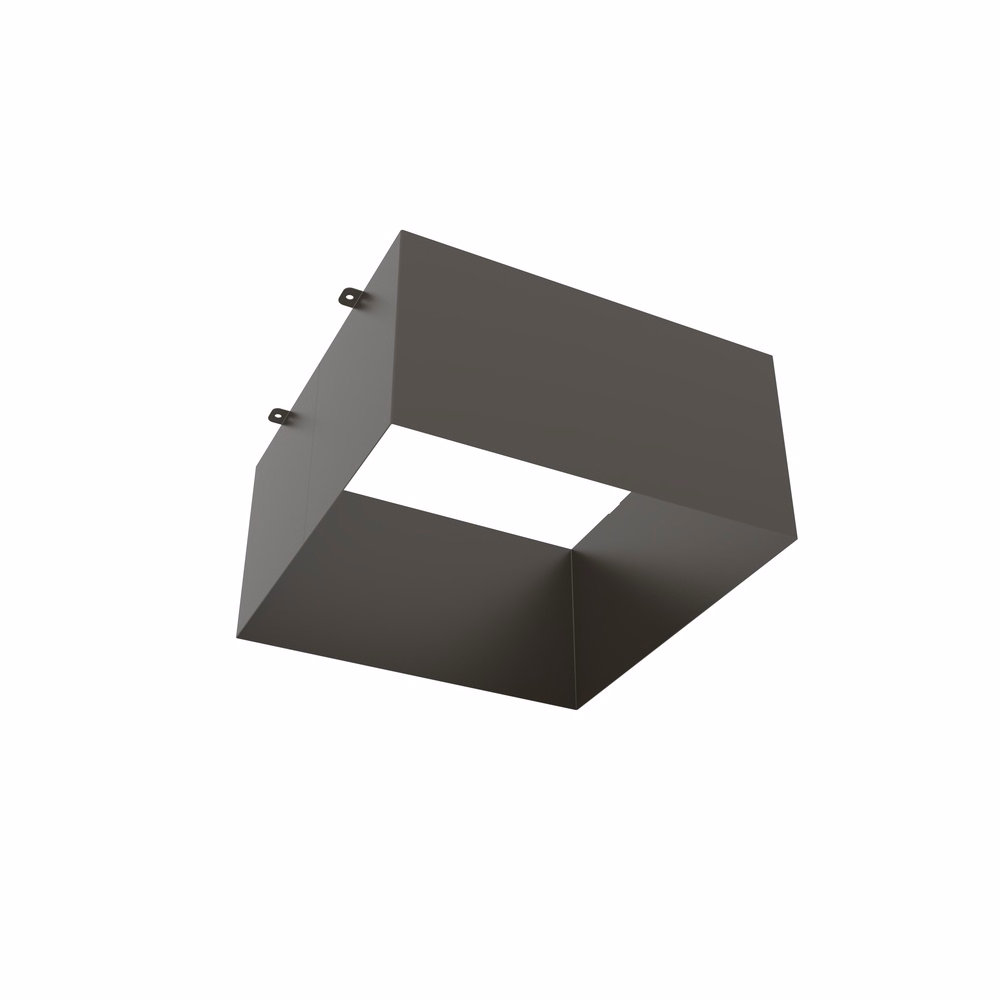

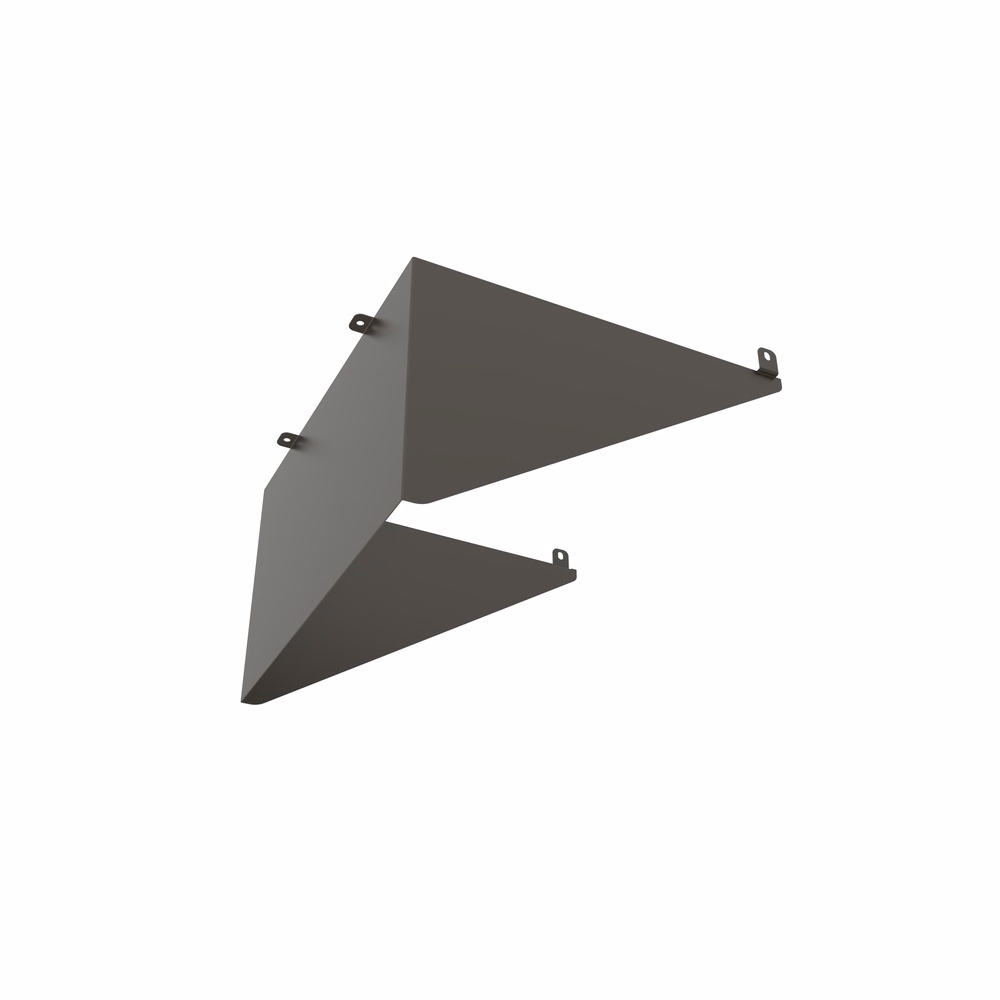

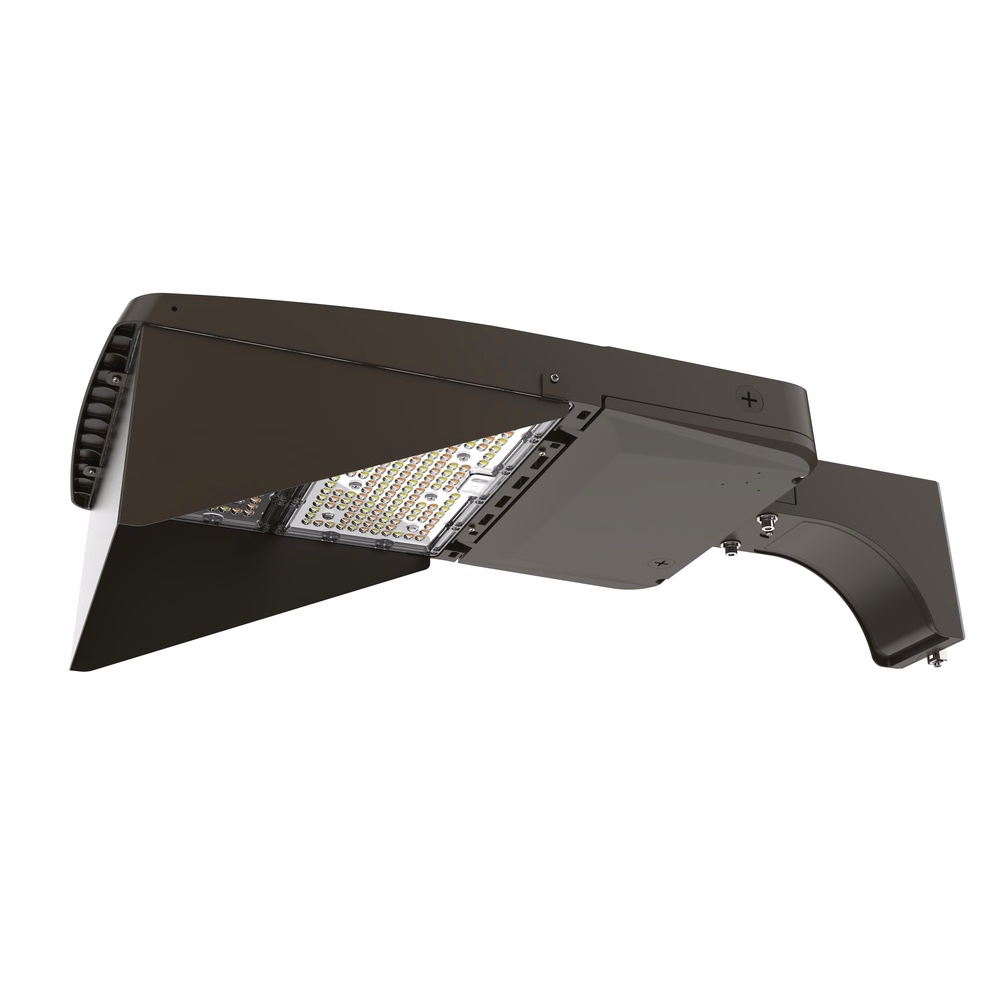

• Optional external half glare shield or 360° full visor accessory for spill light control, sold separately

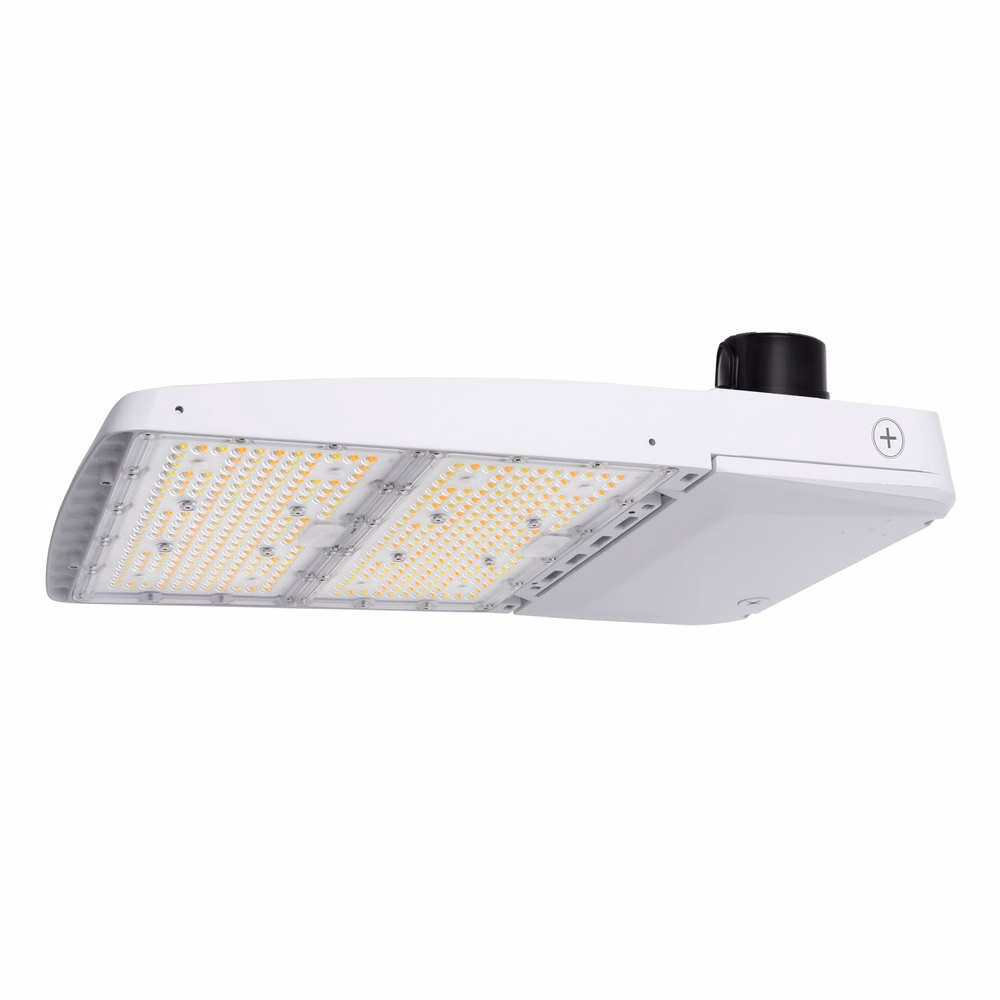

• Available in Dark Bronze (standard), Black, or White; custom colors (Silvery, Green, Other) available on request
• -40°F to 113°F (-40°C to 45°C) ambient operating range
• 5-year limited warranty
• UL Certified to U.S. and Canadian standards; suitable for wet locations
• DesignLights Consortium (DLC) Premium qualified and DLC qualified

Applications

Parking lots, roadways, campuses, walkways, and other outdoor commercial and site lighting applications where field-adjustable wattage and color temperature reduce the number of SKUs you need to stock.
