2x4 LED Frame Light | Field Selectable up to 7800 Lumens

Products

Size

CCT

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

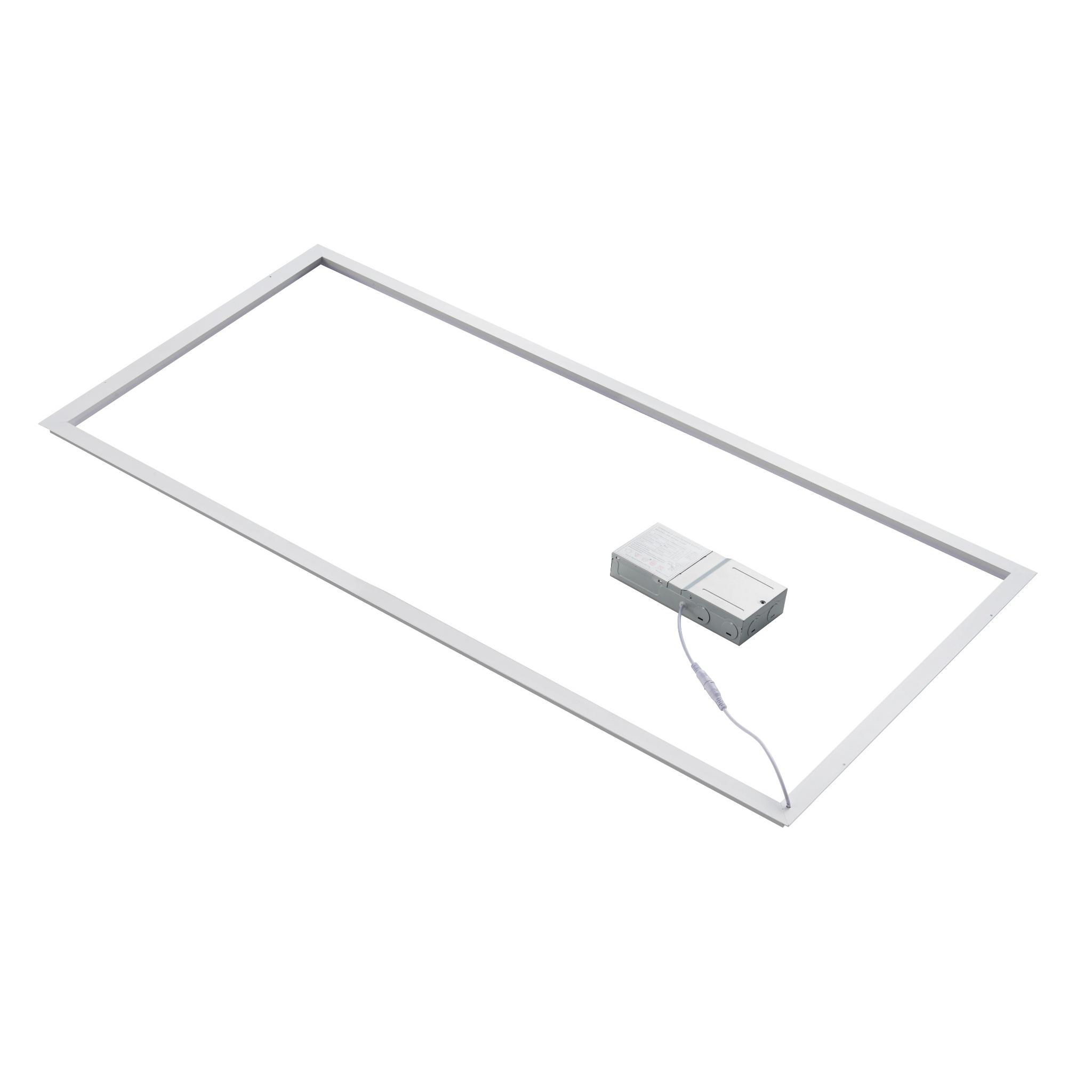

2×4 LED Frame Light with sleek, modern design and field-selectable wattage and color temperature
Wattage selectable: 40W / 50W / 60W (field switchable)
Color temperature selectable: 3000K / 3500K / 4000K / 5000K / 6500K (5 CCT options)
Maximum lumen output: 7,500 LM (at 60W)
High lumen efficient: Up to 125 lm/w
CRI > 80 for excellent color rendering
Cutting-edge optical technology matches lighting specs of traditional LED panels
Input voltage: 120-277V AC
0-10V dimming comes standard
Wattage and CCT selectable reduce your stock SKU
Wide beam angle: 120° for excellent light distribution
IP Rating: IP40 for indoor use
Suitable for recessed mounting with T-bar ceiling or suspended installation
Operating temperature range: -20°C to 45°C
ETL listed and suitable for damp locations
DLC Premium certified for energy efficiency
5-year limited warranty

Brand	One Source Light
Model	F4-K60-3065
Product Type	LED Frame Light / Flat Panel Fixture
Size	2×4 Feet (47.76″ × 46.97″)
Wattage (Field Selectable)	40W / 50W / 60W Adjustable
Color Temperature (CCT)	3000K / 3500K / 4000K / 5000K / 6500K (5 Options – Field Selectable)
Maximum Wattage	60W
Maximum Lumens	7,500 LM (60W)
Lumen Output at Each Setting	40W: 5,000 LM \| 50W: 6,250 LM \| 60W: 7,500 LM
Efficacy (LM/W)	Up to 125 LM/W
CRI (Color Rendering Index)	> 80
Input Voltage	120-277V AC
Operating Frequency	50/60Hz
Power Factor	> 0.95
Total Harmonic Distortion (THD)	< 10%
Dimmable	Yes (0-10V Dimming Standard)
Beam Angle	120°
IP Rating	IP40
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Dimensions	47.76″ L × 46.97″ W × 0.6″ H
Housing Material	Aluminum Frame
Diffuser	PC Cover
Installation Options	Recessed Mounting with T-Bar Ceiling \| Suspended Installation
Packing Configuration	6 units per carton \| Carton Dimensions: 51″L × 25.5″W × 9″H \| Gross Weight: 21 lbs
Features	Sleek Modern Design \| Cutting-Edge Optical Technology \| Field-Selectable Wattage & CCT \| 5-in-1 Color Temperature \| Hassle-Free Setup
Lighting Technology	LED Chip with LED Driver
Certifications	ETL Listed \| DLC Premium \| Suitable for Damp Locations
Warranty	5-Year Limited
Application Areas	Offices, Retail Spaces, Schools, Restaurants, Residential
