Description

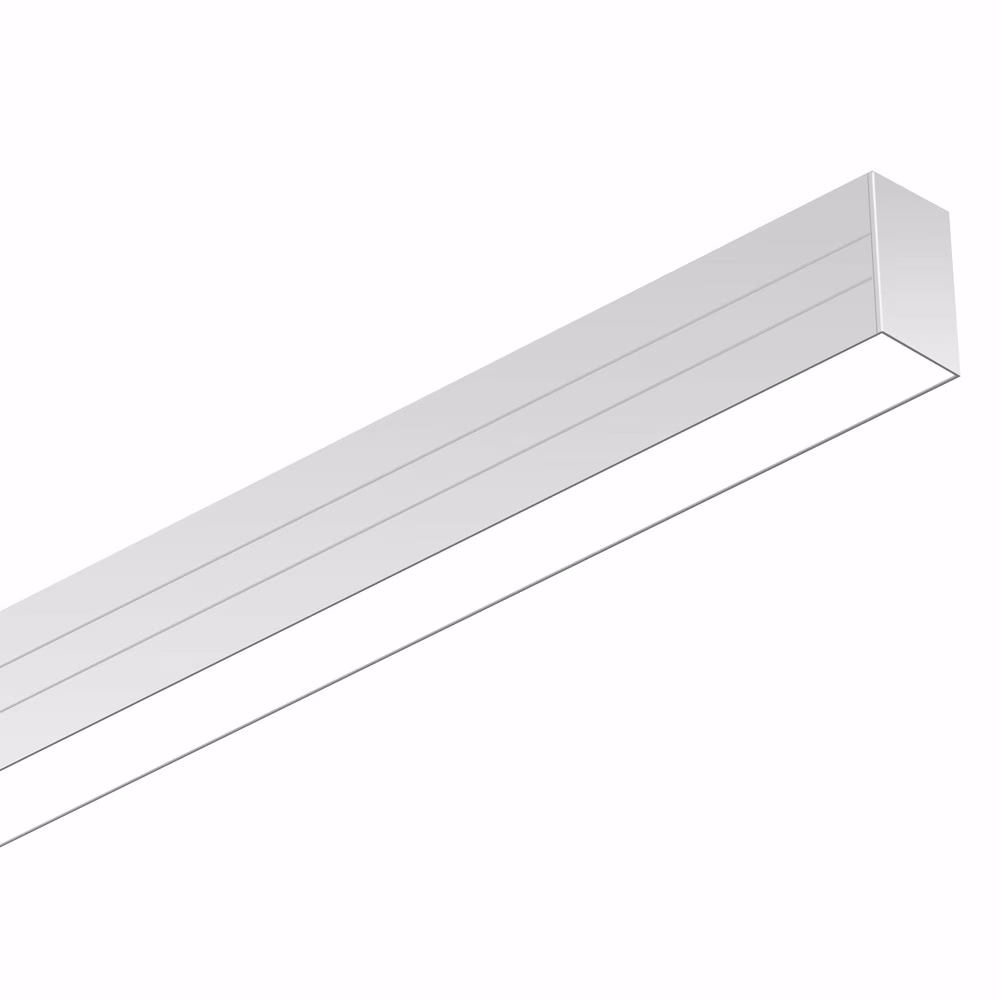

The Zeta 2.3″ Wall Wash Diffuser Recessed Linear Light is a slim, 2.3″-wide architectural fixture that sits into the ceiling plane and tilts its diffuser lens 30° to wash light evenly down a wall or vertical surface instead of straight down. Wattage and CCT are both adjustable in the field so a single stocked unit can be dialed in on site instead of ordering multiple SKUs. Available in 2′, 3′, and 4′ lengths, it mounts into T-grid or dry ceilings and supports seamless continuous runs with optional joiners.

• 2.3″ wide recessed linear fixture with a diffuser lens tilted 30° for wall-washing
• Wattage selectable: 100% / 75% / 50% of max wattage, field-adjustable at the fixture
• CCT adjustable: 3000K / 3500K / 4000K, field-adjustable at the fixture
• 90+ CRI
• 0-10V dimming; dims to 10% standard (dims to 1% available)
• 110-277V AC input (110-347V AC option available)
• Compatible with 9/16″ and 15/16″ T-grid ceilings as well as dry (drywall) ceilings; trim, trimless, and T-grid hook mounting styles available across the product family
• Supports seamless continuous runs and custom shapes (L, T, +, V, Y, square, rectangle, hexagon, ceiling-to-wall) via optional joiners
• Damp rated, -20°C to 40°C (-4°F to 104°F) ambient operating range
• White finish
• cULus Listed for damp locations
• Optional external, field-installed emergency driver available, ordered separately
• 5-year limited warranty

Applications

Accent walls, art and merchandise display walls, retail perimeters, corridors, and lobbies — anywhere you want to wash a vertical surface with even light instead of lighting the floor below.
