Description

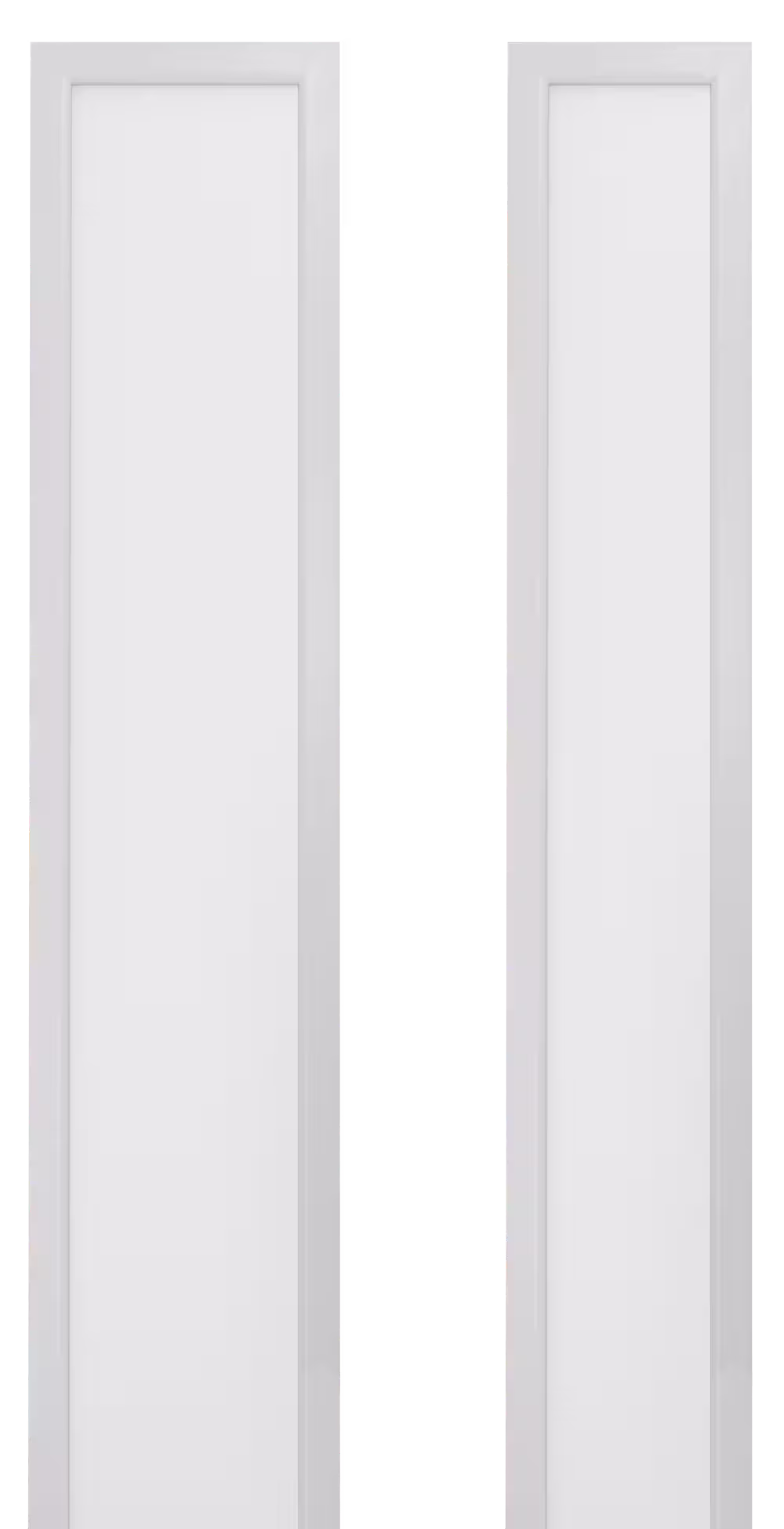

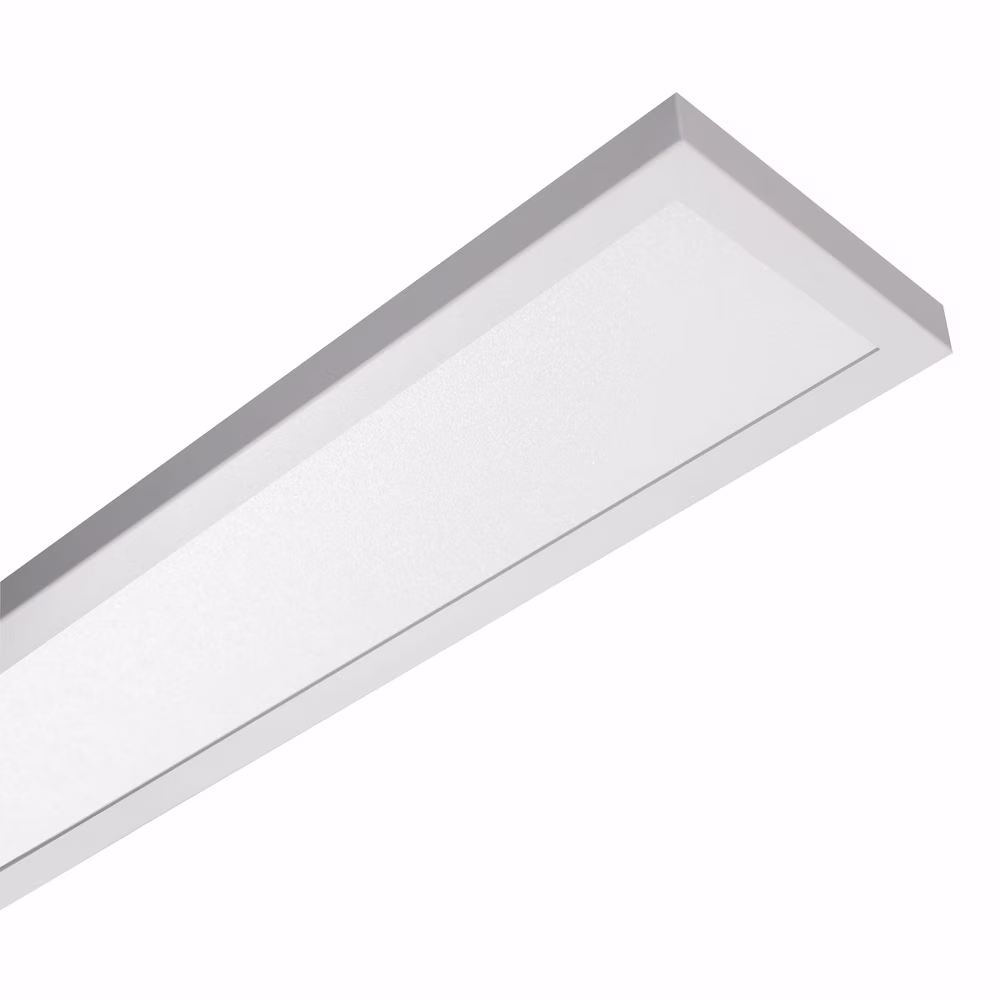

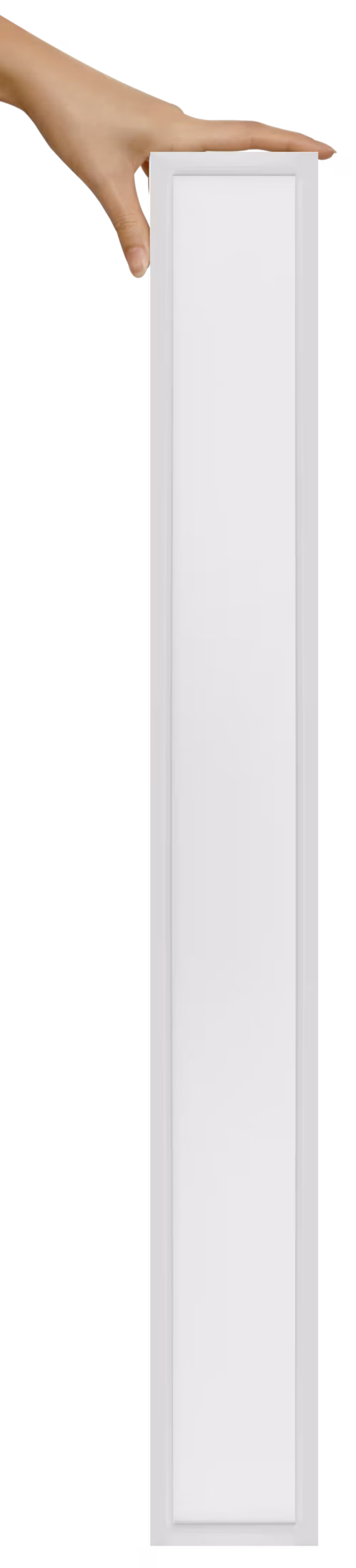

The LR Series Slim Recessed Linear Light is a slim, extruded-aluminum architectural fixture available in popular 4″ and 6″ widths with lengths up to 8 feet, delivering powerful linear illumination for offices, schools, hospitals, corridors, and light industrial spaces. Both wattage and CCT are field-adjustable via simple dip switches on the driver, so a single stocked unit covers up to three color temperatures and three light levels — fewer SKUs to stock, more orders fulfilled.

• Slim, extruded-aluminum recessed linear housing in 4″ and 6″ widths
• Available in 2′, 4′, and 8′ lengths
• Wattage selectable: 100% / 75% / 50% of max wattage via dip switch
• CCT adjustable: 3000K / 3500K / 4000K via dip switch
• Up to 1000 lm/ft (6″ width, 4000K); up to 8000 lumens on the 8’x6″ unit
• Minimum 80 CRI
• 0-10V dimming; dims to 10% standard (dims to 1% available)
• 110-277V AC input; standard electronic driver is UL recognized

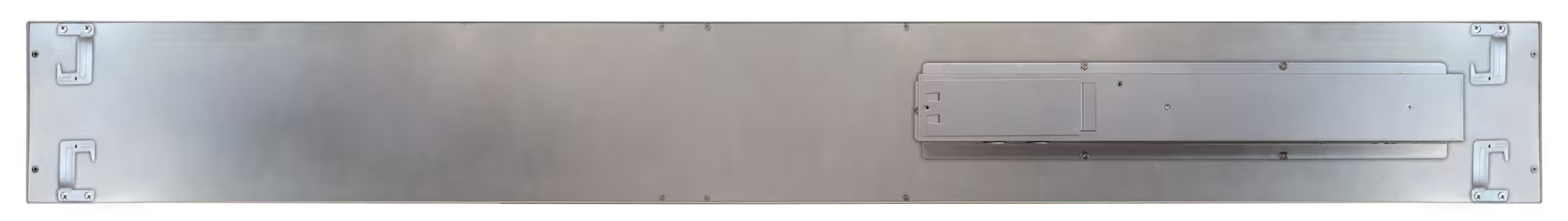

• External LED driver with THD <20% and power factor >0.9
• Adjustable fixture angle for compatibility with most ceiling types
• LED life: minimum 50,000 hours with 87.8% lumen maintenance at 25°C ambient, per IES LM-80 testing
• White finish
• cULus Listed for damp locations
• Optional external, field-installed emergency driver (16W or 25W) available, ordered separately
• 5-year limited warranty

Applications

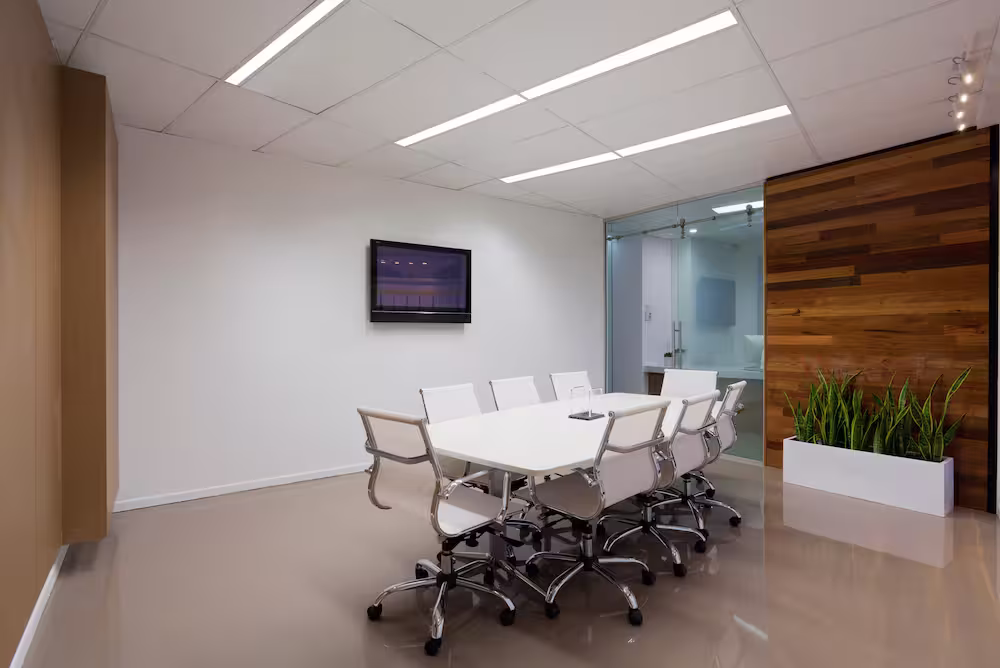

Offices, schools, hospitals, corridors, light industrial spaces, or anywhere stylish, powerful linear lighting is desired.
