Description

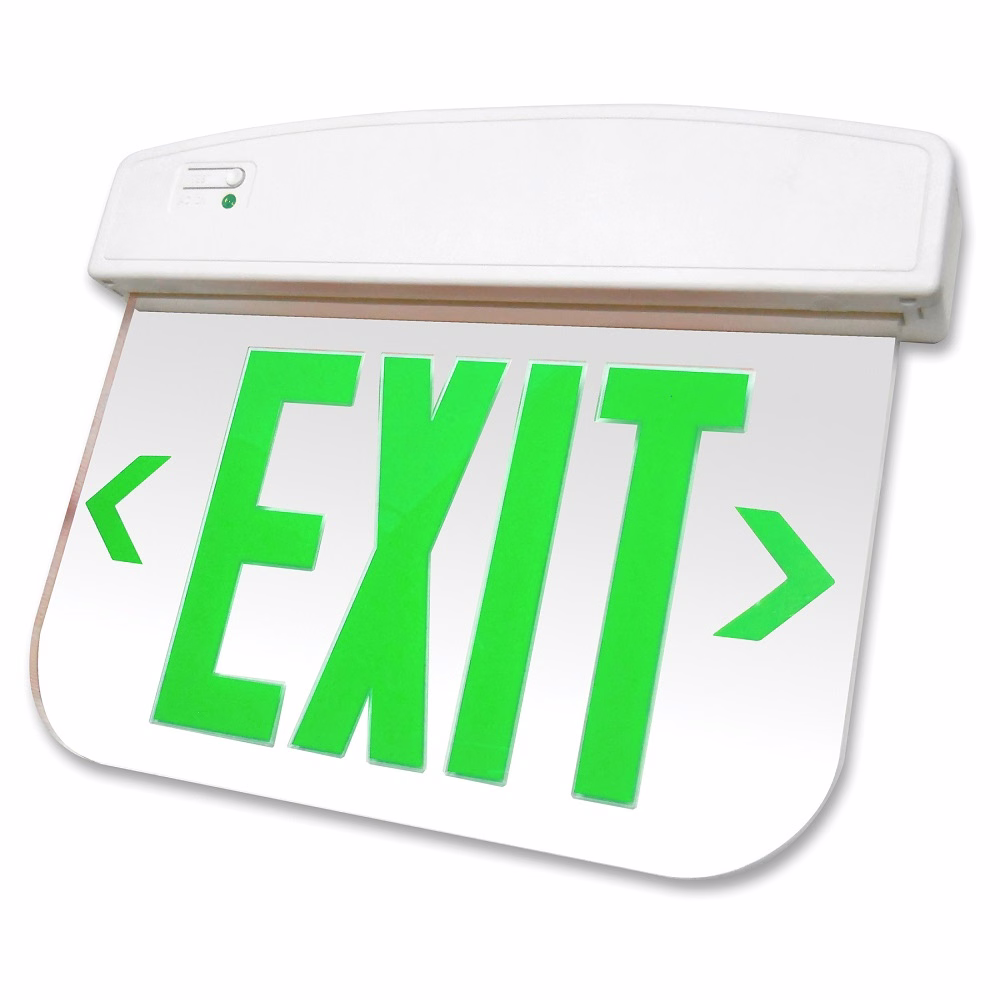

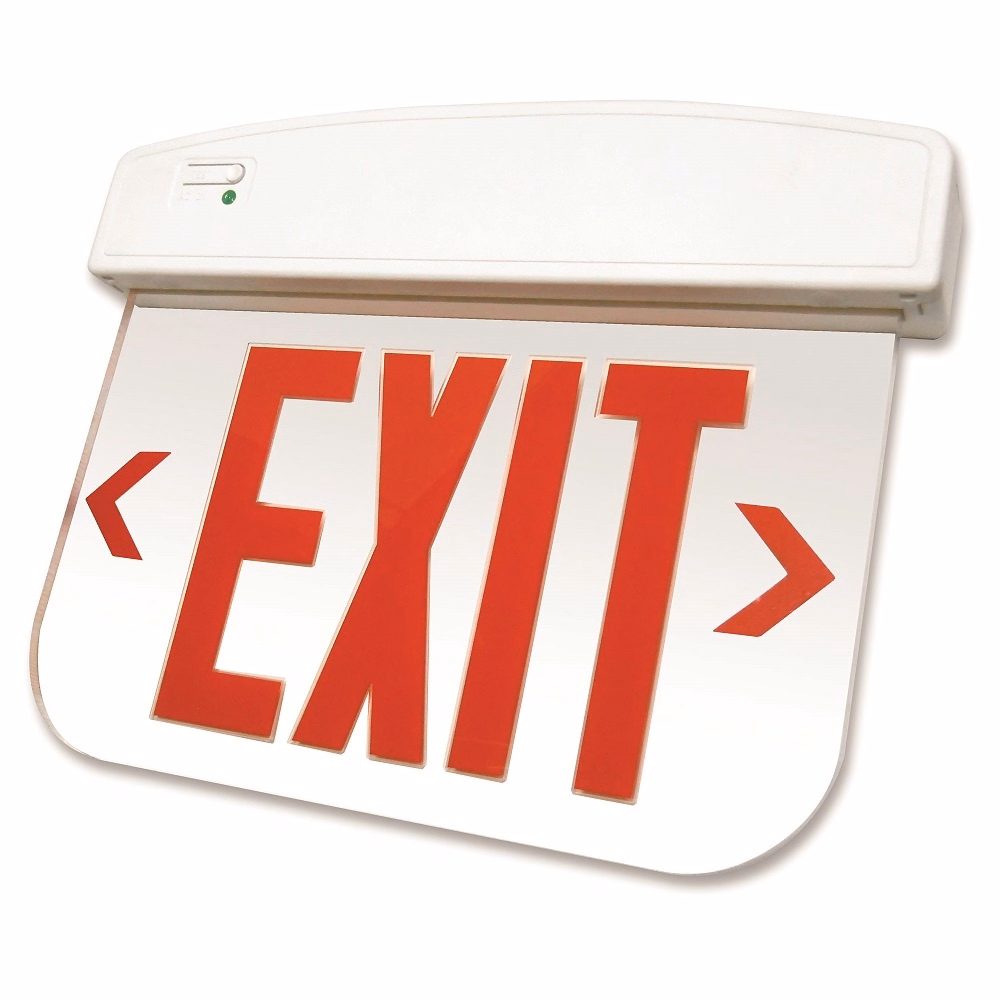

The PLELRXTEU is an edgelit thermoplastic LED exit sign built around a UV-stabilized, ultra-clear acrylic edgelit panel for consistent, uniform illumination with ultra-bright, energy-efficient, long-life Red or Green LED lettering. It’s available in Single Face or Double Face configuration, with the Double Face version utilizing a factory-installed silver or white mylar background panel. Choose a Clear, Mirror, or White edgelit panel (Clear is available on Single Face units only), and an injection-molded, engineering-grade 5VA flame-retardant, high-impact resistant thermoplastic housing in White, Black, or Silver finish. An EZ-snap mounting canopy is included for top, end, or back mount, and self-adhesive Chevron appliques with a guide template are provided for directional indication. Dual 120/277V input voltage is standard. Choose the AC-only version for continuously powered signage, or the Battery Backup (EM) version, which adds a 4.8V long-life, maintenance-free rechargeable NiCd battery with an internal solid-state transfer switch for a minimum of 90 minutes of emergency illumination on power loss, a fully automatic two-rate charger that recharges a discharged battery within 24 hours, and a unique bi-color LED indicator light (green = normal, red = check battery) with a push-to-test switch for mandated code compliance testing.

• Ultra-bright, energy-efficient, long-life Red or Green LED illumination
• UV-stabilized, ultra-clear acrylic edgelit panel for consistent, uniform illumination
• Available in Single Face or Double Face; Double Face uses a factory-installed silver or white mylar background panel
• Edgelit panel available in Clear (Single Face only), Mirror, or White
• Injection-molded, engineering-grade 5VA, flame-retardant, high-impact resistant thermoplastic housing in White, Black, or Silver finish
• EZ-snap mounting canopy included for top, end, or back mount
• Self-adhesive Chevron appliques and guide template provided for directional indication
• Dual 120/277V input voltage standard
• Available with AC-only power or optional Battery Backup (EM): 4.8V long-life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch provides a minimum 90-minute emergency illumination on power loss (EM/Battery Backup version)
• Fully automatic solid-state two-rate charger recharges a discharged battery in 24 hours (EM/Battery Backup version)
• Unique bi-color LED battery-condition indicator (green = normal, red = check battery) and push-to-test switch for mandated code compliance testing (EM/Battery Backup version)
• UL Listed for damp locations (0°C – 50°C)
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes; California Energy Commission compliant
• Five-year warranty on all electronics and housing; battery prorated for five years

Applications

Mandated emergency egress and exit-route identification for offices, retail, healthcare, education, hospitality, and other commercial interiors where a lightweight, cost-effective edgelit exit sign is preferred — including projects calling for a Mirror or White panel finish, or a Black or Silver housing finish, to coordinate with interior design.
