Description

The PELX is an economy plastic edgelit LED exit sign built around a UV-stabilized acrylic edgelit panel with a factory-installed Mirror finish, for consistent, uniform illumination with ultra-bright, energy-efficient, long-life LED lettering. It ships as a Universal Single/Double Face sign — the same unit works as either, using a factory-installed silver mylar background panel and stick-on mylar sheet for double-face installations. Choose Red, Green, or Red/Green lettering, and an injection-molded, engineering-grade 5VA flame-retardant, high-impact resistant thermoplastic housing in White, Black, or Silver powder-coated finish. The sign ships as a surface-mount unit with a plastic mounting canopy included for top, end, or back mount; a separately ordered PREL-KIT accessory allows a quick field conversion to recessed mounting (bar hangers for drywall or drop-ceiling installation are included with that kit). Self-adhesive Chevron appliques and a guide template are provided for directional indication. Dual 120/277V input voltage is standard. Choose the AC-only version for continuously powered signage, or the Battery Backup (EM) version, which adds a 3.6V long-life, maintenance-free rechargeable NiCd battery with an internal solid-state transfer switch for a minimum of 90 minutes of emergency illumination on power loss, a fully automatic two-rate charger that recharges a discharged battery within 24 hours, and a unique bi-color LED indicator light (green = normal, red = check battery) with a push-to-test switch for mandated code compliance testing.

• Ultra-bright, energy-efficient, long-life LED illumination in Red, Green, or Red/Green
• UV-stabilized acrylic edgelit panel (Mirror finish) provides consistent, uniform illumination
• Universal Single/Double Face — one sign works as either, using a factory-installed silver mylar background panel and stick-on mylar sheet for double-face use
• Injection-molded, engineering-grade 5VA, flame-retardant, high-impact resistant thermoplastic housing in White, Black, or Silver powder-coated finish

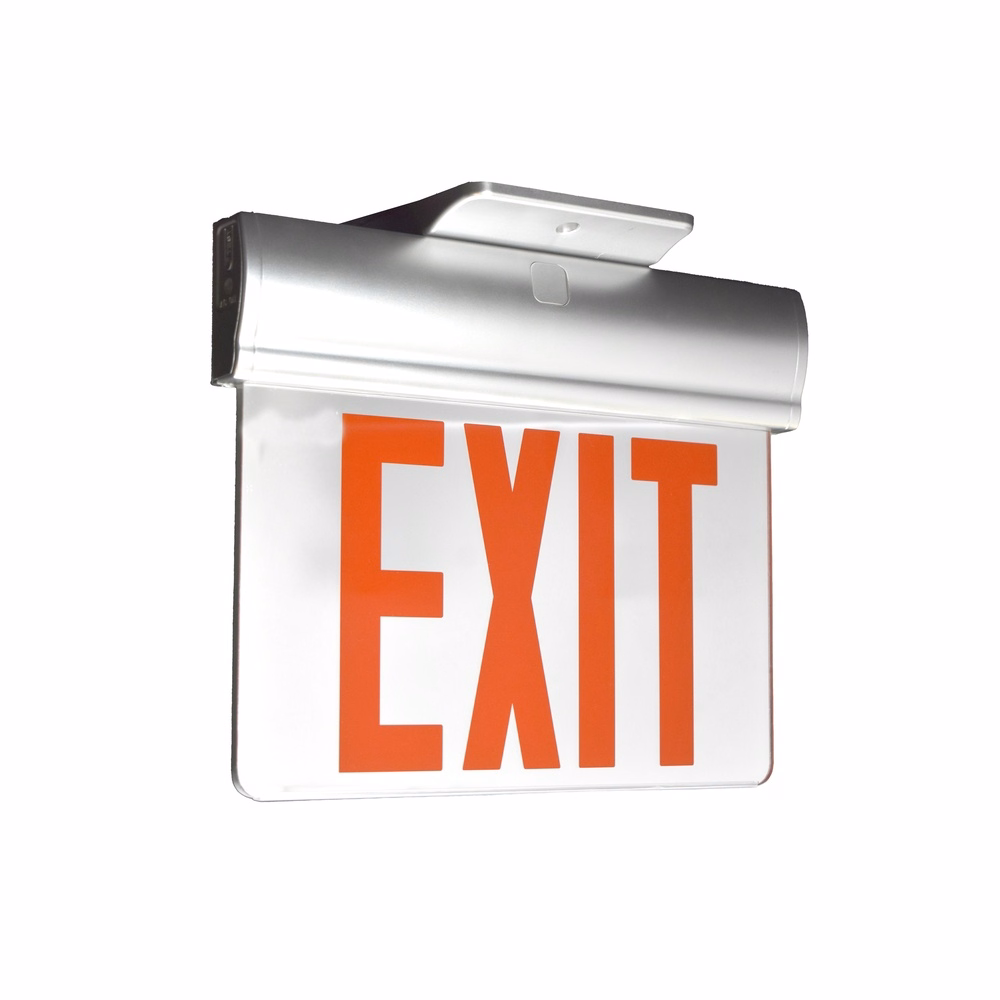

• Ships surface-mount with a plastic mounting canopy included for top, end, or back mount

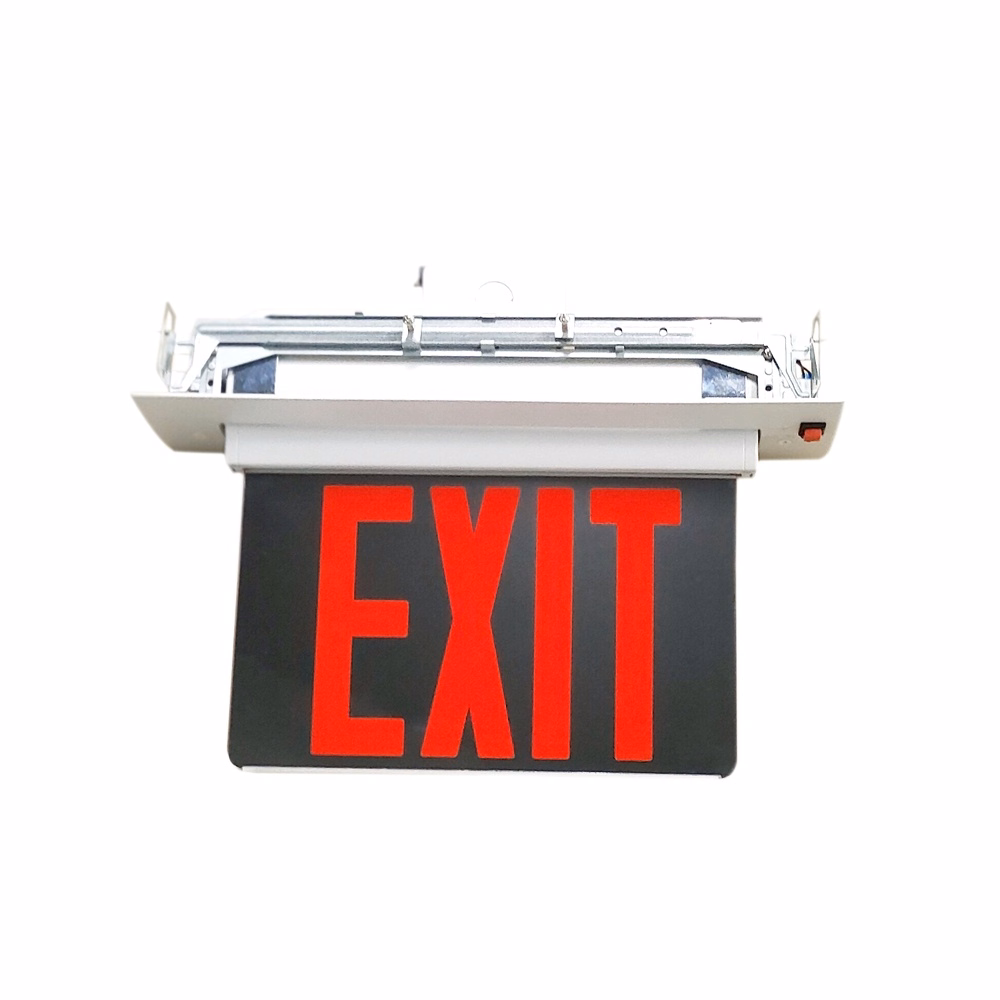

• PREL-KIT accessory (order separately) for a quick field conversion from surface to recessed mount; includes bar hangers for drywall or drop-ceiling installation
• Self-adhesive Chevron appliques and guide template provided for directional indication
• Dual 120/277V input voltage standard
• Available with AC-only power or optional Battery Backup (EM): 3.6V long-life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch provides a minimum 90-minute emergency illumination on power loss (EM/Battery Backup version)
• Fully automatic solid-state two-rate charger recharges a discharged battery in 24 hours (EM/Battery Backup version)
• Unique bi-color LED battery-condition indicator (green = normal, red = check battery) and push-to-test switch for mandated code compliance testing (EM/Battery Backup version)
• UL Listed for damp locations (0°C – 50°C)
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes; California Energy Commission compliant
• Five-year warranty on all electronics and housing; battery prorated for five years

Applications

Mandated emergency egress and exit-route identification for offices, retail, healthcare, education, hospitality, and other commercial interiors on a budget-conscious project — including installations needing a quick, no-tools-required surface-to-recessed conversion later, or a Red/Green double-face sign to distinguish between two different egress paths.
