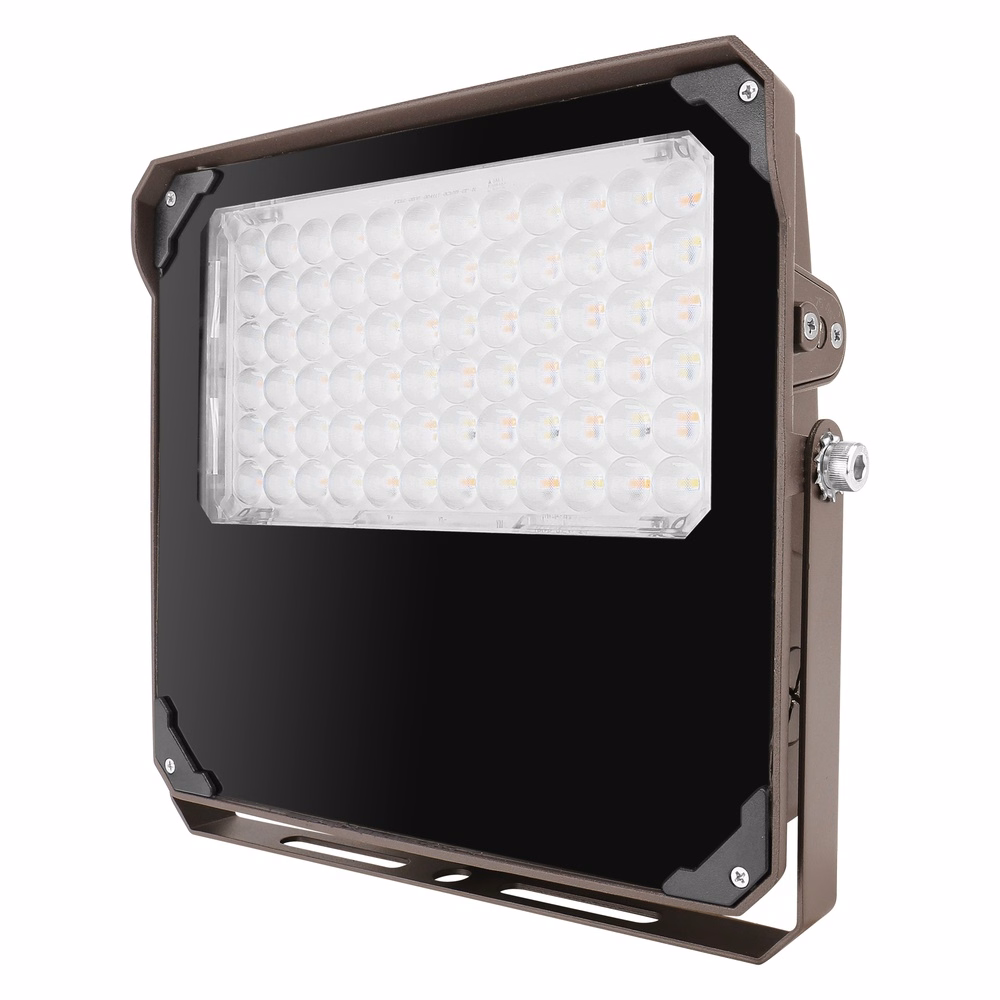

The MFD12 90W is a high-output LED flood light built for general-purpose commercial floodlighting on larger areas. On-site, it lets you dial in the exact combination your project needs from 3 field-selectable beam angles (90°, 75°, 55°), 3 field-selectable color temperatures (3000K, 4000K, 5000K), and 4 field-selectable wattage/output steps (90W, 72W, 54W, 36W) — 36 total configurations from a single stocked SKU, cutting down on the number of part numbers you need to carry. This unit ships with a built-in dusk-to-dawn photocell (switchable on/off) and a trunnion mount for adjustable, bracket-style installation. The die-cast aluminum housing and fully sealed, heat- and impact-resistant tempered glass lens keep the fixture protected and efficient over a long service life.
General-purpose commercial and landscape floodlighting for larger areas, including building exteriors, billboards and signage, parking and loading areas, sports and recreation courts, and landscape lighting for parks, squares, and playgrounds.
| Attribute | Value |
|---|---|
| Brand | ONE SOURCE LIGHT |
| Product Type | LED Flood Light, Field-Selectable Beam Angle, CCT & Wattage |
| Model Series | MFD12 |
| Nominal Wattage | 90W (field-selectable to 72W/54W/36W) |
| Voltage | AC120-277V |
| Color Temperature | Field-selectable: 3000K / 4000K / 5000K |
| Beam Angle | Field-selectable: 90°/6H6V (very wide), 75°/6H6V (wide), 55°/5H5V (medium wide) |
| CRI | ≥80 |
| Output | Approx. 4,970 – 13,280 lumens and up to 165 lm/W across the full 90/72/54/36W × 3000/4000/5000K × 90°/75°/55° selection range (figures per the manufacturer’s performance data table, measured at 25°C ±5°C lab conditions) |
| Dimming | 0-10V, 10%-100% dimming range |
| Power Quality | PF > 0.90; THD < 15% |
| Controls | Field-selectable wattage, CCT, and beam angle; built-in dusk-to-dawn photocell with on/off dip switch (included on this SKU) |
| Material / Construction | Die-cast aluminum housing; fully sealed, heat- and impact-resistant tempered glass lens |
| Finish | Dark Bronze |
| Mounting | Trunnion |
| Vibration Rating | 1.5G, low-profile design |
| Environment Rating | Operating temperature -40°F to 113°F (-40°C to 45°C) |
| Lifespan | Estimated 50,000 hours, per IES LM-80 results and TM-21 calculations |
| Certifications / Listings | UL/cUL Wet Location Listed; DesignLights Consortium™ (DLC) Premium Qualified, all lumen packages |
| Warranty | 5 year limited |
| Catalog Number | Mounting | Finish | Overall Dimensions |
|---|---|---|---|
| MFD12-90W-27V-DDK-D-P-AD-TR | Trunnion | Dark Bronze | 10.94″ (278mm) W × 9.45″ (240mm) H × 2.36″ (60mm) D |
