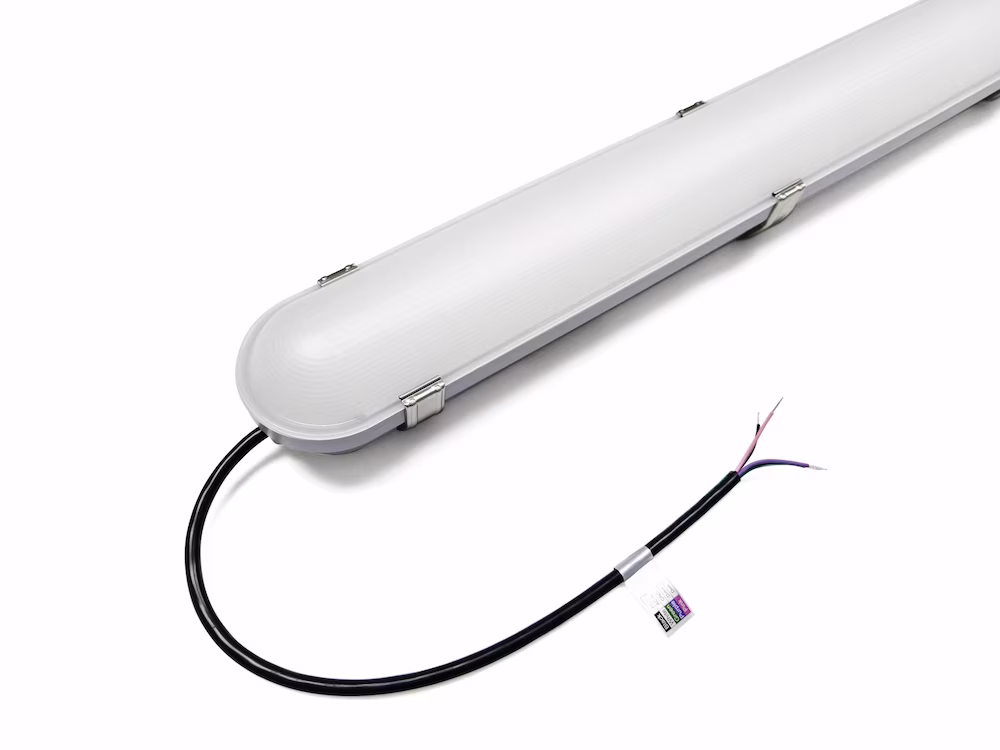

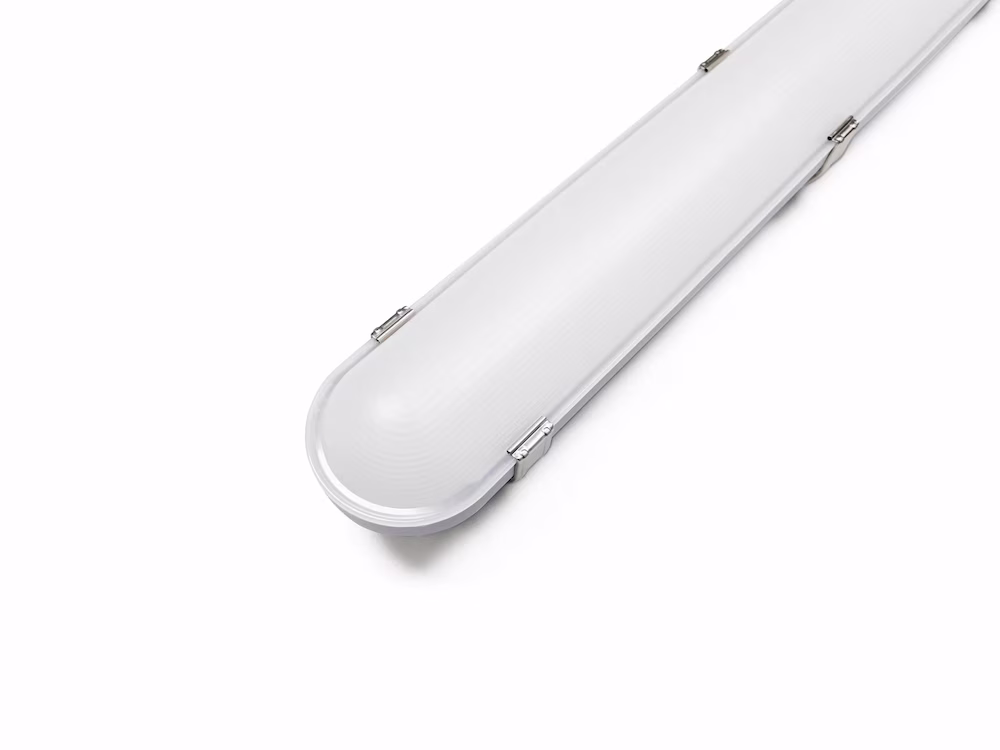

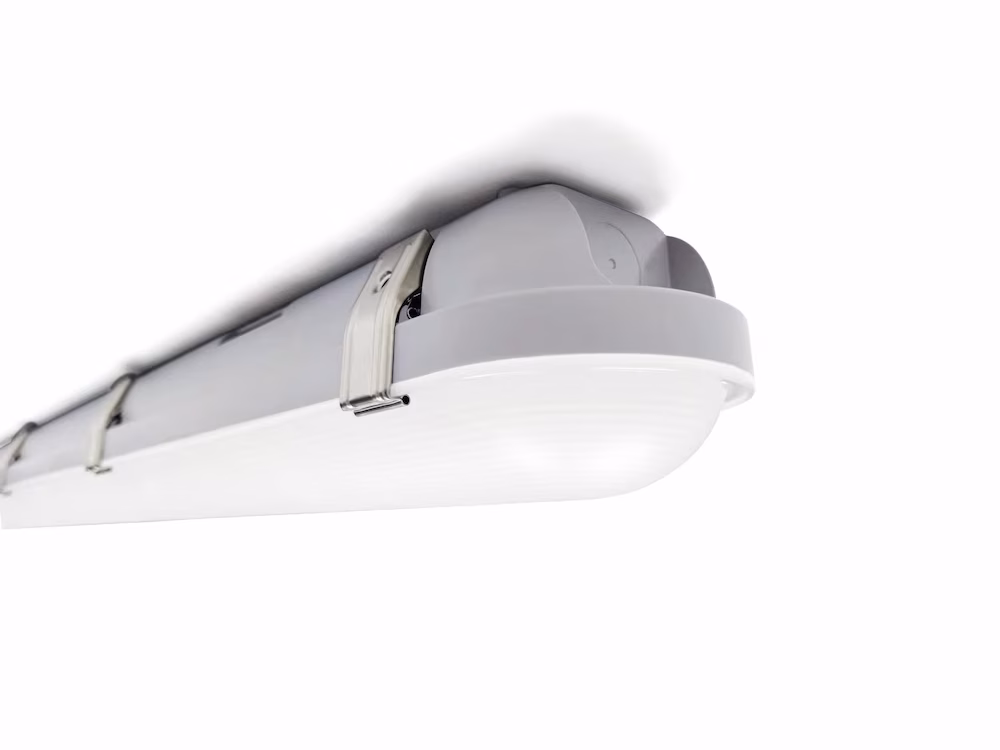

LED Linear Vapor Tight Field Selectable 4FT

Products

Size & Wattage

CCT

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

Whole PC material body with excellent stress and UV resistance
Waterproof, dust-proof and anti-corrosion construction
IP 65 waterproof grade for wet location applications
Wattage selectable: 25W / 30W / 35W / 40W / 50W (field switchable)
Color temperature selectable: 3500K / 4000K / 5000K / 5700K / 6500K (5 CCT options)
High lumen efficient: 125 lm/w on average
CRI >80 for excellent color rendering
Input voltage: 120-277V AC
0-10V dimming compatible
Operating temperature range: -20°C to 45°C
Hanging or ceiling installation
Complies with CAN/CSA-C22.2 No.250.0 standard
ETL DLC 5.1 Premium certified
5-year limited warranty

Brand	One Source Light
Model	TP4F-L50PDN
Product Type	LED Vapor Tight Light
Size	4FT (1200mm / 47 inches)
Wattage (Field Selectable)	25W / 30W / 35W / 40W / 50W
Color Temperature (Field Selectable)	3500K / 4000K / 5000K / 5700K / 6500K (5 Options)
Maximum Wattage	50W
Maximum Lumens	6,250 LM (50W @ 125 lm/w)
Efficacy (LM/W)	125 LM/W
CRI (Color Rendering Index)	>80
Input Voltage	120-277V AC
IP Rating	IP 65 (Waterproof, Dust-proof)
Dimmable	Yes (0-10V Control)
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Housing Material	Polycarbonate (PC) Body with Metal Heat Sink
Installation Options	Hanging Mount / Ceiling Surface Mount
Length	1200mm (47 inches)
Width	95mm (3.74 inches)
Height	80mm (3.15 inches)
Weight (Net)	11.2 lbs (4FT)
Weight (Gross)	14 lbs (4FT)
Lighting Technology	LED
Certifications	ETL DLC 5.1 Premium Listed
Warranty	5-Year Limited
Included Accessories	Metal Clips (2pcs), Connection Termina, Metal Hooks (2pcs), Screws Bag
Wet Location Use	Suitable for Wet Locations (IP65 Rated)
