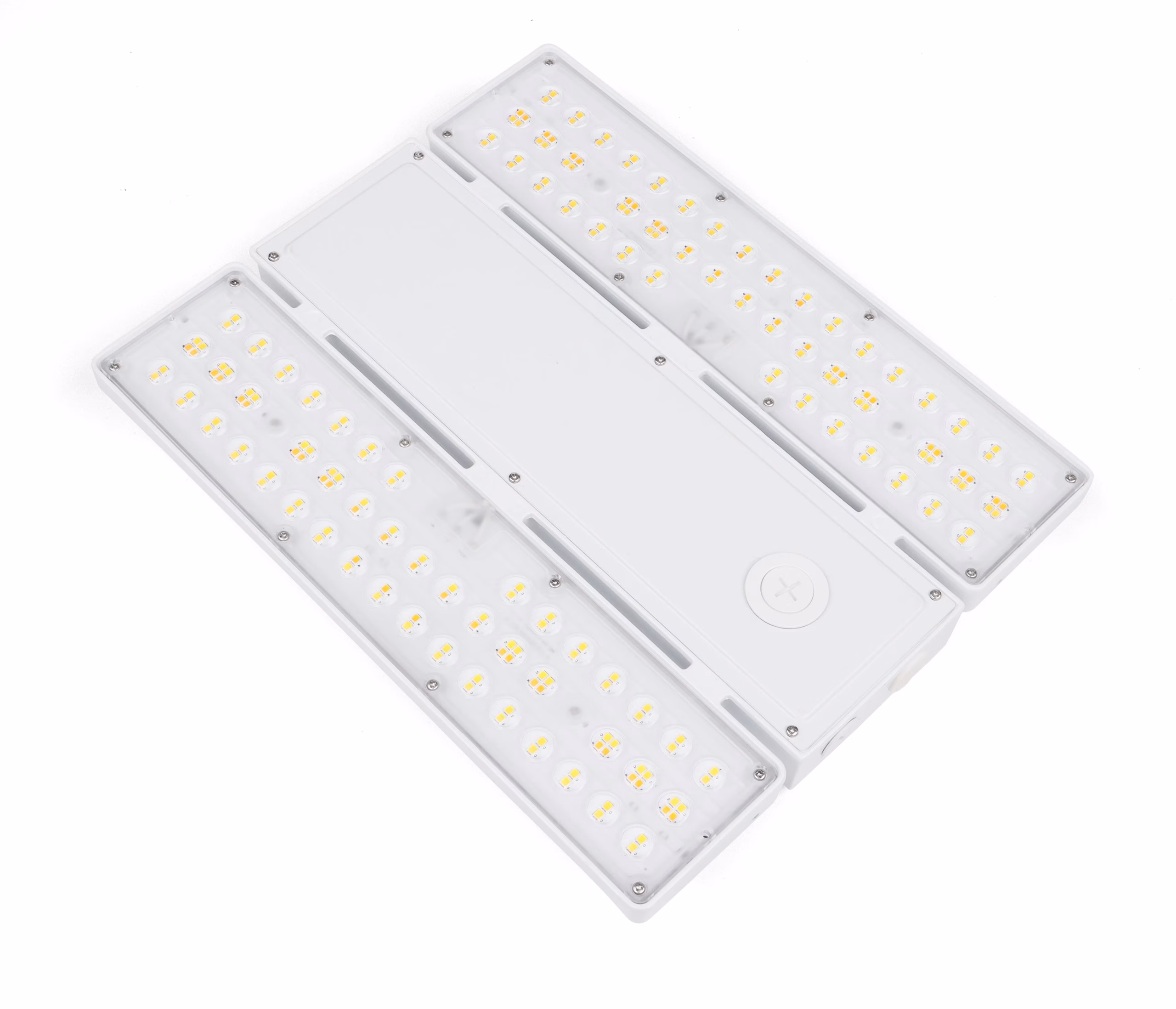

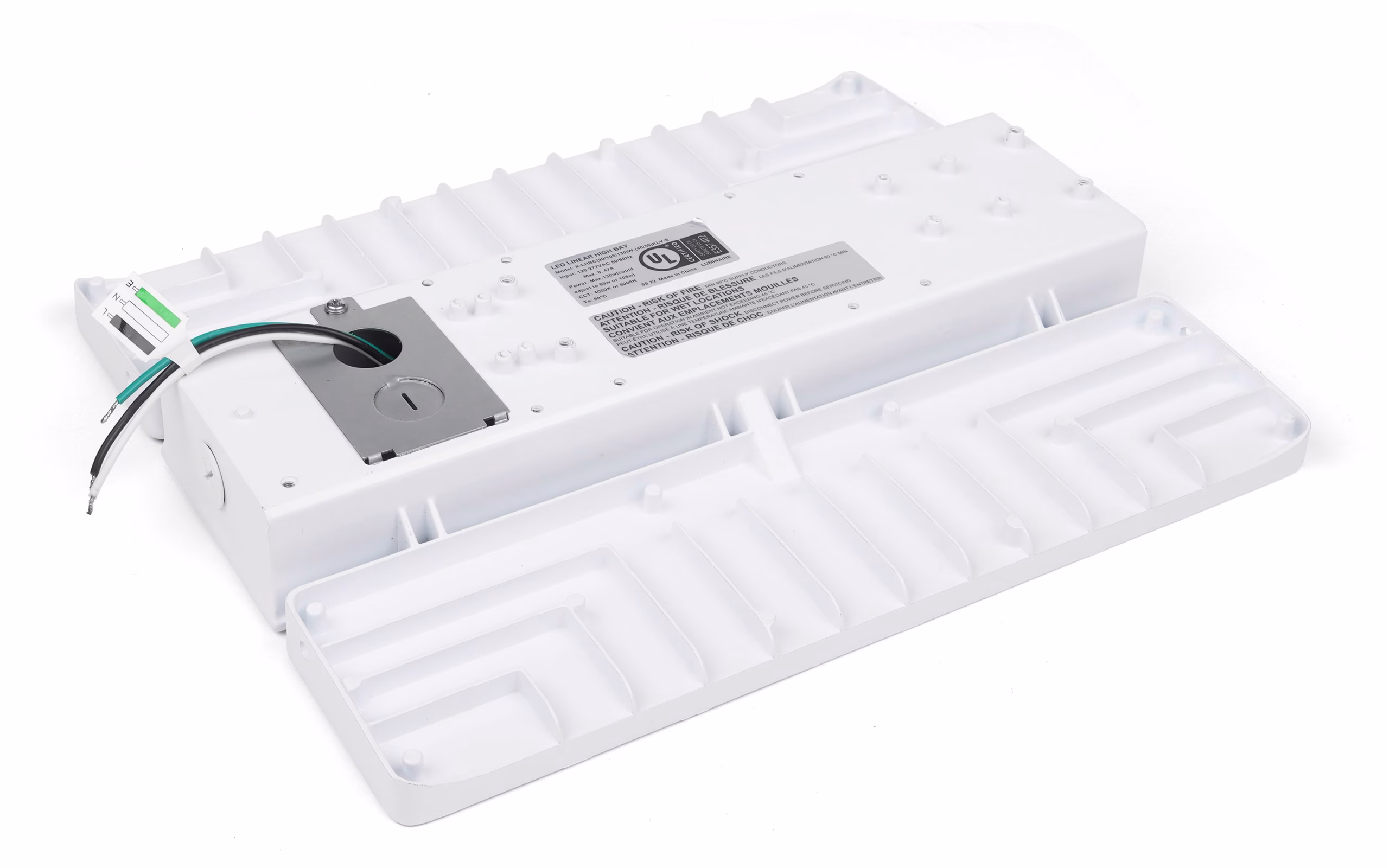

LED Linear High Bay – 155W/180W/210W – Up to 31,500 lm – 4000K/5000K – DLC Premium
LED Linear High Bay – 155W/180W/210W – Up to 31,500 lm – 4000K/5000K – DLC Premium - Image 2
LED Linear High Bay – 155W/180W/210W – Up to 31,500 lm – 4000K/5000K – DLC Premium - Image 3

LED Linear High Bay – 155W/180W/210W – Up to 31,500 lm – 4000K/5000K – DLC Premium

RESOURCES & DOWNLOADS

istockphoto 1263032734 612x612 1

Spec Sheet DownloadInstallation Instruction

(0 Reviews)

$63.95

  • Emergency Battery Backup

    Sensor Options

    Mounting Options

    Wireguard Option

    Lens Options

Request a Large Order Quote

Details

  20250102160727 3 ETL UL logo 1 20250102160727 0 DLC Premium logo 1 20250102160727 0 DLC Premium logo 1 UL Listed

Description

  • High efficiency 1.2FT LED Linear Highbay with field-selectable wattage and color temperature for maximum lumen output
  • Wattage selectable: 155W / 180W / 210W (field switchable via wattage selector)
  • Color temperature selectable: 4000K / 5000K (2 CCT options)
  • Maximum lumen output: 31,500 LM (at 210W, 5000K)
  • Superior efficacy: up to 150 lm/W for optimal energy performance and cost savings
  • CRI > 80 for excellent color rendering and true-color visibility
  • Input voltage: AC 120-277V or 277-480V(optional)
  • Designed to withstand surge: L/N-PE: 10kV, L-N: 6kV
  • Compatible with standard 0-10V dimmer for smooth dimming control from 100% down to off
  • Die-cast aluminum housing with powder coat corrosion resistant finish
  • High transmittance polycarbonate lens; UGR <28 meets DLC Premium standard
  • PIR sensor with Bluetooth control support available; wattage & CCT selector built-in
  • Chain suspension installation included as standard; optional surface mount and pendant mount available
  • Optional 25W emergency battery backup (available only for 120-277V)
  • Compact 1.2FT design ideal for warehouses, industrial facilities, sports facilities, and gyms
  • Working temperature range: -40°F to 122°F (-40°C to 50°C) for year-round operation
  • UL listed, meets U.S. and Canada standards; DLC Premium qualified
  • 5-year limited warranty

Product Attributes

BrandOne Source Light
ModelX-LHBC(155/180/210)W -(40/50)KLV-M
Product TypeLED Linear Highbay Light Fixture
Size1.2-Foot (Medium – 14″ / 356.0mm length)
Wattage (Field Selectable)155W / 180W / 210W Adjustable
Color Temperature (CCT)4000K / 5000K (Field Selectable)
Maximum Wattage210W
Maximum Lumens31,500 LM (at 210W, 5000K, 120-277V)
Lumen Output Range23,250 LM – 31,500 LM (depending on wattage & CCT selection)
Efficacy (LM/W)Up to 150 LM/W
CRI (Color Rendering Index)> 80
Input VoltageAC 120-277V or 277-480V(optional)
DimmableYes (0-10V, dims from 100% down to off)
Surge ProtectionL/N-PE: 10kV  |  L-N: 6kV
Operating Temperature-40°F to 122°F (-40°C to 50°C)
Length14 inches (356.0mm)
Width11.5 inches (292.0mm)
Height (Normal)2.1 inches (54.0mm)
Height (With Sensor)3.0 inches (75.2mm)
Height (With Emergency Driver)3.7 inches (94.6mm)
Net Weight5.5 lbs (2.5 kg)
Housing MaterialDie-cast aluminum, powder coat corrosion resistant finish
LensHigh transmittance polycarbonate lens
OpticsUGR <28 (meets DLC Premium)  |  Beam angle: 105°  |  Aisle: 60×110°
SensorOptional PIR sensor (supports Bluetooth control)
Emergency BatteryOptional 25W Emergency Driver (120-277V only)
Installation MethodChain suspension mount (Standard)  |  Optional surface mount kit  |  Optional pendant & surface installation box
Optional AccessoriesPIR Sensor  |  PIR Sensor with Remote Controller (Recommended)  |  Splice Bracket  |  Wire Guard
Current Draw @ 120V155W: 1.29A  |  180W: 1.50A  |  210W: 1.75A
Current Draw @ 208V155W: 0.75A  |  180W: 0.87A  |  210W: 1.01A
Current Draw @ 240V155W: 0.65A  |  180W: 0.75A  |  210W: 0.88A
Current Draw @ 277V155W: 0.56A  |  180W: 0.65A  |  210W: 0.76A
Current Draw @ 347V155W: 0.45A  |  180W: 0.52A  |  210W: 0.61A
Lighting TechnologyLED (Light Emitting Diode)
CertificationsUL Listed (U.S. & Canada)  |  DLC Premium Qualified
Warranty5-Year Limited Manufacturer Warranty
Application AreasWarehouses  |  Storage Facilities  |  Industrial Facilities  |  Sports Facilities  |  Gymnasiums  |  Manufacturing Plants
