Description

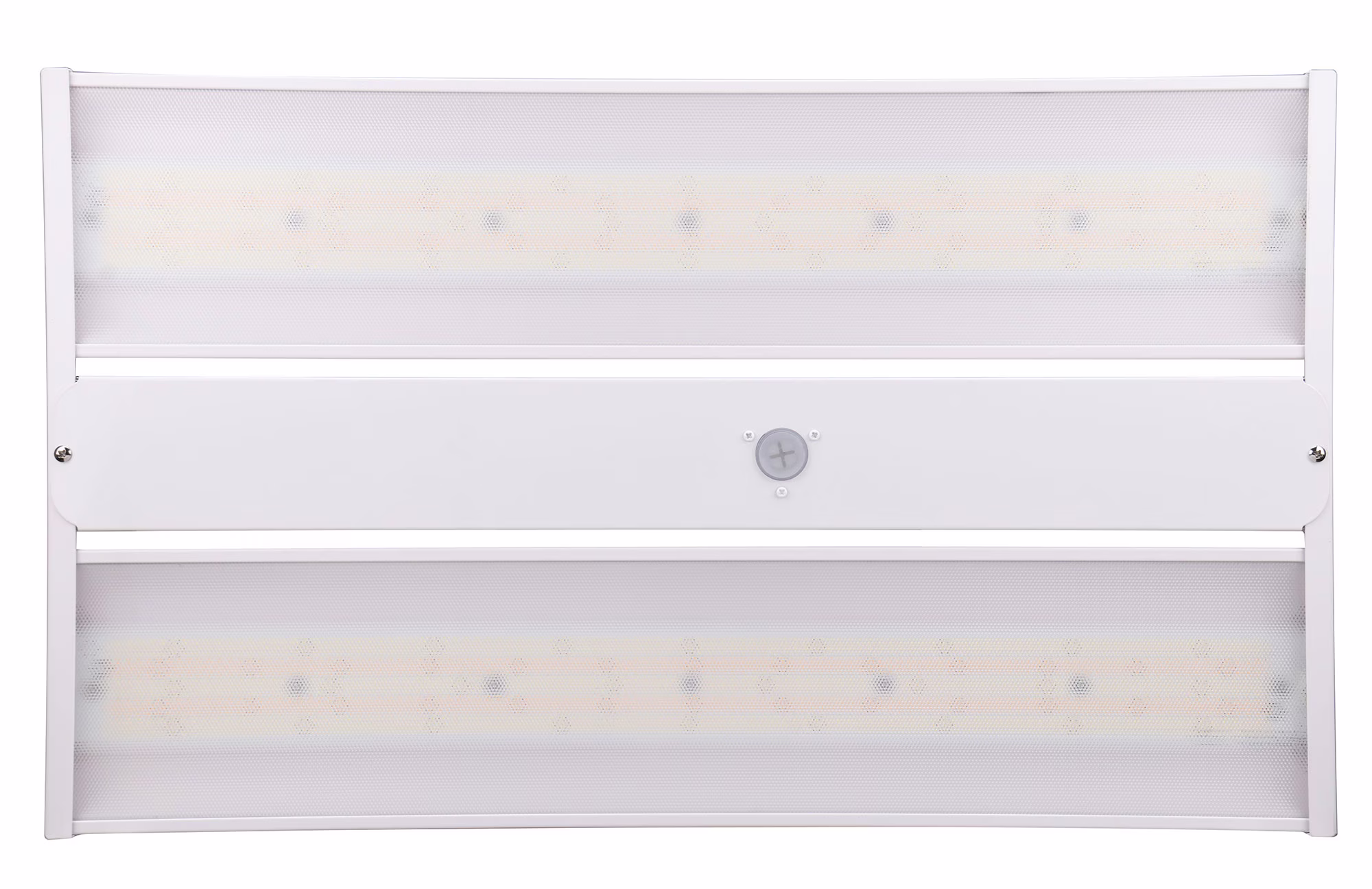

• High-performance LED Linear Highbay with field-selectable wattage and color temperature for maximum flexibility
• Wattage selectable: 255W / 275W / 300W (field switchable)
• Color temperature selectable: 4000K / 5000K (2 CCT options)
• Maximum lumen output: 42,000 LM (at 300W) – highest in the J-LHB09 series
• Superior performance: Up to 150 lm/w efficacy for optimal energy efficiency
• CRI > 80 for excellent color rendering and true-color visibility
• Wide beam angle: 90° for comprehensive light distribution and coverage
• Input voltage: AC 120-277V universal compatibility for any facility
• 0-10V dimmable output (constant current lever adjustable)
• Die-cast aluminum housing featuring rock-solid quality and long-term durability
• Super compact design saves labor cost and improves installation efficiency
• Non-yellow matte lens for superior optical performance and light quality
• Flexible installation options: Steel wire rope (standard), Surface mount (optional), Conduit pendant (optional)
• Sensor base included with plug-and-play microwave/PIR sensor capability
• Optional emergency power supply for continuous lighting during power outages
• Extended operating temperature range: -30°C to 50°C (0°C to 50°C with emergency battery)
• Estimated 50,000-hour LED lifespan based on IES LM-80 and TM-21 calculations
• UL and DLC damp location listed certification for code compliance
• 5-year limited warranty
