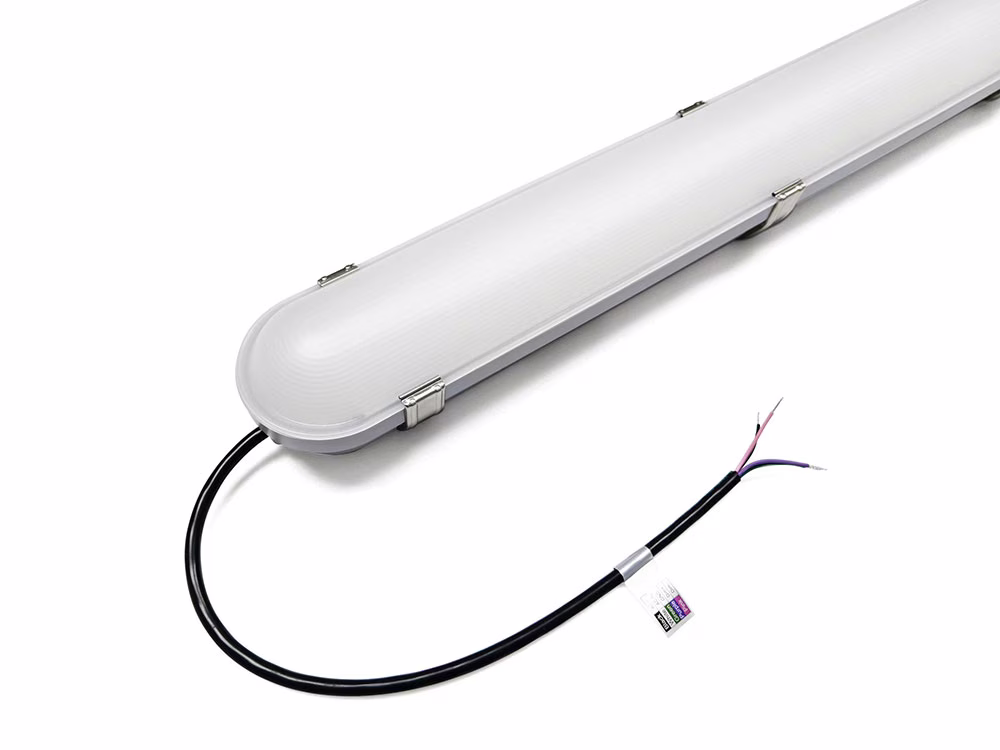

8FT LED Vapor Tight Light 10000 Lumen Field Selectable

Products

Size & Wattage

CCT

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

Whole PC material body with excellent stress and UV resistance
Waterproof, dust-proof and anti-corrosion construction
IP 65 waterproof grade for wet location applications
Wattage selectable: 40W / 50W / 60W / 70W / 80W (field switchable)
Color temperature selectable: 3500K / 4000K / 5000K / 5700K / 6500K (5 CCT options)
High lumen efficient: 125 lm/w on average
CRI >80 for excellent color rendering
Input voltage: 120-277V AC
0-10V dimming compatible
Operating temperature range: -20°C to 45°C
Hanging and ceiling installation options
Optional motion sensor for occupancy detection
Optional emergency backup function
Complies with CAN/CSA-C22.2 No.250.0 standard
ETL listed and certified
5-year limited warranty

Brand	One Source Light
Model	TP8F-S80PDN
Product Type	LED Vapor Tight Light
Size	8FT (2400mm / 94 inches)
Wattage (Field Selectable)	40W / 50W / 60W / 70W / 80W
Color Temperature (Field Selectable)	3500K / 4000K / 5000K / 5700K / 6500K (5 Options)
Maximum Wattage	80W
Maximum Lumens	10,000 LM (80W @ 125 lm/w)
Lumen Output at Each Setting	40W: 5,000 LM \| 50W: 6,250 LM \| 60W: 7,500 LM \| 70W: 8,750 LM \| 80W: 10,000 LM
Efficacy (LM/W)	125 LM/W
CRI (Color Rendering Index)	>80
Input Voltage	120-277V AC
IP Rating	IP 65 (Waterproof, Dust-proof)
Dimmable	Yes (0-10V Control)
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Housing Material	Polycarbonate (PC) Body with Metal Heat Sink
Installation Options	Hanging Mount / Ceiling Surface Mount
Length	2400mm (94 inches)
Width	95mm (3.74 inches)
Height	84mm (3.15 inches)
Weight (Net)	23.4 lbs (8FT)
Weight (Gross)	28.59 lbs (8FT)
Packing Configuration	6 units per outer carton \| Carton Dimensions: 94.88″ × 12.64″ × 8.46″
Lighting Technology	LED
Certifications	ETL Listed
Standards Compliance	CAN/CSA-C22.2 No.250.0
Warranty	5-Year Limited
Included Accessories	Metal Clips (4pcs), Connection Termina (Waterproof IP65), Metal Hooks (4pcs), Screws Bag
Optional Accessories	Motion Sensor \| Emergency Backup Function
Wet Location Use	Suitable for Wet Locations (IP65 Rated)
Application Areas	Offices, Retail, Supermarket, Schools, Subway & Train Stations, Warehouse, Healthcare, Residential, Hospitality
