High Lumen LED UFO High Bay | Up to 47,000 Lumens

Products

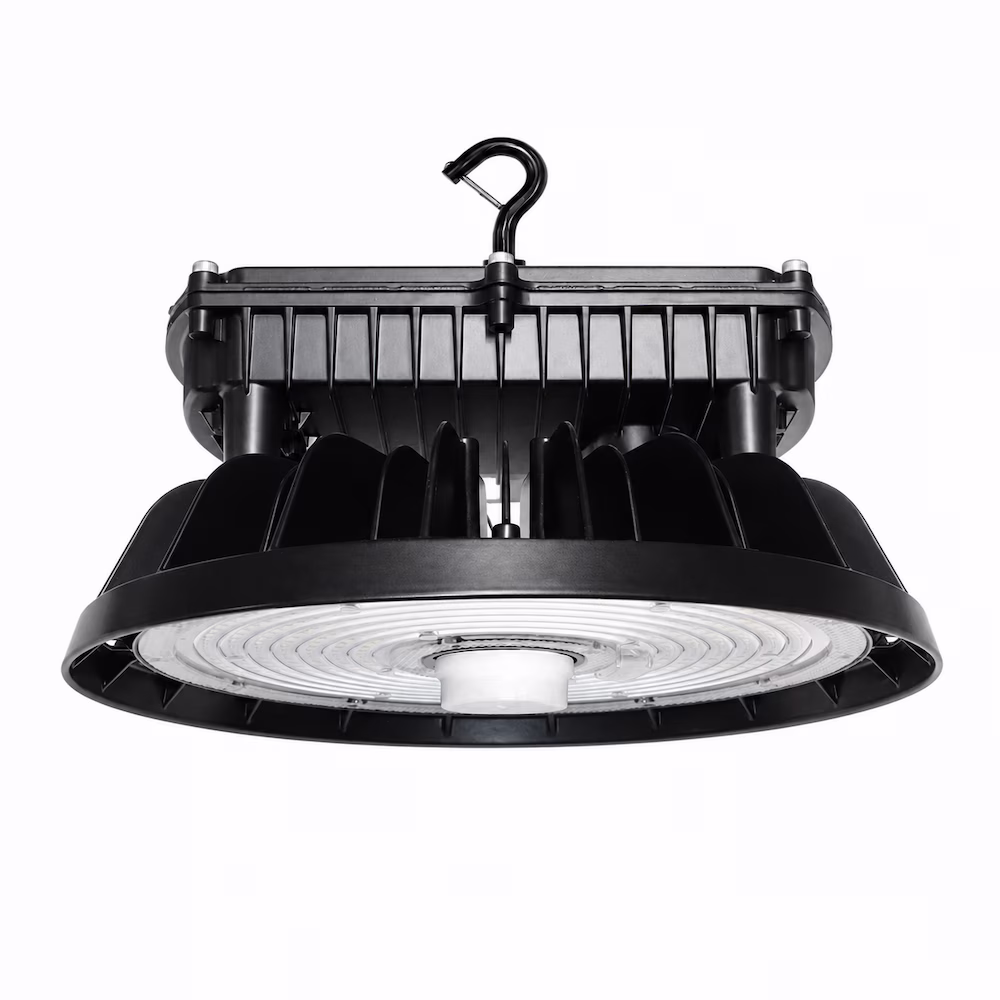

LED UFO Highbay — HBF Series (Large size, high-lumen output)
Widely used in warehousing, industrial facilities, sports facilities, gymnasiums and similar high-bay applications
Field-Selectable Wattage : 240W / 270W / 310W
Field-Selectable CCT : 4000K / 5000K
Lumen output : up to 46,500 lm @ 150 lm/W (General Light Efficiency)
Standard efficiency : 150 lm/W
CRI > 80 (Ra ≥ 80)
Input Voltage : AC120-277V(50/60Hz)
0-10V dimmable driver (dims from 100% down to off)
Flicker-free
Surge Protection : L/N-PE 6kV, L-N 6kV
Lens : Sealed optic
Housing : Die-casting aluminum housing and heatsink for added protection
Finish : Black (standard)
Operating Temperature : -40°C to 45°C — cULus listed for wet locations
Mounting : G Hook Mount (standard); O Hook, U Bracket, and Pendant Mount Adapter optional; Safety Hanging kit optional
Includes 3-pin snesor base for easy add-on sensors (Bluetooth or controller) to adjust brightness and hold time for additional energy savings
Optional Sensors : Daylight Sensor (SD), Microwave Motion Sensor (SW), Networking Wireless Microwave Motion Sensor (SWN), PIR Sensor (SP), Networking Wireless PIR Sensor (SPN)
Optional Accessories : Frosted Polycarbonate Dome Lens Reflector, Dust Cover, Safety Rope, Emergency Battery Backup (40W for 310W model at 120-277/347V)
cULus Listed for wet locations and DesignLights Consortium (DLC) Qualified
5-year limited warranty

MPN (Part No.)	X-HBF(310/270/240)W-(40/50)K80AA-XXXY
Lighting Technology	LED
Fixture Type	LED UFO Highbay — HBF Series (Large)
CRI	> 80 (Ra ≥ 80)
Beam Angle	60° / 90° / 120° (Lens optional)
Color	Color Selectable (4000K / 5000K)
Color Temperature	4000K / 5000K Field Selectable
Wattage	240W / 270W / 310W Field Selectable
LPW	150 lm/W (Standard “C”)
Lumens	Up to 46,500 lm @ 150 lm/W (selectable variant)
Voltage	AC120-277V
Frequency	50/60Hz
Dimming	0-10V Dimmable (100% to Off)
Flicker	Flicker-free
Surge Protection	310W : 120-277V L/N-PE 6kV, L-N 6kV
Ratings and Certifications	cULus Listed (Wet Location), DLC Premium Listed
Finish	Black (Standard)
Mounting	G Hook Mount (Standard); O Hook, U Bracket, Pendant Mount Adapter optional
Optional Sensors	SD (Daylight), SW (Microwave Motion), SWN (Networking Wireless Microwave), SP (PIR), SPN (Networking Wireless PIR)
Operating Temp	-40°C to 45°C
Housing	Die-cast Aluminum (housing & heatsink)
Diameter	13.8 in. (350.0 mm)
Overall Height (with Hook)	10.77 in. (273.0 mm)
Body Height	10.0 in. (255.0 mm)
Reflector Diameter (Optional)	16.22 in. (412 mm)
Emergency Battery Backup (Optional)	40W backup for 310W model at 120-277/347V
Warranty	5-Year Limited
