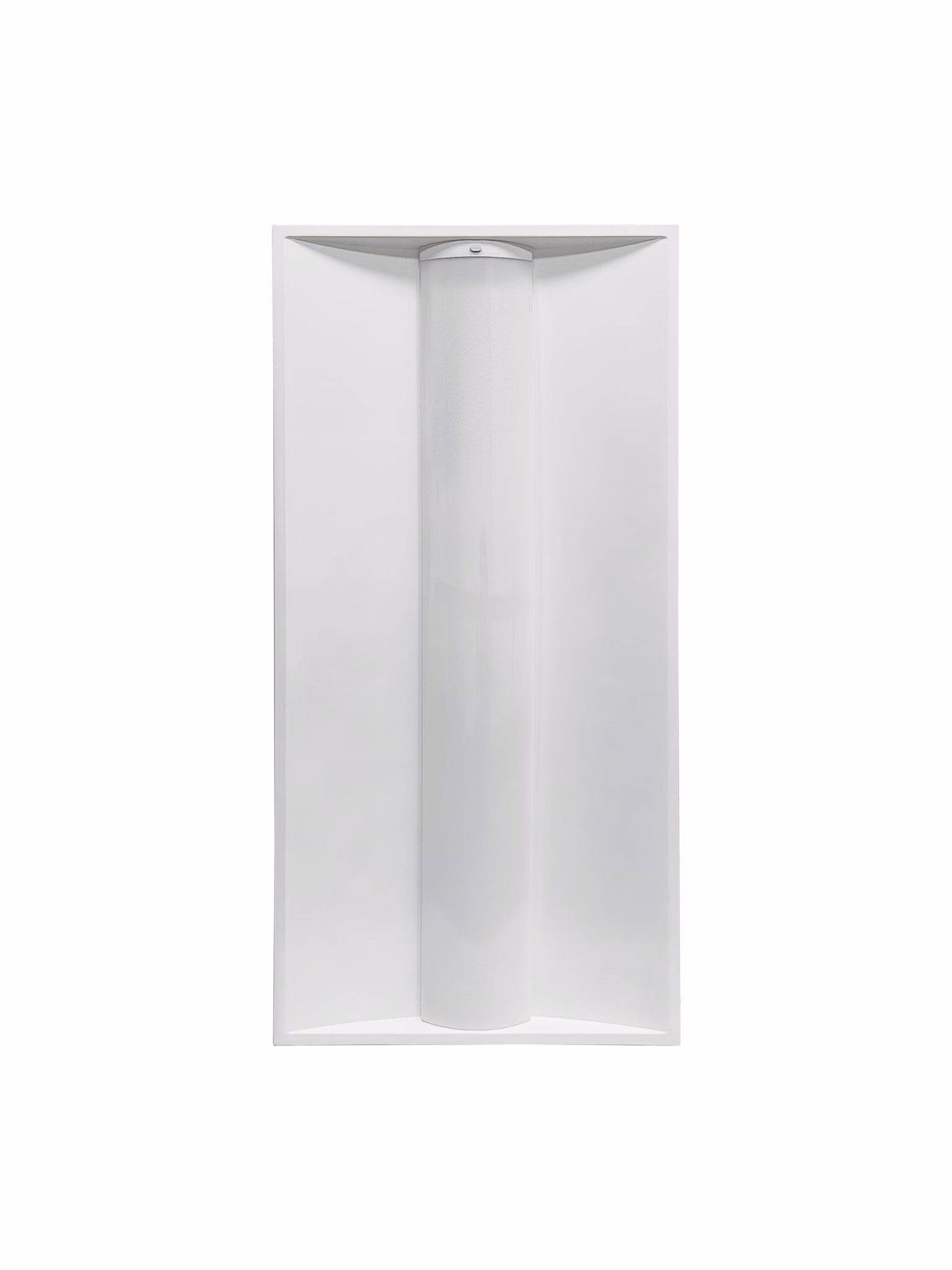

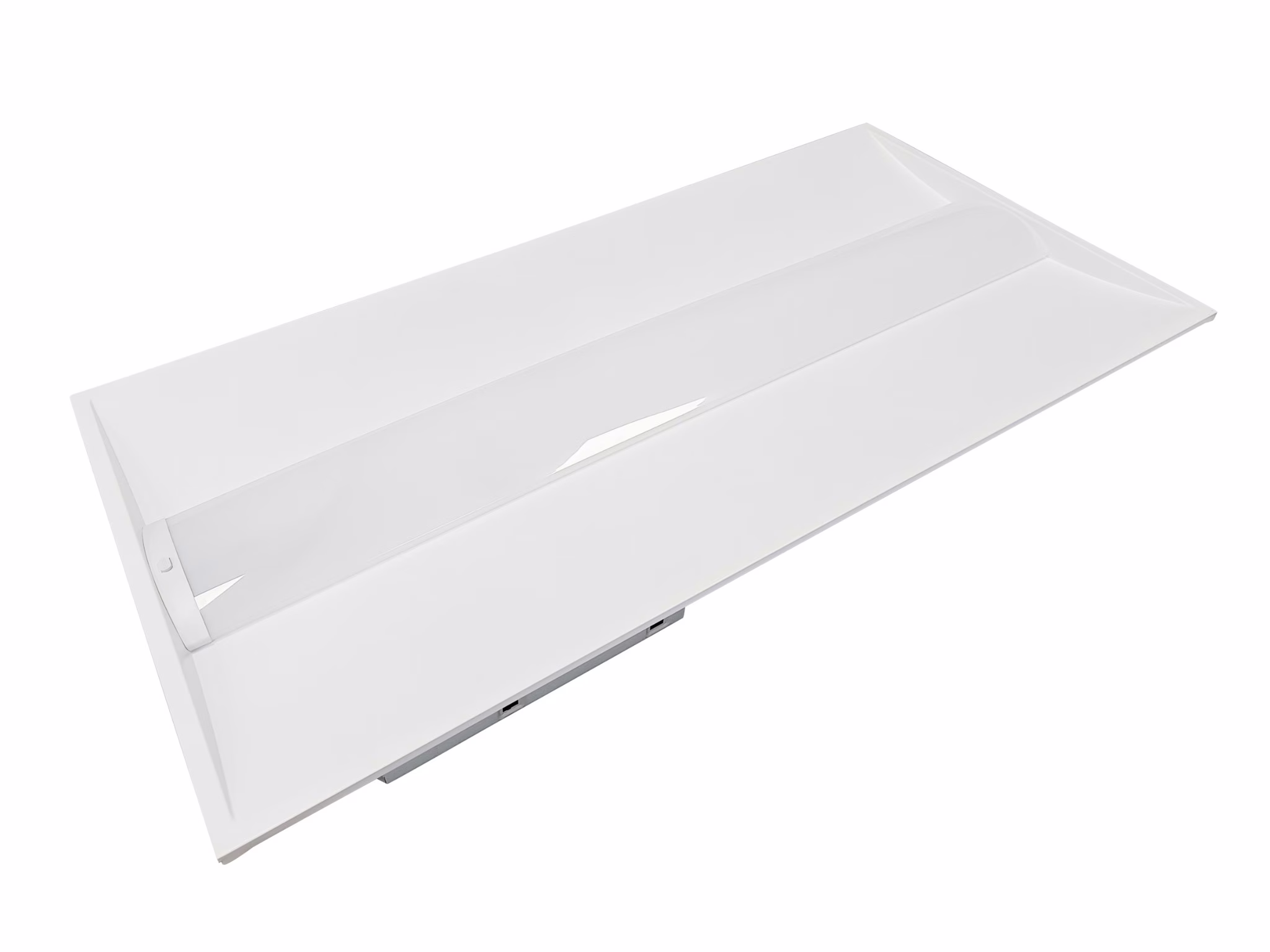

2X4 LED Center Lens Recessed Troffer Field Selectable up to 9360 Lumen

RESOURCES & DOWNLOADS

istockphoto 1263032734 612x612 1

Spec sheet downloadInstallation sheet download

(0 Reviews)

$74.50

  • *Size

    *CCT

    Reset options

    Sensor

    Emergency Backup

Bulk deal
QuantityDiscountDiscounted price
6 - 107%$69.29
11 - 2012%$65.56
21 +15%$63.33

Volume pricing for contractors. Discounts apply automatically at checkout.

Request a Large Order Quote

Details

20250102160727 0 DLC Premium logo 1dimmable optimizedwattage cct optimized20250102160727 0 DLC Premium logo 1

Description

  • 2×4 LED recessed troffer with field-selectable wattage and color temperature options
  • Wattage selectable: 30W / 40W / 50W / 60W / 72W (field switchable)
  • Color temperature selectable: 3500K / 4000K / 5000K / 5700K / 6500K (5 CCT options)
  • Maximum lumen output: 9,360 LM (at 72W)
  • High lumen efficient: 130 lm/w
  • CRI ≥ 80 for excellent color rendering
  • Universal voltage: 120-277V AC
  • 0-10V dimming comes standard
  • Built with precision formed optical system to reduce glare and improve light distribution
  • One-piece ribbed unitized housing with interlocking corners preventing damage
  • All sides and corners are turned in and hemmed for safe handling and installation

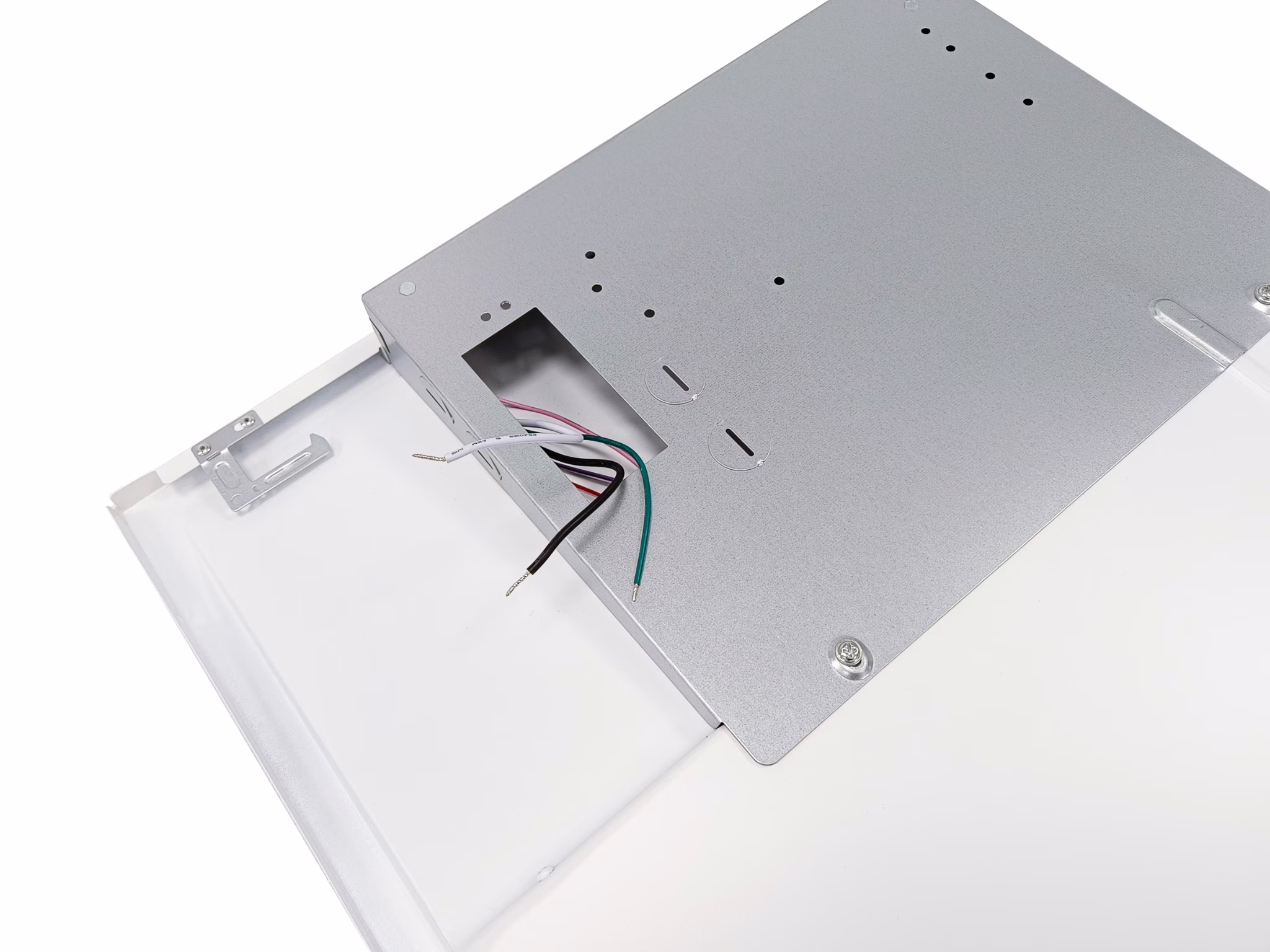

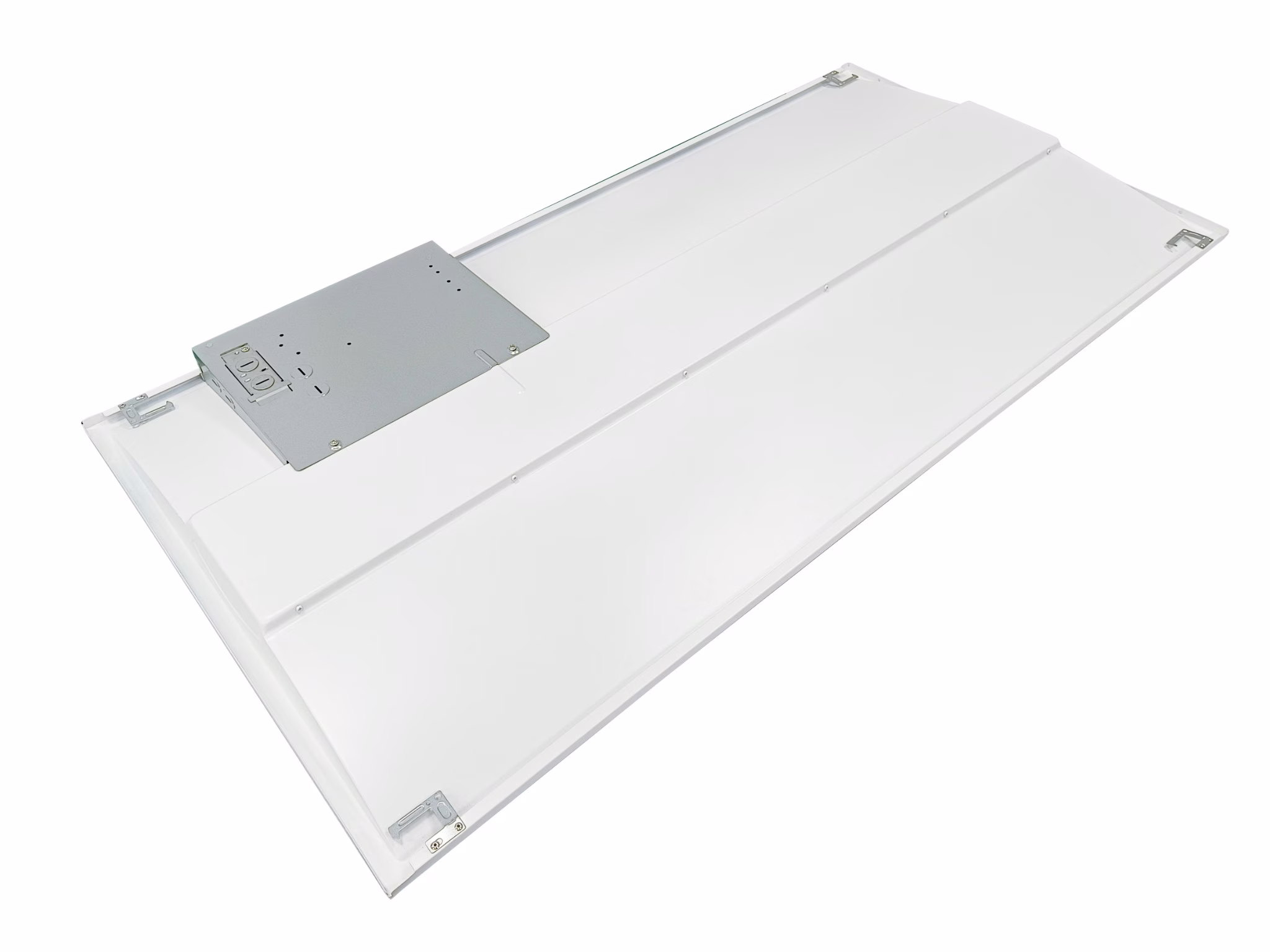

  • Driver is fixed on back of panel to prevent mis-handling during shipment

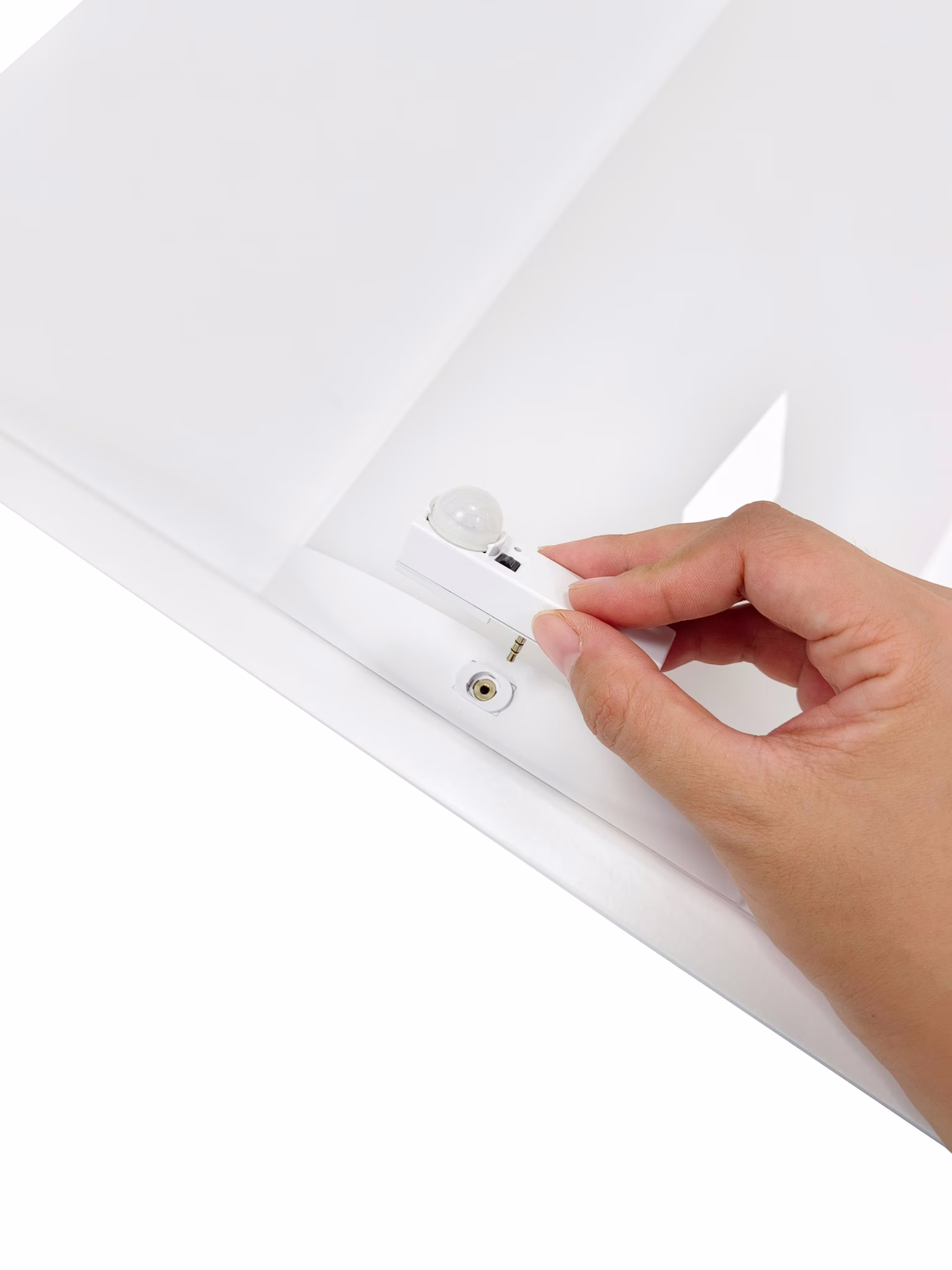

  • Sensor base pre-embedded in profile frame for quick and easy installation
  • Optional PIR and Bluetooth sensor controls available
  • Over 50% energy savings compared to traditional fluorescent fixtures
  • Low heat production requires less maintenance and operation cost
  • ETL, DLC 5.1 Premium, FCC, RoHS certified
  • 50,000 hours rated lifetime
  • 5-year limited warranty

Product Attributes

BrandOne Source Light
ModelJ-T4-S72-3565
Product TypeLED Center Lens Recessed Troffer
Size2×4 FT
Wattage (Field Selectable)30W / 40W / 50W / 60W / 72W
Color Temperature (CCT)3500K / 4000K / 5000K / 5700K / 6500K (5 Options – Field Selectable)
Maximum Wattage72W
Maximum Lumens9,360 LM (72W @ 130 lm/w)
Lumen Output at Each Setting30W: 3,900 LM | 40W: 5,200 LM | 50W: 6,500 LM | 60W: 7,800 LM | 72W: 9,360 LM
Efficacy (LM/W)130 LM/W
CRI (Color Rendering Index)≥ 80
Input Voltage120-277V AC
Total Harmonic Distortion (THD)≤ 20%
DimmableYes (0-10V DC Standard)
Sensor BaseYES – Pre-embedded in Profile Frame
Optical SystemPrecision Formed Center Lens (Reduces Glare)
Housing MaterialOne-Piece Ribbed Unitized Housing
Housing FeaturesInterlocking Corners | All Sides & Corners Turned In & Hemmed | Prevents Damage
DriverUniversal Voltage (120V-277V) | Fixed on Back to Prevent Mis-Handling
Length47.72 inches (1212mm)
Width23.74 inches (603mm)
Height2.12 inches (53.9mm)
InstallationRecessed Ceiling Mount
Optional Sensor TypesPIR Sensor (3.5mm Audio Jack) | Bluetooth PIR Sensor (3.5mm Audio Jack)
Optional AccessoriesPIR Motion Sensor | Bluetooth Motion Sensor | Emergency Backup (8W, 90 min)
Energy SavingsOver 50% Energy Savings vs Traditional Fluorescent Fixtures
Operating FeaturesLow Heat Production | Reduces Maintenance & Operation Cost
CertificationsETL Listed | DLC 5.1 Premium | FCC | RoHS
Lifetime50,000 Hours Rated
Warranty5-Year Limited
Application AreasCommercial Offices, Retail Spaces, Educational Facilities, Healthcare, Hospitality, General Task Lighting
