2x2 LED Frame Light | Field Selectable up to 5000 Lumens

Products

Size

CCT

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

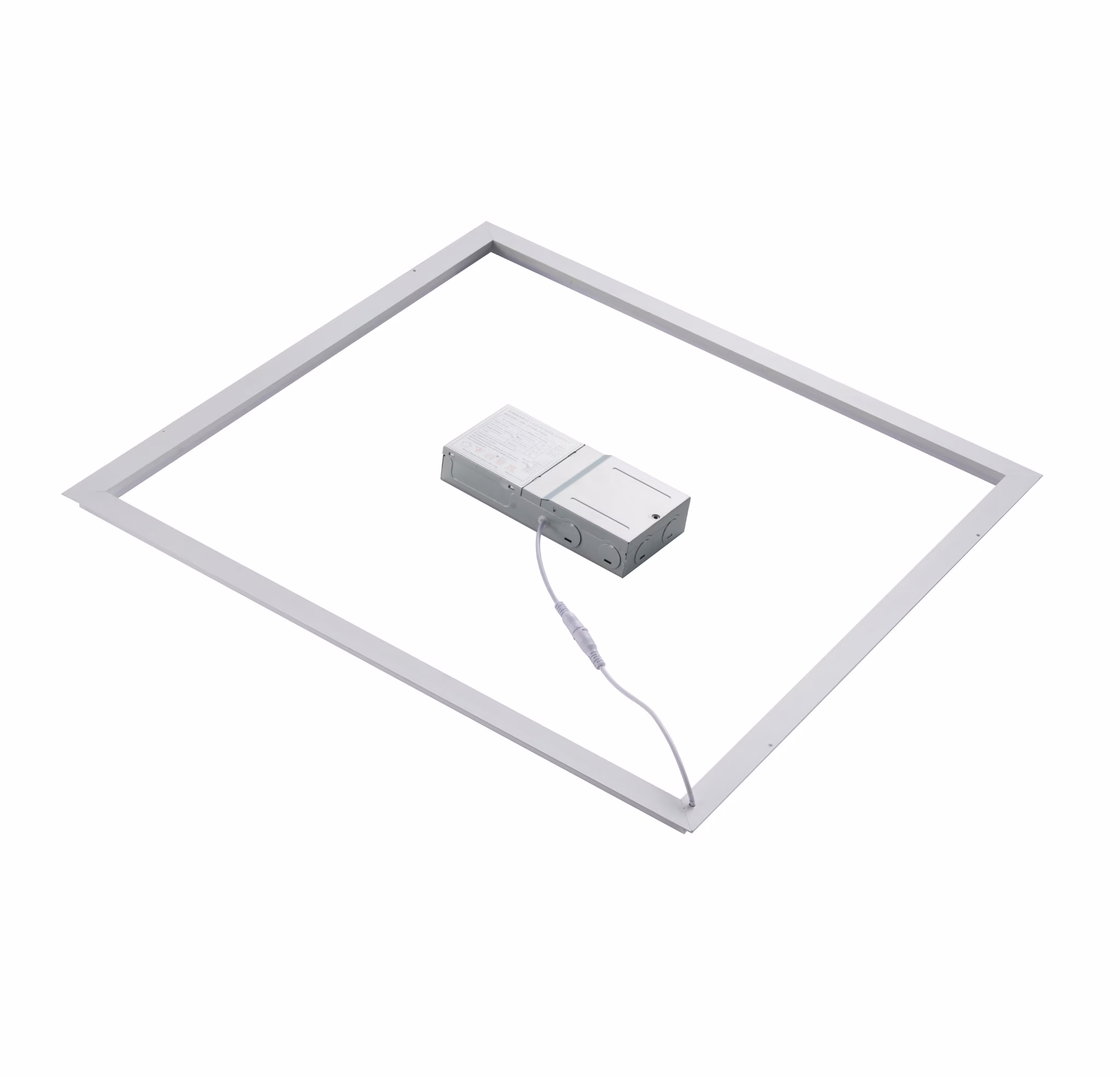

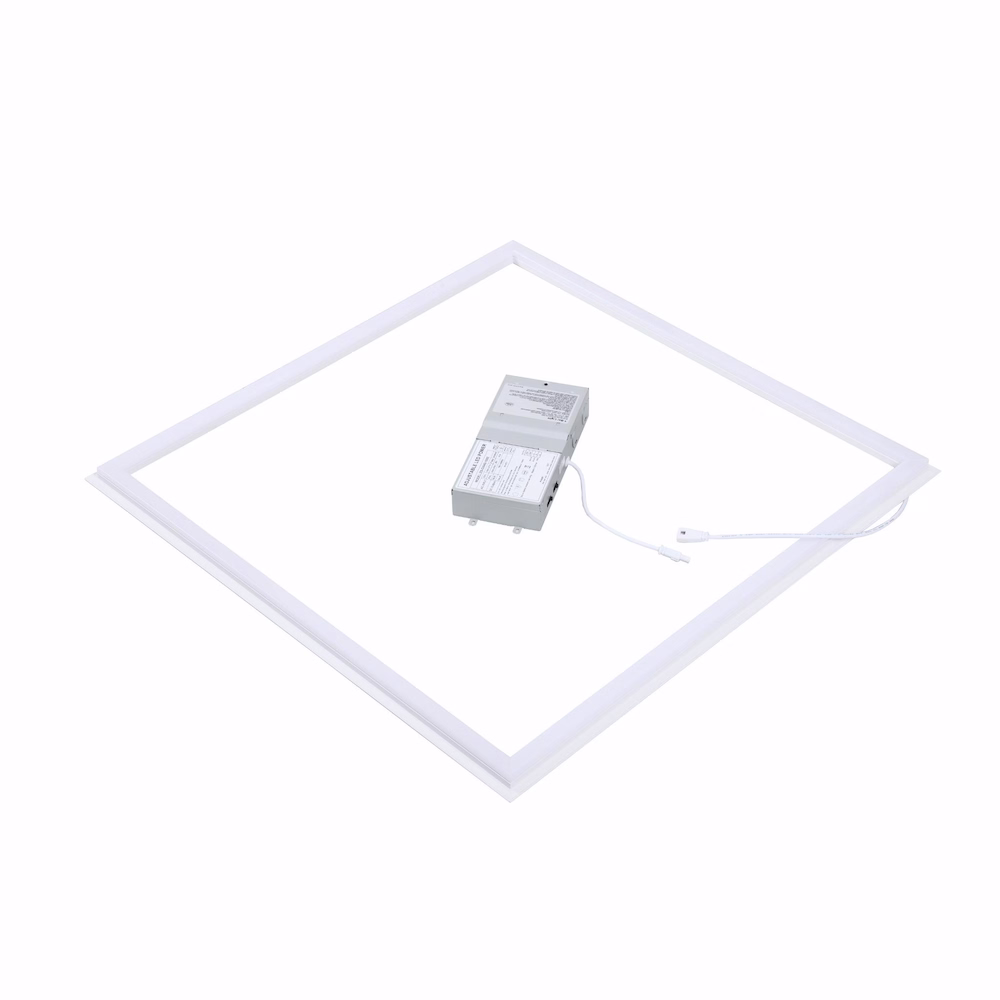

2×2 LED Frame Light with sleek, modern design and field-selectable wattage and color temperature
Wattage selectable: 20W / 30W / 40W (field switchable)
Color temperature selectable: 3000K / 3500K / 4000K / 5000K / 6500K (5 CCT options)
Maximum lumen output: 5,000 LM (at 40W)
High lumen efficient: Up to 125 lm/w
CRI > 80 for excellent color rendering
Cutting-edge optical technology matches lighting specs of traditional LED panels
Input voltage: 120-277V AC
0-10V dimming comes standard
Wattage and CCT selectable reduce your stock SKU
Wide beam angle: 120° for excellent light distribution
IP Rating: IP40 for indoor use
Suitable for recessed mounting with T-bar ceiling or suspended installation
Operating temperature range: -20°C to 45°C
ETL listed and suitable for damp locations
DLC Premium certified for energy efficiency
5-year limited warranty

Brand	One Source Light
Model	F2-K40-3065
Product Type	LED Frame Light Fixture
Size	2×2 Feet (23.75″ × 22.96″)
Wattage (Field Selectable)	20W / 30W / 40W Adjustable
Color Temperature (CCT)	3000K / 3500K / 4000K / 5000K / 6500K (5 Options – Field Selectable)
Maximum Wattage	40W
Maximum Lumens	5,000 LM (40W)
Lumen Output at Each Setting	20W: 2,500 LM \| 30W: 3,750 LM \| 40W: 5,000 LM
Efficacy (LM/W)	Up to 125 LM/W
CRI (Color Rendering Index)	> 80
Input Voltage	120-277V AC
Operating Frequency	50/60Hz
Power Factor	> 0.95
Total Harmonic Distortion (THD)	< 10%
Dimmable	Yes (0-10V Dimming Standard)
Beam Angle	120°
IP Rating	IP40
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Dimensions	23.75″ L × 22.96″ W × 0.6″ H
Housing Material	Aluminum Frame
Diffuser	PC Cover
Installation Options	Recessed Mounting with T-Bar Ceiling \| Suspended Installation
Packing Configuration	6 units per carton \| Carton Dimensions: 27.9″L × 25.5″W × 9″H \| Gross Weight: 15.8 lbs
Features	Sleek Modern Design \| Cutting-Edge Optical Technology \| Field-Selectable Wattage & CCT \| 5-in-1 Color Temperature \| Hassle-Free Setup
Lighting Technology	LED Chip with LED Driver
Certifications	ETL Listed \| DLC Premium \| Suitable for Damp Locations
Warranty	5-Year Limited
Application Areas	Offices, Retail Spaces, Schools, Restaurants, Residential
