LED Vapor Tight High Bay | Up to 24,750 Lumens

Products

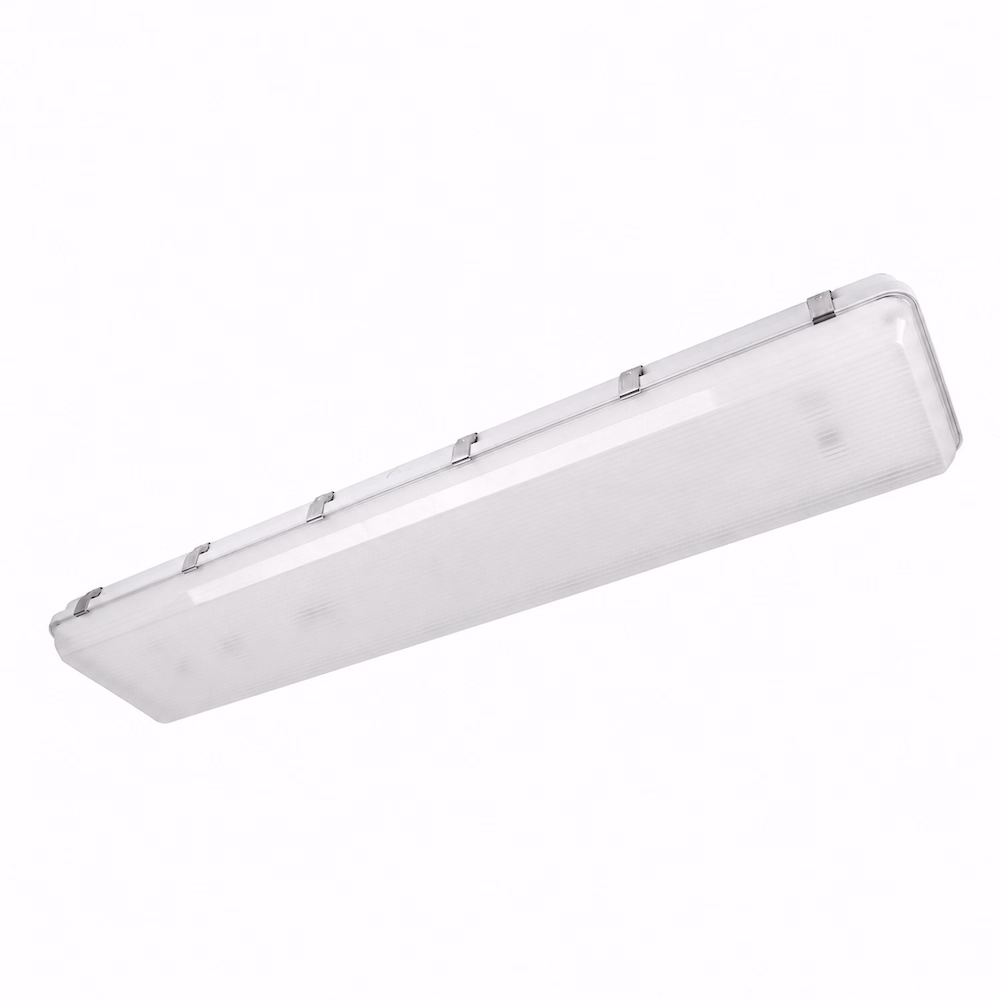

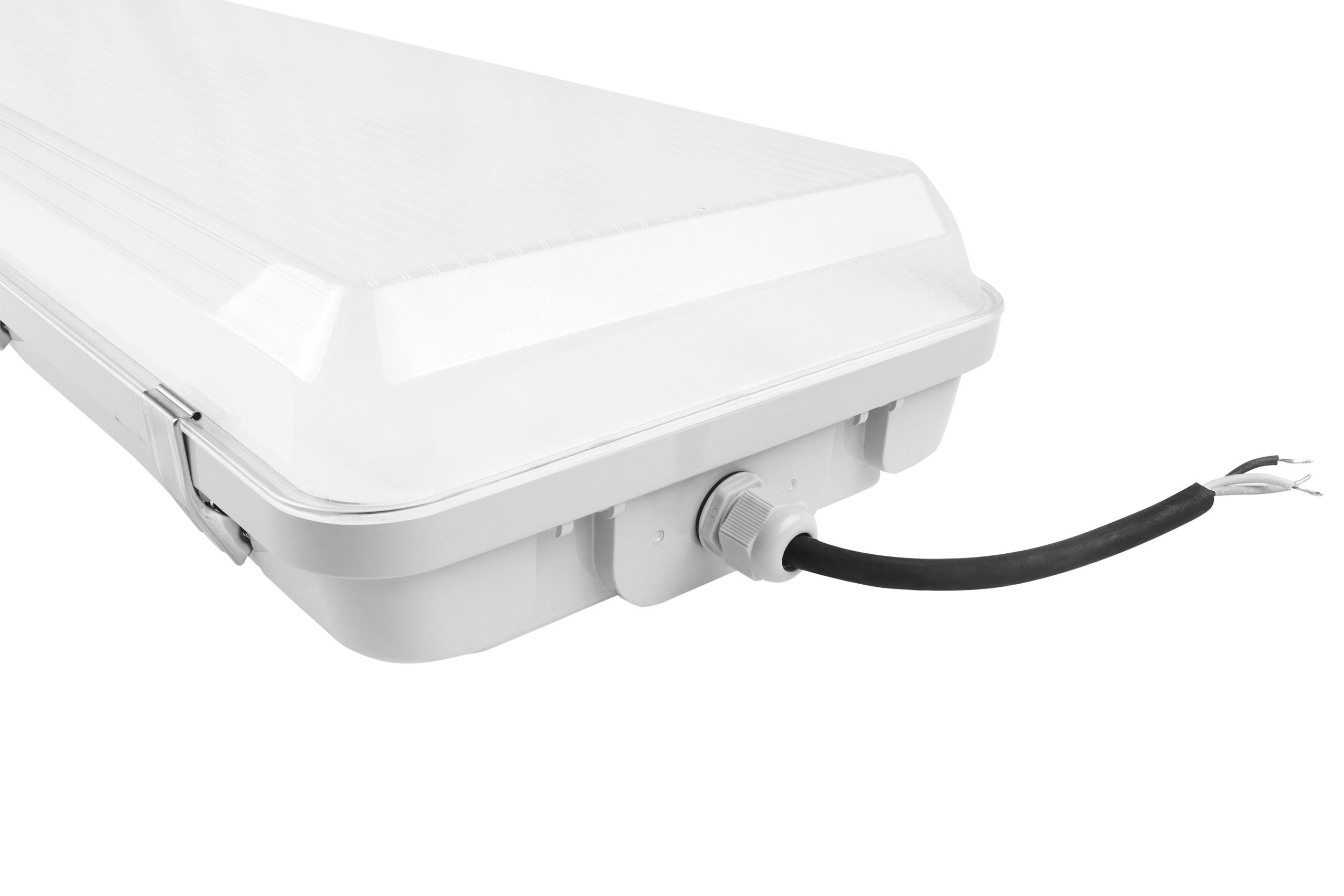

LED Vapor Tight Highbay — VTW Series, slim and modern design
Best-in-class performance at up to 150 lm/W output
Lumen output : 24,750 lm @ 5000K (165W model)
Wattage : 165W / 135W / 105W Field Selectable
CCT options : 3500K / 4000K / 5000K Field Selectable
NSF Certified for food processing and food safety environments
cULus Listed for wet locations
Smooth dust-proof surface with watertight seal — withstands high-pressure washdowns
Rugged and durable construction with polycarbonate housing
Housing color : Pearl gray
Sealed optic with 120° beam angle
CRI > 80
Input Voltage : AC120-277V
Frequency : 50/60Hz
0-10V Dimmable (dims from 100% down to off)
Operating Temperature : -40°C to 45°C
Mounting : Standard surface mounting kit; optional pendant/suspended mounting kit
Optional accessories : Microwave Motion Sensor, 15W Emergency Battery Backup, Suspended Mounting Kit
Applications : Poultry processing, food & beverage processing, commercial kitchens, manufacturing facilities
5-year limited warranty

MPN (Part No.)	X-VTW(165/135/105)W -(35/40/50)KUV
Lighting Technology	LED
Fixture Type	LED Vapor Tight Light
CRI	> 80
Beam Angle	120° (Sealed Optic)
Color Temperature	3500K / 4000K / 5000K Field Selectable
Wattage	165W / 135W / 105W Field Selectable
LPW	Up to 150
Lumens	24,750 lm @ 5000K
Voltage	AC120-277V
Frequency	50/60Hz
Current @ 120V	1.38 A
Current @ 208V	0.79 A
Current @ 240V	0.69 A
Current @ 277V	0.60 A
Dimming	0-10V Dimmable (100% to Off)
Ratings and Certifications	cULus Listed (Wet Location), NSF Certified (Food Processing)
Finish	Pearl Gray
Mounting	Surface Mount (Standard); Pendant/Suspended Mount (Optional)
Optional Accessories	Microwave Motion Sensor, 15W Emergency Battery Backup, Suspended Mounting Kit
Operating Temp	-40°C to 45°C
Housing	Polycarbonate (Rugged & Durable Construction)
Length	47.2 in. (1200 mm)
Mounting Hole Spacing	31.5 in. (800 mm)
Width	10.4 in. (265 mm)
Height	4.1 in. (105 mm)
Warranty	5-Year Limited
