Description

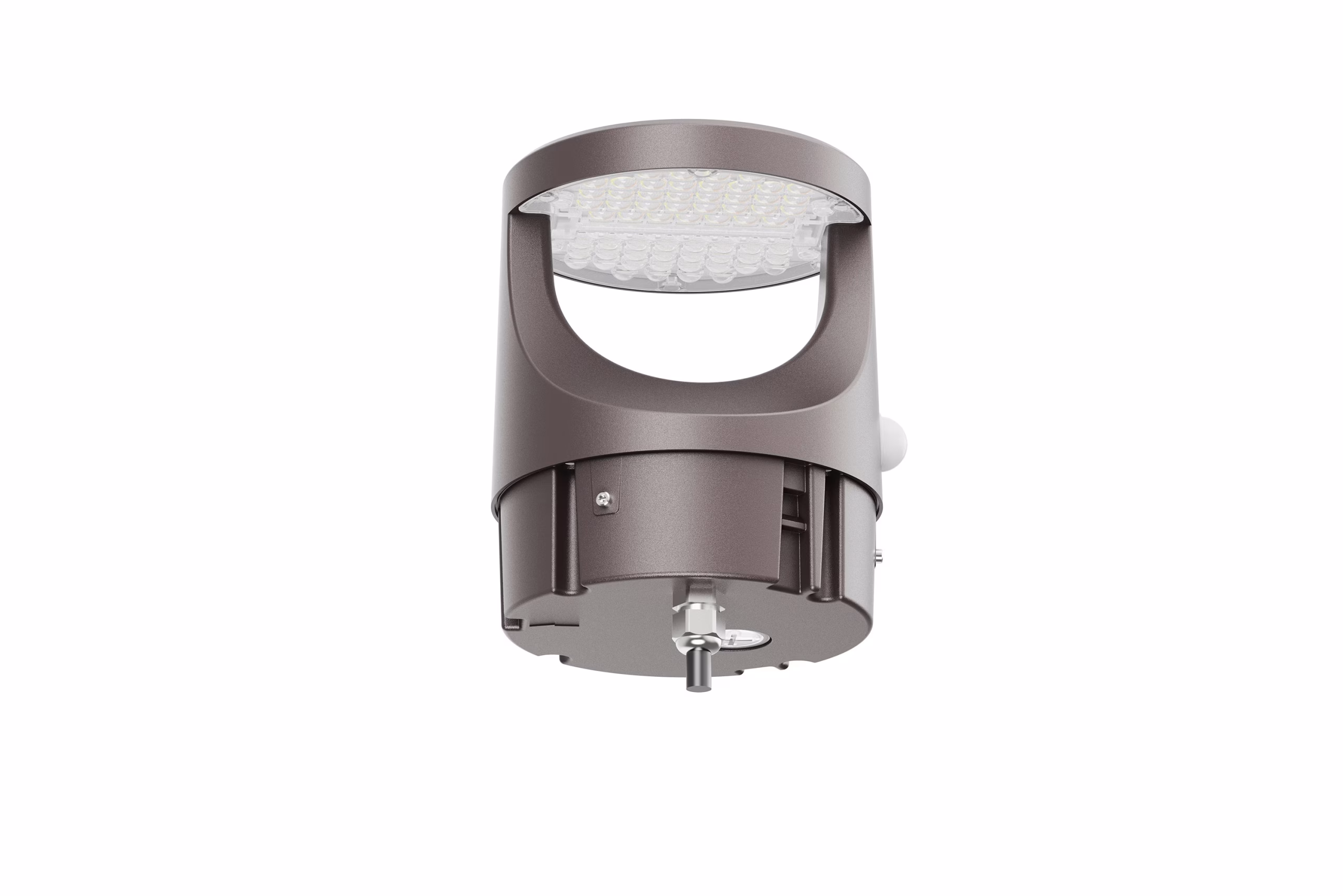

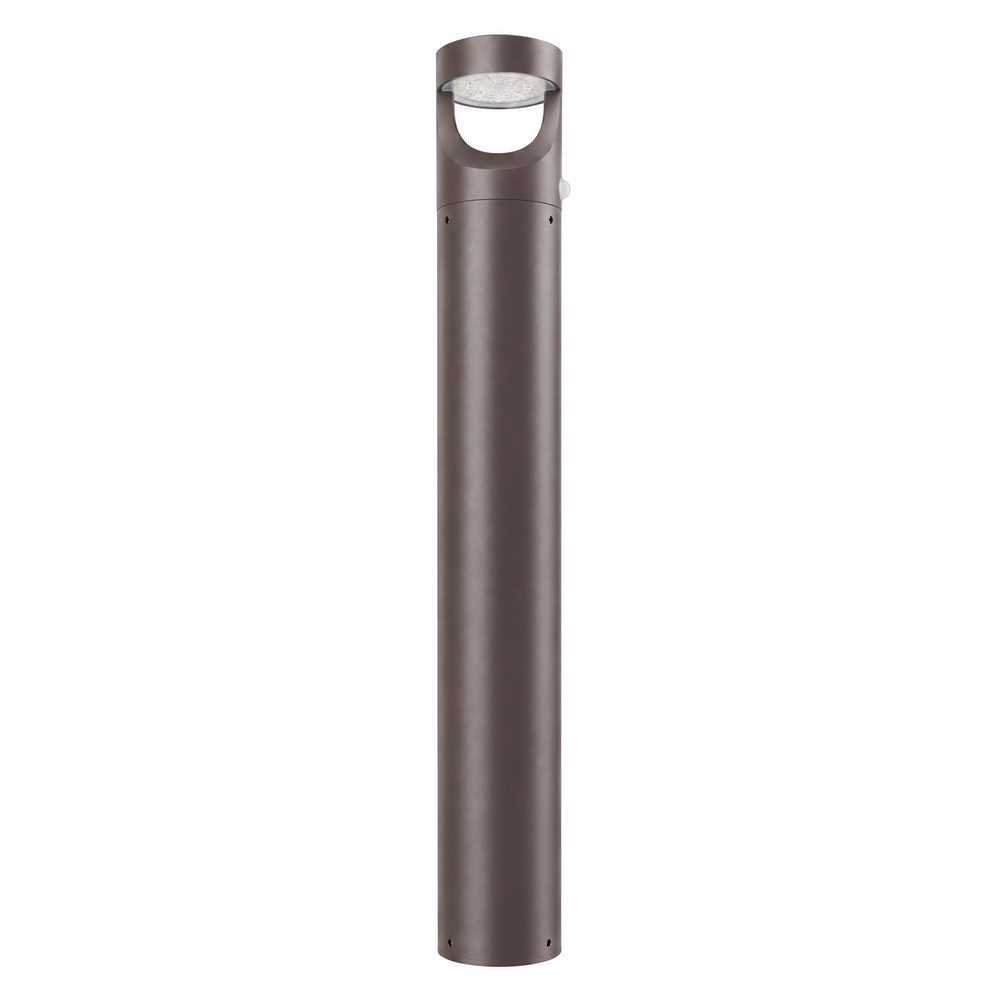

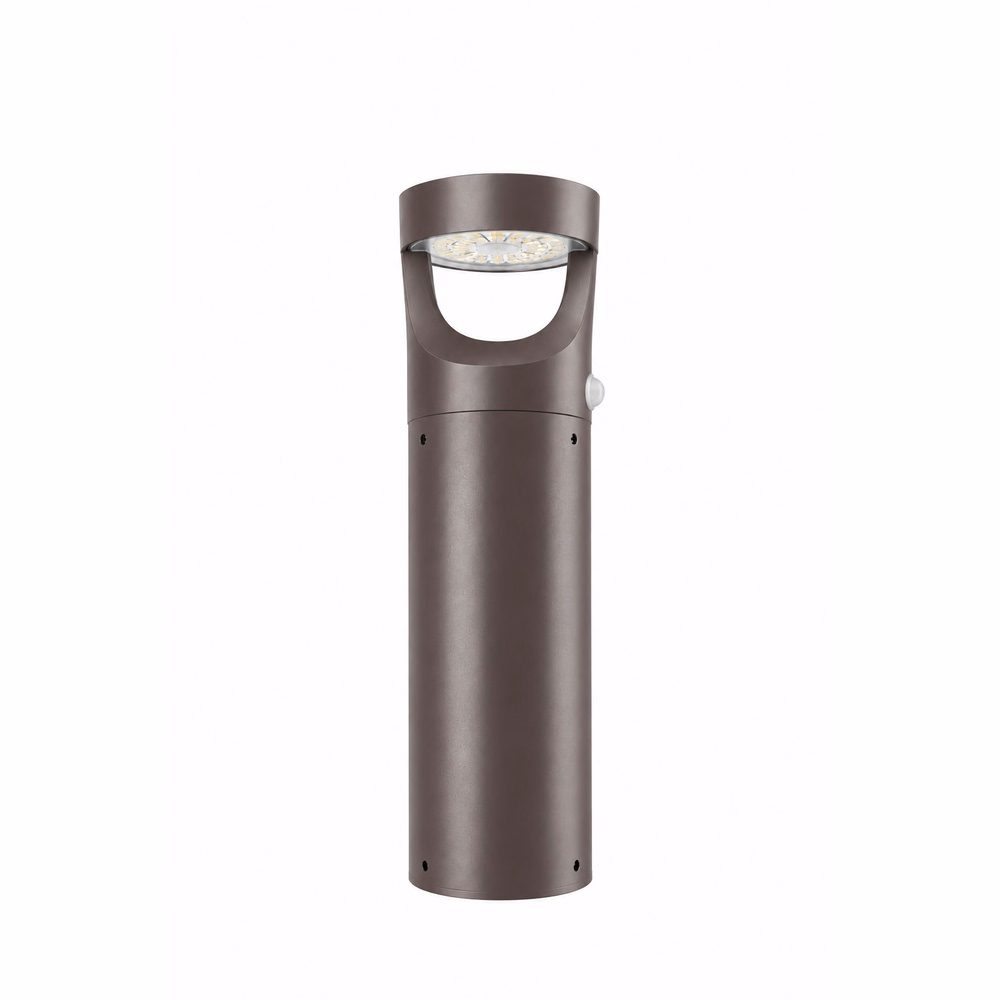

The SU-BRF is an LED bollard light with a low-profile, flat-top head built for garden, walkway, and entrance lighting. A 3-in-1 switch lets you select color temperature, output wattage, and photocell on/off right on the fixture, and the built-in dusk-to-dawn (D2D) photocell automatically turns the light off at sunrise and back on at sunset. The head mounts onto a shared cylindrical bollard housing available in either a 24″ or 42″ overall height, so the same interchangeable head works across different project heights and helps reduce the number of SKUs you need to stock. The die-cast ADC12 aluminum housing provides excellent heat dissipation and a durable, weatherproof build.

• Flat-top head, the most compact head style in the lineup (one of six interchangeable head styles in the SU-BR series)
• 3-in-1 switch: field-selectable CCT, field-selectable wattage, and photocell on/off, all from one control
• Field-selectable CCT: 3000K, 4000K, or 5000K
• Field-selectable wattage: 24W / 19W / 14W, up to 2800 lumens (±10%) at 24W/5000K, up to 120 lm/W
• Built-in D2D photocell: automatically turns off at sunrise or during the day, and turns on at sunset or night; factory default is Photocell ON
• Ships preset at the highest CCT and highest wattage from the factory
• ADC12 die-cast aluminum housing for excellent heat dissipation
• Polycarbonate lens
• Universal AC120-277V input
• 0-10V dimming
• Power factor ≥0.90; THD <20%
• IP65 waterproof rated; IK08 impact rated
• Type V beam distribution; CRI >70
• Anchor-bolt mounting
• Bronze or Black finish
• UL Certified; DLC Premium
• 5-year limited warranty

Applications

Low-level pathway and perimeter lighting for walkways, entrance ways, driveways, and other outdoor commercial or residential landscaping applications, where a low-profile, minimal flat-top head is preferred over a dome or decorative cap.

Product Attributes

Variations
