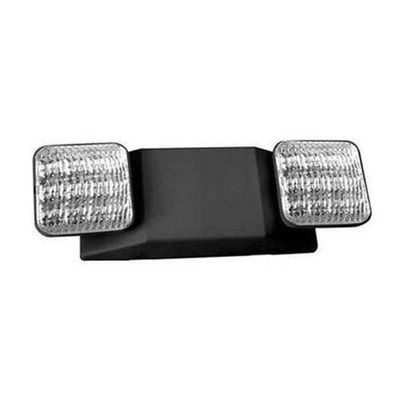

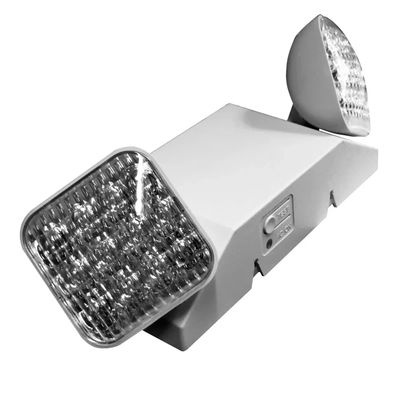

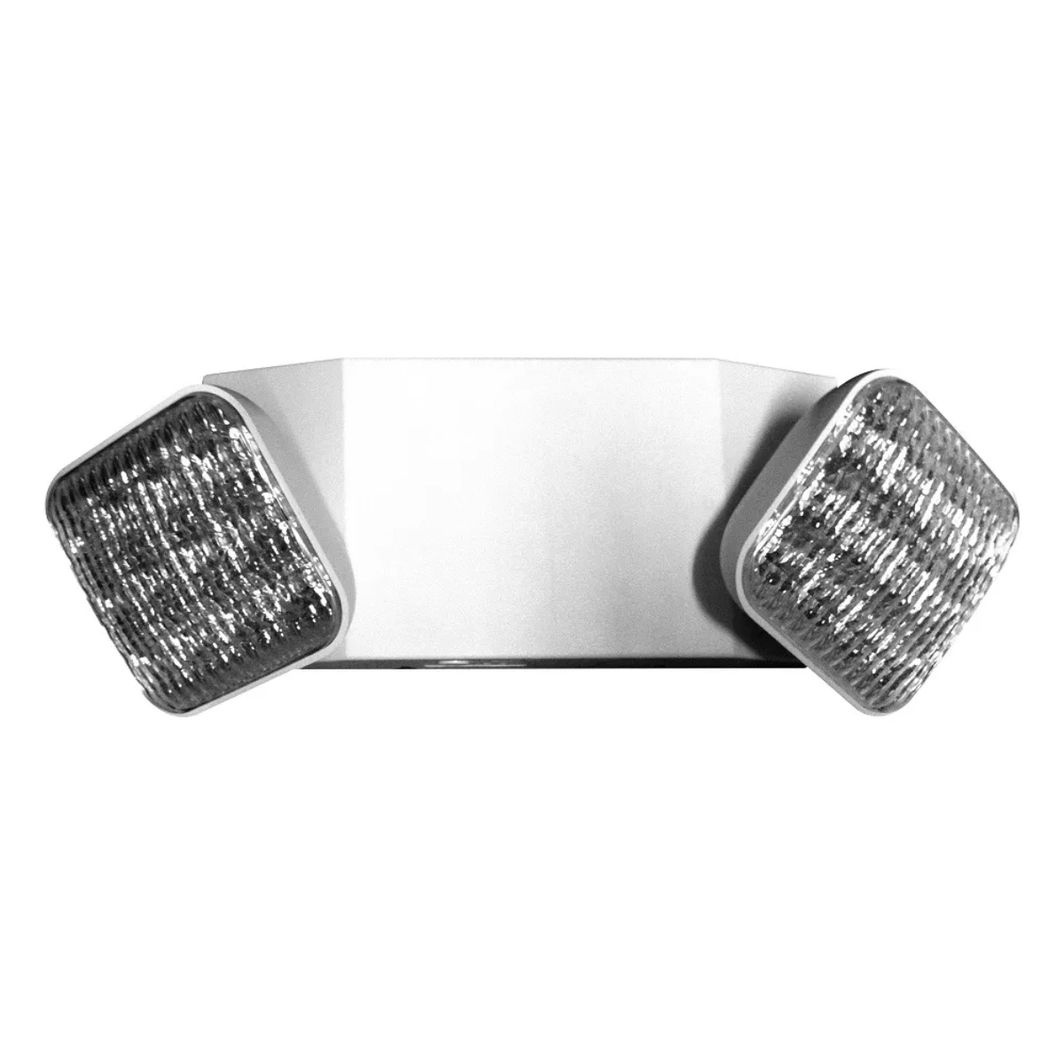

Long lasting, efficient, ultra bright white LED lamp heads.
1W (8 LEDs x 0.125) per head.
High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.
Adjustable LED lamp heads provides optimal center-to-center spacing. High-lumen option available for increased center-to-center spacing.
Dual 120/277 voltage standard. Optional 120/347V (for Canada) and multi-tap 208/220/240 voltage available.
Remote capacity standard.
Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
3.6V long life, maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Surface mount via easy connect back plate, which fits most 2½” 1¾” standard junction boxes and snaps into place making internal electrical connections.
Suitable for wall or ceiling mount.
Top and side knockout for conduit applications.
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
Options
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
HL: 12-LED heads provide increased center-to-center spacing (1.5W per head).
SPV: UL Listed for special voltage option.
CSA: Tested 120/347V to meet requirements of CSA C22.2 No. 141.10 standard for emergency lighting equipment.
CEC: Certified to CEC under Title 20 Regulations.
USA: Substantial transformation assembly in U.S. complies with “Assembled in USA” under the Buy American Act.
Five year warranty on all electronics and housing. Battery pro rated for five years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
UL (standard)/CSA (optional) listed for damp locations (0°C – 50°C).
