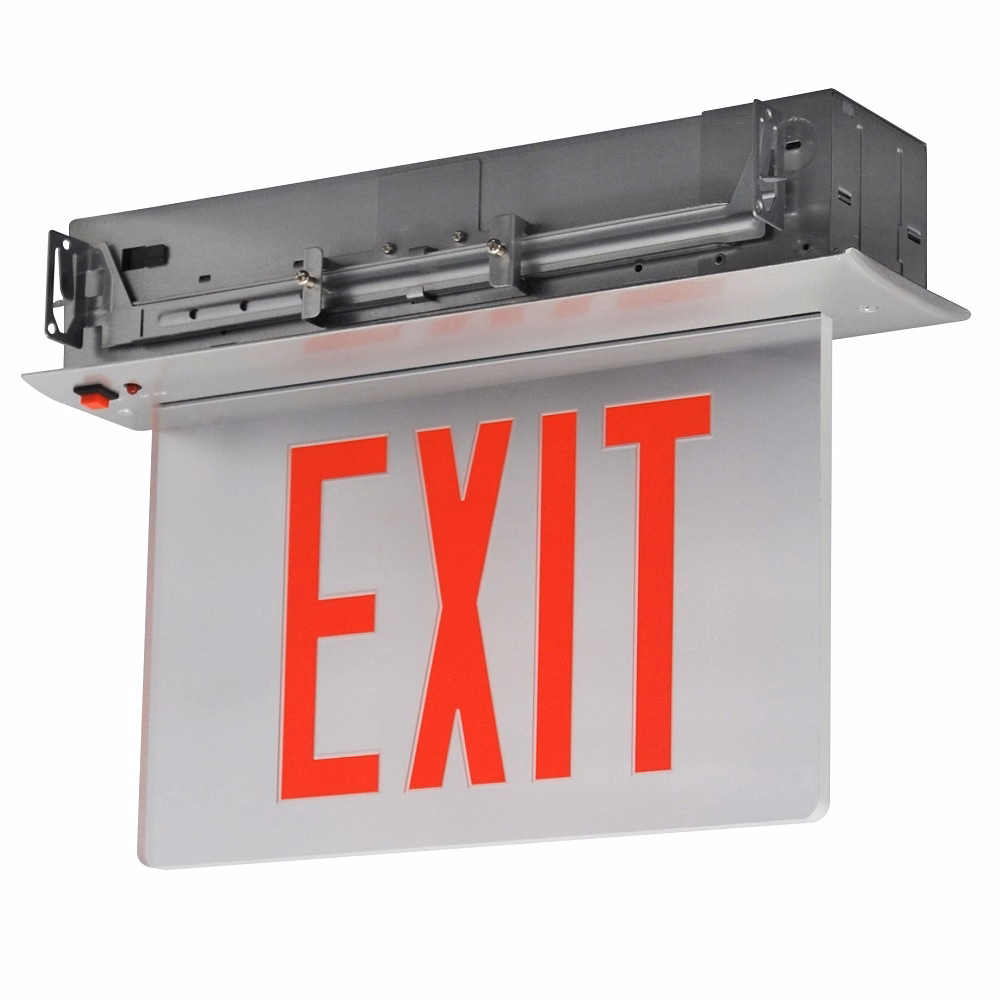

The RELZXTE is a recessed edgelit aluminum LED exit sign built around a UV-stabilized, ultra-clear acrylic edgelit panel for consistent, uniform illumination with ultra-bright, energy-efficient, long-life Red or Green LED lettering. It’s available in Single Face or Double Face configuration, with the Double Face version utilizing a factory-installed silver or white mylar background panel. Choose a Clear, Mirror, or White edgelit panel (Clear is available on Single Face units only), and a premium-grade extruded aluminum housing with an easily detachable trim assembly in White, Black, or natural Aluminum finish for simple service and maintenance access. The sign is designed for drywall or drop-ceiling recessed mount, with bar hangers included; the optional WM (Wall Mount) accessory allows the unit to be wall recessed mounted instead. Self-adhesive Chevron appliques and a guide template are provided for directional indication. Dual 120/277V input voltage is standard. Choose the AC-only version for continuously powered signage, or the Battery Backup (EM) version, which adds a 4.8V long-life, maintenance-free rechargeable NiCd battery with an internal solid-state transfer switch for a minimum of 90 minutes of emergency illumination on power loss, a fully automatic two-rate charger that recharges a discharged battery within 24 hours, and a charge-rate/power “ON” LED indicator light with a push-to-test switch for mandated code compliance testing.
Mandated emergency egress and exit-route identification for offices, retail, healthcare, education, hospitality, and other commercial interiors where a clean, flush-recessed edgelit exit sign is preferred over a surface- or edge-mounted unit — including drywall and drop-ceiling installations, or wall-recessed applications with the optional WM accessory.
| Attribute | Value |
|---|---|
| Brand | ONE SOURCE LIGHT |
| Product Type | Recessed Edgelit Aluminum LED Exit Sign, Optional Battery Backup |
| Model Series | RELZXTE |
| No. of Faces | Single Face or Double Face (selected at order; see Variations) |
| Voltage | Dual 120/277V |
| Letter Color | Red or Green (selected at order; see Variations) |
| Edgelit Panel | Clear (Single Face only), Mirror, or White (selected at order; see Variations) |
| Trim Plate Color | White, Black, or Aluminum natural finish (selected at order; see Variations) |
| Battery / Power Type | AC-only or Battery Backup, EM (selected at order; see Variations) |
| Directional Indication | Self-adhesive Chevron appliques and guide template |
| Mounting | Drywall or drop-ceiling recessed mount with bar hangers included; optional WM accessory for wall recessed mount |
| Battery (EM version) | 4.8V rechargeable NiCd, maintenance-free |
| Emergency Runtime (EM version) | Minimum 90 minutes on battery backup |
| Recharge Time (EM version) | 24 hours from fully discharged |
| Electrical Draw | 3.6W / 0.030A at 120V; 4.0W / 0.020A at 277V (standard dual-voltage figure, consistent across both published catalog rows — see note below) |
| Material / Construction | Premium-grade extruded aluminum housing with detachable trim assembly (White, Black, or natural Aluminum finish); UV-stabilized, ultra-clear acrylic edgelit panel |
| Overall Dimensions | 15-3/4″ W × 11-1/2″ H × 4-1/2″ D |
| Environment Rating | UL Listed for damp locations, 0°C to 50°C (32°F to 122°F) |
| Certifications / Listings | UL Listed for damp locations; meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes; California Energy Commission compliant |
| Warranty | 5 year limited on electronics and housing; battery prorated for 5 years |
| Attribute | Options |
|---|---|
| No. of Faces | Single Face (1) or Double Face (2) |
| Letter Color | Red (R) or Green (G) |
| Panel | Clear (C) — Single Face only; Mirror (M); White (W) |
| Trim Plate Color | White (W), Black (B), or Aluminum (A) |
| Battery / Power Type | AC-only (blank) or Battery Backup, EM |
Catalog numbers concatenate Model + No. of Faces + Letter Color + Panel + Trim Plate Color + Battery. A few worked examples:
| Catalog Number | No. of Faces | Letter Color | Panel | Trim Plate Color | Battery / Power Type |
|---|---|---|---|---|---|
| RELZXTE1RCW | Single Face | Red | Clear | White | AC-only |
| RELZXTE1RCWEM | Single Face | Red | Clear | White | Battery Backup (EM) |
| RELZXTE2GMBEM | Double Face | Green | Mirror | Black | Battery Backup (EM) |
| RELZXTE2RWA | Double Face | Red | White | Aluminum | AC-only |
