Description

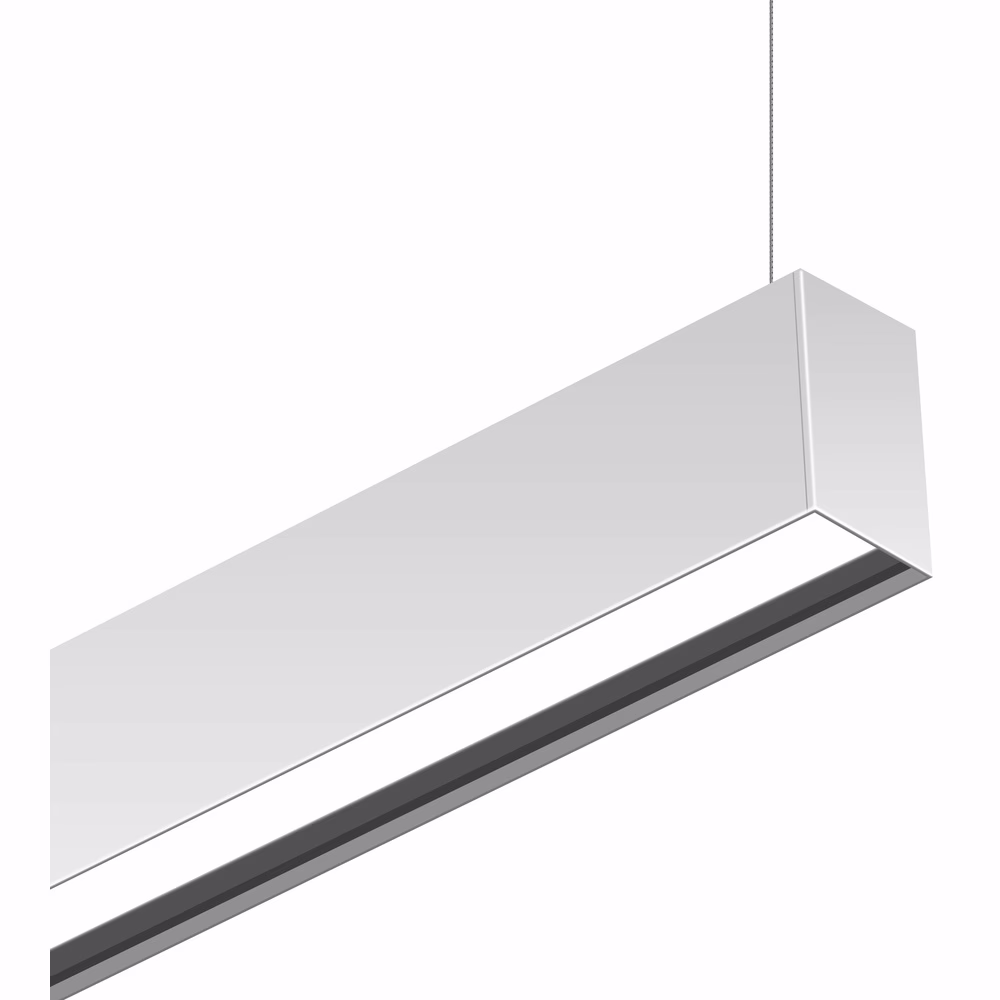

The Zeta 2.3″ Regressed Lens Linear Pendant Light brings clean, architectural linear lighting to offices, retail, and hospitality spaces, with a low-profile regressed lens that controls glare while still delivering wide, even light. Field-adjustable wattage, CCT, and light distribution via a visible dip switch let you dial in the exact look on site, and 0-10V dimming rounds out a fixture built for demanding commercial applications.

• Regressed lens (white shade) for controlled, glare-reduced illumination
• Extruded aluminum housing
• 90+ CRI
• CCT adjustable: 3000K / 3500K / 4000K, via visible dip switch
• Wattage adjustable via visible dip switch — 3 selectable tiers per length, see Variations table
• 5 embedded lighting distributions, adjustable via dip switch: 100% uplight, 30% down/70% up, 50% down/50% up, 70% down/30% up, 100% downlight
• 0-10V dimming, dims to 10% standard (dims to 1% available)
• Up to 8800 lumens (8′ length, max wattage, 4000K, white finish — see Variations table for all lengths)
• Available in 2′, 3′, 4′, and 8′ lengths, in White or Black finish

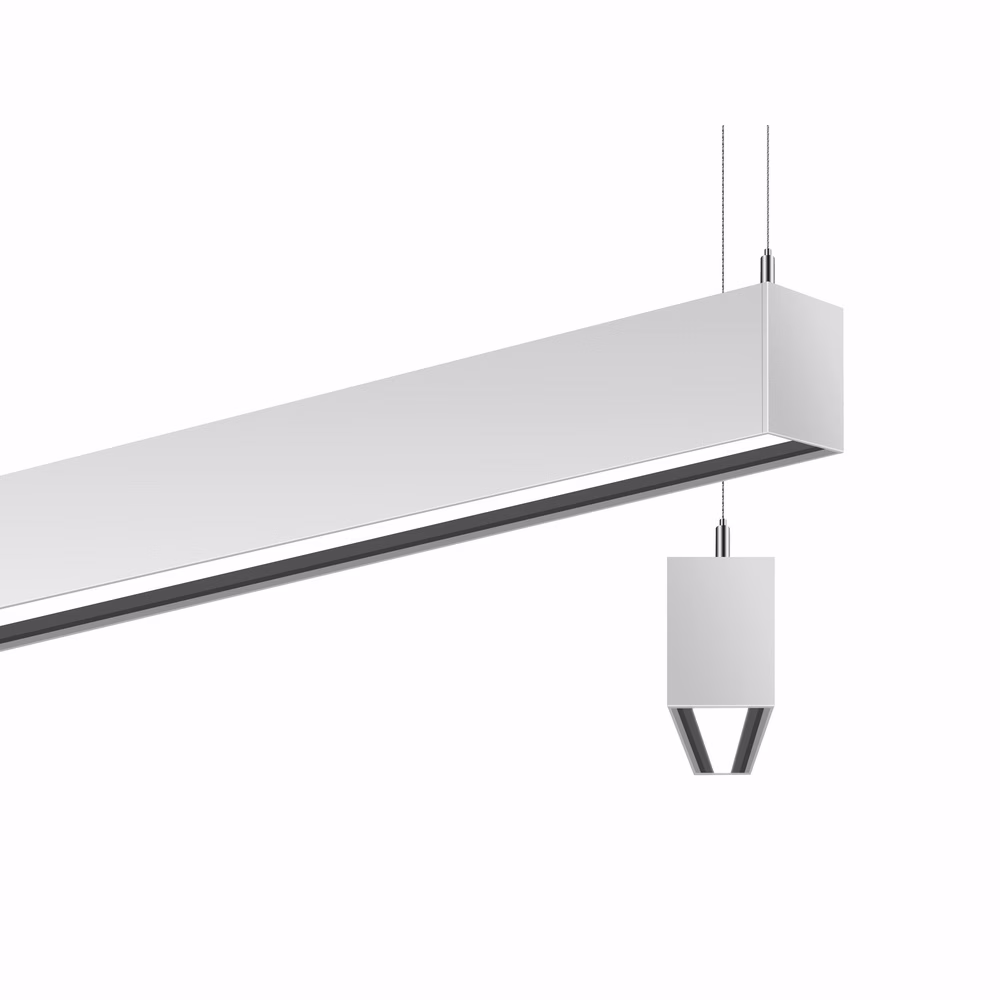

• Individual units or continuous runs, with optional Line, L, T, Y, V, Z, and + joiners for custom patterns
• Suspended/pendant mount; compatible with dry ceiling (J-box) and drop ceiling (T-grid) mounting via optional canopy, power cord, and aircraft cable accessories (ordered separately)
• Damp rated, -20°C to 40°C (-4°F to 104°F) ambient operating range
• 110-277V AC input
• UL Listed

Applications

Offices, conference rooms, retail, and hospitality spaces calling for architectural linear ambient lighting with on-site adjustable wattage, color temperature, and light distribution.

Product Attributes

Variations
