Description

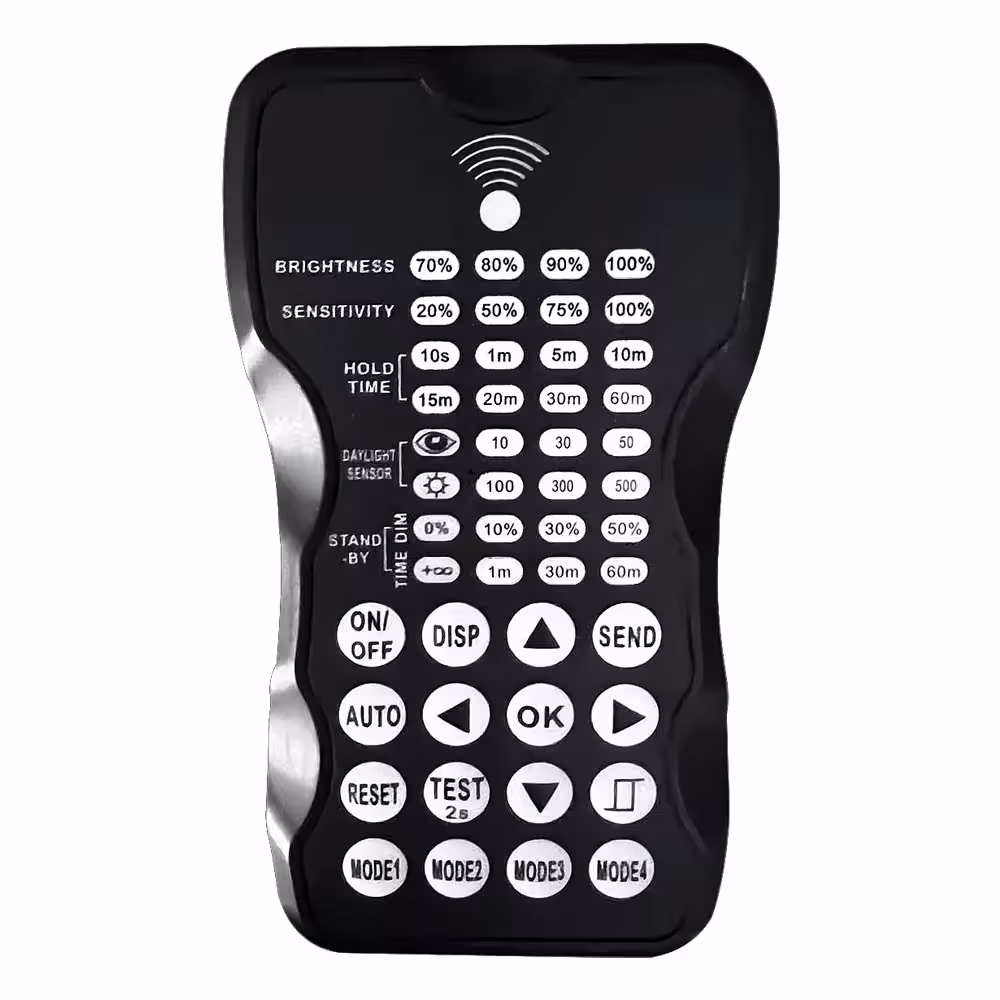

The RC-100 is a handheld wireless IR remote programmer for configuring IR-enabled fixture-integrated sensors like the BRI810-C-F, without ladders or tools. It reads a sensor’s current settings, lets you change them with simple pushbuttons, and uploads the new parameters back to the sensor from up to 50 feet away. It stores up to four sensor parameter profiles (Scene Modes), making it easy to duplicate identical settings across many fixtures on a project rather than programming each one by hand.

• Wireless IR configuration tool for IR-enabled fixture-integrated sensors (compatible with the BRI810-C-F line voltage microwave bi-level sensor)
• Reads, copies, and uploads sensor parameters from up to 15m (50ft) away
• Stores up to 4 sensor parameter profiles (Scene Modes 1-4) for quickly duplicating settings across multiple sensors on a site
• Adjustable parameters: brightness (occupied output trim), sensitivity, hold time, stand-by dim level, stand-by time, and daylight sensor threshold
• ON/OFF button forces a connected sensor to permanent on or permanent off (disabling automatic operation); AUTO restores normal sensor function
• DISP button displays the sensor’s current/latest settings on the remote’s LED indicators
• TEST button runs a 2-second sensitivity test mode with stand-by time and daylight sensor temporarily disabled
• RESET returns a sensor’s settings back to its onboard DIP switch settings
• Smart Daylight Sensor mode (disabled by default): independently sets separate lux thresholds for turning the light on vs. off, overriding the sensor’s normal photocell behavior; when enabled, stand-by time is fixed at infinite
• Corridor Function support: configures a three-level lighting scheme (full brightness, dimmed, off) with separate motion hold time and stand-by period settings, for spaces needing a light change notice before switch-off
• 4 pre-loadable Scene Modes (3 indoor, 1 outdoor) with adjustable brightness, detection area, hold time, stand-by time, stand-by dim level, and daylight sensor settings, each individually customizable and savable
• Upload function pushes either the current on-screen settings or a saved Scene Mode to one or multiple sensors in sequence
• Includes a carrying case
• Powered by 2 x AAA 1.5V batteries (alkaline preferred); remove batteries if the remote will be unused for 30 days
• Operating temperature: 0°C to 50°C (32°F to 122°F)

Applications

Configuring and reconfiguring IR-enabled occupancy/daylight sensors such as the BRI810-C-F without physical access to the fixture, and duplicating identical sensor settings across many fixtures on a project.
