LED Architectural Linear Light 2.3-Inch 8FT

Products

Size

CCT

Clear

Bulk deal

Volume pricing for contractors. Discounts apply automatically at checkout.

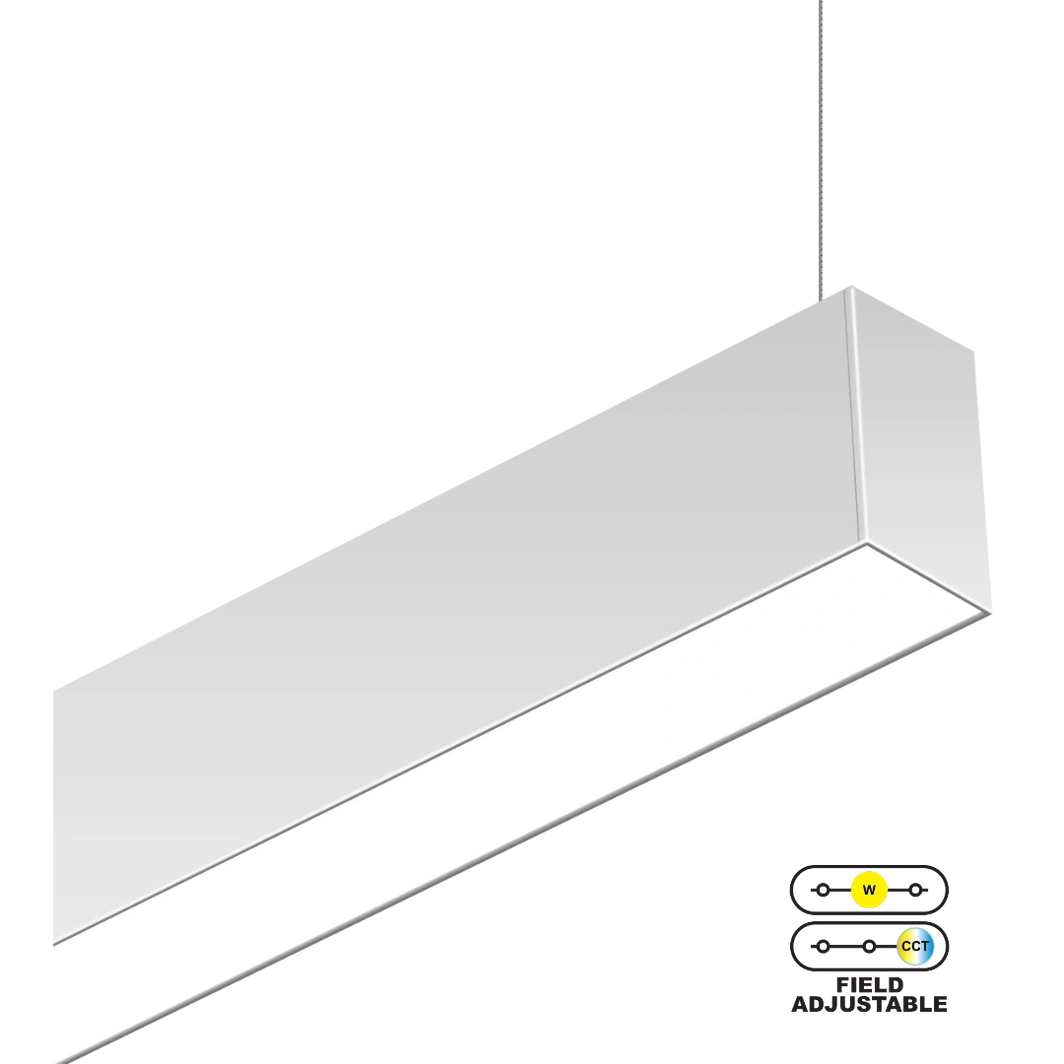

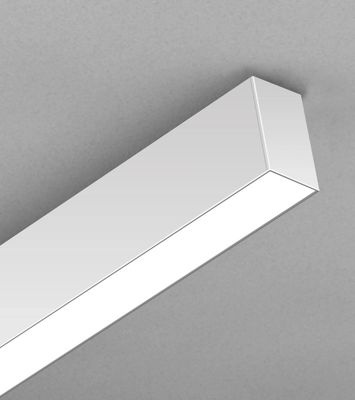

LED Architectural pendant linear light (optional surface & wall mount available)
Available in 2,3,4,8ft

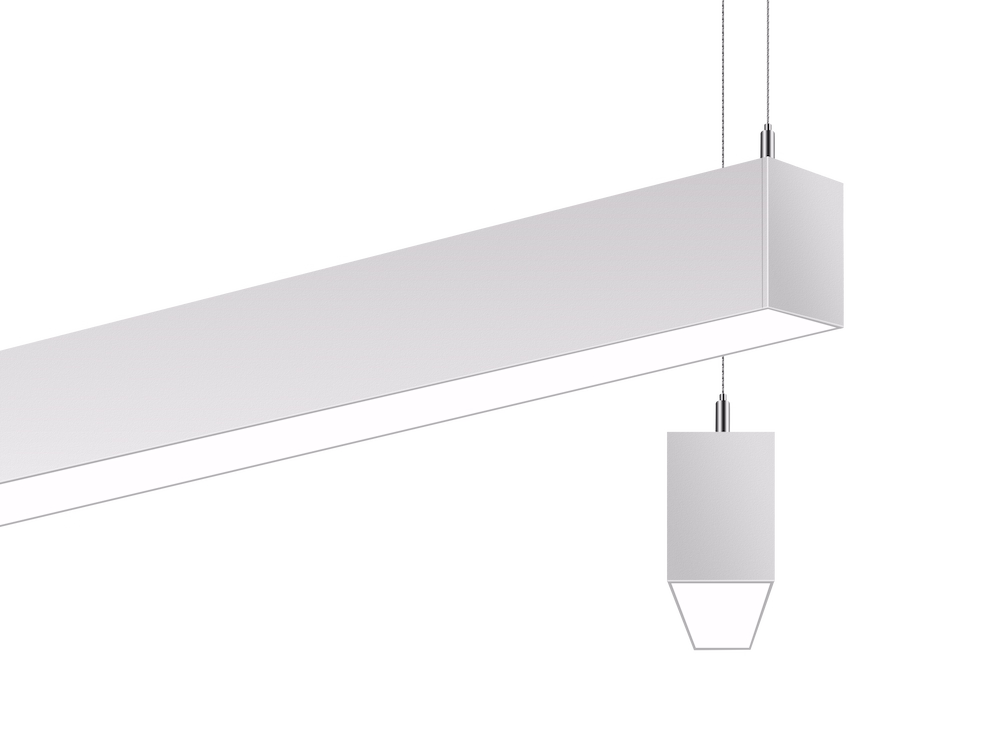

Available for pendant (5ft cord and aircraft cable included as standard), surface
(kit sold separately) or wall (kit sold separately) mount

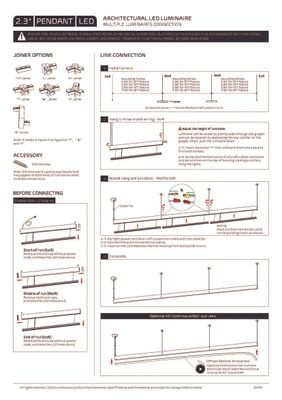

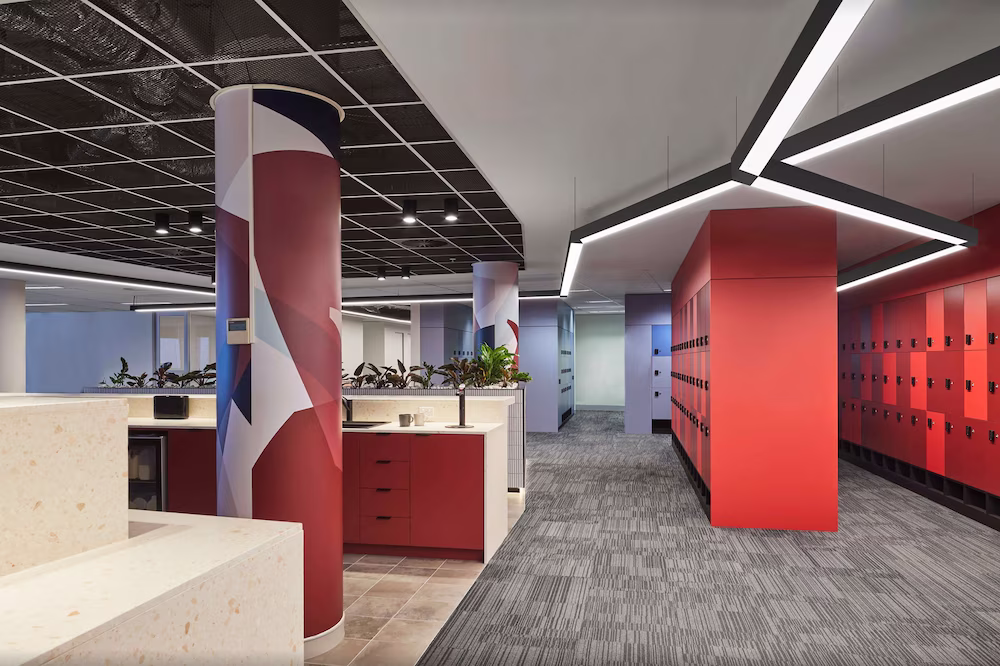

Innovative joining design for easy continuous run in the field (optional joiner available)

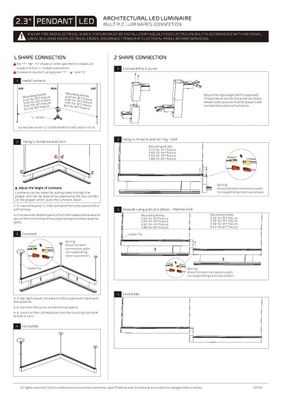

Available joiners : In-line, L, Y, T, X, Z (Non-lit)
Rolling diffuser lens available (optional)
Internal LED driver
Compatible with hard ceiling(standard) and drop ceiling(optional)
CCT selectable from 3000K, 3500K and 4000K
8ft : 40/60/80W Selectable (4,600/6,960/9,200LM)
115 lumen per watt
Dip switch for field adjustable 7 light distributions : 100% Down, 90% Down 10% Up, 70% Down 30% Up, 50% Down 50% Up, 30% Down 70% Up, 10% Down 90% Up, 100% Up
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
Includes power cord and aircraft cable
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	ZE-ITWAD-8FT
SKU	OSL-ZE-82-ITWAD
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	40/60/80W Field Selectable
LPW	115
Fixture Type	Linear Architectural

Lumens	4,600/6,960/9,200 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White or Black

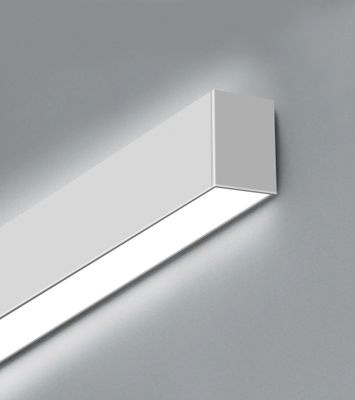

Mounting	Pendant, Surface or Wall Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	PMMA

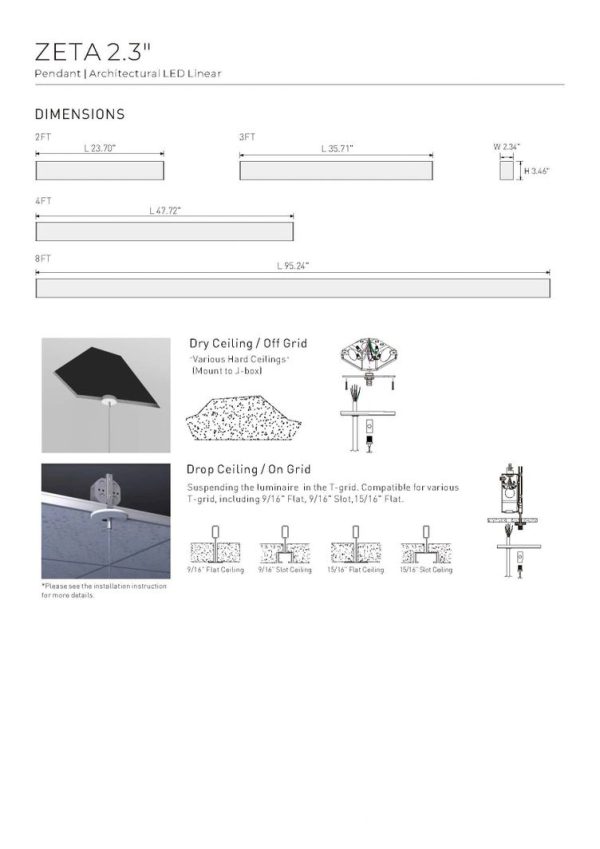

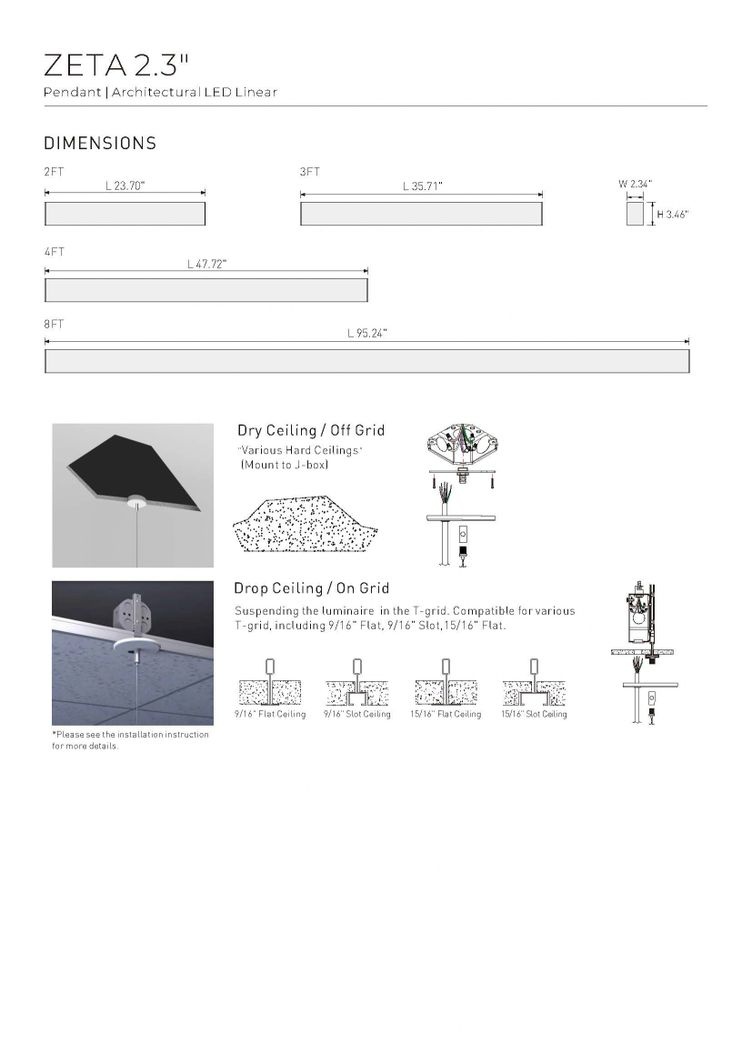

Length	95.24 in.
Height	3.46 in.
Width	2.34 in.
Package Quantity	1
Weight
Warranty	5-Year Limited

There are no reviews yet. Be the first one to write one.
