LED Zeta Linear 2.3" Deep Regressed Pendant & Surface 4FT (OSL-ZE-ITWAT)

Products

Size

CCT

Clear

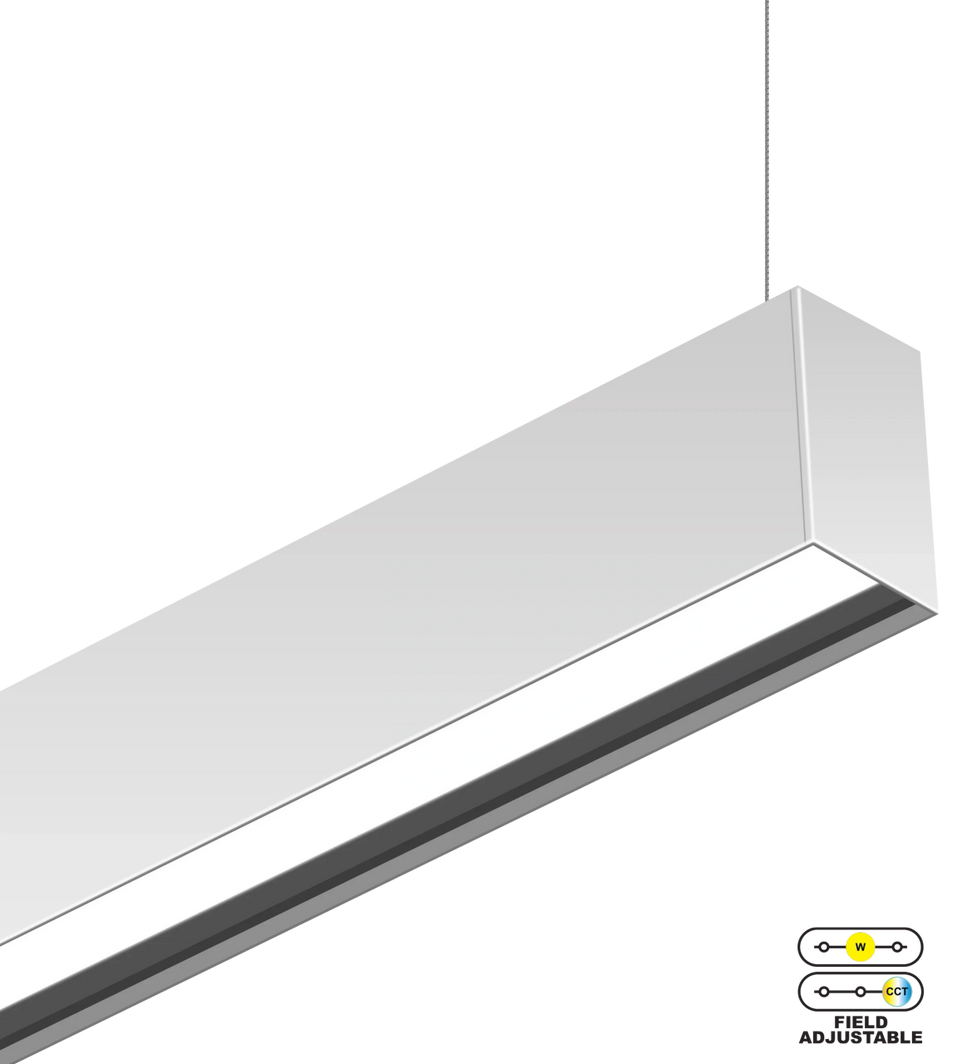

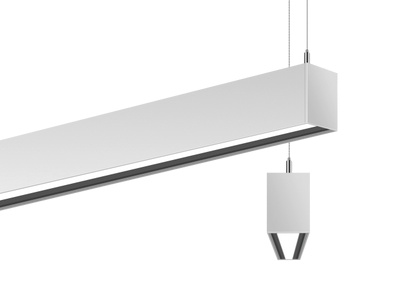

LED Architectural pendant linear light (optional surface & wall mount available)
Available in 4ft

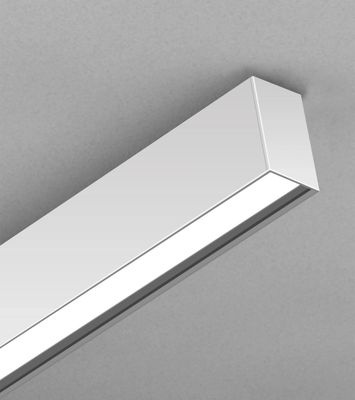

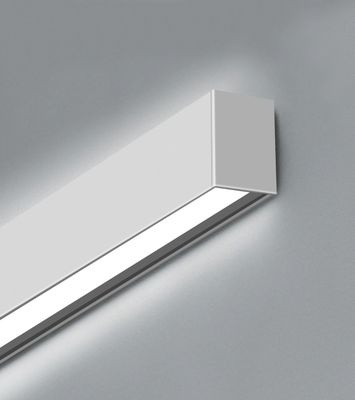

Available for pendant (5ft cord and aircraft cable included as standard), surface (kit sold separately) or wall (kit sold separately) mount

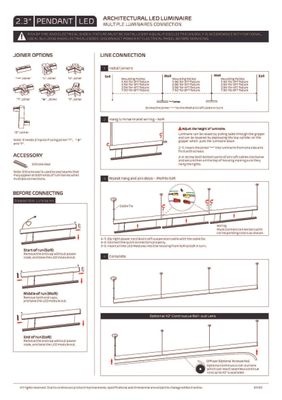

Innovative joining design for easy continuous run in the field (optional joiner available)
Available joiners : In-line, L, Y, T, X, Z
Internal LED driver
Compatible with hard ceiling(standard) and drop ceiling(optional)
CCT selectable from 3000K, 3500K and 4000K
4ft : 20/30/40W Selectable (1,900/2,840/3,800lm)
95 lumen per watt
Comes with a dip switch for 7 light distribution options : 100% Down, 90% Down 10% Up, 70% Down 30% Up, 50% Down 50% Up, 30% Down 70% Up, 10% Down 90% Up, 100% Up
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
Includes power cord and aircraft cable (5ft length standard. Optional 12ft available)
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	ZE-42-ITWAT
SKU	OSL-ZE-42-ITWAT
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	20/30/40W Field Selectable
LPW	95
Fixture Type	Linear Architectural

Lumens	1,900/2,840/3,800 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White or Black
Mounting	Pendant, Surface or Wall Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	PMMA

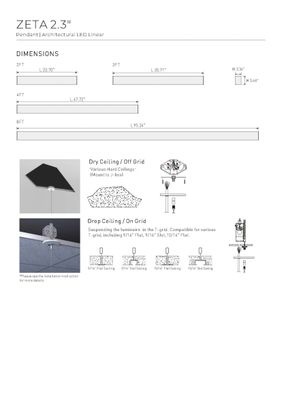

Length	47.72 in.
Height	3.46 in.
Width	2.34 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
