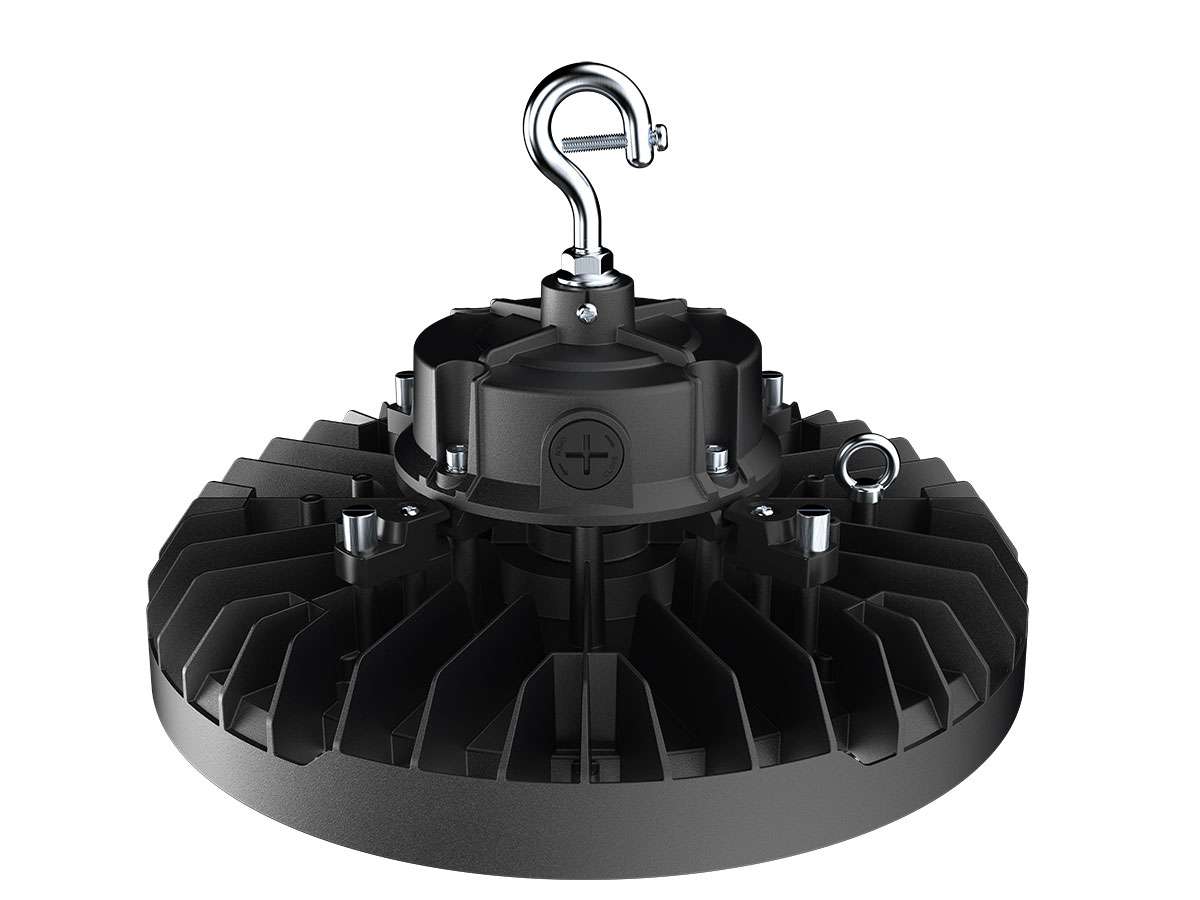

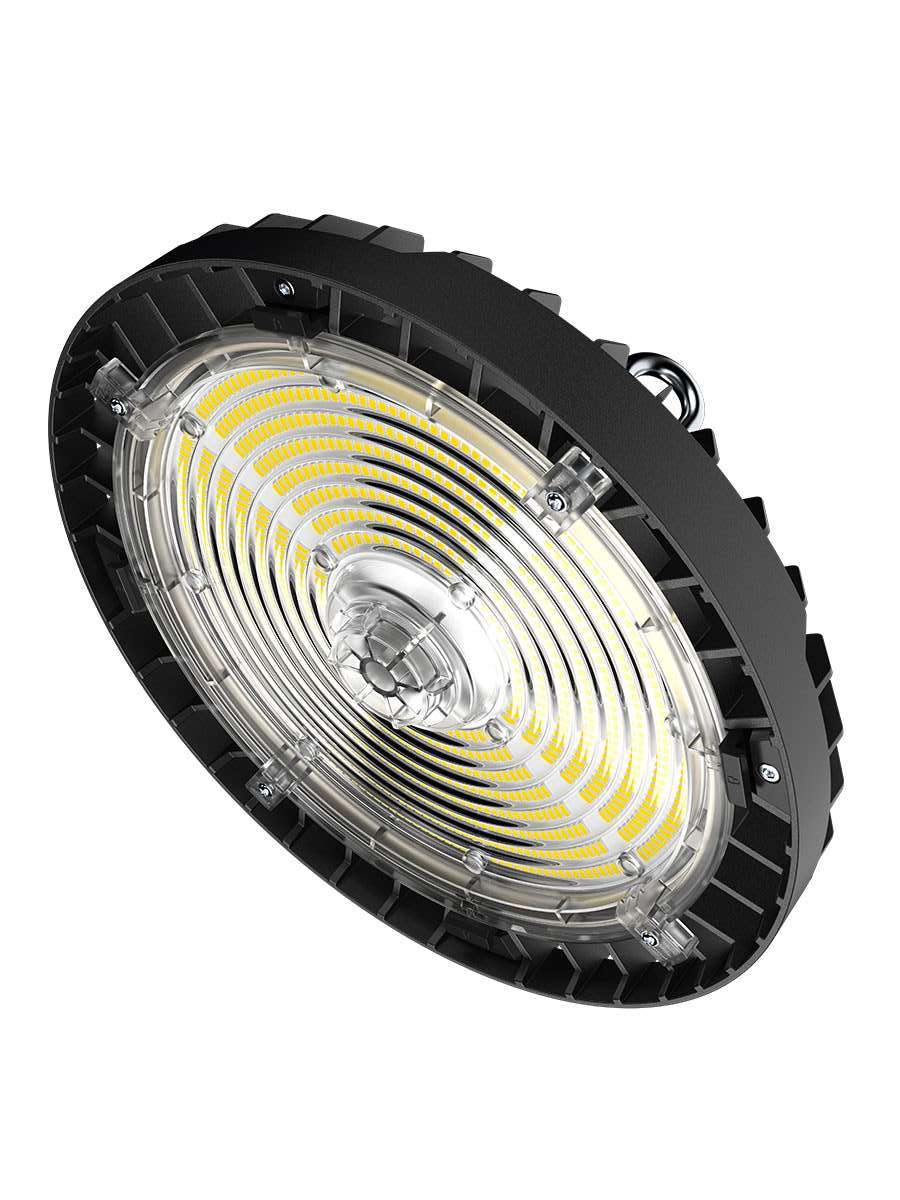

J-UFO12 LED UFO High Bay

Wattage & CCT Selectable | 100W–150W | Up to 145 LM/W | ETL & DLC Listed

Key Features

• Wattage Selectable: 100W / 120W / 150W
• CCT Selectable: 3000K / 4000K / 5000K
• High Efficacy: Up to 145 lm/W
• CRI: >80
• Input Voltage Options: AC120–277V; AC277–480V
• Lens: UV Stabilized Polycarbonate (IK08)
• LED Source: Lumileds
• Warranty: 5-Year Warranty
• Listings: ETL & DLC
• Sensor Compatible: Plug & Play (3-second install)

Construction

• Die-cast aluminum housing with powder coat finish
• UV stabilized polycarbonate lens
• Double switch design (Wattage & CCT selectable)
• Complete accessories available (optional)

Electrical Specifications

Lumen Output (By Wattage)

100W / 120W / 150W Adjustable

• 100W = 14,000 lumens
• 120W = 16,800 lumens
• 150W = 21,000 lumens

Applications

• Warehouses
• Manufacturing Facilities
• Airports
• Industrial Buildings
• Gymnasiums
• Distribution Centers

Installation Options

• Hook Mount
• U-Bracket Surface Mount
• Pipe Mount (Converter options: G1/2 or G3/4)

Wiring

• Black/Brown: L
• White/Blue: N
• Green/Green-Yellow: PE
• Purple: DIM+
• Pink: DIM-

Dimensions

Accessories (Optional)

• PC Reflector

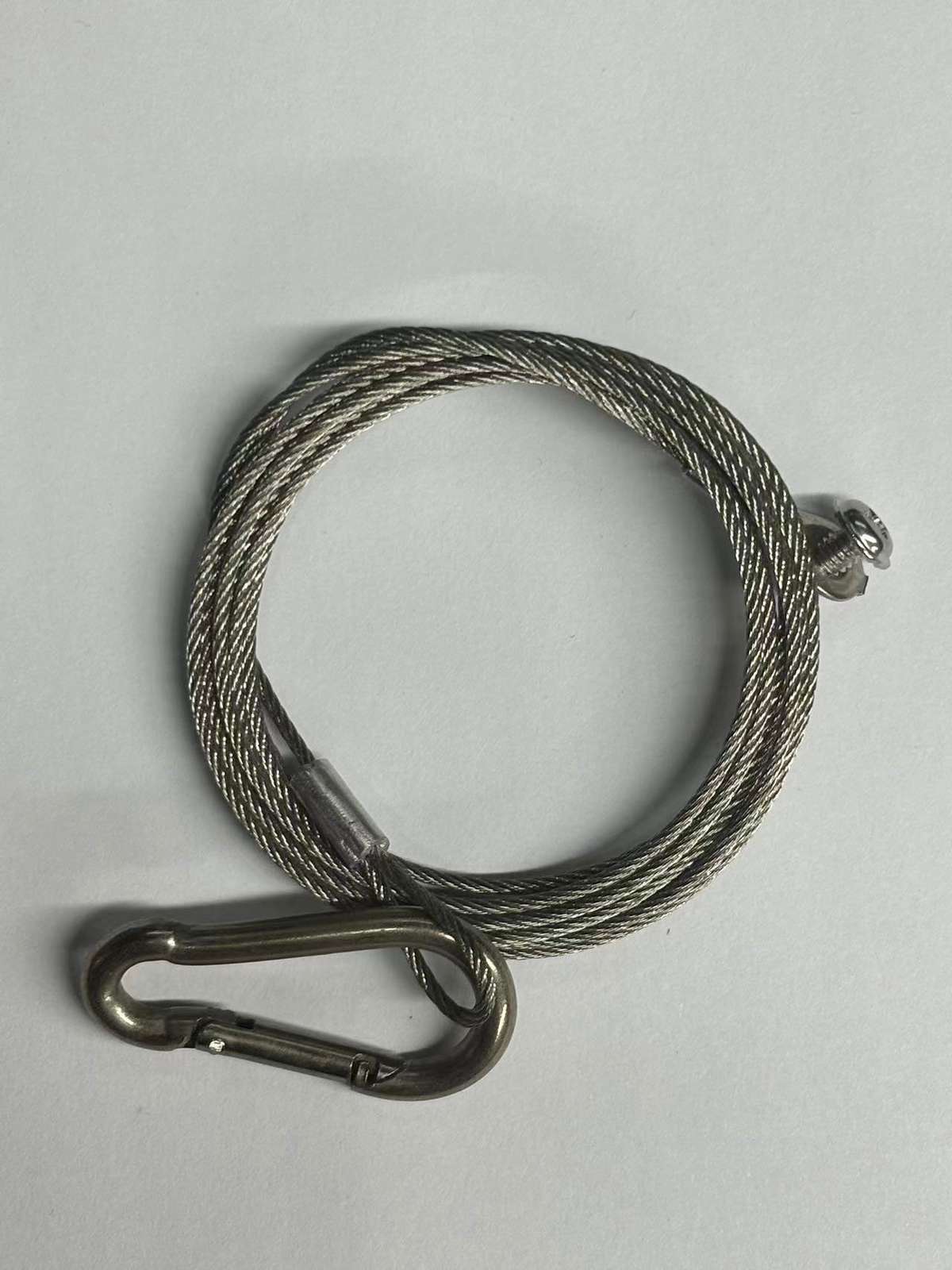

• Safety Rope

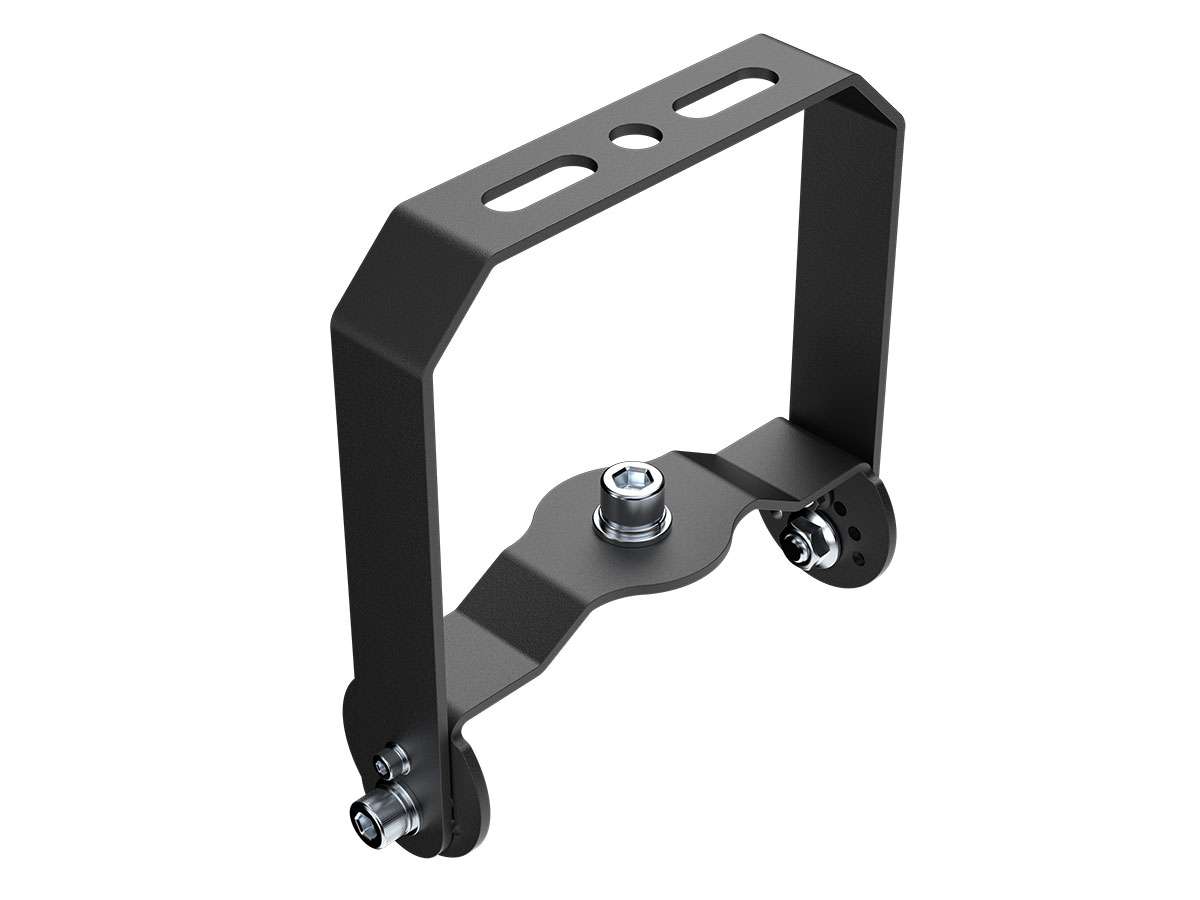

• U Bracket
• Sensor
• Emergency Backup

Ordering Information

Packing Information
