LED Slim Linear Surface 4FT (OSL-LS)

RESOURCES & DOWNLOADS

(0 Reviews)

$118.00

  • *Size

    *CCT

    *Size & Wattage

    Reset options

    8W Emergency Battery Backup (Field Install) (optional)

Details



    Description

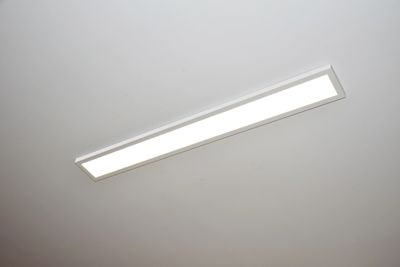

  • LED Architectural surface linear light  (Click here for recessed mount version)
  • Extruded aluminum housing
  • Ultra-thin profile (0.94″)
  • Available in 4ft
  • Innovative slim and linear design for easy installation in the field
  • Available sizes: 4ft x 4in
  • Internal LED driver
  • Surface mount
  • CCT selectable from 3000K, 3500K and 4000K
  • 4ft x 4in : 20/30/40W Selectable (1,680/2,520/3,400lm) – 85lm/w
  • 120-277V AC Input
  • 1-10V Continuous Dim
  • Minimum 80 CRI
  • UL Listed for damp location
  • 50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
  • 5 years warranty

   Product Attributes

Brand ONE SOURCE LIGHT
MPN (Part No.) LS44-XXT
SKU OSL-LS44
DLC Part Number
Lighting Technology LED
LED Chip Type
Dimmable Yes
CRI 80+
Color Warm/Natural White Field Selectable
Color Temperature 3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours 50,000
Wattage 20/30/40W Field Selectable
LPW 85
Fixture Type Flat Panel
Lumens 1,680/2,520/3,400 Lumen Field Selectable
Voltage 110-277V AC Input
Ratings and Certifications Damp Location UL
Finish White
Mounting Surface Mount
Surge Protection
Operating Temp -20°C ~ 40°C (-4°F ~ 104°F)
Lens
Length 47.76 in.
Height 0.94 in.
Width 4.24 in.
Package Quantity 1
Weight
Warranty 5-Year Limited
